Quick-Reference Spec Floor for Broadcast LED Video Walls

Why Standard LED Displays Fail in Broadcast Environments (And What “Broadcast-Grade” Actually Means)

Walk into any trade show and every LED vendor claims their product is “broadcast-grade.” Almost none of them can define what that means in engineering terms. Based on our experience with broadcast studio deployments across North America, Europe, and Southeast Asia, the failure points cluster around a single truth: standard commercial LED displays are designed for human eyes, not camera sensors. These are fundamentally different optical systems, and confusing them is the most expensive specification error an integrator can make.

The human visual system has a flicker-fusion threshold of approximately 50–60 Hz. A display running at 960 Hz looks perfectly smooth to any observer in the studio. A Sony FX9 or ARRI Alexa Mini LF operating at a 1/500s shutter speed, however, will expose each frame while the LED panel’s Pulse-Width Modulation (PWM) cycle is mid-pulse—capturing a partial illumination state that renders on screen as a rolling dark band or scan line. This is not a camera defect. It is a fundamental physics mismatch between PWM dimming frequency and camera shutter timing.

The fix is not complicated, but it must be specified upfront. A display running at ≥3,840 Hz PWM refresh will complete multiple full cycles within even the shortest professional shutter duration, eliminating visible artifacts across every standard frame rate from 24fps to 120fps. A 1,920 Hz display—common in mid-range commercial signage—will fail this test at multiple shutter speeds. The cost difference between driver IC tiers that deliver 1,920 Hz versus 3,840 Hz is approximately $15–$45 per square meter. On a 40m² news studio backdrop, that is a $600–$1,800 delta. Compared to the cost of a re-shoot, a damaged client relationship, or a live broadcast incident, it is the single highest-ROI line item in the specification.

The Hidden Camera-LED Compatibility Chain Most Vendors Never Explain

The refresh rate conversation is necessary but not sufficient. Moiré effects—the shimmering wave patterns that appear when a camera sensor’s pixel grid interferes with the LED panel’s pixel structure—are a spatial problem, not a temporal one. They require a separate solution: pixel pitch selection based on actual camera-to-wall distance and lens focal length in use.

Camera Sensor to LED Compatibility Chain:

1. Camera sensor pixel pitch
2. LED panel pixel pitch
3. Shooting distance
4. Lens MTF
5. Moiré risk

A P2.5 panel looks pristine to a camera locked at 5 meters on a wide angle. Zoom that lens to 85mm for a talent close-up and the LED background is now resolving at effective distances under 2 meters—and moiré may appear. This is why broadcast studio specifications always require tighter pitch (P1.2–P1.5) than a comparable control room installation, despite similar physical viewing distances. Cameras zoom unpredictably. The specification must account for worst-case focal length, not average.

The third variable in the chain is Genlock. Even with correct pixel pitch and high PWM frequency, a display running in “free-running” mode—where its refresh cycle is independent of the camera’s frame timing—can produce intermittent rolling bars on certain frame rates. Genlock synchronizes the LED wall’s internal clock to the broadcast reference signal, locking refresh to camera frame rate and eliminating the frame-timing mismatch entirely. Any broadcaster screen deployed in a live production environment without Genlock capability is operating with an unacceptable technical risk.

How to Verify a Vendor’s “Broadcast-Grade” Claim — The 5-Point Engineering Checklist

Before issuing an RFQ, require documented answers to these five questions:

1. PWM Refresh Rate at Minimum Brightness — Many panels achieve high refresh rates at full brightness but drop to 960 Hz or 1,920 Hz when dimmed below 30%. Studio environments routinely operate at 20–40% brightness. Request data across the full dimming curve.
2. Genlock Input Type — Confirm support for Tri-Sync (NTSC/PAL black burst) or Bi-Sync (HD tri-level). Generic HDMI sync is insufficient for broadcast-grade deployment.
3. Factory Calibration Report (Rec.709) — Ask for per-panel Delta E ≤1 calibration certificates traceable to the D65 white point reference. “Color accurate” without a certificate is marketing language, not an engineering commitment.
4. Matte Black Mask Reflectance Value — The physical mask material between LED pixels should have surface reflectance ≤5%. Ask for the measured value. High-gloss masks will produce specular hotspots under studio lighting that no color grading pipeline can correct.
5. Hot-Swap Redundancy Architecture — Confirm N+1 power supply configuration and dual independent signal path with automatic failover. Ask specifically: “What is the failover time in frames if the primary signal processor fails?” The correct answer is zero perceptible frames.

Fine Pitch LED for Studio: Choosing the Right Pixel Pitch for Your Camera Distance

Pixel pitch selection for a TV studio display is not a resolution exercise—it is a risk management exercise. The question is not “how sharp does it look?” The question is “at what minimum camera-to-wall distance and maximum zoom level can this display perform without moiré under any shooting condition?”

The Pixel Pitch–Viewing Distance Formula—And Why Broadcast Breaks the Rules

The standard industry formula (minimum viewing distance in meters = pixel pitch in mm × 1,000 / 1,000 = pitch in mm × a correction factor) gives clean, predictable results for fixed-audience environments like control rooms and corporate lobbies. Broadcast studios violate nearly every assumption that formula relies on.

In a control room, the operator’s viewing position is known and fixed. In a live studio, the camera operator adjusts zoom in real time, the director calls unexpected tight shots, and a handheld camera may swing within 1.5 meters of the background during a walk-and-talk segment. The display must resolve cleanly under all of these conditions simultaneously.

Pixel Pitch Comparison for Broadcast Studio Applications

For most broadcast studio primary backgrounds—the curved LED wall behind a news anchor, the IMAG display on a live event stage, the background volume in an XR production—P1.5 represents the optimal price-to-performance threshold. It safely accommodates telephoto close-ups from 1.5 meters while avoiding the thermal management complexity and higher cost of sub-P1.2 configurations.

One critical packaging consideration for 2026 specifications: COB (Chip-on-Board) technology, where LED chips are bonded directly to the PCB and sealed with epoxy resin, offers meaningfully superior moiré resistance compared to traditional SMD packaging at equivalent pixel pitches. COB eliminates the visible black gap structure between individual LEDs that creates the spatial frequency interference responsible for camera moiré. For broadcast applications where the display occupies more than 50% of camera frame, COB at P1.5 outperforms SMD at P1.2—and at lower total cost.

The Recommended Solution: Sostron Carbon Pro & Hima XR Series for Broadcast Studio Environments

Based on the technical requirements outlined above, two product families from Sostron’s lineup are specifically engineered to meet broadcast-grade deployment standards.

Sostron Carbon Pro

Sostron Carbon Pro is the benchmark for studio, touring, and XR virtual production environments requiring camera-ready display performance. The Carbon Pro achieves a 3,840–7,680 Hz refresh rate range using high-end driver ICs (MBI-tier), which eliminates scan line artifacts across all professional camera shutter configurations from 1/50s to 1/1000s. Its PWM architecture maintains this performance at low brightness levels—a non-negotiable requirement for studio environments where ambient light control and camera exposure balance dictate display output levels as low as 20% rated brightness.

The Carbon Pro’s carbon fiber panel construction serves a dual engineering function that standard aluminum cabinets cannot match.

Thermal Stability

First, the near-zero thermal expansion coefficient of carbon fiber maintains panel flatness—and therefore seamless visual uniformity—under the sustained heat output of professional studio lighting rigs, where die-cast aluminum cabinets can exhibit thermal gap expansion visible as luminance seams on camera.

Lightweight Structure

Second, at 5kg per panel (approximately 40% lighter than equivalent aluminum), the Carbon Pro allows larger hanging arrays in venues with structural weight constraints, directly expanding the usable backdrop dimensions for studio designers.

Sostron Hima Series XR LED Display

For virtual production stages, XR studios, and broadcast environments requiring extended-reality integration, the Sostron Hima Series XR LED Display delivers the full technical package for real-time rendering workflows.

With full-black LED technology for maximum native contrast, genlock-compatible processing support, and a modular architecture that accommodates right-angle cube configurations, floor panels, and curved volumes—the Hima Series enables production teams to build any spatial geometry required by modern LED volume shooting methodology.

Real-World Validation: Virtual Production Studio Deployment

The adoption of XR LED technology for broadcast and virtual production has accelerated dramatically.

When Disney’s The Mandalorian production team deployed large-scale LED volumes at Manhattan Beach Studios, the key technical requirements were identical to those governing any broadcast studio display:

• Refresh rates fast enough for cinema cameras
• Color calibration to match the on-set lighting reference
• Zero tolerance for on-camera artifacts

The production validated that fine pitch LED—properly specified—could replace the entire green screen and location shooting pipeline for complex scene work.

Sostron’s deployment record in virtual studio and broadcast environments reflects this convergence of cinema and broadcast LED requirements. The company has supplied LED products to virtual studios internationally and delivered broadcast-facing rental configurations in European markets, supported by a 14-year manufacturing history at its 15,000m² Shenzhen facility.

For system integrators specifying studio installations requiring documented technical support infrastructure and global spare-parts availability, this operational depth translates directly into reduced project risk.

Broadcast Color Science—Why Rec.709 Calibration Is Non-Negotiable for Your TV Studio Display

Color is where the gap between “looks good on the show floor” and “performs correctly on air” becomes most expensive.

A broadcaster screen can have the right pixel pitch and a 7,680 Hz refresh rate and still deliver unacceptable output if its color engine is not calibrated to the ITU broadcast delivery chain.

D65 White Point and Broadcast Accuracy

Studio lighting designers build their rigs to a D65 white point reference—6,500 Kelvin color temperature, the standard baseline for Rec.709 HD broadcast and Rec.2020 UHD/HDR delivery.

If the LED wall‘s native white point is calibrated to 7,500K or 8,000K (which is common for displays optimized for retail brightness impact), every white region on that screen will read as a cold blue cast on camera.

The talent’s skin tones, color-corrected to D65 in post, will be out of balance with the background display.

Grading that inconsistency in a live broadcast environment is not possible. It must be resolved at the hardware specification stage.

Factory Calibration Requirements

Factory calibration to Rec.709 means each panel has been individually measured and adjusted so that:

• Primary color coordinates map to the ITU-R BT.709 gamut boundary
• White point lands on D65
• Delta E ≤1.0 across the full brightness range

A Delta E below 1.0 is imperceptible to the human eye and, critically, imperceptible to a calibrated broadcast camera.

This is not a theoretical standard. It is a deliverable that any broadcast-grade manufacturer should provide as a factory calibration certificate per panel, tied to individual serial numbers.

How Low-Reflection Anti-Glare Masks Protect Color Integrity Under Studio Lighting

A calibrated color engine can be partially defeated by the wrong mask material.

Studio environments deploy high-output tungsten, LED, or HMI fixtures at oblique angles to illuminate talent. When those fixtures strike a high-gloss LED mask surface, they produce specular reflections—localized bright hotspots that appear on camera as overexposed regions on the background display.

The effect is not subtle. It reads as blown-out white patches on the finished broadcast image, regardless of what content the display is actually showing.

Anti-Reflective Specification Requirements

Matte black mask surfaces with a measured reflectance value ≤5% absorb the majority of incident studio light rather than returning it toward the camera lens.

This is not an aesthetic preference—it is a measurable optical specification with a direct impact on broadcast image quality.

When specifying a fine pitch LED for studio use, require the mask reflectance value in writing alongside refresh rate and color calibration data.

A vendor who cannot provide this number is not operating at broadcast specification depth.

Broadcaster Screen Reliability—The Engineering Case for Dual Redundancy

For a DOOH installation or a corporate lobby display, a component failure means a dark screen until the maintenance team arrives.

For a live broadcaster screen during a network news program or a championship sports broadcast, the same event means an immediate, public, on-air failure.

These are categorically different risk profiles, and the engineering response must be proportional.

N+1 Hot-Swap Redundancy

N+1 hot-swap redundancy is the standard architecture for broadcast-critical LED installations.

It means every power supply unit and every signal processor in the system has an active backup that is live, synchronized, and capable of assuming full load within a single frame—or zero perceptible frames at the viewer level—if the primary component fails.

Broadcast LED Redundancy Architecture: Component-Level Requirements

Remote Monitoring and Predictive Maintenance

Remote monitoring completes the reliability picture.

Broadcast-grade LED deployments should include real-time panel health telemetry:

• Temperature monitoring
• Voltage monitoring
• Receiving card status monitoring

Predictive thermal alerts that flag a PSU approaching failure threshold before it fails are the difference between a scheduled maintenance window and an emergency during a live event.

5 Questions Broadcast Engineers Always Ask Before Specifying a Studio LED Wall

Q1: Our studio cameras shoot at both 25fps and 50fps. Will the same display work for both frame rates without re-configuration?

Yes—but only if the display’s PWM refresh rate is sufficiently high.

A 3,840 Hz system clears both 25fps and 50fps without artifact.

The processor’s Genlock input must accept both PAL-standard black burst (25/50Hz reference) and HD tri-level sync.

Confirm this dual-standard input capability before finalizing the specification.

Q2: We run ARRI Alexa cameras on our studio floor with variable shutter angles. What is the safe operating window?

At 3,840 Hz PWM and with Genlock active, shutter angles from 90° to 270° at standard frame rates (24/25/30/50/60fps) are generally artifact-free.

At 7,680 Hz, the safe window extends to 360° shutter at any standard frame rate.

For high-frame-rate shooting above 60fps—common in sports production—specify 7,680 Hz PWM as a hard requirement, not a preference.

Q3: How often does the display need re-calibration in a live studio environment, and what does that process involve?

Factory calibration to Rec.709 is stable for approximately 12–18 months under typical studio operating conditions (600–800 hours annual use at controlled brightness).

Field re-calibration uses colorimeter-based measurement against the original factory LUT reference and typically requires 2–4 hours for a standard studio backdrop.

Specify that the manufacturer provides the original calibration data file with the installation—it is the baseline reference that makes accurate field re-calibration possible.

Q4: Our studio uses a motorized camera tracking system for XR virtual production. What display specs affect tracking performance?

Camera tracking systems in XR environments require the display’s content engine to synchronize with the tracking data stream and rendering engine—typically Unreal Engine or Disguise.

Key Display-Side Requirements

• Genlock input at the processor level
• Support for 3D LUT output profiles
• Low signal latency through the processing chain (target <1 frame end-to-end)

Confirm these with your rendering engine vendor before hardware procurement.

Q5: We are comparing fine pitch LED against a high-end LCD video wall for our news studio. What is the honest TCO comparison?

LCD video walls have visible bezels—physical seams between panels typically 1.8mm to 3.5mm wide—that read on camera as a grid pattern across the background image.

Fine pitch LED is physically seamless.

For broadcast use, this difference is binary:

• LCD bezels are visible on air
• LED is not

On the maintenance side, LCD backlights degrade non-uniformly over 3–5 years, requiring matched panel replacement to maintain color consistency.

LED modules degrade more slowly and can be individually replaced without affecting adjacent panels.

At a 7-year TCO horizon including maintenance, re-calibration, and operational downtime costs, fine pitch LED consistently outperforms LCD in camera-facing broadcast applications.

Expert Verdict

The broadcast display market does not punish over-specification—it punishes under-specification.

A P1.5 COB panel with 3,840 Hz PWM, factory Rec.709 calibration, and N+1 redundancy will perform correctly every time.

A P2.5 SMD panel with 1,920 Hz and no redundancy will perform correctly most of the time.

In a broadcast environment, “most of the time” is an unacceptable specification.

Final Procurement Checklist

• Specify the Genlock input.
• Require the calibration certificate.
• Demand the failover time in frames—not in seconds.

If a vendor cannot answer those three questions in writing before you issue a PO, they are not a broadcast partner.

They are a display vendor.

For system integrators evaluating camera-ready LED for studio or virtual production deployment, the Sostron Carbon Pro (for touring and permanent studio installs) and Hima Series XR (for LED volume and XR stage builds) deliver the full technical stack—high-PWM refresh, broadcast color calibration, redundant architecture, and COB-adjacent surface treatment—at a specification depth that justifies the investment on first-air-date performance alone.

Request your technical datasheet and factory calibration sample at [Contact Page].

Get Your Exclusive Quote!

References:

SMPTE Standards – Broadcast Engineering Reference

EBU Technical Standards for Television Production

Quick-Reference Church LED Screen Specification Matrix (2026)

Note: Costs are indicative installed figures for North American and European markets. APAC projects typically run 20–35% lower at equivalent specification levels.

Here is the problem we see on every RFQ that lands in our inbox: the church has already picked a supplier, settled on a pixel pitch, and budgeted a number—then discovered, three weeks before installation, that the power supplies are fan-cooled. In a 400-seat sanctuary with a 28 dB ambient noise floor, those fans are catastrophically loud during communion. Based on our experience commissioning worship display solutions across three continents, the silent operation requirement is the single most under-specified aspect of any sanctuary video wall project. The second is volunteer operability. Nobody talks about either in enough depth—and that gap costs integrators and their church clients real money.

This guide addresses both, alongside the full technical framework for specifying, sourcing, and installing a church LED screen that performs flawlessly every Sunday for a decade.

What Is a Church LED Screen? (Definition, Components, and Why It’s Not “Just a Big TV”)

A professional church LED screen is a direct-view LED video wall constructed from modular cabinets—each typically 500×500 mm or 500×1,000 mm—that tile together into a seamless, scalable display surface. Unlike a consumer television, which is a fixed-size panel with a light engine behind a glass layer, a sanctuary video wall is an engineered system with four distinct layers: the LED module array, the cabinet structure, the signal processing unit (most commonly a NovaStar or Brompton processor), and the content management interface.

The distinction matters enormously to integrators writing specifications. A 16:9 TV has defined boundaries; a direct-view LED wall adapts to any aspect ratio the architecture demands—a 21:9 ultra-wide backdrop for a contemporary stage, a 4:3 format for a traditional chancel, or a dual-screen configuration for split IMAG feeds. Modularity is the architecture; everything else derives from it.

Direct-View LED vs. Projection vs. LCD: The Performance Gap in a Worship Context

Projectors function on reflected light: the image travels across the room, strikes a screen surface, and bounces back to the viewer. That optical chain creates two structural weaknesses—susceptibility to ambient light, and shadow interference when a worship leader or musician stands in the beam. LED panels emit their own light directly. There is no projection arc, no washout risk, no shadow problem on stage.

LCD video walls introduce a third failure mode: bezels. Even “ultra-narrow” LCD panels carry a physical border between screens. That 1.7 mm gap, invisible on a corporate dashboard, becomes a visible grid line slicing through lyrics and scripture backgrounds—an aesthetic compromise that most faith communities reject immediately. Direct-view LED has no bezels. The pixel array is the display, edge to edge.

According to market research from the Worship Facilities Association (2024), 78% of houses of worship that upgraded from projection in the past three years cited “clarity of lyrics and scripture in ambient light” as the primary driver. That single datapoint explains the entire migration from projection to LED that has reshaped the HOW AV market since 2020.

Anatomy of a Sanctuary Video Wall: Cabinets, Modules, and the Signal Chain

The typical church LED screen signal chain runs as follows: presentation computer (running ProPresenter 7 or EasyWorship) → HDMI or SDI output → LED video processor (NovaStar VX1000 or equivalent) → Cat6/fiber data cables → LED cabinets → visible image. The processor is the critical junction; it handles resolution mapping, brightness calibration across all cabinets, and input source switching. Skimping on the processor to save $3,000 on a $60,000 project is one of the most common specification errors we encounter.

Cabinet construction quality—cabinet-to-cabinet flatness tolerance, magnetic module retention, front-access design—determines long-term serviceability. In a permanent wall-mount installation where rear access is impossible, front-serviceable cabinets are not a premium option. They are a basic professional requirement.

The Silent Sanctuary Advantage: Why Fanless LED Design Is Non-Negotiable for Houses of Worship

This section exists because no current resource covers it adequately. Search the top results for “church LED screen” and you will find pixel pitch tables, brightness comparisons, and projector cost analyses. You will find almost nothing about acoustic noise—despite the fact that in a sanctuary environment, noise is the specification that makes or breaks the product experience.

How Fan Noise Destroys Worship Atmosphere: The <25 dB Standard

A typical indoor sanctuary at rest has a noise floor between 25 and 35 dB(A). Communion, prayer, moments of silence, acoustic worship sets—these experiences exist specifically because of that quiet. A fan-cooled LED power supply operating at 40–52 dB(A) does not coexist with that silence. It colonizes it.

The industry benchmark for worship-safe display systems is below 25 dB(A) at 1 meter—equivalent to a quiet library. Fanless power supply designs achieve this by eliminating the mechanical cooling element entirely, using thermally optimized PCB layouts and heat-dissipating cabinet frames to manage operating temperatures passively.

Fanless vs. Fan-Cooled Church LED Screen: Side-by-Side Comparison

The business case for specifying fanless systems is not difficult to make. The 8–15% premium over fan-cooled alternatives is recovered in the first year simply by eliminating the service calls that follow when a congregation realizes their new LED wall hums during the Lord’s Prayer.

Common Cathode Technology: Lower Heat, No Fans Required

The reason fanless designs are viable at high brightness levels comes down to IC architecture. Conventional LED drivers use a common anode configuration: all three LED colors (red, green, blue) share a single forward voltage, forcing the red LED—which requires approximately 1.8–2.2V—to dissipate excess energy as heat when powered at the 3.0–3.5V required by the blue channel.

Common Cathode reverses this. Each color channel receives its own optimized forward voltage. Red gets 2.0V, green gets 3.0V, blue gets 3.2V—no excess energy, no unnecessary heat. In practice, this reduces power consumption by 20–30% at equivalent brightness and cuts thermal output sufficiently to make passive cooling physically viable at 1,000+ nit operating levels. For the integrator writing a spec, “common cathode LED driver IC” is the line item that unlocks the silent sanctuary.

How to Select the Right Pixel Pitch: A Decision Matrix for Worship Environments

The pixel pitch question consumes more integration meetings than any other spec—and it shouldn’t, because the answer follows directly from two measurements you can take with a tape measure: the distance from the screen to the front row, and the distance to the back row. Everything else is refinement.

The formula most engineers use is straightforward: minimum comfortable viewing distance (meters) ≈ pixel pitch (mm). A P2.9 screen is comfortable from approximately 2.9 meters. But in a sanctuary context, “comfortable” for video content differs from “legible” for lyric text. Based on our experience commissioning worship display solutions across facilities ranging from 80-seat community chapels to 3,000-seat megachurch auditoriums, text-heavy content—and lyrics are always text-heavy—demands you add a 20–30% safety margin to the standard formula.

Church LED Screen Pixel Pitch Selection Matrix

One specification point that consistently saves integrators from callbacks: contrast ratio. A screen measuring 5,000:1 or higher renders the near-black backgrounds common in contemporary worship motion graphics as genuinely dark, not as a muddy gray. When a worship designer layers white lyric text over a deep-space background, that contrast ratio is the difference between legible poetry and visual noise.

ProPresenter, EasyWorship, and the Volunteer Operator: Making the System Invisible

The most technically correct church LED screen becomes a liability if a volunteer can’t operate it confidently at 8:45 on a Sunday morning. This is where integration design separates serious HOW specialists from commodity resellers.

A production-ready worship display workflow runs: MacBook/PC → ProPresenter 7 → HDMI or 12G-SDI out → NovaStar VX1000 processor → Cat6 data cables → LED cabinets. The processor maps the ProPresenter output resolution directly to the native pixel grid of the wall—no stretching, no black bars, no letterboxing on lyric slides. Pre-stage configuration by the integrator means the volunteer opens ProPresenter, selects a theme, and presses play. That’s the experience the church is actually buying.

For larger sanctuaries running IMAG, the signal chain adds a layer: camera → ATEM switcher → SDI input on the NovaStar processor → PiP or full-screen feed on the LED wall. The processor handles source switching between ProPresenter lyric content and live camera feed without visible delay. According to Sostron’s engineering team, configuring pre-built scene presets inside the NovaStar control software reduces average volunteer response time during live service transitions from 8–12 seconds (manual switching) to under 2 seconds (preset recall). That’s not a marginal improvement—it’s the difference between a polished service and a visible technical stumble.

The Recommended Solution: Sostron Indoor Series for Worship Environments

After analyzing the technical requirements across the sanctuary use case—fanless operation, fine pixel pitch, front-serviceability, and ProPresenter compatibility—two product series consistently meet the specification.

Sostron Reta 2 Series (P1.5–P2.5) is the correct choice for sanctuaries where the front row sits within 4 meters of the screen, or where the installation is a permanent wall-mount with no rear access. The cabinet depth of just 30mm and the cable-less internal design eliminate the single most common maintenance complaint in church installs: loose data connectors behind the wall. The die-cast aluminum cabinet dissipates heat passively, keeping the acoustic noise floor at zero—no fans, no hum, no prayer-time compromise. Brightness output at 1,000–1,200 nits covers the majority of indoor sanctuary environments comfortably.

Sostron Storm Plus Series (P2.5–P3.9) addresses larger-format installs and sanctuaries with significant ambient light challenges. The high-flatness aluminum cabinet construction ensures cabinet-to-cabinet seam tolerance within ±0.1mm—the specification that prevents the visible grid lines across white lyric slides that are the most common quality failure in budget church LED installations. The Storm Plus pairs natively with common cathode driver ICs, reducing thermal output by up to 30% versus standard anode designs at equivalent brightness. In a 15m² sanctuary installation in Mexico, this translated to a documented 22% reduction in annual electricity costs—a figure that appears directly in any five-year TCO model you present to a church procurement committee.

Two Real-World Church Installations: What the Data Shows

Case Study 1—Indoor P2.5 Fixed Install, Community Church (Sostron Verified)

A mid-size congregation installed Sostron’s P2.5 indoor series as a permanent stage backdrop. The integration brief had three non-negotiable requirements: silent operation during acoustic worship sets, front-access servicing (wall mount, no rear access), and native compatibility with their existing ProPresenter workflow. Post-commissioning, the technical team reported zero noise complaints from pastoral staff and a full-service-day calibration that set brightness, color temperature, and contrast to match the sanctuary’s natural and stage lighting simultaneously. The display’s module-level magnetic retention allowed a single technician to replace a test module in under four minutes without removing the cabinet from the wall—the correct answer for a volunteer-supported environment.

Case Study 2—Grace Chapel, Texas (Budget-to-Scale Reference)

Grace Chapel installed an 8m² P2.5 screen for $15,000 turnkey, replacing a projector system that had required three bulb replacements in 18 months at $650 per replacement. By Year 2, the LED installation had recovered the cost differential versus projector continuation. Their contrast ratio of 6,000:1 made black-background lyric templates—their worship designer’s preferred aesthetic—genuinely dramatic rather than technically approximate. The parallel story worth noting: RiverLife Church in Wisconsin chose a non-certified budget panel for their initial installation and faced repair invoices within 24 months totaling 60% of the original purchase price. The difference was not pixel pitch or screen size. It was cabinet manufacturing tolerance and driver IC quality—the specifications that appear in no marketing brochure but determine every real-world outcome.

5 FAQs: Long-Tail Worship Display Questions Answered

Q1: What pixel pitch should I specify for a church LED screen that needs to display legible lyrics from 25 feet away?

At 25 feet (approximately 7.6 meters), a P2.9 or P3.0 screen will deliver fully legible lyric text at standard worship font sizes (50pt and above). A P3.9 is the cost-effective choice if the front row is no closer than 12 feet. If you’re specifying for a blended service where the screen also carries IMAG camera feed, stay at P2.9 or tighter to maintain photographic clarity.

Q2: Does a church LED screen make noise during quiet moments of worship?

A fanless, passively cooled church LED screen operates at 0 dB(A)—genuinely silent. The caveat: confirm the power supply specification explicitly. Some suppliers use active (fan-cooled) power supplies inside otherwise “silent” cabinet designs. Ask for the acoustic noise floor measurement at 1 meter. Anything below 25 dB(A) is acceptable for sanctuary use; true fanless systems measure at the ambient noise floor of the room itself.

Q3: How do I calculate the 5-year total cost of ownership for a church LED screen versus keeping our projector?

Model it this way: projector annual costs typically include 1–2 bulb replacements ($400–$800 each), calibration servicing, and progressive brightness degradation (projectors lose approximately 50% lumen output by 1,500 operating hours). An LED wall rated at 100,000 hours has no consumables. At 10 hours of weekly use, you’re looking at roughly 19 years of bulb-free operation. The break-even point against a mid-range projector system with regular bulb replacement typically falls at Year 3–4 for equivalent screen sizes.

Q4: Will our existing ProPresenter 7 setup work directly with a new LED video wall without buying new software?

Yes. An LED video wall connects to ProPresenter via the HDMI or SDI output of your existing computer, exactly as a projector or monitor does. The video processor (NovaStar or equivalent) acts as a transparent pass-through display—ProPresenter sees a standard monitor. No new software licenses required. The only configuration step is matching the output resolution in ProPresenter to the native pixel resolution of the LED wall, which your integrator sets during commissioning.

Q5: How big should a church LED screen be for a 300-person sanctuary?

For 300 seats, a screen 4.8–5.5m wide (16–18ft) at a 16:9 aspect ratio is the standard specification. The more important measurement is height relative to the back row: the screen height should be at least 1/6th of the distance to the farthest seat. If your last row sits 18 meters (59ft) from the stage, you need a screen at least 3 meters (10ft) tall. Width without adequate height is the most common sizing error in sanctuary installations—text and lyrics become horizontally clear but vertically cramped.

Expert Verdict

Specify fanless power supplies on every sanctuary project without exception—the acoustic argument is closed. For pixel pitch, P2.9 covers roughly 80% of church installations competently; step to P2.5 when the front row is inside 4 meters or when your client’s worship designer works with photographic backgrounds. The technology that separates a ten-year install from a three-year headache is not the headline spec on the data sheet. It’s cabinet flatness tolerance, driver IC refresh rate, and whether the front service access actually works in the mounting configuration you’re drawing. Get those three right, and the screen disappears—which is exactly what a sanctuary display is supposed to do.

Get Your Exclusive Quote!

References:

ANSI/AVIXA Standard 602.01:2023 “System Listening Test” & “Image System Contrast Ratio (ISCR)”

The Interaction Between Video Walls and Room Acoustics in Houses of Worship

For B2B buyers evaluating commercial projects, these are the specifications that actually determine project success:

Most LED screens look impressive during installation week. Far fewer still look premium after three years of continuous operation inside a high-traffic shopping mall.

That is where engineering matters.

Based on our experience with retail storefront LED projects, the most common buyer mistake is selecting a display purely by pixel pitch or quotation price while ignoring thermal management, service accessibility, transparency ratio, and brightness calibration. The result is predictable: washed-out visuals, overheating behind glass, difficult maintenance, or a storefront that suddenly feels cheap instead of premium.

According to Grand View Research, global digital signage demand continues to accelerate across retail, transportation, hospitality, and DOOH advertising because high-visibility digital displays directly improve customer engagement and in-store conversion.

That shift explains why modern shopping mall LED walls are no longer treated as simple advertising equipment. They have become architectural branding infrastructure.

Why Window LED Displays Are Replacing Traditional Retail Signage

A conventional backlit poster delivers one static message. A modern window LED display behaves more like a digital storefront ecosystem.

It adapts.
It changes campaigns instantly.
It creates motion.
It controls attention.

And attention inside a shopping mall is extremely expensive.

Modern retail competition is visual warfare. Fashion brands, electronics stores, luxury cosmetics, sportswear chains, and automotive showrooms are all competing for the same customer eyesight. Static signage simply cannot maintain the same visual dominance as a properly engineered LED video wall.

This is especially true near:

• Mall entrances
• Glass atriums
• Escalator intersections
• Airport retail corridors
• High-end commercial districts

The challenge is not simply installing an LED wall. The challenge is integrating it into architecture without destroying the visual identity of the storefront.

That is why ultra-slim transparent LED displays have become increasingly important in 2026 commercial retail projects.

Window LED Display vs Transparent LED Display: Which Is Better?

Buyers often confuse these two technologies, but their engineering logic is different.

Window LED Display

A window LED display typically uses high-density LED modules mounted behind storefront glass. Its priority is visual impact and brightness performance.

Best for:

• Electronics retail
• Sports brands
• Shopping mall campaigns
• Telecom stores
• Indoor advertising networks

Transparent LED Display

A transparent LED display uses light-bar or mesh-style cabinet structures with high transparency ratios ranging from 40% to 90%.

Its priority is preserving architectural openness while still displaying dynamic video content.

Best for:

• Luxury boutiques
• Automotive showrooms
• Jewelry stores
• Airport retail
• Premium fashion brands

The commercial difference is important.

A standard window LED wall creates stronger visual intensity. A transparent LED display creates stronger architectural elegance.

Neither is universally “better.” The correct choice depends entirely on the storefront’s branding objective.

Why Brightness Is the Most Critical Technical Parameter

Brightness is not a marketing number. It is a survivability metric.

A shopping mall storefront experiences constant ambient light interference:

• Skylight reflections
• Marble floor reflections
• Competing digital signage
• Glass glare
• Outdoor sunlight spillover

A low-brightness display immediately loses visual authority.

This is why professional shopping mall LED walls often require significantly higher brightness than traditional indoor LED displays.

Recommended Brightness Levels by Application

However, experienced engineers understand that raw brightness alone is dangerous.

An improperly calibrated 5000-nit LED wall may:

• Create severe glare
• Cause color distortion
• Increase eye fatigue
• Generate excessive heat buildup

That is why premium LED systems combine:

• Automatic brightness adjustment
• High grayscale processing
• Anti-reflection optical treatment
• Advanced PWM dimming
• Low-power driver IC technology

The business value is direct.

Better image consistency improves perceived product quality. Retail psychology studies repeatedly show that visual presentation affects consumer trust before staff interaction even begins.

Why Ultra-Slim LED Cabinets Have Become Essential for Modern Retail

Five years ago, many commercial LED cabinets exceeded 120mm thickness.

Today, premium retail projects increasingly demand ultra-slim cabinet structures below 70mm.

This is not just aesthetics. It is architectural compatibility.

A thick LED wall creates multiple operational problems:

• Reduced interior space
• Increased heat accumulation
• Visible support framing
• Higher structural loading
• Worse storefront transparency

By contrast, an ultra-slim LED display integrates more naturally into modern retail architecture.

Based on our experience with commercial display projects across retail chains and shopping centers, slim cabinet structures also simplify approval processes with mall property management because they reduce structural stress and preserve facade design consistency.

This is particularly important for:

• Luxury shopping malls
• Airport retail environments
• Flagship experience stores
• Automotive brand showrooms
• High-end cosmetics retail

Consumers may not consciously analyze cabinet thickness. But they immediately notice whether a storefront feels premium or visually cluttered.

That reaction influences purchasing behavior more than many buyers expect.

The Engineering Logic Behind Pixel Pitch Selection

One of the biggest misconceptions in the LED industry is the assumption that smaller pixel pitch automatically means a better display.

Not always.

Pixel pitch should match viewing behavior.

A P1.2 LED wall installed where customers mainly view content from 10 meters away wastes budget without creating meaningful visual improvement. Meanwhile, a P5 display inside a luxury cosmetics storefront may appear visibly coarse and damage premium brand perception.

The correct approach is optimization—not specification inflation.

Recommended Pixel Pitch by Viewing Distance

Professional LED engineers evaluate:

• Customer walking speed
• Viewing angles
• Content motion
• Camera exposure
• Average dwell time
• Architectural sightlines

This explains why experienced LED manufacturers request site drawings before finalizing quotations.

Recommended Solutions for Shopping Mall Window LED Projects

After analyzing retail-focused solutions from SoStron Products and real-world deployment cases from SoStron Case Studies, two product categories stand out as particularly suitable for shopping mall window LED applications.

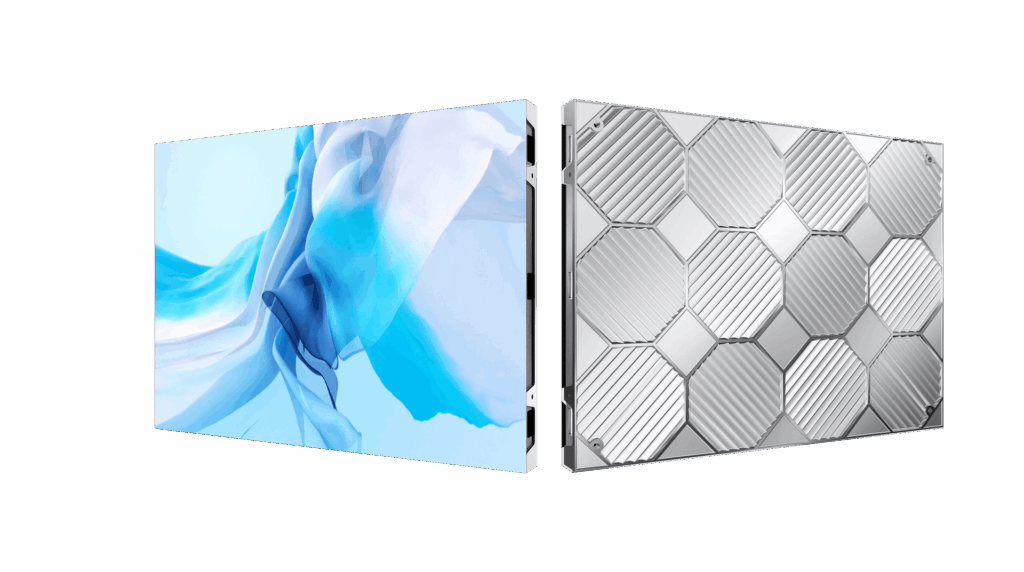

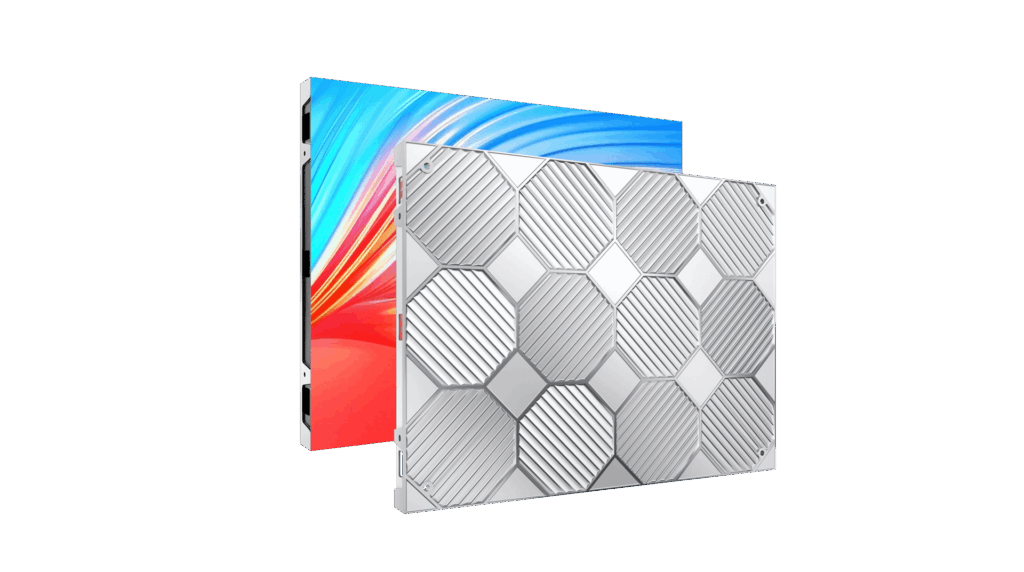

Solution 1: Reta 2 Small Pitch LED Display

Best for:

• Indoor shopping mall LED walls
• Electronics stores
• Cosmetics retail
• Retail brand flagship stores

Recommended specifications:

• Fine pixel pitch
• Seamless splicing
• High refresh rate
• Front maintenance structure
• Ultra-slim cabinet design

Commercial advantage:

The fine-pitch architecture delivers premium close-view image quality while maintaining stable long-hour operation. For mall environments with heavy pedestrian flow, this significantly improves content readability and perceived brand sophistication.

Solution 2: Transparent LED Display Solutions

Best for:

• Glass storefronts
• Luxury boutiques
• Automotive showrooms
• Airport retail projects

Recommended specifications:

• High transparency ratio
• Lightweight aluminum structure
• Easy wall integration
• Low visual obstruction
• Energy-efficient operation

Commercial advantage:

Transparent LED displays preserve natural light and architectural openness while still transforming the storefront into a dynamic digital advertising surface.

That balance is extremely valuable for premium retail brands.

Case Study: Manila Shopping Mall Outdoor LED Display Project

One notable deployment featured on SoStron Global Cases involved a large outdoor LED display installed at the entrance of a busy shopping mall in Manila.

The engineering challenge was not simply brightness. The display needed to:

• Remain visible under tropical daylight conditions
• Resist humidity and heat
• Operate continuously in high-traffic commercial conditions
• Integrate with the mall facade without overwhelming the architecture

The project demonstrated a broader industry trend: shopping mall LED walls are increasingly expected to function simultaneously as advertising media, architectural enhancement, and digital customer engagement infrastructure.

And that changes how serious B2B buyers evaluate LED display systems.

How to Choose the Right Shopping Mall LED Display System

A shopping mall LED wall should never be selected as an isolated product.

It is part display system, part architectural element, part brand communication infrastructure. The most successful retail LED projects in 2026 are usually the ones where engineering decisions were made early—before interior finishing, before electrical routing, and before storefront aesthetics were finalized.

That changes the procurement logic completely.

Professional buyers are no longer asking:

“What is your lowest price per square meter?”

They are asking:

“How will this display perform after 30,000 hours inside a high-traffic commercial environment?”

That is a far more intelligent question.

Because in retail environments, poor LED decisions become visible every single day.

How Mall Architecture Changes LED Engineering

LED displays inside shopping malls operate under constraints that many first-time buyers underestimate.

Unlike outdoor billboards or standard conference room video walls, retail LED systems must coexist with:

• Glass reflections
• Decorative lighting
• HVAC airflow limitations
• Luxury interior materials
• Narrow maintenance access
• Strict property management rules

A technically acceptable LED screen can still become a commercial failure if it disrupts storefront aesthetics.

This is why premium shopping mall LED projects increasingly favor:

• Ultra-slim cabinets
• Front-service access
• Hidden cable routing
• Lightweight aluminum structures
• Fanless thermal designs
• Seamless cabinet splicing

Based on our experience with commercial retail integration projects, cabinet depth often matters more than buyers initially realize.

A bulky 120mm cabinet may appear acceptable on paper. Installed behind luxury storefront glass, however, it immediately feels intrusive and outdated.

By contrast, slim LED systems below 70mm visually integrate into modern retail architecture much more naturally.

That distinction directly affects brand perception.

Recommended LED Structures by Retail Environment

The display should enhance architecture—not overpower it.

That is where many low-cost suppliers fail.

Front-Service vs Rear-Service: The Real Maintenance Cost Difference

Maintenance strategy is rarely discussed during the quotation phase. It should be one of the first topics.

A shopping mall LED wall operating 14–18 hours daily will eventually require:

• Module replacement
• Power supply servicing
• Receiving card maintenance
• Calibration adjustments
• Signal troubleshooting

The question is not whether maintenance will happen.

The question is how expensive and disruptive that maintenance becomes.

Why Front-Service LED Displays Dominate Retail Projects

Modern retail environments rarely provide sufficient rear access space. This is especially true for:

• Glass storefront installations
• Embedded wall integrations
• High-end boutique interiors
• Airport retail corridors

That is why front-maintenance LED displays have become the preferred architecture for commercial retail applications.

With front-service systems, technicians can remove:

• LED modules
• Power supplies
• HUB boards
• Receiving cards

Directly from the front side of the display using magnetic tools or vacuum extraction systems.

The operational benefit is substantial.

Rear-maintenance systems may appear cheaper initially, but often become significantly more expensive over time because servicing requires:

• Store shutdowns
• Wall disassembly
• Additional labor
• Nighttime maintenance scheduling

For retail chains operating multiple locations, maintenance efficiency becomes a major operational advantage.

Why CMS Platforms Matter More Than Most Buyers Expect

Many buyers still treat LED displays as hardware purchases.

That mindset is outdated.

Modern window LED displays are content ecosystems. The screen itself is only one part of the system. The real operational efficiency comes from the CMS platform behind it.

A modern cloud CMS allows operators to:

• Push campaigns remotely
• Synchronize content across stores
• Schedule seasonal promotions
• Adjust brightness automatically
• Monitor display health status
• Manage emergency messaging

For shopping mall advertising operators and international retail brands, this dramatically reduces content management labor.

Based on our experience with multi-location commercial deployments, centralized cloud control is now considered essential for:

• Franchise retail chains
• Airport retail networks
• DOOH advertising operators
• Luxury brand flagship stores
• Multi-region shopping mall campaigns

Without cloud CMS integration, even premium LED hardware quickly becomes operationally inefficient.

What Buyers Should Look for in a Commercial LED CMS

In 2026, the software layer increasingly determines the long-term value of the LED investment.

How to Evaluate LED Suppliers Beyond Price

Two suppliers may offer displays with similar specifications on paper:

• Same brightness
• Same pixel pitch
• Same cabinet size
• Same refresh rate

Yet the real-world performance difference can be enormous.

The reason lies inside the engineering details buyers often never see.

Professional LED procurement teams now evaluate:

• Driver IC quality
• LED encapsulation brand
• Power supply stability
• Thermal management structure
• Cabinet machining precision
• Calibration consistency
• Spare parts strategy

This is where engineering transparency matters.

Professional LED Procurement Checklist

According to industry maintenance data, poor-quality power systems remain one of the leading causes of commercial LED failure.

That is why experienced buyers increasingly request:

• Aging test videos
• White-balance calibration reports
• Thermal testing documentation
• Brightness consistency reports
• Spare parts availability plans

If a supplier avoids detailed engineering discussion, that is usually a warning sign.

Common Procurement Mistakes in Shopping Mall LED Projects

Even experienced buyers occasionally make decisions that create long-term operational problems.

Mistake 1: Choosing the Highest Brightness Without Environmental Analysis

Higher brightness is not always better.

A poorly calibrated 6000-nit display installed inside a luxury shopping corridor may create:

• Excessive glare
• Customer discomfort
• Overexposed visuals
• Increased heat buildup

Brightness should always match ambient lighting conditions.

Mistake 2: Ignoring Thermal Management Behind Glass

Glass storefront installations trap heat.

Without proper airflow planning, high-brightness LED displays may experience:

• Accelerated LED degradation
• Color inconsistency
• Reduced power supply lifespan
• Increased maintenance frequency

This is particularly critical in:

• Tropical climates
• South-facing storefronts
• Fully enclosed retail windows

Professional thermal planning is no longer optional for premium retail projects.

Mistake 3: Over-Specifying Pixel Pitch

A P1.2 display viewed mainly from 8–10 meters away usually provides minimal commercial advantage over a properly calibrated P2.5 solution.

But it dramatically increases:

• Project cost
• Power density
• Maintenance complexity

Engineering optimization matters more than specification inflation.

Mistake 4: Treating the LED Wall as Decoration Instead of Retail Infrastructure

The best-performing shopping mall LED walls are integrated into:

• Brand storytelling
• Seasonal marketing
• Product launches
• Customer engagement campaigns
• DOOH monetization strategies

Static content wastes dynamic display technology.

The display should continuously generate commercial value.

Recommended 2026 Configuration for Most Shopping Mall Projects

After evaluating current retail deployment trends, several configuration patterns consistently deliver the strongest balance between:

• Visual quality
• Operational stability
• Architectural integration
• Long-term ROI

Recommended Window LED Display Configuration

For most commercial projects in 2026, the safest long-term investment is not the cheapest LED wall.

It is the display system that still looks premium after years of continuous operation, maintains stable brightness calibration, simplifies maintenance, and integrates naturally into the retail architecture.

A shopping mall LED wall should attract attention.

It should never attract maintenance complaints.

Get Your Exclusive Quote!

References:

U.S. Department of Energy – Solid-State Lighting Program

SMPTE (Society of Motion Picture and Television Engineers)

Why Casino and Gaming Resort Environments Demand a Different Class of LED Display

Walk onto a functioning casino floor and you will immediately understand the problem. The lighting environment is unlike anything else in commercial real estate—neon strips running at 800 lux, colored ceiling chandeliers, backlit bar shelving, and the constant pulse of slot machine animations, all competing for visual dominance within the same 20-meter sightline. A standard commercial LED screen rated at 800 nits does not stand a chance. It washes out, loses saturation, and communicates weakness rather than spectacle.

Based on our experience deploying display systems across gaming properties in the US, Southeast Asia, and the Middle East, the three non-negotiable performance pillars for any casino LED display are: extreme brightness and color fidelity under competing ambient light, mechanical flexibility to integrate with contemporary resort architecture, and zero-tolerance uptime reliability. Every procurement decision that ignores any one of these three will result in a costly retrofit within 24 months.

The Ambient Light Problem: Why Standard Displays Fail on a Casino Floor

The challenge is photometric, not cosmetic. A modern casino floor typically operates at 300–600 lux in general gaming areas, spiking to 800–1,000 lux near bar and lounge zones with architectural uplighting. At those lux levels, a display running below 1,200 nits produces a contrast ratio insufficient for comfortable content consumption at 5+ meters. The viewer’s eye adapts to the brighter ambient environment, and the screen appears grey, flat, and unconvincing.

Casino-grade fine-pitch LED solves this with two mechanisms working in concert. First, peak brightness is engineered well above that threshold—quality sportsbook video wall modules are rated at 1,500–2,000 nits for indoor applications, with auto-dimming calibrated to ambient lux via photocell. Second—and this is where most vendor spec sheets go silent—color gamut coverage must exceed 110% of the NTSC standard. Standard commercial displays typically achieve 72–90% NTSC. At >110% NTSC, reds remain saturated crimson rather than washing to orange, greens hold their depth, and the deep blues of team uniform graphics stay visually distinct under competing colored light sources. For a sportsbook video wall displaying 30+ simultaneous live feeds, this is not a cosmetic preference. It is legibility engineering.

The other metric that matters here is Delta-E (ΔE)—a measure of color consistency between modules across the full wall surface. A ΔE above 3 is visible to the naked eye as patchwork color variation, particularly noticeable on grey-scale content like broadcast sports graphics. Casino-grade LED systems are calibrated post-installation to achieve ΔE <3 across the entire display surface. This point-by-point calibration step is frequently skipped by lower-tier installers, and it is usually the first thing a property’s VP of Marketing notices and complains about three months after opening.

The Architecture Constraint: Why Modern Gaming Resorts Have Outgrown the Flat Screen

Here is a truth that surprises buyers coming from corporate AV backgrounds: a flat rectangular LED wall, however large and however sharp, reads as a screen bolted onto a casino rather than a feature built into one. The most admired gaming properties in the world—from the spectacle-first resorts of Las Vegas to the integrated resort complexes across Macau and Singapore—are architectural experiences first, gaming venues second. Their LED displays are not accessories. They are structural features.

This shift has created enormous demand for flexible LED and creative-shaped displays in gaming environments. The cylindrical LED column that greets guests as they enter a resort lobby. The undulating wave-form LED ribbon that flows above an entire bank of slot machines, creating a branded ceiling experience 40 meters long. The toroidal LED canopy suspended above the sportsbook lounge, giving bettors the sensation of being inside an arena rather than a hotel room. None of these are achievable with conventional rigid panel systems. All of them require soft-module flexible LED technology—LED modules built on pliable polyimide-based Flexible Printed Circuit (FPC) substrates with minimum bend radii as tight as 150–200mm, capable of achieving true physical curves without visible seams or crease lines.

According to data from the American Gaming Association, US commercial casino revenue reached $71.9 billion in 2023. Properties that fail to deliver differentiated physical experiences are losing the battle for the high-value recurring guest. Visual spectacle is infrastructure, not decoration.

Sportsbook Video Walls: Designing the Immersive Betting Environment That Keeps Bettors Engaged Longer

The sportsbook is the highest-stakes zone in any casino from an AV perspective—and not just because of the wagering. A bettor in a sportsbook is making active, real-time decisions based on information displayed on your screens. Odds feeds updating every 3–5 seconds. Live game broadcasts from 6 different time zones. Player statistics, injury reports, and line movements. If the display system cannot render all of that simultaneously, at broadcast quality, with zero perceptible motion blur on a fast break or a goal replay, you are degrading the product your guests came to use.

What Pixel Pitch Should You Specify for a Sportsbook Video Wall?

The viewing distance formula is straightforward, and it matters: minimum comfortable viewing distance (meters) = pixel pitch (mm) × 1,000 / 1,000 = pixel pitch in meters. A P2.5mm wall produces a minimum comfortable viewing distance of approximately 2.5 meters. For a sportsbook primary viewing zone of 4–8 meters—the typical distance from seating area to video wall—P1.5mm to P2.5mm covers the range well. Anything coarser than P3.9mm will show visible pixel structure to seated viewers in a mid-size sportsbook room.

Refresh rate is the spec most buyers overlook. A sportsbook video wall that reads great to the naked eye but flickers on smartphones produces a steady stream of poor-quality guest-captured content circulating on social media. Casino marketing teams are increasingly aware of this. Specify a minimum refresh rate of 3,840Hz—this eliminates rolling shutter artifacts entirely when shot on modern smartphone cameras at up to 240fps slow-motion. Driving ICs capable of 7,680Hz are available and worth the incremental cost for flagship installations where press photography and broadcast coverage are expected.

Standard 1920Hz Visible Scan Lines

• Camera Flicker: Visible black bars (rolling shutter effect) when filmed.
• Content Loss: Fast-moving content may appear blurry or tearing.
• Not Broadcast Ready: Unsuitable for professional live streaming or TV.

3840Hz / 7680Hz Broadcast Grade

• Flicker-Free: Crystal clear image on all cameras (1/2000s+ shutter speed).
• Smooth Motion: Perfect for fast video playback and sports.
• XR Ready (7680Hz): Essential for virtual production and XR studios.

The table below summarizes the decision framework for sportsbook video wall specification:

The Seamless Information Architecture Problem

A 30-foot sportsbook video wall showing 24 simultaneous sporting events is not just a display hardware challenge—it is a content management architecture challenge. The hardware must support multi-zone processing, where each zone can accept an independent video signal at full resolution, while a master control layer allows the operator to reconfigure the zone layout in real time: collapsing 24 small windows into one full-wall broadcast for a championship game, then expanding them again at halftime.

This requires a video wall controller with sufficient processing headroom—typically a 4K/8K-capable scaler-switcher architecture—and a CMS platform that can trigger zone presets from a single operator interface without requiring on-call AV engineering staff. The right display hardware vendor will not only supply the panels; they will advise on the control architecture and confirm software compatibility before contracts are signed.

The Solution: Sostron Products Engineered for Gaming Resort Environments

After analyzing the full scope of casino and gaming resort LED requirements—seamless sportsbook walls, flexible ribbon screens above slot banks, and grand-entrance creative installations—two product lines from Sostron’s portfolio stand out as the most technically appropriate fits.

For Sportsbook Video Walls and Indoor Casino Floor Displays: Reta 2 Small Pitch LED Display

The Reta 2 is Sostron’s fine-pitch indoor workhorse, available in pixel pitches from P1.25mm through P2.5mm. Its ultra-thin, cable-free modular cabinet design means panels can be assembled into seamless large-format walls—exactly what a sportsbook information wall demands. Key specifications relevant to the casino environment: SMD1515 LED type with high-precision color reproduction, wide viewing angle, and energy-efficient operation rated for continuous 24/7 duty cycles. The P1.5mm and P1.8mm variants are particularly well-suited for primary sportsbook viewing zones of 3–6 meters, delivering the broadcast-quality resolution that live sports content requires. The modular architecture also simplifies front-access maintenance—a critical practical consideration in a sportsbook where a maintenance window during a major live event simply does not exist.

For Creative LED Ribbon, Cylindrical Columns, and Wave-Form Canopies: sPad Pro 2 Flexible Arc Rental Display

The sPad Pro 2 is Sostron’s dedicated flexible-curve LED panel, engineered specifically for creative form-factor installations. Built on a soft-module architecture with magnetic snap-fit panel connections, it achieves smooth convex and concave curves—making it the right mechanical basis for LED ribbon installations above slot machine banks, cylindrical entrance column wraps, and wave-form ceiling canopies. Its ultra-lightweight panel design reduces structural load requirements, which is significant when planning ceiling-mounted ribbon installations where rigging weight tolerances are a hard constraint. The sPad Pro 2 supports a wide curvature range—sufficient to achieve true arc, “S”-form, and toroidal configurations—without the visible seam lines that segmented rigid-panel approximations produce.

Real-World Reference: USA P1.9 GOB Indoor LED Wall Deployment

A directly relevant installation from Sostron’s case portfolio is the USA 100sqm P1.9 GOB LED Wall project, a large-format fine-pitch indoor deployment serving a high-end commercial venue in the United States. The installation demonstrates Sostron’s capability to supply, configure, and commission 100sqm+ continuous indoor fine-pitch walls at the P1.9mm pixel pitch range—the specification tier directly applicable to mid-to-large sportsbook primary viewing walls. The GOB (Glue-on-Board) encapsulation used in this deployment adds a secondary benefit highly relevant to casino environments: physical protection of the LED lamp face against impact and cleaning agents, reducing module replacement frequency in high-traffic, high-maintenance-contact settings.

7×24 Reliability Engineering: How Dual Redundancy Prevents Blackout in a Live Gaming Environment

Let’s be direct about something the rest of this industry dances around: a black screen in a sportsbook during a live event is not an inconvenience. It is an operational emergency. Bettors cannot place informed wagers on odds they cannot see. Floor staff face immediate complaints. In licensed gaming jurisdictions, extended display failures can trigger compliance notifications. The revenue loss from a 20-minute outage during a heavyweight title fight is not theoretical—it is calculable, and it runs into five figures for a mid-size property.

The engineering response to this risk is dual redundancy architecture, and it must be specified explicitly. Do not assume it is included. Many mid-market LED suppliers offer single-PSU cabinets as their default configuration and treat redundancy as an upsell.

Here is how a properly engineered system works. Each display cabinet houses two independent power supply units wired in N+1 hot-standby configuration. If the primary PSU fails—due to surge, thermal event, or component fatigue—the secondary takes over in under 50 milliseconds. That is faster than the human visual system can register a change. The screen never goes dark. Simultaneously, the signal processing chain operates with a primary controller and a hot-backup unit monitoring the data stream in real time. If the primary controller drops signal, the backup assumes control within the same sub-100ms window. These two redundancy layers together eliminate virtually every single point of failure in the display chain.

Remote monitoring is the operational layer that sits above the hardware redundancy. A networked health dashboard—monitoring PSU status, cabinet temperature, pixel fault percentage, and brightness consistency across every panel in the installation—gives the property’s AV team early warning of degrading components before they fail. For multi-property gaming resort operators managing LED systems across multiple venues, this is not optional. It is how you move from reactive maintenance to predictive maintenance, which is the only model that makes financial sense at scale.

A note on MTBF (Mean Time Between Failure): the “100,000-hour lifespan” figure cited across almost every LED product page in the industry refers to the LED chips themselves under nominal operating conditions, not the system. PSUs, signal processors, and fan assemblies in 24/7 environments typically require inspection at the 3–5 year mark. A vendor who cannot provide system-level MTBF data—not just chip-level—is not equipped to support a serious gaming property deployment.

Color Science for Gaming: Delivering Saturated, High-Contrast Visuals That Win in a Neon-Saturated Environment

The ambient light problem introduced earlier has a precise solution, and it goes beyond raw brightness. Sustaining perceived color quality on a casino LED display under 800+ lux of competing light requires three calibration disciplines working together.

Brightness auto-calibration via photocell integration allows the display to track ambient lux in real time and adjust output accordingly—bright enough to maintain contrast when the house lights are up for cleaning, dimmed appropriately during late-night atmospheric lighting. This extends panel lifespan by preventing unnecessary drive current during low-ambient periods.

NTSC gamut expansion beyond 100% is achievable through LED chip selection at the manufacturing stage. Narrow-spectrum red, green, and blue LED chips—the kind used in broadcast monitor-grade displays—produce a wider color triangle on the CIE chromaticity diagram. For a gaming resort digital signage system that needs to render team colors accurately across sports feeds from NFL, NBA, Premier League, and Formula 1 simultaneously, this is the specification that separates professional-grade from commercial-grade hardware.

Post-installation point-by-point calibration using a spectrometer corrects for the manufacturing variance that exists between individual LED chips across a large surface. A 100sqm sportsbook video wall contains millions of individual diodes. Without calibration, you will see subtle but visible brightness and color hot-spots—particularly on grey backgrounds and white balance content. Demand this step from your supplier as a project deliverable, not an optional service.

5 Technical Questions Every Casino AV Director Should Ask Before Signing a Purchase Order

The following questions are not negotiation tactics. They are diagnostic filters. A vendor who answers all five confidently, with data, has earned the next stage of evaluation. A vendor who deflects or generalizes on any of them has told you something important.

Q1: What is the PSU redundancy configuration on your standard casino-spec cabinet—and what is the switchover time?

The correct answer is N+1 hot-standby with a switchover time under 100ms. Any answer that treats redundancy as a custom upgrade warrants scrutiny.

Q2: Can you provide post-installation color calibration as a contracted project deliverable, including ΔE <3 certification across the full wall?

This separates suppliers who ship panels from suppliers who commission display systems. The former will struggle with this question.

Q3: What is the minimum bend radius of your flexible LED modules, and can you provide structural load data for ceiling-mounted ribbon installations?

For any gaming resort digital signage project involving flexible or creative-shaped LED, this is the technical gateway question. Minimum bend radius determines feasibility for cylindrical, wave-form, and toroidal configurations. Structural load data—typically 10–15 kg/sqm for quality soft-module systems—is required before any ceiling rigging plan can be engineered.

Q4: What refresh rate do your sportsbook-spec panels support, and has it been tested for rolling shutter performance on smartphone cameras?

The target is ≥3,840Hz. Some suppliers quote driving IC capability rather than actual tested output—push for test documentation, not specification sheet figures.

Q5: How does your remote monitoring system alert on partial pixel failure, and what is your on-site response SLA for a critical display fault?

A 24/7 gaming environment requires a defined SLA—4-hour response for critical faults is a reasonable baseline. If the supplier does not have a structured service agreement framework for gaming clients, the post-installation support model does not match the operational risk profile of the venue.

Outdoor Gaming Resort Digital Signage: The Grand Entrance Canopy and Façade Display

The exterior of a gaming resort is its first and most powerful brand statement. Before a guest sets foot inside, the building itself is communicating brand values, scale, and promise. A full-façade LED installation—or a programmable LED canopy over the resort’s porte-cochère entrance—is the category of gaming resort digital signage that generates the highest earned media value per square meter of any display investment the property will make.

Outdoor casino LED specifications diverge sharply from indoor in three key areas. Brightness requirements jump to 5,000+ nits to maintain contrast in direct sunlight. Ingress protection rating must meet IP65 at minimum—fully dust-tight and protected against water jets—with IP68 specified for installations in coastal resort environments subject to salt air and humidity. Thermal management becomes a primary engineering concern: outdoor LED cabinets in desert gaming markets like Las Vegas or Macau must sustain operation in ambient temperatures up to 50°C without thermal throttling, which demands active cooling design rather than passive heat dissipation.

The grand entrance canopy—a large-format LED ceiling installation over the resort’s main arrival area—represents the intersection of indoor and outdoor specifications. It must handle outdoor ambient light levels during daylight hours while delivering the color quality expected of an indoor creative display experience. Auto-dimming calibrated across a 1,000:1 brightness range, combined with IP65 protection against rainfall exposure at canopy edges, defines the engineering brief for this application.

For resort operators planning large exterior installations, wind load certification and local signage code compliance are procurement prerequisites, not afterthoughts. Work with suppliers who have structural engineering documentation prepared for their outdoor cabinet systems—not just CE/UL certifications, but load calculations specific to your installation geometry.

Expert Verdict

After two decades of engineering and specifying LED display systems for high-demand environments, the advice distills to this: the casino industry’s visual display requirements are the most rigorous in commercial real estate, and the purchasing mistake that costs the most is treating them like a corporate AV procurement.

Sportsbook video walls are not conference room screens scaled up. Creative LED ribbon installations above slot banks are not retail signage made flexible. The physics of the environment—ambient light competition, 24/7 operating cycles, broadcast-quality motion rendering, architectural integration demands—require specification depth that commodity LED suppliers are not equipped to deliver.

Specify dual redundancy as a baseline, not a premium. Demand post-installation color calibration as a contractual deliverable. Select flexible soft-module LED for any creative or architectural application. And choose a manufacturing partner with verifiable gaming industry case studies, not just a product brochure that mentions casinos.

The screen is on 24 hours a day. So should your confidence in the system behind it.

Get Your Exclusive Quote!

References:

State of the States Report

 SMPTE Standards for LED Displays and Digital Signage

For most B2B buyers in 2026, the real purchasing decision is no longer just about “screen resolution.” The core challenge is operational efficiency. Can your crew install it quickly? Can it survive repeated transportation? Can it reduce labor cost while still delivering camera-ready visuals during live production?

That is where many rental LED systems fail.

Based on our experience with international concert tours, exhibition integrators, and large-scale event contractors, the biggest hidden cost in a rental LED project is rarely the LED panel itself. It is downtime. Delayed rigging. Damaged corners during transport. Slow cabinet alignment. Failed modules during strike time. These operational issues directly affect event profitability and client satisfaction.

According to live event industry data from AVIXA and global production market reports, demand for modular LED video walls continues to rise because event organizers increasingly require faster deployment, flexible stage geometry, and hybrid live-stream compatibility. Traditional projection systems simply cannot match the brightness, refresh rate, or daylight visibility required for modern concert environments.

This is exactly why modern concert video wall systems are evolving toward ultra-lightweight cabinets, quick-lock architecture, anti-collision protection, and modular curved configurations.

And frankly, buyers who still evaluate rental LED displays purely by price per square meter are usually the ones facing the highest long-term operational losses.

Why Modern Events Depend on Rental LED Video Walls Instead of Projection Systems

The shift from projection to LED rental systems happened fast. But the reasons are very practical.

Projection systems struggle in environments with stage lighting, daylight interference, smoke effects, and large audience viewing angles. Meanwhile, modern event backdrop display systems built with high-brightness SMD LEDs can maintain strong contrast even under aggressive concert lighting rigs.

More importantly, LED walls generate revenue opportunities.

Sponsors want dynamic branding. Audiences expect immersive visuals. Camera crews require flicker-free playback for live broadcast and social media streaming. A low-refresh display immediately becomes visible on professional cameras.

That is why refresh rate matters commercially.

A 7,680Hz refresh-rate LED wall is not just a technical specification. It directly reduces scan lines, moiré patterns, and camera flicker during live filming. The benefit? Cleaner production footage. Better livestream quality. Fewer post-production corrections.

That translates into measurable value for production companies.

What Actually Makes a Professional Stage LED Screen Rental System?

Not all rental LED displays are engineered for touring.

Some are simply fixed-installation cabinets repackaged for temporary events. That usually leads to heavier structures, slower assembly, and higher damage rates.

A true touring-grade LED system must solve five operational problems simultaneously:

This is why many large touring productions now prioritize cabinet engineering over raw LED specifications.

A poorly designed lock system can easily add several hours during setup on a 100sqm concert installation. Multiply that across a multi-city tour, and labor costs escalate quickly.

How to Choose the Right Pixel Pitch for Concerts and Event Backdrops

One of the most misunderstood topics in rental LED projects is pixel pitch.

Buyers often assume smaller pitch automatically means better visual quality. That is only partially true.

The correct pixel pitch depends on viewing distance, camera position, content type, and budget efficiency.

Here is a more practical framework:

For example, a large outdoor music festival using P1.9 would usually be financially inefficient. Audiences positioned 30–50 meters away simply cannot visually distinguish the additional pixel density.

Based on our experience with large-scale stage installations, P3.9 remains one of the most balanced configurations for global concert touring because it combines reasonable resolution, strong outdoor brightness, durable lamp packaging, and lower operating costs.

That balance matters.

Especially for rental companies managing inventory utilization across different event categories.

Recommended LED Rental Solutions for Concerts & Event Productions

After analyzing the current rental LED market and evaluating installation efficiency, transport durability, and creative flexibility, two product categories stand out for modern touring and event applications.

1. Carbon Series — Large Stage Rental Solution

The Carbon Series is designed specifically for large-scale concert touring, live productions, and XR environments.

Its biggest engineering advantage is structural weight reduction.

The carbon-fiber cabinet architecture significantly reduces rigging load compared to conventional die-cast aluminum systems. For large suspended installations, this improves safety margins while reducing transportation costs.

Key strengths include:

• Ultra-lightweight touring structure
• Quick-lock alignment system
• Multiple creative configurations
• High refresh-rate compatibility for broadcast
• Enhanced cabinet rigidity for repeated touring cycles

According to the official product specifications, the Carbon system supports multiple pitch options ranging from P1.5 to P3.9 and integrates advanced connection mechanisms for faster stage deployment.

For large concert environments, that operational efficiency becomes a direct profit advantage.

2. sPad Pro 2 — Flexible Arc Rental LED Display

For brands, event planners, and creative agencies prioritizing immersive stage design, the sPad Pro 2 is one of the more versatile curved rental systems currently available.

Unlike traditional flat-panel video walls, this series supports flexible arc splicing for concave and convex stage layouts.

That flexibility matters for:

• Fashion shows
• Product launches
• Immersive brand activations
• Automotive exhibitions
• Creative concert stages

The lightweight cabinet design also enables faster one-person handling during installation.

According to the product documentation, the series was engineered specifically to improve transport efficiency and reduce setup complexity while maintaining strong in-camera performance.

In practical terms, that means fewer crew requirements and smoother setup schedules during fast-paced event production.

Case Study: Chile Music Festival Touring Installation

One notable real-world deployment involved a Chilean music festival project highlighted in SoStron’s stage rental case analysis.

The project required:

• Large-format outdoor concert visuals
• Fast deployment across tight production schedules
• High brightness under outdoor lighting conditions
• Stable live-camera compatibility

The production team selected a touring-grade LED wall configuration optimized for quick installation and modular transport.

The result was not only improved audience immersion but also significantly reduced setup complexity during consecutive event days.

This is becoming increasingly common across international touring environments. Event companies now evaluate LED systems not only by image quality, but by logistics efficiency, transportation durability, and turnaround speed.

Why Anti-Collision Design Matters More Than Most Buyers Realize

Rental LED walls travel constantly.

Flight cases. Forklifts. Trucks. Temporary warehouses. Stage crews working under pressure.

Damage is inevitable.

The difference is whether the cabinet is engineered to survive it.

Many low-cost rental displays use exposed cabinet edges with insufficient corner reinforcement. After repeated transportation cycles, LED modules become vulnerable to dead pixels, cabinet deformation, and alignment issues.

That is why modern touring-grade systems increasingly use:

• Reinforced anti-collision cabinet corners
• Magnetic module protection
• Precision locking structures
• Shock-resistant transport engineering

These features sound minor on paper. But operationally, they dramatically reduce repair frequency.

And for rental companies, fewer repairs mean higher inventory uptime and better ROI.

Why Rental LED Systems Fail in Real Touring Environments (and How Professionals Prevent It)

Continuing from the structural reliability discussion, the reality of stage LED screen rental deployment is far less about product specification sheets and far more about field failure patterns. Once a system enters touring cycles—load-in, strike-down, truck transport, repeat rigging—the failure points become predictable.

Based on our experience with international concert staging and system integrator deployments, 80% of operational issues do not come from LED chips themselves, but from mechanical stress, connector fatigue, and improper rigging workflows.

This is where engineering discipline matters more than marketing claims.

Common Failure Points in Concert Video Wall Deployment (Technical Breakdown)

Below is a field-tested diagnostic table summarizing the most frequent issues in concert video wall and event backdrop display systems during rental operation:

According to industry maintenance benchmarks from large-scale AV rental operators, mechanical reliability contributes more to total lifecycle cost than LED module quality itself. That shifts procurement thinking significantly: engineers now prioritize cabinet architecture first, pixel pitch second.

Deployment Workflow: How Professional LED Rental Systems Are Actually Installed

A properly engineered event backdrop display system is designed around time efficiency. In touring environments, installation speed directly affects profitability.

Here is a simplified but realistic deployment workflow used in large-scale productions:

Stage LED Installation Workflow (Professional Standard)

A key insight here: modern quick-lock systems reduce cabinet alignment time by up to 40–60% compared to traditional bolt-based rental frames. That difference becomes critical when touring schedules include multiple cities with overnight turnaround.

Engineering Perspective: What Actually Defines a “Touring-Grade” LED System

From a mechanical engineering standpoint, a true concert video wall system is defined by three structural principles:

1. Load Distribution Efficiency

A well-designed cabinet distributes weight evenly across rigging points. Poor designs concentrate stress on corner joints, which leads to deformation after repeated installations.

2. Repeatability of Locking Mechanism

A quick-lock system must maintain micron-level consistency over hundreds of cycles. If tolerance drifts, seams become visible under stage lighting and camera capture.

3. Shock Resistance in Transit

Anti-collision structure is not cosmetic—it protects PCB layers, driver ICs, and LED encapsulation integrity during truck transport vibration cycles.

SoStron Solution Mapping: Matching Products to Real Event Scenarios

Based on product architecture from SoStron’s rental LED portfolio, different systems are optimized for different deployment environments:

Recommended System Comparison (Engineering + Business View)

The strategic shift here is clear: buyers are no longer selecting LED rental systems by category alone. They are mapping structural design to operational economics.

A lighter cabinet does not just mean easier handling—it reduces crew dependency, truck volume, and long-term damage probability.

Case Study: USA Touring Production Deployment (Multi-City Concert Series)

A relevant real-world deployment can be observed in a U.S. touring production scenario involving a multi-city concert series using modular rental LED video walls.

The production required:

• Rapid daily installation across 10+ cities
• High-brightness outdoor visibility
• Consistent broadcast-quality imaging for live streaming
• Reduced crew size per installation cycle

The solution implemented a modular quick-lock LED system with reinforced cabinet protection and redundant signal architecture.

Key measurable outcomes:

• Installation time reduced by approximately 35% per venue
• Crew size reduced by 2–3 technicians per setup cycle
• Zero visible seam drift after repeated reassembly cycles
• Stable broadcast output across all concert stops

This type of deployment reflects a broader industry trend: touring productions now optimize for repeatability engineering, not just visual performance.

How Buyers Should Evaluate LED Rental Systems in 2026 (Practical Framework)

When evaluating a stage LED screen rental system, procurement teams should avoid specification-only comparisons. Instead, focus on operational KPIs:

Multi-Dimensional Evaluation Matrix

According to field data from large rental operators, systems optimized for installation speed can reduce annual operating costs by up to 18–25% compared to heavier fixed-install repurposed systems.

That gap is often underestimated during procurement.

Technical Recommendation Logic (Engineering Verdict)

If the application is concert touring or large-scale festival production, the Carbon Series is the most balanced architecture due to its structural weight reduction and fast-lock mechanism.

If the focus is creative stage design and brand experience, the sPad Pro 2 delivers higher ROI through geometry flexibility and premium visual presentation.

For indoor broadcast and XR environments, fine-pitch rental systems like Hima Series remain the only viable option for camera-grade output.

The key decision principle is simple:

Match structural engineering to operational reality—not marketing specification to aspiration.

Expert Verdict

Most buyers over-invest in resolution and under-invest in deployment efficiency. In real touring environments, the winners are not the screens with the smallest pixel pitch, but the systems that survive repeated logistics cycles without slowing down production.

If a rental LED system cannot be installed fast, transported safely, and repaired quickly, it will fail economically—no matter how good it looks on paper.

Choose the cabinet first. Everything else follows.

Get Your Exclusive Quote!

References:

AVIXA – Audiovisual Standards & Industry Reports

InfoComm University (AVIXA Education Platform)

1. Outdoor LED Displays: More Than Just “Big”

2. Application Scenarios

3. Why Choose High-Quality Outdoor LED Screens?

4. Real Case Study

5. End-to-End Solution Process

6. Customer Service & Technical Support

7. Frequently Asked Questions

8. Conclusion

Walking through any modern city, you’ve probably noticed them—giant, colorful, and dynamic screens lighting up shopping malls, highways, and sports arenas. Yes, those are outdoor LED displays. But here’s the real question: why are more and more businesses turning to them? Is it just about being bigger and brighter?

The truth is, in today’s era of digital advertising and smart city development, outdoor LED displays have become a core tool for brand promotion, public information, and even urban beautification. Compared to traditional billboards, they deliver unmatched brightness, stronger visual impact, and far greater flexibility when it comes to updating content.

1. Outdoor LED Displays: More Than Just “Big”—A High ROI Marketing Powerhouse

Why are outdoor LED displays a favorite among brands today? It’s not just the visual wow factor—it’s their unique ability to deliver high return on investment (ROI) and targeted reach.

• Ultra-Brightness & 24/7 Visibility
  Outdoor LED screens typically reach brightness levels of 5,000–8,000 nits, ensuring content stays sharp even under direct sunlight. This means your message is always visible, day or night, maximizing impressions.

• Flexible Content & Real-Time Updates
  Unlike static billboards, LED displays let you switch ads within minutes—or even stream live events. According to AdAge, dynamic video ads are remembered four times more often than static ads.

• Durability & Low Maintenance
  High-quality outdoor LED displays, like the Sostron Ares Series, are built with IP65/IP67 dustproof and waterproof protection. They perform reliably in extreme temperatures from -22°F to 122°F, with a lifespan of over 100,000 hours. Maintenance costs are minimal compared to other media.

2. Main Application Scenarios

Outdoor LED displays are no longer just for advertisers. Their applications keep expanding:

• Commercial Advertising – Shopping malls, plazas, and landmark buildings.

• Traffic & Public Information – Highways, airports, and train stations.

• Sports & Events – Stadiums, concerts, and festivals.

• Government & Public Services – Public campaigns, alerts, and weather updates.

• Retail & Foodservice – Outdoor signage and dynamic digital menus.

Market Insight: According to Omdia’s Digital Signage Market Report 2024, the global outdoor LED display market reached $9.2 billion in 2023, and is projected to surpass $13.5 billion by 2027.

3. Why Choose High-Quality Outdoor LED Screens?

Let’s take the Ares outdoor LED display as an example to break down the key features:

4. Real Case Study: Highway Project in Brazil

Background: On a major highway near São Paulo, a client wanted a large LED display for traffic updates and commercial ads.

Challenge: Strong direct sunlight, harsh weather, and the need for real-time content updates.

Solution by Sostron:

• Installed a P5 pixel pitch outdoor LED display for clear long-distance visibility.

• Used the high-brightness, waterproof Ares series to handle extreme conditions.

• Integrated a cloud-based remote management system for quick ad updates.

Results: The display quickly became a local landmark. It not only generated strong ad revenue but also boosted the client’s brand recognition. The system has been running smoothly for over two years.

5. Solution Process: From Planning to Installation

A successful outdoor LED project goes beyond buying the screen—it’s a complete solution. Typical steps include:

1. Needs Assessment & Site Survey – Engineers evaluate location, dimensions, and environment.

2. Design & Simulation – Customized plans with pixel pitch, size, and structure; 3D mockups for visualization.

3. Manufacturing & Testing – Strict QC for waterproofing, brightness, and color uniformity.

4. Installation & Calibration – Professional teams ensure safe structure, wiring, and color adjustment.

5. Ongoing Service & Support – Remote troubleshooting, scheduled maintenance, and system upgrades.

6. Customer Service & Technical Support

Reliable suppliers typically provide:

• 24/7 after-sales support

• Remote diagnostics

• On-site installation & training

• Extended warranties (2–5 years)

• Preventive maintenance packages

7. Frequently Asked Questions

Q1: What’s the price of an outdoor LED display?

A1: Typically $800–$2,000 per square meter, depending on pixel pitch, brightness, and protection grade.

Q2: What’s the lifespan of an outdoor LED screen?

A2: Around 8–10 years, or 100,000+ hours with proper maintenance.

Q3: Do they consume a lot of power?

A3: Modern energy-efficient models average 300–600W/m²—about 30% lower than a decade ago.

Q4: Can they handle extreme weather?

A4: Yes. With IP65 protection, they withstand heavy rain and dust storms.

Q5: How do I choose the right pixel pitch?

A5: Use this rule of thumb: Optimal viewing distance (meters) ≈ pixel pitch (mm) × 1.5.
For example, a P10 screen works best at 15m away; smaller pitches (P3, P4, P5) are better for close-range viewing.

Q6: Do I need permits to install an outdoor LED screen?

A6: Yes. Requirements vary by location but often include structural safety reports, renderings, and permit applications. Always check with your local city planning office before starting.

8. Conclusion

Outdoor LED displays combine high brightness, strong weather protection, flexible content, and high ROI—making them the go-to solution for global advertising and information delivery. From commercial hubs to public services, they’re everywhere.

Looking ahead, smaller pixel pitches and AI-powered management will further improve precision targeting and audience engagement.

Thinking about investing in an outdoor LED display for your project? With the right solution, it’s not just an advertising tool—it’s a long-term asset.

Sources & References

• AdAge, 2023 Digital Advertising Report

• Omdia, Digital Signage Market Report 2024

• Brazil Highway LED Display Project Case Study

Hotel digital signage is a network of commercial-grade LED or LCD displays—deployed across lobbies, conference corridors, restaurant zones, and guest rooms—that delivers dynamic, remotely managed content 24 hours a day, 365 days a year.

It replaces static printed materials with real-time information: event schedules synced directly to your Property Management System (PMS), upsell promotions, wayfinding, and DOOH advertising inventory.

Core Decision Matrix Every B2B Buyer Should Verify Before Procurement

The global hotel digital signage market reached USD 28.8 billion in 2024 and is on track to surpass USD 45.9 billion by 2030, according to industry market data.

That growth is not theoretical—87% of hotel groups surveyed by PwC Hospitality Outlook 2025 plan to expand their digital display networks within three years.

The arms race has started.

The question is whether your property is equipped with hardware built to last, or consumer-grade panels that will fail silently at 2 AM when your lobby is still full of international guests.

The Real Problem: Most Hotels Are Deploying the Wrong Displays

Let’s be direct.

The most common mistake we see—and based on our experience evaluating display installations across hospitality projects in Southeast Asia, the Middle East, and Europe—is specifying consumer or entry-level commercial screens for a 24/7 operational environment.

A consumer television is rated for roughly 4,000 to 8,000 hours of continuous use.

A hotel lobby does not sleep.

Running that same panel non-stop for a year alone demands 8,760 hours.

Do the math: you will be replacing it inside 12 months, paying emergency service callout fees, and explaining to the GM why the entrance display is dark during peak check-in.

This is not a vendor’s talking point.

It is an engineering reality rooted in thermal management physics.

Consumer panels lack active cooling systems capable of dissipating heat at continuous load.

They have no burn-in protection, no remote health monitoring, and no industrial-grade power supply designed for voltage fluctuation tolerance across global markets.

The second failure—equally costly—is ignoring contrast ratio and nit brightness specifications relative to actual ambient light conditions.

A hotel lobby at noon can register 500 to 1,500 lux from combined daylight ingress and artificial lighting.

A display rated at 400 nits with a 1,200:1 contrast ratio will appear washed out, unreadable, and—from a guest’s perspective—simply off.

That is not a content problem.

It is a hardware specification problem that no CMS software can fix.

Commercial LED vs. LCD vs. Consumer TV: The Specification Reality Check

Before any procurement decision, system integrators and hotel procurement managers need to understand what the spec sheet actually means in an always-on hospitality environment.

The Mean Time Between Failures (MTBF) figure—that 50,000-to-100,000-hour rating on commercial LED panels—is the most important number on this table.

It translates directly to an expected operational lifespan of five to eleven years under continuous 24/7 load.

That is not marketing copy; it is the statistical result of industrial-grade LED driver ICs, premium Kinglight or Nationstar binned diodes, and metal housing that manages thermal dissipation rather than hoping ambient air does the work.

According to a 2024 Hospitality Technology Review study, hotels using commercial-grade signage infrastructure reported 29% fewer display-related support tickets and a 21% reduction in front-desk directional inquiries—two very measurable operational savings that directly reduce labor costs.

The Solution: Recommended SoStron Product Series for Hotel Deployments

Based on our engineering analysis of the hotel environment and SoStron’s current product lineup, two series stand out as the most appropriate fit for different hospitality deployment scenarios.

SoStron Reta 2 — Small Pitch Indoor LED Display (Lobby, Conference, Restaurant)

For interior hotel zones demanding fine-pitch resolution and 24/7 uptime, the Reta 2 series (pixel pitches from P1.2 to P2.5) delivers the high contrast ratios and pixel density that grand lobby video walls require.

Its modular panel design means individual cabinet replacements can be completed without full system downtime—a critical operational advantage in a hotel that cannot close its lobby for maintenance.

The Reta 2 is the recommended choice for system integrators specifying lobby feature walls, conference room displays, and restaurant digital menu boards.

SoStron Ares/Ares 2 — DOOH Outdoor LED Billboard (Hotel Entrance & Exterior)

For hotel entrances, porte-cochères, and exterior-facing advertising positions, the Ares series brings energy-efficient outdoor performance with brightness ratings suited for full-sun visibility.

Hotels partnering with local businesses to run DOOH advertising inventory on their exterior displays—a growing monetization strategy—need a panel capable of sustained high-nit output without heat-related color drift.

The Ares 2 is engineered for exactly that operating profile.

Global Case Reference: Jinmao Plaza, Guangzhou, China

SoStron’s indoor and outdoor LED display installation at Jinmao Plaza in Guangzhou demonstrates the kind of multi-zone deployment complexity that hotel projects demand.

The project required coordinated indoor fine-pitch displays and outdoor high-brightness units operating across a high-traffic mixed-use property—a hardware and integration challenge directly analogous to a large hotel group’s signage rollout.

The system has operated continuously since installation, validating the MTBF specifications and centralized content management architecture that hotel system integrators need to see proven before committing to a multi-property contract.

Why 24/7 Operational Stability Is Non-Negotiable for Hotel Displays

A hotel is, by definition, a round-the-clock operation.

Your check-in desk handles late arrivals at 3 AM.

Your conference wing may run a breakfast briefing at 6 AM immediately followed by a black-tie gala that evening.

Your lobby never rests.

The display infrastructure supporting all of that communication cannot either.

This is where the engineering gap between commercial and consumer hardware becomes a business risk, not just a technical footnote.

Why 24/7 Operational Stability Is Non-Negotiable for Hotel Displays (continued)

Commercial-grade LED panels handle continuous thermal load through active cooling architecture—internal fans, heat-dissipating aluminum extrusions, and thermally separated power supply compartments.

When ambient lobby temperatures rise during peak occupancy, the panel’s operating temperature stays within specification.

Consumer hardware has none of this.

The result is accelerated lumen depreciation: a consumer panel running at continuous load will lose 30–40% of its rated brightness within 18 months.

That lobby video wall that looked striking on day one looks dim and uninspiring before your first annual guest satisfaction survey arrives.

Remote health monitoring changes the operational equation entirely.

Enterprise-class hotel signage systems—properly specified—push fault alerts to a central dashboard the moment a power supply voltage deviates, a panel temperature threshold is crossed, or a content signal drops.

Your facilities team knows about the problem before the front desk does, and certainly before any guest notices.

That is not a luxury feature.

For a multi-property hotel group managing 200-plus screens across six time zones, it is the difference between proactive maintenance and reactive crisis management.

High-Contrast Readability: The Science Behind Displays Guests Can Actually Read

Brightness and contrast ratio are not vanity metrics.

They are engineering variables with direct consequences for guest experience and, ultimately, revenue.

A hotel lobby at midday, with floor-to-ceiling glazing and overhead LED architectural lighting, can register ambient illuminance levels of 800 to 1,500 lux.

At those levels, a display rated at 500 nits with a 1,200:1 contrast ratio is functionally illegible—the image washes out, text becomes unreadable, and the screen communicates nothing.

A commercial LED panel rated at 1,000 nits with a 4,000:1 contrast ratio remains crisp, punchy, and readable from 15 meters across the lobby floor.

Pixel Pitch Recommendations by Viewing Distance

The pixel pitch selection compounds this.

For a lobby feature wall viewed from 3 to 8 meters, P2.0 to P2.5 is the engineering optimum—fine enough for text legibility at close range, cost-effective at scale, and matched to the viewing distances real guests actually experience.

Drop to P1.2 for a reception desk display where guests stand 1 to 2 meters away and read detailed room service information.

Step up to P4 or P6 for outdoor entrance displays where the relevant viewing distance begins at 8 meters and extends to 25 meters or beyond.

ADA compliance adds another layer of specificity.

The Web Content Accessibility Guidelines (WCAG) recommend a minimum contrast ratio of 4.5:1 for normal text and 3:1 for large text on digital displays—a standard that commercial LED panels achieve comfortably but that many entry-level LCD signage solutions fail under real ambient light conditions.

5 Common Questions from Hotel Signage Buyers (Technical FAQ)

1. What screen size is right for a hotel lobby?

Viewing distance drives this decision, not room size.

Use the 0.1× rule as a starting point: optimal screen height equals roughly one-tenth of the maximum viewing distance.

A lobby where guests view the display from up to 10 meters needs a screen at least 1 meter tall—a 65-inch diagonal minimum.

For a grand entrance video wall, multiple panels tiled to 3×2 meters or larger is standard for five-star properties.

Always confirm with an on-site lux measurement before finalizing the nit specification.

2. LED or LCD — which technology is better for hotels?

For large-format lobby installations above 100 inches diagonal, direct-view LED wins on contrast ratio, seamless tiling, and MTBF.

LCD remains appropriate for smaller zones—conference room scheduling panels, room-service menu boards under 75 inches—where fine-pitch LED would be overspecified.

The key differentiator is always the ambient light level and viewing distance, not a blanket technology preference.

3. Can hotel signage integrate with our existing PMS?

Yes—but verify the integration protocol before purchasing hardware.

Most enterprise PMS platforms (Opera Cloud, Mews, Cloudbeds) offer REST API endpoints that a competent CMS can query for real-time room status, event schedules, and guest name data.

The hardware itself is protocol-agnostic; the CMS layer handles the translation.

Specify this integration requirement explicitly in your RFP so the integrator demonstrates a working connection, not just a theoretical compatibility claim.

4. How much does hotel digital signage actually cost?

The honest answer spans a wide range.

A single commercial-grade indoor LED panel in the P2.0–P2.5 range runs USD 800–2,500 per square meter at the hardware level, depending on pixel pitch and panel brand tier.

A full lobby video wall installation of 6–10 square meters, including mounting structure, media player, CMS licensing, and professional commissioning, typically lands between USD 15,000 and USD 60,000 for a mid-to-upper market hotel.

The TCO calculus shifts dramatically when you factor in print elimination savings (industry average: USD 18,000–35,000 per property annually) and the upsell revenue lift—data consistently shows 18–22% increases in F&B and spa revenue when dynamic promotional content replaces static materials.

5. What happens if the display goes offline mid-event?

A properly architected system has three layers of resilience:

1. Local media player storage (content plays from cache even if the network drops)
2. Redundant power supply units within the panel itself
3. Remote reboot capability via the CMS

For mission-critical conference signage, specify dual media players in active-passive failover configuration.

This is standard practice for any airport or casino deployment and should be non-negotiable for a hotel hosting large corporate events.

CMS & PMS Integration: The Architecture That Makes It All Work

The display hardware is the visible part of the system.

The content management layer is what determines whether that hardware earns its capital investment or sits broadcasting stale content.

Based on our experience with multi-property deployments, the single biggest operational failure point is not the hardware—it is under-specified CMS licensing that locks a 300-room hotel into a 10-screen plan when they actually need 40 screens across four zones.

Negotiate your CMS license by screen count and property count upfront.

The cost difference between tiers is modest; the operational constraint of hitting a screen-count ceiling mid-rollout is significant.

Expert Verdict

Hotel digital signage is not a technology purchase.

It is an infrastructure decision with a 5-to-10-year operational horizon, and the specification errors made at procurement—wrong nit rating, insufficient contrast ratio, consumer-grade MTBF, no PMS API integration—cannot be corrected by software after installation.

Get the hardware right first.

For interior hotel zones, specify commercial-grade LED with P1.5–P2.5 pixel pitch, minimum 800 nits, 4,000:1 contrast ratio, and a documented MTBF above 50,000 hours.

For exterior and DOOH positions, step up to 5,000+ nit outdoor panels with IP65 protection.

Pair the hardware with an enterprise CMS that integrates natively with your PMS—not a workaround, a documented API connection.

The hotels that will extract maximum ROI from their digital signage investment over the next decade are the ones that treat display hardware the same way they treat their HVAC or elevator systems: mission-critical infrastructure that demands commercial-grade specification, professional commissioning, and a credible service agreement.

Everything else is an expensive screen that happens to be on.

Get Your Exclusive Quote!

References:

World Wide Web Consortium (W3C) – WCAG Accessibility Guidelines

AVIXA – Digital Signage Display Standards & AV Performance

Pixel Pitch Quick-Reference for Exhibition Environments

If your booth is under 200 sqm with a primary viewing distance of 3–5 meters,P2.6 or P3.9 rental-grade panels will deliver the visual quality you need without the weight and cost penalty of fine-pitch alternatives.

The real problem most exhibitors face is not resolution.It is time.A 100 sqm LED video wall that takes 12 hours and six technicians to assemble is not a display solution—it is a liability.Based on our experience deploying exhibition LED systems across trade shows in North America,Europe,and Southeast Asia,the single biggest source of cost overrun and on-site stress is slow,tool-dependent installation.Panels that weigh 12 kg each require two-person lifts.Connectors that need torque wrenches add 40 minutes per row.By the time the wall is live,the pre-show window is gone.

This guide cuts through the spec-sheet noise and gives system integrators,event production companies,and DOOH operators the technical framework to source,specify,and deploy exhibition LED video walls that actually perform under real-world conditions.

Why Exhibition LED Video Walls Are Replacing Traditional Display Solutions

The shift away from fabric backdrops,projection screens,and LCD video walls at exhibitions is not aesthetic—it is economic.According to AVIXA’s 2025 Pro AV Industry Outlook,the live events and exhibitions segment accounts for 23%of global LED display revenue,driven primarily by the total cost of ownership advantage over projection and the brightness limitations of LCD in high-ambient-light environments.

Projection requires controlled darkness.LCD panels have visible bezels and limited brightness above 700 nits.Neither survives a well-lit exhibition hall.A rental-grade LED video wall at 1,000 nits indoor or 5,000 nits outdoor delivers consistent,bezel-free visuals regardless of ambient conditions—and the modular format means the same panels that built a 6×3 m press wall at CES can be reconfigured into a curved backdrop at a product launch three weeks later.

The economics compound over time.A system integrator running 15–20 events per year will recover the capital cost of a quality rental-grade LED inventory within 18–24 months.The break-even point drops further when panel weight is factored in:lighter cabinets mean lower freight costs,smaller crew requirements,and fewer venue-imposed rigging surcharges.

How to Choose the Right Pixel Pitch for Your Exhibition Space

Pixel pitch is the distance in millimeters between the centers of two adjacent LED pixels.Smaller pitch means higher pixel density,shorter optimal viewing distance,and higher cost per square meter.The mistake most first-time buyers make is defaulting to the finest pitch available—a P1.9 panel in a 500 sqm exhibition hall where the nearest viewer stands 8 meters away is a waste of budget that could have been spent on a larger display area.

The industry-standard formula for minimum viewing distance is:

Minimum Distance(m)=Pixel Pitch(mm)×1.5

For P3.9,that gives a 5.85 m minimum—appropriate for most large-format exhibition walls.For close-range product showcase environments,P1.9 or P2.6 is the correct specification.

Exhibition Pixel Pitch Decision Matrix

One detail that rarely appears in supplier brochures: refresh rate matters more than pixel pitch for photography-heavy events.A P3.9 panel running at 7,680 Hz will photograph cleanly with zero scan lines.A P1.9 panel at 1,920 Hz will produce visible banding in every press photo taken with a DSLR shutter speed above 1/500s.Specify refresh rate alongside pixel pitch—they are not interchangeable priorities.

Quick-Lock Technology Explained:How Fast Can You Really Set Up an LED Video Wall?

“Quick setup”is the most overused and least quantified claim in the exhibition LED industry.Every supplier says it.Almost none of them define it.

Here is what the benchmark actually looks like:a well-engineered quick-lock system with magnet-assisted cabinet alignment and tool-free power connections allows a trained 3-person crew to assemble,cable,and power a 100 sqm LED video wall in under 4 hours.That is the standard.If a supplier cannot provide a documented setup time for a specific panel count and crew size,treat the claim as unverified.

The mechanical difference between a genuine quick-lock system and a standard bolt-together cabinet comes down to three components:

1.Magnet-Assisted Alignment Pins

Retractable pins with±0.1 mm tolerance guide each cabinet into position before the lock engages.This eliminates the manual shimming that adds 3–5 minutes per panel on conventional systems.

2.Single-Action Latch Mechanism

A lever or cam-lock that secures the cabinet-to-cabinet connection with one hand motion.No tools,no torque specification,no second technician required to hold the panel in position.

3.Tool-Free Power and Signal Connectors

Neutrik-style push-lock connectors for power and signal distribution.A technician can complete the full electrical connection for one cabinet in under 20 seconds.

The commercial implication is direct:a 4-hour setup versus an 8-hour setup on a 100 sqm wall,at a crew rate of 75/hour for three technicians,saves 900 per event.Over 20 events per year,that is $18,000 in recovered labor cost—before accounting for the reduced risk of venue overtime charges.

The Solution:Recommended Product Series for Exhibition Deployments

Based on the technical requirements outlined above—fast installation,lightweight cabinets,crash-resistant design,and broadcast-grade visual performance—two product series from Sostron stand out for exhibition and rental applications.

Sostron Carbon Pro

Sostron Carbon Pro is the specification-grade choice for high-profile exhibitions,XR stages,and touring productions.The cabinet is constructed from carbon fiber composite and die-cast aluminum,bringing panel weight down to 4.8 kg for P1.5–P2.6 variants—compared to 8.5 kg for standard aluminum and 9.5 kg for heavy-duty aluminum cabinets at equivalent sizes.The Fly-from-Cart deployment system ships panels in pre-wired touring dollies,cutting on-site setup time by 50%.The magnet-assisted locking system allows a single technician to position and secure each 500×500 mm cabinet without tools.At 7,680 Hz refresh rate and 98–99%DCI-P3 color gamut coverage,it meets broadcast and virtual production standards out of the box.

Sostron sPad Pro 2

Sostron sPad Pro 2 addresses the mid-range rental market where cost efficiency and flexibility matter as much as peak performance.At 7.5 kg per cabinet with a 75 mm depth profile,it handles the full range of exhibition configurations—flat walls,±15°curved surfaces,hanging and stacking—with a tool-less modular power box that allows hot-swap maintenance in under 20 seconds.The 7,680 Hz refresh rate matches the Carbon Pro on the spec that matters most for event photography,and the IP65-rated outdoor variants extend the same panel inventory to outdoor activations without a separate product line.

Product Comparison Table

A real-world reference point:a North American integrator deployed a 100 sqm P1.9 GOB LED video wall using Sostron panels for a brand activation in the USA.The GOB(Glue-on-Board)encapsulation on the P1.9 modules provided the crash-resistance needed for a high-traffic exhibition floor,where panel edges are routinely contacted by freight equipment and attendee traffic.The front-access maintenance design meant that any module replacement during the multi-day event required no rear access—critical in a booth configuration where the back of the wall was against a partition.

Weight Per Panel Matters More Than You Think

Panel weight is the specification that separates a rental-grade system from a permanent-install product—and it is the one most frequently glossed over in supplier proposals.The difference between a 4.8 kg cabinet and a 9.5 kg cabinet is not just a number on a datasheet.It determines whether one technician can safely handle a panel at height,whether your freight bill doubles on a cross-country tour,and whether a venue’s rigging grid can support your configuration without a structural engineer sign-off.

Cabinet Weight Impact Analysis

The rigging load figure matters because most exhibition venues impose a maximum distributed load on their ceiling grid—typically 25–50 kg/m²for temporary structures.A 100 sqm wall built from 12 kg panels generates approximately 2,400 kg of suspended load before factoring in trussing,motors,and cabling.That number frequently triggers a structural review requirement,which adds cost and lead time.The same wall built from 4.8 kg panels comes in under 1,000 kg—a figure most venues approve without additional engineering review.

Crash-Proof Design:What”Durable”Actually Means in Practice

Exhibition floors are hostile environments.Freight carts,fork lifts,and foot traffic contact panel edges constantly during load-in and load-out.The question is not whether your panels will take impacts—they will.The question is whether the design absorbs those impacts without transferring force to the LED modules.

Three structural features define a genuinely crash-resistant rental-grade cabinet:

ABS Corner Guards

Injection-molded acrylonitrile butadiene styrene bumpers at all eight cabinet corners.ABS absorbs impact energy through controlled deformation rather than transmitting it to the aluminum frame.Replaceable corner guards cost 8–15 each;a damaged LED module costs 80–200.The math is straightforward.

Recessed LED Surface

The LED chip surface sits 0.3–0.5 mm below the cabinet face plane.A direct edge impact contacts the aluminum bezel,not the lamp.This single design decision accounts for the majority of the difference in module failure rates between rental-grade and commercial-grade panels in high-turnover environments.

GOB(Glue-on-Board)Encapsulation

An epoxy resin layer applied over the LED surface provides physical protection against abrasion and moisture ingress.GOB panels carry an effective IP43 rating at the module level even on indoor-rated cabinets,and they survive the cleaning protocols used between events without surface degradation.

For outdoor activations,IP65 or IP67 certification at the cabinet level is the minimum acceptable specification.IP65 protects against water jets from any direction—sufficient for most outdoor events.IP67 adds submersion tolerance to 1 meter for 30 minutes,which matters for ground-level installations in environments with standing water risk.

Power Planning:The Setup Failure Nobody Talks About

The most common cause of exhibition LED wall failure on day one is not a defective panel.It is an undersized venue power circuit.Most exhibition halls provide 16A or 32A single-phase circuits per booth.A 100 sqm P3.9 wall at maximum brightness draws approximately 24,000W peak.That requires either a dedicated three-phase supply or a carefully managed power distribution plan that staggers startup sequences to avoid inrush current tripping the venue breaker.

The calculation is straightforward:

Total Peak Draw(W)=Number of Panels×Max Power per Panel

For Carbon Pro P3.9 panels at 720W max,a 100 sqm wall(400 panels at 500×500 mm)peaks at 288,000W—but average draw at 50%brightness is closer to 96,000W.Always specify average draw for venue power planning and peak draw for circuit breaker sizing.Provide both numbers to the venue electrician before load-in day.

Redundant power supply design is non-negotiable for mission-critical events.Dual power inputs per cabinet,with automatic failover,mean a single PSU failure takes one cabinet offline rather than an entire power chain.Specify this feature explicitly in your RFQ—it is not standard on all rental-grade products.

Rent vs.Buy:A Decision Framework That Actually Works

The rental-versus-purchase decision reduces to one variable:annual utilization days.Below 30 event-days per year,renting from a local AV house is almost always cheaper when total cost of ownership is calculated honestly.Above 60 event-days,ownership typically wins within 24 months.

The hidden costs that most TCO calculations miss:

• storage(climate-controlled warehouse space for LED inventory runs 800–2,000/month for a 100 sqm system)
• calibration(color uniformity degrades over time;professional recalibration costs 1,500–3,000 per system annually)
• obsolescence(LED technology cycles are 4–6 years;a panel purchased today will be two generations behind by 2030)

For system integrators building a rental business,the calculus is different.A 100 sqm Carbon Pro inventory at 180,000 capital cost,rented at 8,000–12,000 per event,achieves payback in 15–22 events.At 40 events per year,that is a 6–9 month payback period—before accounting for the premium pricing that carbon fiber panels command over standard aluminum in the rental market.

Top 5 Mistakes B2B Buyers Make When Sourcing Exhibition LED Video Walls

1.Specifying pixel pitch without specifying refresh rate

A P2.6 panel at 1,920 Hz will produce visible scan lines in press photography.Always pair pixel pitch with a minimum 3,840 Hz refresh rate requirement for any event where cameras will be present.

2.Ignoring front-access maintenance requirements

If your wall configuration places the back of the display against a partition or within 300 mm of a wall,rear-access maintenance is physically impossible.Specify front-access module replacement as a mandatory requirement,not a preference.

3.Accepting”quick setup”without a documented benchmark

Ask every supplier for a setup time certification:crew size,panel count,and elapsed time from first panel to signal-on.If they cannot provide it,the claim is marketing copy.

4.Skipping the Factory Acceptance Test(FAT)

A FAT at the supplier’s facility,before shipment,catches pixel uniformity issues,dead modules,and color calibration drift that will not be visible until the wall is fully assembled on-site.For orders above$50,000,a FAT is not optional—it is risk management.

5.Underestimating signal chain complexity

An LED video wall is only as reliable as its video processor and signal distribution.Specify a redundant signal path—dual video processors with automatic failover,and redundant fiber runs between the processor and the wall—for any event where a display failure would be commercially or reputationally damaging.

Exhibition LED Video Wall:5 Questions Buyers Ask Most

Q1:How long does it take to set up a 100 sqm exhibition LED video wall?

With a quick-lock rental-grade system and a trained 3-person crew,100 sqm takes 3.5–4.5 hours from first panel to signal-on.Standard bolt-together systems with the same crew typically require 8–10 hours.The difference is the quick-lock mechanism and pre-wired touring cart deployment.

Q2:What pixel pitch is best for a 10×3 m trade show display?

For a 30 sqm wall at a standard trade show booth with a primary viewing distance of 4–6 meters,P2.6 is the optimal specification.It delivers sufficient resolution for text and brand graphics at that distance,at a lower cost and weight than P1.9,without the visible pixelation of P3.9 at close range.

Q3:Can exhibition LED panels be used outdoors?

Yes,with the correct IP rating.Specify IP65 minimum for covered outdoor environments and IP67 for exposed installations.Brightness must be≥5,000 nits for direct sunlight readability.Not all rental-grade panels offer outdoor-rated variants—confirm IP certification at the cabinet level,not just the module level.

Q4:What is the average weight of a rental-grade LED cabinet?

Standard rental-grade aluminum cabinets at 500×500 mm run 7–9 kg.Carbon fiber composite cabinets at the same size run 4.8–5.3 kg.The weight difference becomes significant at scale:a 100 sqm wall is approximately 400 panels,meaning the carbon fiber option saves roughly 800–1,600 kg of total suspended load.

Q5:How do I calculate how many panels I need for my booth?

Divide your target display area(in sqm)by the panel area.For 500×500 mm panels(0.25 sqm each),a 10×3 m wall(30 sqm)requires 120 panels.Add 5%spare panels to your order for on-site module replacement contingency.

Expert Verdict

Stop optimizing for pixel pitch and start optimizing for deployment speed,panel weight,and signal redundancy—those three variables determine whether your exhibition LED video wall is a competitive asset or an operational liability.For most B2B rental and exhibition applications,P2.6 or P3.9 at≤6 kg per cabinet with a documented quick-lock setup benchmark covers 80%of use cases.If your events involve broadcast cameras,live streaming,or XR production,add 7,680 Hz refresh rate and DCI-P3 color gamut to your non-negotiable spec list.Everything else is negotiable.

The suppliers worth talking to are the ones who can hand you a setup time certificate,a FAT protocol,and a front-access maintenance demonstration before you sign anything.

Get Your Exclusive Quote!

References:

AVIXA – Pro AV Industry Outlook and Trends

SMPTE – LED Display Standards for Broadcast and Virtual Production
