Ultra-Lightweight Carbon Fiber LED Panel for Touring & Rental
The Sostron Carbon Series redefines the ROI of event rental. Engineered with a proprietary Carbon Pro, these panels are 30% lighter than standard die-cast aluminum cabinets, significantly reducing structural load and shipping costs. Designed for rapid deployment, the Carbon Series features an integrated Touring Frame and Fast-Lock system, allowing a single technician to rig huge video walls in record time.
Material Science: The Carbon Advantage
Carbon Pro XR: The Cinematic LED Canvas
Weight Reduction: At just [Insert Weight, e.g., 5kg] per panel, the Carbon Series reduces the dead load on trussing systems. This allows for larger hanging arrays in venues with strict weight limits.
Tensile Strength: Carbon fiber offers superior durability with a higher tensile strength-to-weight ratio than steel, making it impact-resistant during rough Load-in/Load-out cycles.
Thermal Expansion: Unlike metal, carbon fiber has near-zero thermal expansion, ensuring the screen stays perfectly flat (seamless) even under the intense heat of stage lighting.
Rapid Rigging & Curving Architecture
Time is money in the rental business. The Carbon Series treats the screen as a mechanical system.
One-Man Installation: The patented Magnet-Assisted Locking System allows one person to position and lock cabinets effortlessly.
Creative Freedom: Integrated Curve Locks allow for concave and convex setups (±15°), enabling creative stage designs like wave shapes or cylinders without needing custom brackets.
Touring Cart System: Panels ship in pre-wired Dollies/Touring Carts, allowing for “Fly-from-Cart” deployment, cutting setup time by 50%.
Broadcast-Grade Visuals
Suitable for both live eyes and camera lenses.
Camera Ready: Featuring a 3840Hz – 7680Hz Refresh Rate and PWM High-End Driver ICs, ensuring no scan lines or moiré effects during IMAG (Image Magnification) or live streaming.
Low Brightness, High Grayscale: Maintains 14-bit+ grayscale detail even when dimmed to 20% brightness for indoor corporate events.
The ROI Table: Carbon Pro vs. Die-Cast Aluminum
| Metric | Sostron Carbon Series (Carbon Fiber) | Standard Rental Cabinet (Aluminum) |
| Panel Weight | 5kg (Ultra-light) | 8.5 kg (Standard) |
| Max Hanging Height | 20 Panels (High safety factor) | 12 Panels (Limited) |
| Thermal Expansion | Negligible (Seamless gaps) | Expands with heat (Visible gaps) |
| Setup Speed | Fast (Fly-from-Cart supported) | Average (Case-to-Frame) |
| Logistics Volume | Compact (More sqm per truck) | Bulky |
| ROI Impact | High (Labor & Transport savings) | Medium |
| Feature | Carbon pro (Premium) | Carbon/Carbon SE (Standard) |
|---|---|---|
| Primary Application | XR, Film, Touring, Immersive Studios | Festivals, Corporate Events |
| Indoor Brightness | 800-1000 nits | 600-800 nits |
| Outdoor Brightness | 5000-5500 nits | 4500-5000 nits |
| Cabinet Material | Carbon Fiber (Ultra-durable) | Carbon Fiber (Ultra-durable) |
| Weight | 5KG / Panel | 5KG / Panel |
| Refresh Rate | 7680Hz | 3840Hz |
| Grey Level | 16bit | 14bit |
| Receiving Card | Nova A8s-N | Nova-A5sPlus |
| Curving Capabilities | ±10° (36pcs = 1 circle) | ±10° (36pcs = 1 circle) |
| Flash Memory | Yes (Stores Color Calibration) | Yes (Stores Color Calibration) |
- Carbon fiber
- Light enough
- Fiber-reinforced
- Stronger structure
- Carbon fiber
- Light enough
- Fiber-reinforced
- Stronger structure
Dynamic Studio & XR Virtual Production
Power your productions with our lightweight Carbon Series LED Display. Featuring an ultra-thin LED wall and carbon fiber structure, it cuts stage setup time and reduces transport costs by 35%. Our XR virtual camera system slashes support needs by 50%, providing a lighter, more flexible virtual production solution.
2. High-altitude suspension device
Theater Hoisting LED Matrix (Safe load lifting solution)
Exhibition gallery dynamic canopy (to support more complex mechanical movements)
High-Altitude Suspension
Our Theater Hoisting LED Matrix offers a secure and reliable solution for high-altitude displays. Paired with our ultra-thin LED wall, your exhibition gallery dynamic canopy can effortlessly support complex movements, making it perfect for exhibitions, theaters, and art installations.
Specialized & Engineered Displays
Designed for demanding environments, our certified lightweight LED panels and carbon fiber structure are ideal for ship/aircraft built-in displays and outdoor temporary facades. The enhanced wind pressure resistance ensures a robust and reliable lightweight display solution, no matter the conditions.
Ultra light
8-in-1 Design system
Unique connection plate
Performance innovation
Various Applications
Touring
Festivals
Immersive studio
Virtual production ceiling
| ITEM | PITCH | P1.5mm | P1.9mm | P2.6mm | P2.9mm | P3.9mm |
|---|---|---|---|---|---|---|
| Key Function | Technology | Carbon fiber, Multiple shapes, Unique lock plate, Brompton system available | ||||
| Mechanical | LED Type | SMD1010 | SMD1515 | SMD2020 | SMD1415 | SMD1921 |
| Pixel Density(dot/m²) | 410913 | 262,984 | 147,474 | 113,367 | 65,410 | |
| Module Size (W x H)(mm) | 500 × 250 | |||||
| Module Resolution (W x H)(pixels) | 320 ×160 | 256 × 128 | 192 × 96 | 168 × 84 | 128 × 64 | |
| Panel Size (W x H)(mm) | 500mm × 500mm (19.66″ × 19.66″) | |||||
| Panel Resolution (W x H)(pixels) | 320 ×320 | 256 × 256 | 192 × 192 | 168 × 168 | 128 × 128 | |
| Panel Material | Carbon fiber + Die-casting aluminum | |||||
| Panel Weight | 4.8KG | 4.8KG | 4.8KG | 5.3KG | ||
| Service | F/R | |||||
| IP Rating | IP21 | IP21 | IP21 | F: IP65, R: IP54 | F: IP65, R: IP54 | |
| Optical | Brightness | 800-1000 | 800-1000 | 800-1000 | 5000 | 5500 |
| Brightness (black leds) | 2500-3000 | 2500-3000 | 2500-3000 | 3000~3500 | 3000~3500 | |
| Refresh Rate | 7680Hz | |||||
| Color Temperature | 6500K ± 500K | 9000K ± 500K | ||||
| Power Consumption (Avg./Max.) | 200W / 500W | 240W / 720W | ||||
| Supported Frame Rate | 30 | 60 | 100 | 120 | 144 | 240Hz (exclusively supported by the custom firmwares of A10s Pro & IC.) | |||||
| Grey Level | 16bit | |||||
| View Angle (H/V)(°) | 160 / 160 | |||||
| Input(V) | 110-220V, 50-60Hz | |||||
| Operating Temp/Humidity | -20 ~ 50℃ / 10% ~ 90% | |||||
| Certification | ETL/FCC/CE/CCC | |||||
Remarks: The parameters are only for reference. The actual parameters may differ depending on the specific order. P1.5mm 的数据为示例数据。
Carbon Series: Premier Virtual Production Solution
7680Hz Ultra-High Refresh Rate
Fully supports high-speed camera shooting and slow-motion playback. This cinema-grade refresh rate ensures flicker-free footage and smooth motion rendering, even when shooting at high shutter speeds.
Multiple Shape - All about stage!
Model S E X Y L A D I
Superior In-Camera Blacks
Engineered with pure black LED diodes and a high-contrast mask design to deliver deep, velvety blacks. This technology eliminates the ‘gray wash’ effect often seen on standard screens, preserving shadow detail and depth directly through the camera lens.

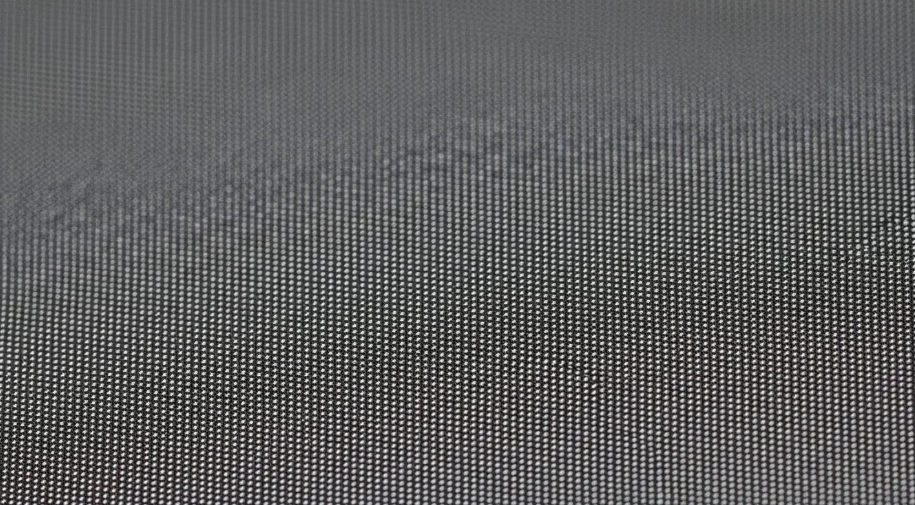

Advanced Moiré-Reduction Technology
Features a specialized optical mask design and optimized pixel pitches (P1.9, P2.3, P2.6) to diffuse light effectively. This significantly minimizes moiré patterns, allowing cameras to focus closer to the screen surface without digital artifacts.
Precision Genlock Synchronization
Essential for professional virtual production. Our system locks perfectly with your camera’s shutter phase to completely eliminate screen tearing, rolling bars, and scan lines, ensuring a seamless backdrop for every frame.
Cinematic Wide Color Gamut
Achieves over 98% coverage of the DCI-P3 color space (ready for Rec.2020 workflows). The display reproduces rich, accurate colors that meet strict Hollywood grading standards for HDR content.

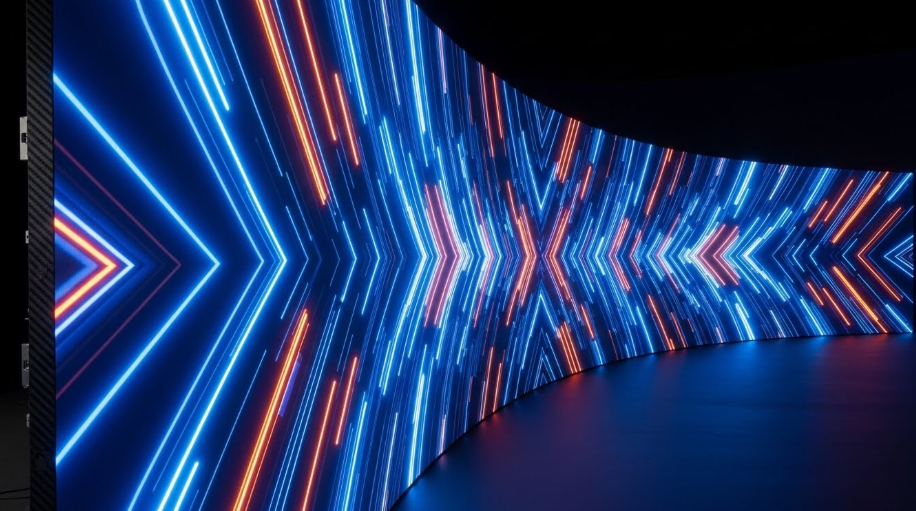

170°+ Ultra-Wide Viewing Angle
Maintains consistent color accuracy and brightness even at extreme off-axis angles. This allows directors to shoot from steep side perspectives without experiencing color shift or brightness drop-off.
The Carbon Series is engineered for cinematic XR workflows with three critical specs:
High Refresh Rate: Native 7680Hz ensures zero scan lines and supports high-speed camera slow-motion.
Color Accuracy: 16-bit grayscale and 99% DCI-P3 coverage for true-to-life HDR content.
Sync Capabilities: Full support for Genlock to perfectly synchronize with professional camera shutters (ARRI/RED), eliminating screen tearing.
We utilize a specialized optical mask design combined with optimized pixel pitches (P1.9 / P2.3 / P2.6). This diffuses light evenly, allowing cameras to focus closer to the screen without capturing interference patterns (Moiré). Additionally, the premium black LEDs provide superior contrast, preventing the "gray wash" effect often seen in standard LED walls under studio lighting.
The decisive advantage is Thermal Stability. Aluminum expands when heated by studio lights, causing visible gaps or bright lines between panels. Carbon Fiber has a near-zero coefficient of thermal expansion. This ensures the LED wall remains seamlessly flat and mechanically stable, even during long, heat-intensive shooting sessions. Plus, at only 5.5kg/panel, rigging loads are drastically reduced.
Yes. The Carbon Family offers full ecosystem integration:
Processing: Available with Brompton Tessera (for granular color control) or Novastar COEX/A8s (for low latency).
Rendering: Optimized for real-time engines like Unreal Engine 5 and Unity.
Tracking: Compatible with leading camera tracking systems such as Mo-Sys StarTracker and Ncam.
Yes, with our Flash Memory Calibration technology. Each module stores its own color and brightness calibration data on an onboard chip. If a module is damaged, you can hot-swap it instantly from the front. The system reads the data and auto-calibrates the new module to match the rest of the wall perfectly, requiring no manual recalibration downtime.
