Technical Support & Engineering Installation Guide

The CarbonS Series is designed for high-definition indoor environments where precision is non-negotiable. To achieve a seamless, bezel-free visual experience, the installation must follow strict engineering tolerances. Sostron provides the following technical framework for system integrators.

1. High-Precision Structural Alignment (Z-Axis Control)

Small pixel pitch displays (P1.2 – P1.8) are sensitive to even 0.1mm misalignments. The CarbonS series utilizes a proprietary carbon fiber molding process to ensure structural rigidity.

• Zero-Warp Frame: Unlike aluminum, carbon fiber does not expand or contract significantly with temperature changes. This ensures that once the screen is calibrated, the gaps between cabinets remain invisible.

• 6-Axis Micro-Adjustment: We recommend using Sostron’s specialized mounting brackets that allow for X, Y, and Z-axis micro-adjustments. This is critical for ensuring the screen surface is perfectly planar, preventing “dark lines” at the seams.

• Surface Flatness: The installation goal should be a total surface deviation of <0.05mm across any 2×2 meter area.

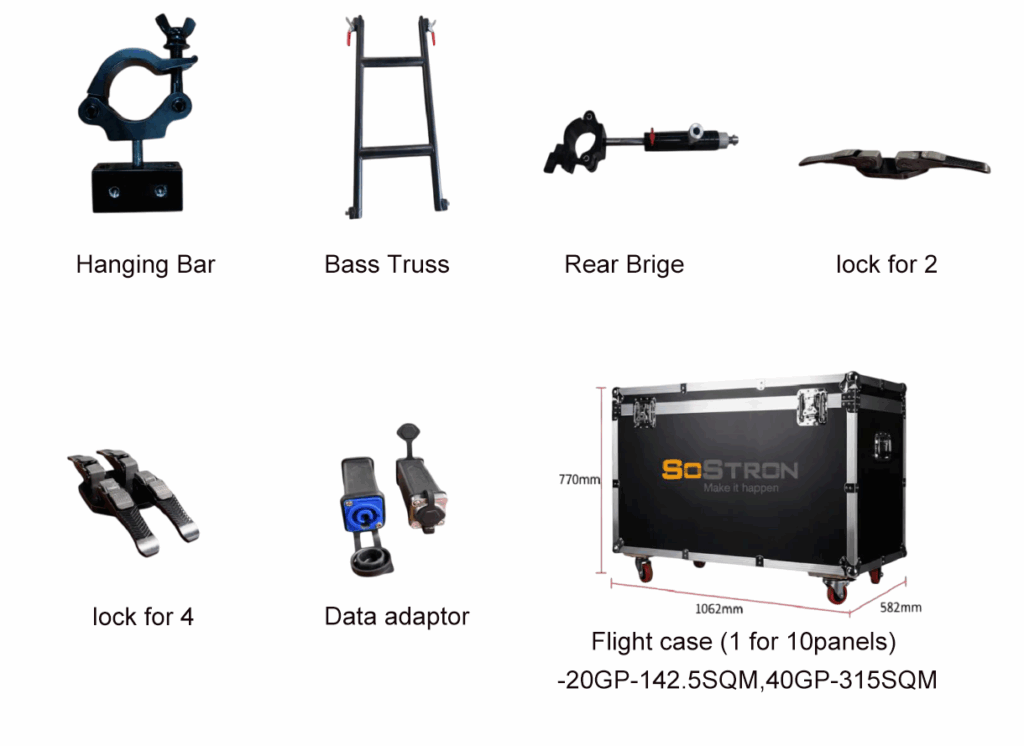

2. Innovative Mounting & Space Optimization

CarbonS is optimized for space-constrained environments such as control rooms and high-end retail.

• Direct Wall-Mounting: The ultra-slim profile (only [Insert Depth]mm) allows for direct attachment to load-bearing walls using a simplified rail system.

• ADA Compliance: When wall-mounted, the CarbonS system often meets ADA (Americans with Disabilities Act) requirements for protruding objects, making it ideal for public hallways and corporate lobbies.

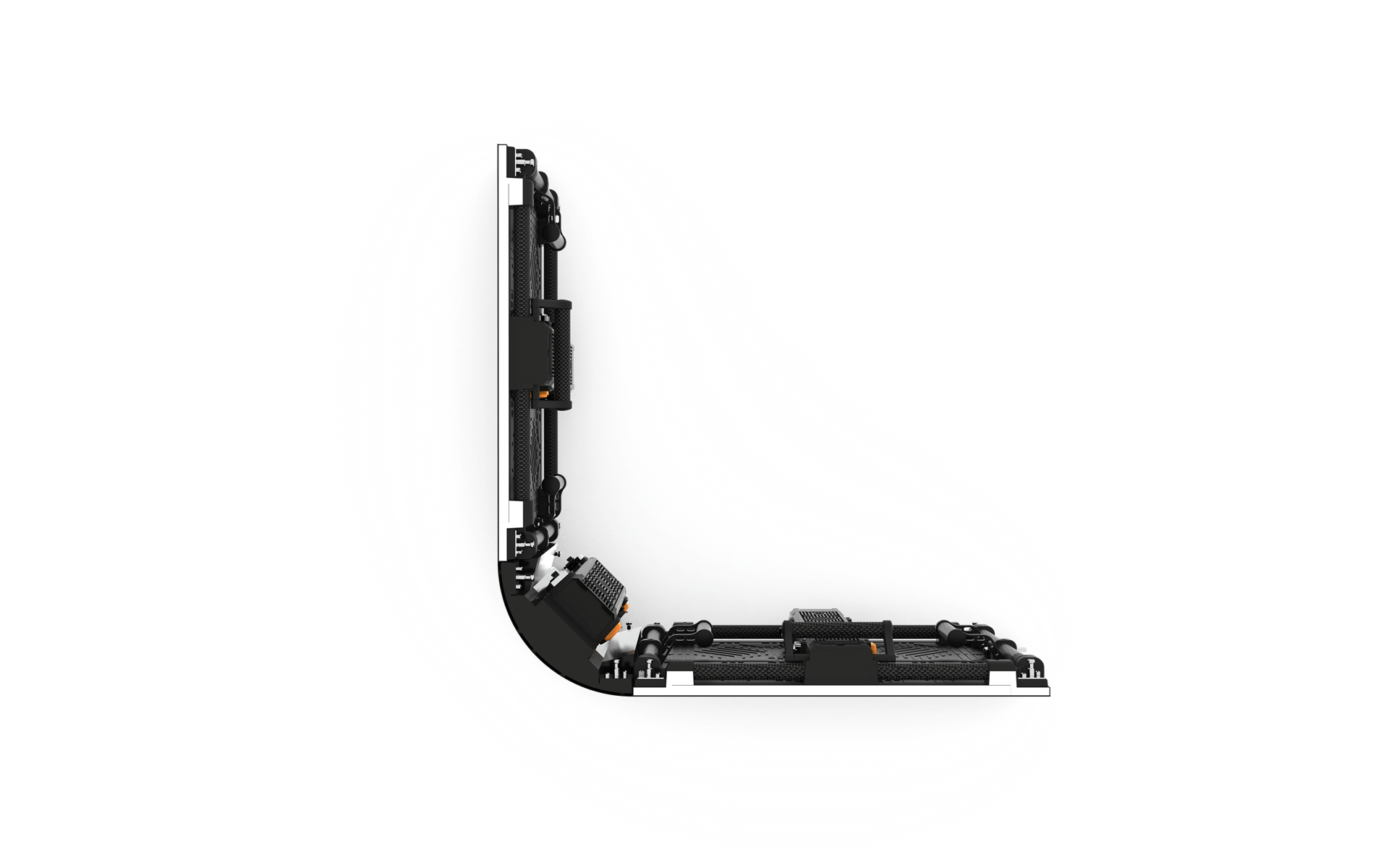

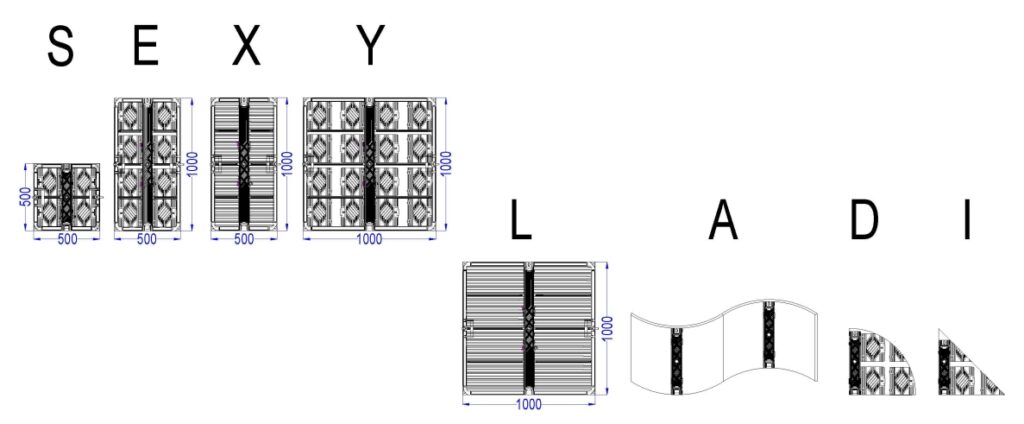

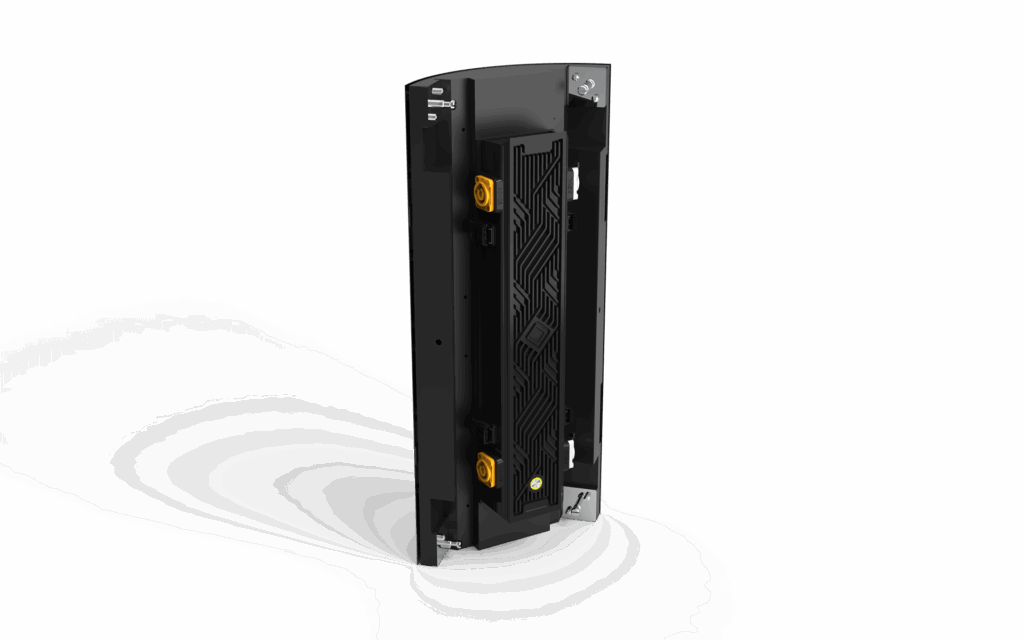

• Corner & Curve Integration: Support for 90-degree mitered edges for seamless corner wrapping. Please consult our engineering team for custom CAD layouts for “L-shaped” or “U-shaped” displays.

3. Intelligent Power & Signal Topology

For mission-critical applications (Command Centers, Studios), redundant systems are essential.

• Dual-Loop Redundancy: We support a “Daisy-Chain + Loopback” signal topology. If one data path fails, the backup controller takes over instantly without flickering.

• Smart Module Monitoring: Each CarbonS module contains an on-board MCU. Installers can use our diagnostic software to monitor real-time voltage, temperature, and runtime hours for every single cabinet.

• In-Rush Current Management: To protect your building’s electrical infrastructure, our power systems feature sequential power-up sequences to manage peak loads.

4. Thermal Management in Recessed Installations

When CarbonS is recessed into a wall or “boxed in,” heat dissipation must be managed:

• Airflow Requirements: Even with the high-efficiency power supplies of CarbonS, we recommend a minimum 50mm clearance behind the screen or integrated ventilation at the top and bottom of the niche to allow for natural chimney-effect cooling.

• Operating Thresholds: The system is designed to operate optimally between -10°C and +40°C. For installations near windows or heat sources, UV-rated filters or supplementary HVAC might be required.

5. Pro-Maintenance & Calibration

• Full Front Access: All components—including modules, power supplies, and receiving cards—are accessible from the front using a magnetic vacuum tool.

• Pixel-Level Calibration: After installation, a professional camera-based calibration is recommended. The CarbonS internal memory stores these coefficients, so if a module is replaced in the future, it will automatically match the surrounding screen’s brightness and color.
