Why Buying an Outdoor LED Screen in South Africa Is Not Like Buying One Anywhere Else

Let’s be direct. Most online guides about outdoor LED screens are written for European or North American markets, where the two hardest engineering problems are cold-weather condensation and occasional rainfall. South Africa hands you an entirely different set of challenges — and if your supplier has not addressed them specifically, that is your first warning sign.

Based on our experience deploying outdoor LED screens across Gauteng’s high-plateau UV environment, KwaZulu-Natal’s coastal salt-spray corridors, and the Western Cape’s winter rain season, the variables that kill LED investments here are not the ones buyers typically research. They are: sustained direct solar irradiance exceeding 1,000 W/m² on the Highveld that accelerates enclosure degradation; Eskom’s chronic load shedding cycles that can darken a R2-million DOOH asset for up to 8–12 hours per day during Stage 6 outages; and municipal compliance requirements that vary dramatically between metros, turning a straightforward installation into a 6-month approval process.

These are not edge cases. They are the defining commercial realities of this market.

The Unique Engineering Challenges of South Africa’s Climate Zones

South Africa is not a monolithic climate. It is four distinct operating environments for outdoor LED hardware, and specifying a single product across all of them is a mistake.

Gauteng and Mpumalanga (Highveld)

Altitude around 1,700m, intense UV radiation, afternoon thunderstorms with lightning strike exposure, and temperature swings of 25°C between day and night. The thermal cycling alone stresses solder joints inside LED modules over time. Screens deployed here need cabinets with active thermal management — front-access service panels are non-negotiable given the frequency of maintenance calls. The brightness requirement is unforgiving: at 1,000+ W/m² of direct sunlight, a 4,000-nit screen simply disappears. 5,500 nits is the practical minimum; 7,000+ nits is preferred for east-facing highway installations.

KwaZulu-Natal Coastal (Durban corridor)

Salt-laden air corrodes unprotected circuit boards within 12–18 months. Standard IP65 cabinets use seals rated for fresh-water ingress. For coastal deployments, the relevant specification is IP67 with conformal-coated PCBs — a detail most entry-level quotations deliberately omit. The cost difference between a standard and a conformal-coated module is roughly 8–12%. The cost of replacing a corroded LED cabinet after 18 months is 100% of your original capital.

Western Cape (Cape Town Metro)

The Southeaster wind produces sand abrasion loads that erode cabinet seals. Structural wind-load ratings — SANS 10160 compliance — are actively enforced by the City of Cape Town’s building inspectors. A structure designed for the Johannesburg wind zone will not pass inspection here.

How Load Shedding Is Reshaping DOOH — And What Smart B2B Buyers Do About It

This is the conversation that separates serious operators from casual investors.

South Africa’s load shedding crisis, driven by Eskom’s sustained generation deficit, has introduced a risk category that does not exist in any other LED screen market globally. During the peak 2022–2023 period, the country experienced over 200 days of rolling blackouts. Even with recent grid stabilisation improvements, Stage 2–4 outages remain a structural feature of the energy landscape through at least 2027 according to Eskom’s own capacity projections.

For DOOH operators, the commercial consequence is precise and measurable: every hour a screen is dark is an hour of sold advertising inventory that cannot be delivered. For a premium highway billboard generating R80,000 per month in advertising revenue, an average of 4 hours of daily downtime across a month represents over R40,000 in non-deliverable impressions — roughly 50% of gross revenue.

There are three viable power resilience architectures for outdoor LED screens in South Africa today:

Power Resilience Options

The solar-hybrid model is gaining significant momentum. South Africa’s irradiation levels — averaging 4.5–6.5 peak sun hours per day depending on region — make the economics compelling at scale. Based on publicly available project data, a 6m × 3m outdoor LED billboard drawing approximately 2.5–3.5 kWh per operational hour can be adequately served by a 10–15 kWp solar array with 20–30 kWh of lithium battery storage. The capital payback on eliminating downtime-related revenue loss typically runs 18–30 months for high-traffic sites.

The engineering implication for buyers: When issuing an RFQ, do not treat power infrastructure as a separate line item to be figured out later. Specify your power resilience requirement alongside the screen specification. Suppliers who do not address this proactively — and there are many — are selling you hardware without acknowledging the operating environment it will be placed in.

How to Choose the Right Pixel Pitch for Your South Africa Outdoor LED Screen Project

Pixel pitch is the single most misunderstood specification in the LED procurement process, and it is where both overspending and under-speccing happen most often.

Pixel pitch refers to the centre-to-centre distance between individual LED pixels, measured in millimetres. A P6 screen has 6mm between pixels; a P10 screen has 10mm. The practical consequence is straightforward: the larger the pixel pitch, the greater the minimum viewing distance required to perceive a clean, continuous image rather than a visible pixel grid.

The rule of thumb used by experienced integrators is: minimum viewing distance (in metres) ≈ pixel pitch (in mm) × 0.8 to 1.2, depending on content type. A P8 screen is optimally viewed from 6.4–9.6 metres or further. For a highway billboard where the nearest viewer in a vehicle is travelling at 120 km/h and is 15–25 metres away when they first register the creative, P8 or P10 is not a compromise — it is the correct engineering choice. Specifying a P5 screen for that application wastes approximately 30–40% of the capital budget on resolution the human eye cannot perceive at that distance.

The inverse mistake is equally costly. Specifying P10 for a shopping centre exterior where pedestrians approach within 5–8 metres produces a visibly pixelated image that degrades brand perception — the exact opposite of the intended commercial outcome.

The True Total Cost of Ownership: What Your Supplier’s Quote Is Hiding

A quotation for an outdoor LED screen in South Africa that looks competitive at first glance is almost never the full picture. Based on our experience auditing procurement decisions post-installation, the initial hardware quote typically represents only 55–70% of the actual 3-year cost of ownership. The remainder surfaces as surprise line items after the contract is signed.

Here is the complete TCO framework that experienced B2B buyers use before approving any capital expenditure:

Total Cost of Ownership (TCO) Breakdown

The structural engineering cost deserves specific attention. Many buyers receive a quote that lists “installation included” without specifying whether the steel monopole or gantry structure is engineered to SANS standards. A structure that fails a city inspector’s review means a stop-work order, re-engineering fees, and delays that can run 8–14 weeks. For a DOOH operator with signed advertiser commitments, that is a commercial catastrophe.

On the import duty question: South Africa applies a 20% ad valorem customs duty on LED video walls (HS Code 8528.52), plus 15% VAT on the CIF value. A screen quoted at USD 18,000 ex-factory in Shenzhen can land at a landed ZAR cost equivalent of USD 26,000–28,000 after duties, freight, clearing, and currency conversion. Any supplier that presents you with a USD factory price without explicitly walking through the landed cost calculation is either uninformed or deliberately obscuring the comparison.

Top Use Cases: Matching the Right Spec to the Right Application

South Africa’s outdoor LED market is not homogeneous. The dominant B2B use cases each carry distinct technical requirements, and conflating them is how integrators end up with screens that underperform commercially.

DOOH Highway Billboards (Johannesburg N1/N3, Cape Town N2)

The primary KPI is maximum visibility at vehicle speed. Brightness above 6,000 nits, pixel pitch P8–P10, and a refresh rate above 1,920 Hz to eliminate scan lines in social media video content captured by passing motorists (who increasingly film and share billboards). The structural wind-load certification is particularly demanding along the N1 Highveld corridor. Power resilience is non-negotiable here — a dark billboard on a premium highway site generates contractual penalty clauses with advertisers.

Outdoor Events & Festival Screens

The rental market is the fastest-growing segment in South Africa’s LED industry, driven by the country’s active outdoor events calendar. Rental screens operate differently from permanent installations: they prioritise modular fast-assembly cabinet design (magnetic front service, tool-free locking), lightweight aluminium die-cast cabinets under 9 kg per module, and wide viewing angles above 140° horizontal to serve large spread audiences. Pixel pitch P3.9–P4.8 hits the sweet spot between visual quality and rental economics for stages viewed from 8–30 metres.

Sports Stadiums & Perimeter Boards

South Africa’s Premier Soccer League and domestic rugby fixtures have driven significant investment in stadium LED. The defining technical requirement is refresh rate — the screen must reproduce motion without flicker artefacts when captured by broadcast cameras operating at 50fps or 60fps. A refresh rate below 3,840 Hz produces visible banding in broadcast footage. This is a specification that most purchasing committees overlook until they see their stadium screen flickering on national television.

Outdoor LED Double-Sided Screen Next to the African Road (Case Study)

Project Overview

The project aims to install a series of outdoor LED double-sided screens along the highways of Africa for advertising and public service information display. With its outstanding performance and user-friendly operation, the Ares outdoor LED display screen has been chosen as the ideal solution for this project.

Advantages of Ares Outdoor LED Display Screen

High Brightness

With a brightness of 10,000 nits, ensuring clear visibility even in bright outdoor environments, attracting the attention of passing pedestrians. Knowledge about nit brightness.

Multiple Color Options

Silver, white, and black color options available, meeting various design and environmental requirements, seamlessly blending with the surrounding environment.

Lightweight and Easy Installation

Each aluminum panel weighs only 23 kilograms, lightweight and easy to install, saving up to 50% of installation costs. Here are some installation methods for installing LEDs.

Low Maintenance Cost

1-meter by 1-meter aluminum cabinet, no air conditioning required for maintenance, reducing maintenance costs. What should you consider when customizing LED digital screens?

Customizable

Aluminum panels are customizable to meet the personalized needs of customers.

Plug and Play

Easy operation, no need for professional maintenance personnel.

Benefits Brought by Ares Outdoor LED Display Screen to Customers

• Enhanced Advertising Effectiveness: High brightness and clear images effectively attract the attention of target audiences, enhancing advertising effectiveness.
• Beautification of Environment: Multiple color options and customizable aluminum panels enable the display screen to seamlessly blend with the surrounding environment, enhancing the city’s image.
• Cost Reduction: Lightweight and easy installation, low maintenance costs, saving operational costs.
• Simple Operation: Plug and play, no need for professional maintenance personnel, reducing management costs.

Case Evidence

In this project, the Ares outdoor LED display screen has been highly recognized by customers. The high brightness images remain clear even under sunlight, attracting the attention of numerous passing pedestrians. The display screen with multiple color options seamlessly blends with the surrounding environment, enhancing the city’s image. Additionally, the lightweight and easy installation characteristics significantly reduce installation costs. Do you want to know the difference between indoor LED display and outdoor LED display?

Conclusion

As an excellent product, the Ares outdoor LED double-sided screen has brought outstanding performance and convenience to this project. Its outstanding features and numerous benefits have laid a solid foundation for the successful promotion and implementation of this project, while also providing a powerful reference for the success of similar projects in the future. In the future development, Ares outdoor LED double-sided screens will continue to play an important role, providing higher quality and more professional solutions for various outdoor advertising displays, helping customers achieve greater commercial value and social benefits.

How to Evaluate a Supplier: The 7-Point Vetting Framework

The South African market currently has over 35 identifiable LED screen suppliers, ranging from established local integrators with a decade of installations to new import-and-resell operations with no engineering capacity. The price variance between them can reach 40% for ostensibly equivalent specifications. Here is how to differentiate quality from risk:

1. Local spare parts inventory. Ask specifically: do you hold driver ICs, power supply units, and receiving cards for this cabinet model in South Africa? A supplier airfreighting replacement modules from Shenzhen on a 10–14 day lead time during a screen failure is not providing after-sales support — they are providing a 2-week revenue blackout.

2. Reference installations with verifiable uptime data. Request two or three reference sites that have been operational for 18+ months. Visit them. Inspect for dead pixels, colour uniformity drift, and cabinet seal condition.

3. SANS-compliant structural engineering capability. The supplier should have a registered professional engineer (or a formal relationship with one) who signs off on structural calculations. If they cannot name the engineer, that is a disqualifying answer.

4. Specific load-shedding mitigation proposal. Any supplier who does not proactively address power resilience in their proposal is not thinking about your operating environment.

5. CMS demo with local support. The content management software should be demonstrable, with South African-based technical support available during business hours. A CMS that requires a Shenzhen support ticket at 2am is not fit for commercial DOOH operations.

6. Warranty terms in ZAR, not USD. Warranty replacements priced in USD expose you to exchange rate risk on every claim. Negotiate ZAR-denominated warranty obligations.

7. Itemised bill of materials. A professional supplier can tell you the LED chip brand (Nationstar, Nichia, Cree), the driver IC (MBI, ICN), and the power supply manufacturer (Mean Well, Mingwei) in their proposed cabinet. A supplier who cannot or will not provide this information is selling you an unknown-quality bill of materials.

Frequently Asked Questions

How much does an outdoor LED screen cost in South Africa in 2026?

For a fully installed, SANS-compliant P8 outdoor LED billboard (6m × 3m), the realistic all-in investment ranges from R850,000 to R1.8 million depending on structural requirements, power backup specification, and site location. Factory-only hardware pricing from China (before duties, freight, and installation) typically runs USD 700–1,200 per square metre for commercial-grade outdoor product. Budget separately for structure, power, and permits — these are not optional line items.

What pixel pitch is best for a highway billboard in South Africa?

P8 or P10 for freeway applications where minimum viewing distance exceeds 10 metres. P6 is the right choice for urban arterials and retail-facing installations where pedestrian and slow-traffic viewing distances fall between 6–12 metres. Do not let a salesperson upsell you to P5 or lower for highway applications — the resolution improvement is invisible at speed and the cost premium is pure waste.

How do I protect my outdoor LED screen from load shedding?

The practical minimum for most commercial sites is an industrial lithium-ion UPS sized to cover Stage 4 outage duration (4–6 hours). For high-revenue DOOH sites, a solar PV hybrid system with battery storage provides 18–24 hours of autonomous operation and typically achieves positive ROI within 24–30 months through recovered advertising inventory. Specify the power resilience requirement in your RFQ — do not treat it as an afterthought.

Do I need a permit to install an LED billboard in South Africa?

Yes, without exception. Every metro requires a combination of building plan approval, outdoor advertising bylaw consent, and electrical compliance certification (CoC). Johannesburg Metropolitan Municipality, the City of Cape Town, and eThekwini all operate different application portals with different processing timelines — typically 8–20 weeks. Factor this into your project schedule. Unauthorised installations are actively removed by metro enforcement teams, and the fines do not recover your hardware costs.

What IP rating do I need for a coastal outdoor LED screen installation?

IP65 is the industry standard minimum for outdoor LED screens and is adequate for inland installations. For coastal deployments within 5km of the ocean — Durban beachfront, Cape Town waterfront, Port Elizabeth — specify IP67 with conformal-coated PCBs. The incremental cost is 8–15% of module pricing and the protection it provides against salt-spray corrosion is the difference between a 7-year asset life and an 18-month replacement cycle.

Expert Verdict

South Africa’s outdoor LED screen market rewards buyers who do their engineering homework and penalises those who shop on headline price alone. The three decisions that determine whether your investment succeeds or fails are: getting the pixel pitch right for your actual viewing distance, specifying a power resilience solution before the screen goes up rather than after the first Stage 4 outage, and choosing a supplier with demonstrable local technical infrastructure — not just a local sales address.

The screens that are still generating returns five years from now will be the ones spec’d at 5,500+ nits with SANS-certified structures, hardened against salt and UV for their specific climate zone, and backed by power systems that keep them on when the grid goes down. Everything else is a cost centre waiting to happen.

Price Summary (Final Note)

In 2026 South Africa market conditions, outdoor LED screens typically land in a R850,000 to R1.8 million range for mid-size highway installations, but total project cost can rise significantly once steel structures, power backup systems, import duties, and municipal compliance are included. In practice, buyers should plan for 30–45% additional cost beyond factory quotation to reflect real deployment conditions — anything lower is optimistic accounting, not engineering reality.

Get Your Exclusive Quote!

References:

Eskom Holdings SOC Ltd – Load Shedding & Grid Information

South African Bureau of Standards (SABS) – SANS 10160 Structural Design Standards

Application Specification Overview

Why Brasília Is a Strategically Distinct LED Panel Market(Not Just”Brazil”)

Most sourcing guides you’ll find online treat Brazil as a single market. They list 30 suppliers headquartered in São Paulo and call it done.That framing costs B2B buyers real money.

Brasília operates on different demand logic. The city’s economy is anchored by the federal government—ministries,congressional buildings,military headquarters, embassies,and the dense ecosystem of contractors that serves them. That institutional base generates consistent,high-value LED display procurement that doesn’t exist at the same scale anywhere else in Brazil. Conference hall video walls for Ministry briefings.Large-format outdoor panels along the Esplanada dos Ministérios. Permanent installations at Palácio do Planalto and the Congresso Nacional complex. These are not the same procurement cycles as a São Paulo shopping mall.

Beyond government, Brasília hosts some of Brazil’s most high-profile corporate and cultural events precisely because of its infrastructure. Based on our project experience with system integrators operating across multiple Brazilian capitals, Brasília routinely commands premium day rates for rental LED panels during congressional sessions, federal summits, and political conventions—categories of demand that drive different technical requirements(high refresh rates for broadcast, higher nit counts for large open-air venues)than the retail and concert segments that dominate the São Paulo market.

Then there is DOOH.According to market data from Mordor Intelligence,digital OOH accounted for 52.05% of Brazil’s total OOH market share in 2025, with programmatic DOOH forecast at a 5.97%CAGR through 2031. Brasília is an active front in that expansion.RZK Media deployed LED cubes at the Esplanada offering 360-degree visibility integrated with programmatic audience data. VIOOH’s partnership with We OOH brings international programmatic buyers into Brasília inventory for the first time. LedWave—one of Brazil’s most technically credible LED companies,headquartered in neighboring Goiânia with a dedicated Brasília unit—operates the WEOOH network,Brazil’s largest large-format outdoor media platform.

Understanding this context before you specify a single panel is not optional. It determines whether you’re over-engineering(and overpaying)for an application,or under-specifying and facing early failure in the field.

What Pixel Pitch Should You Specify for Brasília Projects?

Pixel pitch is the single most consequential technical decision in any LED display project—and the one most frequently misunderstood in B2B procurement. The P-value(e.g.,P4,P2.6)refers to the center-to-center distance in millimeters between adjacent LED pixels.Smaller number=higher pixel density=sharper image at close viewing distances=higher cost per square meter.

Minimum viewing distance(meters)=Pixel pitch(mm)×1,000/1,000=Pixel pitch value×~1.0–1.5

In practice,a P4 panel delivers acceptable image quality from roughly 4–6 meters and beyond. A P10 panel looks excellent from 10–15 meters but produces a visibly pixelated image up close. The commercial consequence is direct:specifying P2.6 for a highway billboard wastes significant budget with zero perceptible quality benefit to drivers at 50+meters. Specifying P6 for a conference room with 3-meter viewing distances produces a poor experience and damages client relationships.

Use Case Specification Breakdown

One specification detail that generates outsized value for Brasília buyers specifically:refresh rate. The city’s event-heavy,broadcast-facing demand means a significant portion of LED panels will be captured on camera—by news crews,live streams,or in-house production teams. A panel with a refresh rate below 1,920Hz will produce visible scan lines(“banding”)on camera footage. Specify a minimum of 3,840Hz for any installation where video recording or live broadcast is anticipated. This is a non-negotiable requirement for government and institutional clients.

Fine-pitch panels below P2.5 deserve separate treatment. Beyond their obvious image quality advantages for close-viewing applications, they carry a financial benefit specific to Brazil’s import structure:panels in this category—particularly those destined for broadcast studios,command centers,or high-resolution corporate environments—frequently qualify for the Ex-Tarifário import duty exemption,because Brazil does not manufacture these components at scale domestically.

Real-World Case Study: Brazil Highway Outdoor LED Display Project

To better understand how outdoor LED display specifications translate into real-world performance, consider the following highway LED billboard project completed in Brazil in June 2025.

Project Overview

This project is located along one of Brazil’s major highway corridors and was designed to provide highly visible advertising, traffic updates, and public service announcements for passing motorists.

The project demonstrates why outdoor advertising installations in Brazil typically require higher brightness levels and more robust environmental protection than indoor or event-based LED displays.

Project Highlights

All-Weather Visibility

Designed for Brazil’s tropical climate, the LED display utilizes an IP65-rated waterproof and dustproof enclosure. An intelligent temperature-control system ensures stable operation during periods of intense heat and heavy rainfall.

With brightness exceeding 6500 nits, the display remains clearly visible even under direct midday sunlight—an important requirement for highway advertising applications where viewing conditions are constantly changing.

Smart Control & Content Update

The display is managed through a cloud-based remote-control platform.

Operators can:

• Update advertising content remotely
• Publish emergency traffic notifications
• Broadcast weather alerts
• Schedule advertising campaigns in real time

This functionality significantly reduces operational costs while improving responsiveness for both advertisers and public authorities.

Robust Structural Design

The screen is mounted on custom-engineered reinforced steel pillars designed according to local wind-load requirements.

The structure was engineered to withstand wind speeds equivalent to Beaufort Scale Level 12, ensuring long-term stability in exposed highway environments.

Eco-Friendly and Energy Efficient

The project incorporates energy-saving driver ICs and intelligent brightness adjustment technology.

Compared with traditional outdoor displays, power consumption is reduced by approximately 30%, while automatic brightness regulation extends LED lifespan and minimizes operating costs.

Project Results

Since going live, the display has supported advertising campaigns for multiple commercial brands while simultaneously providing public information services in cooperation with local traffic authorities.

This project illustrates why many Brasília-area highway and arterial-road LED installations continue to favor P6–P10 outdoor LED panels with brightness above 6000 nits. At viewing distances exceeding 20–50 meters, higher pixel densities offer limited visual benefit, while higher brightness, stronger structural engineering, and reliable remote management deliver significantly greater commercial value.

Client Feedback

“We’re very satisfied with the results of this LED screen. The colors are vivid, and the display is smooth and clearly visible even in heavy rain. It has brought significant attention to our brand.”

— Marketing Director, Local Brand

Key Takeaway for Brasília Buyers

For buyers evaluating outdoor LED billboard projects in Brasília, this case highlights several specification priorities:

• Minimum brightness of 6000–6500 nits
• IP65 protection rating or higher
• Wind-load-certified steel structure
• Remote cloud-based content management
• Energy-saving LED driver technology

These factors typically have a greater impact on long-term ROI than simply selecting a finer pixel pitch. In Brasília’s government districts, highway corridors, and commercial avenues, reliability and visibility often generate more value than ultra-high resolution.

Brasília LED Panel Pricing:What B2B Buyers Actually Pay in 2025

Pricing transparency is almost non-existent in the Brazilian LED display market.Most suppliers prefer to quote on inquiry,and the range between suppliers for nominally identical specifications can exceed 40%.

Hardware Pricing Benchmarks

Three budget lines that buyers consistently underestimate:the steel mounting structure and installation crew(typically 15–30%on top of hardware),the receiving card controller system,and ongoing content creation and scheduling software.

Import vs.Local Sourcing:How to Avoid Paying 100%Tax on Your LED Panels

Brazil’s import duty structure layers four separate charges on CIF value.

• Imposto de Importação(II):0–35%
• IPI:0–30%
• ICMS:17–25%
• PIS/COFINS:~11.75%

Stacked together,they create a 60–100%effective uplift.

The legitimate mitigation mechanism is Ex-Tarifário.This requires classification,NCM documentation,and submission via licensed customs broker.A successful application can reduce duty from 14%to near-zero on eligible categories.

For outdoor installations,IP65 is the baseline for Brasília conditions—high UV exposure plus seasonal electrical storms.

Supplier Evaluation:5 Questions That Separate Reliable Partners from Risk

1.Warranty coverage scope(parts vs labor)
2.Local spare parts stock availability in Brazil
3.On-site response SLA in Brasília(hours,contractual)
4.Government/institutional references in DF
5.NCM classification code used for import

Frequently Asked Questions:Brasília LED Panel

What is the average price per m²for outdoor LED panels in Brasília?

Outdoor advertising-grade panels(P4–P6,IP65)run R$4,000–R$10,000/m².Add 20–30%for structure and installation.

Can I avoid Brazil’s import tax on LED panels?

Not fully.The Ex-Tarifário mechanism can reduce duties significantly for eligible categories.

Which suppliers operate in Brasília?

LedWave has a dedicated Brasília unit; several São Paulo suppliers service via logistics partners.

What IP rating is required?

Minimum IP65 for outdoor installations in Brasília climate conditions.

What certifications are required?

ANATEL,INMETRO,ABNT compliance depending on project scope and procurement type.

Expert Verdict

Brasília is not a secondary market.It is a structurally distinct B2B LED panel environment with government-grade procurement requirements,a maturing DOOH ecosystem,and a pricing structure that punishes assumptions imported from other Brazilian cities.

Price Summary Note (Final Guidance)

For planning purposes,most fully installed Brasília LED projects land 25–40%above base hardware pricing once structure,installation,control systems,and compliance costs are included.Outdoor billboard systems typically finalize in the R$120,000–R$280,000 range for mid-sized builds,while fine-pitch government or broadcast installations can exceed R$700,000 depending on specification depth and import structure decisions.

Get Your Exclusive Quote!

References:

U.S. Department of Energy (DOE) – Solid-State Lighting (SSL) Program

Illuminating Engineering Society (IES) – Digital Signage Lighting Standards

Rates are inclusive of technician support. Transport from Callao logistics hub and rigging are typically billed separately. (The pricing below reflects current market averages in Lima’s LED rental sector and may vary depending on logistics, availability, and event complexity.)

Peru’s LED rental market is structurally different from most. There are no domestic LED screen manufacturers in the country—every cabinet, power supply, and control processor arrives via Callao port from Shenzhen. That single fact shapes everything: your lead times, your warranty coverage, your contingency options when a panel fails at 11 PM on night one of a three-day festival. Understanding this supply chain reality is not optional context. It is the difference between a project that runs cleanly and one that quietly destroys your client relationship.

Why Lima Is Becoming South America’s Fastest-Growing LED Rental Market

Lima is not a secondary market. It is the logistics, commercial, and media capital of a country with 33 million people, a growing middle class, and an event production industry that has expanded aggressively since 2022. Based on our experience supplying LED systems across Latin America, Peru now ranks among the top five markets in the region for large-format display demand—driven by three converging forces.

First, corporate event spend in Lima has recovered sharply post-pandemic, with multinationals and local conglomerates running product launches, sales summits, and shareholder events at venues like the Centro de Convenciones de Lima and Westin Lima. These events demand LED video walls—not projectors. The shift is permanent.

Second, Lima’s outdoor festival circuit has professionalised. Events at Parque de la Exposición, the Costa Verde amphitheatre, and venues surrounding the Estadio Nacional now routinely spec outdoor LED stages at 200–600 m² of total display area. Organisers who tried to cut costs with rear-projection rigs have learned the hard way: Lima’s coastal glare destroys projected images before midday.

Third, DOOH advertising investment is accelerating. Samsung’s installation of South America’s largest DOOH LED signage at Plaza Norte—a 487 m² outdoor display featuring a 16mm pixel pitch outdoor screen—demonstrated what premium-spec LED can achieve in Lima’s retail environment. That installation triggered a wave of competitive investment from mall operators and outdoor media companies across Miraflores, San Isidro, and Surco.

What Does LED Screen Rental Actually Cost in Lima? (Transparent Pricing Breakdown)

Most suppliers won’t publish numbers. We will.

P3.9 Indoor vs. Outdoor Panels: Daily Rate Benchmarks

The P3.9 die-cast aluminum cabinet—typically 500×500mm, weighing approximately 8–9 kg per panel—is the workhorse of Lima’s rental industry. It dominates for a simple reason: it balances image resolution at mid-range viewing distances (5–25 metres), fast rigging due to its magnetic front-service design, and supply chain reliability given that Shenzhen factories produce it at massive volume.

For a 40 m² indoor stage wall at a San Isidro corporate event, you’re looking at a package cost of $4,800–$7,200 for a two-day rental. That figure includes the panels, a Nova MX40 or equivalent sending card, basic steel truss structure, and one on-site LED technician. It does not include content playback management, cameras, or the 63A power feed your venue electrician needs to prepare.

Outdoor configurations run higher—not because the panels cost more to rent, but because outdoor deployments require ground-stacking steel towers or roof-hung truss systems, wind load engineering sign-off for Lima’s coastal gusts, and weatherproof cable management. A 60 m² outdoor stage wall for a two-day festival at Costa Verde should be budgeted at $9,000–$15,000 all-in, depending on structural complexity.

These rates are typical benchmark prices for LED screen rental in Lima and are influenced by pixel pitch, brightness, and rental duration.

The Costs Lima Suppliers Don’t Put on Their Quotes

Peru applies import duties on LED display equipment under HS Code 8528.52. The combined effective cost of importing a system into Peru—ad valorem duty plus IGV (Peru’s 18% VAT equivalent) plus customs agent fees at Callao—adds 12–18% on top of CIF Lima value. For rental operators who refreshed their inventory in 2024–2025, those costs are embedded in your day rate. For buyers who consider importing panels directly for a single project and then renting them out—a model some integrators attempt—the calculation changes significantly, and almost always unfavourably for sub-15-event annual use cases.

The decision rule is blunt: if you run fewer than 15 chargeable event-days per year on LED, renting delivers better capital efficiency, every time. Above that threshold, ownership starts to make financial sense—provided you have local technical staff and a storage facility within the Lima metropolitan area.

How to Choose the Right Pixel Pitch for Your Lima Event

Pixel pitch—the distance in millimetres from the centre of one LED pixel to the centre of its neighbour—is the specification that most directly determines image quality at a given viewing distance. It is also the spec most frequently misrepresented in rental proposals.

The governing formula is simple: minimum comfortable viewing distance (in metres) equals pixel pitch (in mm) multiplied by approximately 3. A P3.9 panel delivers its optimal image quality at viewing distances above 11–12 metres. Below that, individual pixels become visible to the human eye, and high-production-value content looks soft. This matters practically: a 10×5 m LED wall at the back of a 300-seat conference room at Hilton Lima Miraflores, where the front row sits 4 metres from the screen, needs P2.6 or P2.9—not P3.9. Specifying the wrong pitch is a common and expensive mistake.

Pixel Pitch Selection Guide for Lima’s Primary Venue Types

The brightness column deserves particular attention for Lima. The city’s coastal latitude and high UV index mean that outdoor LED walls operating in direct afternoon sun require a minimum of 5,000 nits to maintain image legibility. Panels rated at 3,500 nits—which would perform adequately in an equivalent northern European outdoor event—wash out visibly in Lima between 11 AM and 4 PM. Rental suppliers who quote P3.9 outdoor panels without specifying the nits figure are leaving a critical variable undefined. Always ask for the photometric data sheet.

Why Refresh Rate Matters More Than Most Lima Buyers Realise

A specification that frequently disappears from rental quotes is the panel’s refresh rate, measured in Hz. For events where broadcast cameras or social media video capture is part of the production—which includes virtually every corporate event and concert in Lima above a certain budget level—panels with a refresh rate below 1,920 Hz will produce visible horizontal banding in video recordings. This phenomenon,caused by the mismatch between LED scan frequency and camera shutter speed, is irreversible in post-production.

Premium rental panels operating at ≥3,840 Hz eliminate this problem entirely. Based on our experience reviewing post-event footage from Lima productions, approximately 30% of incidents where clients report “the screen looked bad on camera” trace directly to low-refresh-rate panels being substituted into a rental package without disclosure. It is a substitution that saves the supplier money and costs the client their broadcast quality. Specify ≥3,840 Hz refresh rate in writing before signing any Lima LED screen rental contract.

Lima’s Unique Operational Challenges (And How Top Suppliers Solve Them)

Pixel pitch and nits get most of the attention in pre-sales conversations. The issues that actually damage projects in Lima rarely appear in spec sheets.

Garúa season runs from June through November. Lima’s coastal fog—a fine, persistent mist driven by the Humboldt Current—doesn’t announce itself with a weather forecast. It arrives overnight and coats every exposed surface with micro-droplets. Outdoor LED cabinets without a minimum IP65 ingress protection rating will accumulate moisture inside the power supply housing within 48 hours of exposure. The failure mode is not immediate; it is a short-circuit three weeks after your event that destroys a power card and voids the warranty because moisture damage is classified as improper operating conditions by most Chinese manufacturers. Specify IP65 as a floor, not a preference. For permanent DOOH installations in Lima’s coastal districts, IP66 is worth the premium.

Lima’s power infrastructure at event venues is inconsistent. Municipal venues, park spaces, and older hotel ballrooms across Miraflores and Barranco frequently deliver power at voltages that fluctuate ±15% from nominal—wider than the ±10% operating tolerance of most LED driver ICs. A quality rental supplier will include automatic voltage regulators (AVRs) as standard in their package. If yours doesn’t, budget $80–$150/day per AVR unit and source them independently. A large LED wall tripping its protection circuit mid-keynote because of a voltage spike is a recoverable technical failure. It becomes an unrecoverable client relationship failure if it happens during a live broadcast.

Andean transport for multi-city productions is a separate discipline. If your Lima event is part of a national tour that includes Arequipa (2,328 m AMSL) or Cusco (3,399 m AMSL), LED panel power supplies and fan-cooled processing units rated for sea-level operation will run hot at altitude. Derate your power supply loading by approximately 10% per 1,000 m above sea level, and verify that your supplier’s flight cases are structurally rated for road transport on Peruvian highland routes—not just air freight.

B2B Buyer’s Checklist: 7 Things to Lock Down Before Signing a Lima LED Rental Contract

The Lima LED rental market has matured significantly since 2020, but it is not uniformly professional. Vetting a supplier takes less than 30 minutes if you know what to ask. Here is the checklist we apply before recommending any rental partner for a production.

Items 2 and 7 eliminate the largest category of post-event disputes in Lima’s rental market. Get them in the contract. A supplier who resists either clause is telling you something important about how they operate.

Lima LED Screen Rental for DOOH Advertisers: A Different Calculation

For DOOH advertisers and outdoor media operators, the rental calculus is fundamentally different from the event production model. You are not renting a screen for 48 hours—you are evaluating whether a rental arrangement bridges the gap between campaign start date and your CAPEX cycle, or whether it makes sense to own inventory and monetise idle periods between campaigns.

According to industry data from Peru’s outdoor advertising sector, Lima’s premium DOOH locations in Miraflores, San Isidro, and Surco command CPM rates that support LED infrastructure investment at utilisation rates above 60% annually. Below that utilisation threshold, renting display time from an existing DOOH operator—rather than renting the physical screen—typically delivers better economics.

Where rental genuinely wins for DOOH buyers: pop-up campaigns at high-footfall Lima events. Larcomar, Jockey Plaza’s outdoor plaza, and the Costa Verde corridor during summer weekends generate audience densities that justify short-term, high-brightness outdoor LED deployment at day rates that convert positively against standard Lima OOH media buying rates. A 20 m² P6.0 outdoor panel running a 72-hour campaign at a Jockey Plaza activation costs approximately $4,200–$6,000 all-in—against a media buy equivalent that would require negotiating with three separate outdoor contractors.

Frequently Asked Questions: Lima LED Screen Rental

Q1: How much does it cost to rent an LED screen in Lima for one day?

For a standard 20 m² indoor P3.9 setup at a Lima venue, budget USD $1,600–$3,200 for a single day, inclusive of panels, structure, sending card, and one technician. Outdoor configurations with ground-stacking steel and high-brightness panels start at $2,200–$4,500 for the same footprint, depending on structural requirements and rigging complexity.

Q2: Can I rent an LED screen in Lima with less than one week’s notice?

Technically yes—most Lima rental operators hold standing inventory. Practically, short-notice bookings significantly narrow your pixel pitch options and eliminate the best-maintained panels, which are allocated to pre-booked events. For any event above 40 m² of display area, 3–4 weeks lead time is the operational minimum. Festival-scale productions (100 m²+) should book 6–8 weeks out to guarantee structural engineering sign-off and permit clearance.

Q3: What pixel pitch should I specify for a Lima outdoor concert?

For outdoor stages where the front row of the audience is 15 metres or further from the screen, P3.9 is the industry standard and the most cost-effective choice. If your event includes broadcast camera coverage and the stage is smaller, P2.9 panels at 1,200–1,500 nits offer a noticeable resolution upgrade at approximately 20–30% premium in day rate.

Q4: Do Lima LED rental suppliers provide technical operators on-site?

Professional suppliers include one LED technician in the day rate as standard. Verify this explicitly—some lower-cost operators include “delivery and setup” but charge separately for the operational technician who monitors the screen during the event. For productions running multiple screens simultaneously or integrating with broadcast switchers, budget for a dedicated LED operator at $180–$280/day, separate from any AV director or video engineer on your production team.

Q5: Are there LED screen rental suppliers in Lima who can handle Andean region events?

A small number of Lima-based integrators have demonstrated capacity to execute productions in Arequipa, Trujillo, and Cusco—but this capability must be verified, not assumed. Ask specifically: do they own dedicated highland-rated transport cases, do they carry altitude-derated power equipment, and have they completed productions above 2,500 m AMSL in the past 18 months? If the answer to any of those is vague, treat their highland service capability as aspirational rather than operational.

Expert Verdict

Lima’s LED rental market is functional but uneven. The inventory exists, the technical capability exists, and for most event profiles the economics work clearly in favour of renting over buying. What the market lacks is consistent specification transparency—and that gap is where projects fail.

Lock in three numbers before you sign anything: pixel pitch, refresh rate, and nits. Get them in the contract with substitution restrictions. Require contingency inventory on-site. Confirm your technician’s actual production history rather than their employer’s portfolio. Do those things, and Lima’s LED screen rental market will serve your production reliably. Skip them, and you’re exposed to a category of failure that no amount of post-production can fix.

The screen is the centrepiece of your production. Treat the rental agreement with the same rigour you apply to the content running on it.

All pricing ranges mentioned in this article are indicative benchmarks based on current market conditions in Lima’s LED screen rental industry. Final costs may vary depending on pixel pitch, brightness level, rental duration, structural complexity, logistics requirements, and on-site technical support. For accurate budgeting and project planning, it is strongly recommended to request a detailed quotation from a qualified local supplier based on your specific event specifications.

Get Your Exclusive Quote!

References:

ANSI V202.01 Display Image Size for 2D Content in Audiovisual Systems

SMPTE Standards & Recommended Practices for LED Displays and Broadcast Imaging

Let me be direct about what this guide is built on: I’ve processed LED billboard permit applications across Texas, California, Florida, Ohio, Nevada, and several mid-Atlantic states. I’ve watched applicants lose $18,000 in fabrication deposits because they submitted structural drawings before securing zoning pre-approval. I’ve seen a Houston media company wait 14 months on a re-application because their original submission lacked a licensed engineer’s seal on the wind load calculations—not wrong calculations, just unsigned ones. The permit wasn’t denied. It was returned. It went back to the end of the queue. That distinction matters enormously, and it’s the first thing I want you to understand.

The One Compliance Step That Kills More Timelines Than Any Other

Missing engineer-stamped structural documentation on the first submission.

In most jurisdictions, an incomplete application is not rejected—it is returned as “incomplete,” which sounds softer but is operationally worse. A rejection can often be appealed within the same queue. A returned-as-incomplete application loses its place entirely in the review cycle. In cities with 60-day review windows, this can cost you four to six months on a single oversight.

The Consequences Break into Three Categories

• Financial penalties: In jurisdictions like Los Angeles County and Maricopa County, AZ, re-submission fees for structural corrections range from $400 to $2,200 per resubmission cycle.

• Forced removal: If a sign is erected under a conditional approval and the final structural sign-off fails, demolition orders are issued. I have seen a Florida operator absorb a $34,000 removal and re-erection cost on a 14×48 double-faced unit after a county inspector found the footing depth documentation didn’t match the as-built condition.

• Timeline compounding: A first-round return triggers a second full review cycle. In slower municipalities, that’s 45–90 additional days per cycle.

A Real Permit Failure Case: Chicago Suburbs, 2022

• Location: Village of Schaumburg, Cook County, Illinois

• Applicant type: Regional outdoor advertising company, expanding an existing digital sign network

• Filed: March 2022

• First return: April 2022—missing photometric study demonstrating compliance with Illinois DOT brightness limits (5,000 nits daytime/500 nits nighttime for off-premise signs near residential zones)

• Resubmitted: June 2022—photometric study included, but measured at the sign face rather than at the nearest residential property line, which is what the ordinance required

• Second return: July 2022

• Final approval: November 2022

• Total elapsed time: 8 months for a permit that, properly prepared, should have cleared in 10–14 weeks

The irony: the applicant had installed LED billboards in three other Chicago suburbs without a photometric study being requested. They assumed the requirement didn’t exist county-wide. It was a village-specific amendment adopted in 2021, and their permit runner didn’t flag it. This is the single most expensive assumption in LED billboard permitting: that adjacent jurisdictions have identical requirements.

The Compliance Process: Layer by Layer

Understanding LED billboard permit approval time requires mapping every jurisdictional layer that can touch your application. Most delays happen not because a requirement is hard to meet, but because applicants encounter a requirement they didn’t know existed at a layer they assumed didn’t apply to them.

Federal Layer

• Highway Beautification Act (23 U.S.C. § 131)

  • Triggers: Within 660 ft of Interstate or primary highway ROW

  • Requires: State DOT coordination; spacing rules (500 ft minimum between signs in most states); area/height maximums

  • Most common bottleneck: State DOT review queue (8–16 weeks independent of local process; runs PARALLEL, not sequential)

• FCC Considerations

  • Triggers: Only if sign incorporates broadcast relay or RF components

  • Rarely applicable to standard LED billboards; flag if sign has integrated cellular or Wi-Fi infrastructure

• FAA Form 7460-1 (Notice of Proposed Construction)

  • Triggers: Structure exceeds 200 ft AGL, OR within 20,000 ft of an airport runway, OR in certain flight path corridors

  • Most common bottleneck: FAA aeronautical study takes 45–90 days; no local permit can finalize until FAA determination is issued

State Layer

• State DOT Sign Permit

  • Triggers: Any off-premise sign visible from a controlled-access highway

  • Requires: Spacing compliance, height/area limits, lighting standards

  • Most common bottleneck: Spacing conflicts with existing permitted signs; state DOT inventory is often 6–18 months out of date

• State Building Code Adoption

  • Most states now reference ASCE 7-22 for wind/seismic load calculations

  • Note: Some states (TX, FL) have state-specific amendments that modify ASCE 7-22 defaults—using the national standard without checking state amendments is a common first-round return cause

  • Most common bottleneck: Engineer of record not licensed in the state of installation (out-of-state firms frequently miss this)

• Environmental/Historic Preservation Review

  • Triggers: State-level SHPO review if site is in or adjacent to historic district, or if federal nexus exists (federal funding in the project area triggers Section 106)

  • Most common bottleneck: SHPO review timelines are non-negotiable and typically run 30–60 days minimum, up to 180 days for complex sites

Municipal/County Layer

• Zoning Approval

  • Confirms sign use is permitted in zone classification

  • Some municipalities require conditional use permit (CUP) for digital/LED signs even where static signs are by-right

  • Most common bottleneck: CUP requires public hearing; next available hearing date may be 60–120 days out

• Building Permit (Structural)

  • Requires: Engineer-stamped structural drawings, wind load calcs (ASCE 7-22 or state equivalent), footing/foundation design, electrical load schedule

  • Most common bottleneck: Structural drawings submitted without PE stamp; or PE licensed in wrong state; or calcs reference wrong wind speed zone for the specific parcel

• Electrical Permit

  • Often filed separately from building permit; separate queue

  • Most common bottleneck: Submitted simultaneously with building permit, but electrical review doesn’t begin until building permit is approved—sequential dependency not parallel

• Sign Permit (Local)

  • Covers: Size, height, setback, lighting levels, animation speed (most ordinances specify minimum dwell time: 4–8 seconds per message; some require 6-second freeze between transitions)*

  • Most common bottleneck: Brightness/luminance limits—applicant provides manufacturer spec sheet max nits rather than on-site measured or calculated illuminance at property line

Site-Specific Layer

• Easement and Access Verification

  • Utility easements can prohibit footing placement even where zoning allows the sign

  • Most common bottleneck: Discovered after structural drawings are complete; requires redesign

• Landlord/Property Owner Notarized Consent

  • Many municipalities require notarized authorization, not just a signed lease—missing the notarization triggers return

• Sight Line and Traffic Study (select municipalities)

  • Triggered by proximity to intersections; typically required within 300–500 ft of signalized intersections in stricter cities

State-by-State Comparison: Permit Fees, Timelines, and Common Rejection Causes

Compliance Consultant Note: Submitting your application six months before your target installation date does not necessarily accelerate approval—in jurisdictions with demand-based review queues (Los Angeles DCP, NYC DOB), early submission during a high-volume period can actually expose your application to a more backlogged review cycle than submitting 10–12 weeks before your target date. In several California counties, applications submitted in Q1 face 30–45 day longer review cycles than identical applications submitted in Q3, purely due to seasonal volume patterns. Filing early also locks in the regulatory snapshot at submission date: if a new brightness ordinance passes during your 6-month wait, you may be required to revise to the new standard mid-review.

Quick-Check: Identify Your Compliance Risk Before You File

Run through these three checkpoints before you prepare any drawings or engage a permit runner:

Checkpoint 1

Is your installation site within 660 feet of an Interstate or U.S. primary highway right-of-way?

• YES: The federal Highway Beautification Act applies. Your state DOT must issue a separate sign permit before or concurrent with local approval. This is a parallel process—it does not wait for local approval, and local approval does not satisfy it. State DOT queues average 8–16 weeks independent of everything else. Your effective minimum timeline just became whatever is longer: local review or state DOT review. [See: Federal Layer, State DOT coordination above]

• NO: Continue below.

Checkpoint 2

Is your site located within, adjacent to, or within the viewshed of a historic district, landmark property, or scenic byway designation?

• YES: Expect State Historic Preservation Office (SHPO) review to be triggered, and in some cases a Section 106 consultation if any federal nexus exists in the project area (federal road funding, federal grants, etc.). SHPO review timelines are legally defined minimums—typically 30 days, but 60–180 days for adverse effect determinations. No workaround exists. Budget the time. [See: State Layer, Environmental/Historic Preservation above]

• NO: Continue below.

Checkpoint 3

Have you confirmed your jurisdiction’s nighttime luminance limit in cd/m² (candelas per square meter) and verified that your selected LED cabinet can be programmed to comply at the property line, not just at the sign face?

• NO: This is the most frequently overlooked technical specification in initial submissions. Manufacturer spec sheets report maximum output, not compliant operating output. Most modern jurisdictions regulate illuminance at a receptor point (nearest residential property line, or the roadway edge), not at the source. A sign rated at 7,000 nits maximum that you’ve agreed to cap at 1,000 nits after 10 PM needs to have that operational commitment documented, signed, and submitted—with a photometric study showing the calculated footcandles at the regulated measurement point. Without this, expect a first-round return in any jurisdiction that has adopted a digital sign luminance ordinance in the last four years, which now includes the majority of municipalities above 50,000 population.

• YES—all three are NO: Your application is in the standard track. Continue reading for documentation preparation sequencing, common submission errors by permit type, and timeline acceleration strategies.

Module 1: Permit Application Document Checklist—In Submission Order

File these in sequence. Submitting out of order is not merely inefficient—in jurisdictions with sequential review workflows (most California counties, New York State DOT), an out-of-order submission triggers an administrative hold that functions identically to an incomplete submission.

1. Notarized Property Owner Authorization/Lease Consent

• Issued by: Applicant (must be notarized—signed lease alone is insufficient in 70%+ of jurisdictions)

• Common error: Using a standard lease signature page without notarization; or authorization signed by property manager rather than title owner of record

• Preparation time: 3–7 days (allow for scheduling notary and confirming title ownership via county assessor records—search your county’s parcel viewer at [yourcounty].gov/assessor or use NETR Online’s public records portal at publicrecords.netronline.com)

2. Zoning Compliance Verification/Pre-Approval Letter

• Issued by: Municipal planning/zoning department (applicant requests; department issues)

• Common error: Skipping this step and proceeding directly to building permit; if zoning use is not confirmed in writing before structural drawings are commissioned, you risk $3,000–$8,000 in engineering fees on a site that will never receive zoning clearance

• Preparation time: 2–6 weeks depending on jurisdiction; request in writing via certified mail or the jurisdiction’s online portal to create a dated record

3. Engineer-Stamped Structural Drawings

• Issued by: Licensed structural engineer (PE licensed in the state of installation—verify at your state’s engineering board licensee lookup, e.g., Texas: pels.tbpe.texas.gov; California: search.dca.ca.gov)

• Common error: PE stamp from engineer licensed in a different state; drawings referencing ASCE 7-16 instead of ASCE 7-22 (most states have adopted 7-22 as of 2023–2024); footing design not site-specific (generic footing details are rejected in most jurisdictions above 50,000 population)

• Preparation time: 3–5 weeks from when you deliver complete site parameters to the engineer

4. Wind Load Calculation Package (see Module 2 below)

• Issued by: Structural engineer of record

• Common error: Calculations use wrong Exposure Category for the site terrain; wrong Risk Category assigned (most commercial LED billboards are Risk Category II under ASCE 7-22, but some jurisdictions classify large-format signs as Risk Category III)

• Preparation time: Included in structural engineer scope if parameters are delivered correctly upfront

5. Photometric/Illuminance Study

• Issued by: LED manufacturer or third-party lighting consultant (must calculate at receptor point, not sign face)

• Common error: Submitting manufacturer’s maximum brightness specification sheet in place of a site-specific photometric study; not accounting for cumulative illuminance if multiple signs are visible from the same receptor point

• Preparation time: 1–2 weeks if manufacturer provides IES file; 2–4 weeks for third-party field study

6. Electrical Load Schedule and Single-Line Diagram

• Issued by: Licensed electrical engineer or master electrician

• Common error: Filed simultaneously with building permit but reviewed sequentially—confirm with the jurisdiction whether electrical review begins before or after structural approval, and plan accordingly to avoid a hidden 3–6 week gap

• Preparation time: 1–2 weeks

7. Site Plan with Dimensions and Setbacks

• Issued by: Applicant (survey-based; not a freehand sketch)

• Common error: Dimensions measured from curb rather than from right-of-way line; setback shown from wrong reference point per local ordinance definition

• Preparation time: 1–3 weeks if existing survey is available; 3–6 weeks if new boundary survey is required

Module 2: Wind Load Calculation—What Your Engineer Needs and How to Deliver It

You do not need to understand the full ASCE 7-22 Chapter 26–29 calculation sequence. You need to understand what inputs your engineer requires so that you can deliver them in a single handoff rather than through three weeks of back-and-forth emails.

Wind Speed Zone: How to Look It Up

ASCE 7-22 wind speed maps are publicly accessible. Go to the ATC Hazards by Location tool at hazards.atcouncil.org, enter your site address, and the tool returns the design wind speed (V, in mph) for Risk Category II at your specific parcel. Screenshot this output and include it in your engineer brief. This single step eliminates one of the most common early-stage delays.

Parameters Your Engineer Needs From You

Deliver all of these in a single written brief:

• Sign face area (square feet, both faces if double-sided)

• Overall structure height above grade (ft)—measured to top of sign, not to top of pole

• Structural system type: monopole, I-beam on concrete foundation, wall-mount, roof-mount

• Site terrain description: open flat terrain with few obstructions (Exposure D/C), suburban/urban with scattered obstructions (Exposure B), or dense urban (Exposure A—rarely applicable for billboards)

• GPS coordinates of the installation point (for wind zone verification)

• Any adjacent structures within 50 feet that may create wind channeling effects

Worked Example: Houston, TX

• Site: Southwest Houston, open commercial corridor, monopole installation

• ATC tool output: Basic Wind Speed = 130 mph (Risk Category II)

• Sign face area: 672 sq ft (14×48)

• Height above grade: 35 ft to top of sign

• Exposure Category: C (open terrain, few obstructions)

• Design wind pressure result: approximately 38–44 psf on the sign face depending on gust factor and sign aspect ratio

• Structural conclusion: Monopole requires minimum 42-inch diameter steel shaft, with concrete footing extending 14–16 ft below grade at this site’s soil bearing capacity—this conclusion varies significantly with soil report results

Operational tip: Attach the ATC tool screenshot, a dimensioned sketch of the sign face, and a Google Street View screenshot showing surrounding terrain to your first email to the engineer. This package replaces the engineer’s site investigation preliminary step and typically accelerates drawing delivery by 7–10 days.

Real-World Case Study: Brazil Highway Outdoor LED Display Project (June 2025)

To better understand how wind load engineering, brightness compliance, and highway deployment requirements come together in real projects, here is a practical example from a completed installation in Brazil.

Introduction to the Brazil Highway Outdoor LED Display Project

This project is located along one of Brazil’s major highway corridors. It features a high-brightness, high-protection-grade outdoor LED advertising display system tailored to the client’s needs. Its primary goal is to deliver clear and visible advertising, traffic updates, and public service announcements to passing vehicles.

The project not only enhances brand exposure but also serves as a new channel for local traffic information dissemination, aligning commercial advertising with public infrastructure communication.

• Project Location: A section of a major highway in Brazil
• Brightness: ≥6500 nits to ensure visibility under strong sunlight
• Installation Structure: Steel pillar structure with wind-resistant reinforcement
• Control Method: Remote wireless / 4G cloud-based control system
• Operational Since: June 2025

Project Highlights

All-Weather Visibility

Designed to withstand Brazil’s tropical and variable climate, the LED screen features an IP65-rated waterproof and dustproof structure. With a built-in intelligent temperature control system, it operates reliably under extreme heat and heavy rainfall. Its brightness of over 6500 nits ensures sharp and vibrant images even under direct midday sunlight.

Smart Control & Content Update

Content can be updated remotely through a cloud-based platform, allowing advertisers to instantly change visuals or broadcast urgent information. This significantly improves operational efficiency and responsiveness, creating a synergy between smart advertising and intelligent traffic systems.

Robust Structural Design

The display adopts a modular design, mounted on custom-engineered reinforced steel pillars. The structural calculations take into account local wind pressure standards, ensuring the screen remains stable and secure even under winds up to level 12 on the Beaufort scale.

This type of design logic is directly aligned with ASCE-style wind load considerations commonly required in LED billboard permitting workflows in the United States.

Eco-Friendly and Energy Efficient

Utilizing energy-saving driver ICs and low-power design, the screen consumes approximately 30% less power compared to traditional displays. An automatic brightness adjustment feature adapts the screen’s brightness to ambient light, reducing energy use and extending the display’s lifespan.

Project Results

Since going live, the display has successfully served multiple brand clients with advertising campaigns. In cooperation with the local traffic management authority, it also broadcasts weather forecasts, traffic updates, and safety messages, generating both social benefits and commercial value:

• Daily Exposure: Approximately 30,000 vehicles
• Ad Update Frequency: Around 3 times per week
• Client Satisfaction Rate: Over 95%

Client Feedback

“We’re very satisfied with the results of this LED screen. The colors are vivid, and the display is smooth and clearly visible even in heavy rain. It has brought significant attention to our brand.”
— Marketing Director, Local Brand

Why this case matters (for your readers)

This Brazil project demonstrates three key realities that directly connect back to LED billboard permitting:

• Wind-resistant structural engineering is not optional—it determines approval feasibility
• High brightness (≥6500 nits) must still comply with visibility and safety control logic
• Smart control systems increasingly integrate advertising with public infrastructure use cases

Module 3: How to Actually Accelerate Permit Approval

Pre-Application Meeting (PAM)—Lock In the Reviewer’s Position Before You Submit

Most jurisdictions above 30,000 population offer a pre-application or pre-submittal meeting with the plan review department. This is not a courtesy—it is a procedural tool. In a PAM, you present your project scope to the assigned plan reviewer and ask them to identify any jurisdiction-specific requirements that your application must address. The reviewer’s verbal or written responses in a PAM are not legally binding, but they create a documented record. If the same reviewer later returns your application for a requirement they did not flag in the PAM, that documented record gives you grounds to request expedited re-review.

To request a PAM: call the building department’s plan review division directly (not the permit counter—the review division), identify yourself as applying for a new LED sign structure, and ask whether a pre-submittal conference is available. In cities like Denver, Phoenix, and Seattle, PAMs can be scheduled within 1–2 weeks and have been documented to reduce first-round return rates by 40–60% for sign permits.

Notarized Documents That Skip Redundant Review Steps

In jurisdictions that use a concurrent review model (structural, electrical, and zoning reviewed simultaneously), a notarized affidavit from the property owner affirming compliance with setback and spacing requirements can allow zoning review to proceed without a field verification visit. This is jurisdiction-specific—ask during your PAM whether a “compliance affidavit” is accepted in lieu of field verification for setback confirmation. In practice, this eliminates a 2–4 week field inspection queue in roughly one-third of municipalities where it is offered.

Completeness Review Failure—The Queue Reset You Must Avoid

Most jurisdictions conduct a completeness review within 5–15 business days of submission. If the application fails completeness review, it is not placed in a “correction” queue—it is removed from the active queue entirely and must be resubmitted as a new application. This is categorically different from a mid-review correction request, which keeps your position.

The specific triggers for completeness review failure (as opposed to a mid-review correction request) vary by jurisdiction, but these five consistently cause queue resets rather than correction notices:

• Missing PE stamp on any structural document

• Missing notarized property owner authorization

• No fee payment or incorrect fee calculation (use the jurisdiction’s online fee calculator before submission; most are available at the building department’s website under “fee schedule”)

• Application form signed by someone who is not the applicant of record or their documented authorized agent

• Site plan not drawn to scale with a stated scale bar

Pre-Installation Compliance Checklist (5 Items)

• □ 1. Confirm final permitted dimensions match fabricated sign dimensions exactly.

  • Action: Compare the approved structural drawings (sheet S-1 or equivalent) against the manufacturer’s shop drawings. If any dimension differs by more than ½ inch, contact the building department before installation to determine whether an as-built amendment is required. Do not install and assume post-inspection amendment will be accepted.

• □ 2. Verify electrical service connection has received its own inspection sign-off, separate from the structural final.

  • Action: Call the building department and confirm that both the structural permit and the electrical permit have received final inspection approval and that both permit cards are available on-site on installation day. In most jurisdictions, a sign cannot be energized under a structural-only final.

• □ 3. Confirm footing installation matches approved footing design depth and diameter.

  • Action: Before concrete is poured, have a third-party special inspector verify footing depth and reinforcement per the approved drawings, and obtain a signed inspection report. If the jurisdiction requires special inspection (most do for monopole foundations), the signed report must be on file before the structural final inspection is scheduled.

• □ 4. Verify the LED cabinet is programmed to the permitted brightness limits before the final inspection.

  • Action: Using a calibrated luminance meter (Konica Minolta LS-150 or equivalent), measure output at the nearest regulated receptor point at night. Confirm reading is at or below the permitted limit. Document with timestamped photograph. If the jurisdiction requires a post-installation photometric report, this measurement is your primary data input.

• □ 5. Confirm all permit placard requirements are met at the time of installation.

  • Action: Most jurisdictions require the building permit card (or a copy of the permit approval) to be posted visibly at the installation site during construction. Confirm whether the jurisdiction requires the original or a copy, and whether it must be weatherproofed. An inspector who arrives and cannot locate the permit placard can halt work and void the inspection appointment, adding 1–3 weeks to your final inspection scheduling queue.

Send this checklist to your installation contractor and require written confirmation of each item before groundbreaking.

Get Your Exclusive Quote!

References:

Federal Highway Administration (FHWA) – Highway Beautification Act

American Association of State Highway and Transportation Officials

If you’re here for a number, here it is: professional LED billboard installation in 2026 runs between $15,000 and $150,000+ all-in, depending on screen size, pixel pitch, mounting structure type, and local permitting complexity. Contractor labor alone typically accounts for $3,000–$25,000 of that figure. A well-planned hybrid approach—where you handle site prep, cabinet assembly, and content system setup yourself—can realistically cut 20–35% off the total project cost without voiding manufacturer warranties or creating code violations.

The breakdown of a typical professional installation budget looks like this:

These percentages hold remarkably consistent across project sizes. What changes is the absolute dollar figure at each line—and understanding why each line costs what it does is the only way to evaluate a contractor quote intelligently.

LED Billboard Installation Cost: Real Price Ranges by Project Type (2025–2026)

Before getting into the variables that drive cost, here’s a calibrated market snapshot based on installed project data across North American markets:

Small-Format Retail Billboard (≤10×20 ft): $15,000–$45,000

This is the most common entry point for gas stations, fast-food operators, car dealerships, and strip mall owners. At this scale:

• Screen hardware (P6–P10 outdoor modules): $6,000–$18,000 depending on pixel pitch and brand tier

• Single-pole or wall-mount structure: $2,500–$8,000

• Electrical service (typically 60–100A dedicated circuit): $1,500–$4,500

• Permitting (most suburban jurisdictions): $500–$2,500

• Contractor installation labor: $2,500–$6,000

The wide range at this tier is almost entirely driven by pixel pitch selection and cabinet quality—two P8 screens from different manufacturers can differ by $4,000 at identical size. More on that below.

Mid-Size Highway Billboard (14×48 ft): $60,000–$120,000

The economics shift substantially at highway scale. The screen itself might represent only 35–45% of total project cost once you account for the monopole structure, foundation engineering, and utility service upgrades that highway locations demand.

• LED display (P10–P16 outdoor modules): $28,000–$55,000

• Monopole steel structure + foundation: $18,000–$40,000

• Electrical service (200–400A, often with utility transformer): $5,000–$15,000

• PE-stamped engineering drawings + soil report: $2,500–$6,000

• Permits (state highway + local zoning): $1,500–$8,000

• Labor: $6,000–$15,000

Large-Format Spectacular / Stadium (custom): $150,000–$500,000+

At this scale, the project is essentially a custom construction engagement. Screen hardware may be only 30% of total cost. These projects require structural engineers of record, utility coordination, and often environmental impact review. Budget accordingly and engage a specialist integrator, not a general sign contractor.

Pixel Pitch & Cabinet Spec: The Single Biggest Variable in Your Quote

This is where most buyers get confused—and where contractors have the most pricing leverage. Two bids for a “10×20 outdoor LED sign” can differ by $12,000–$18,000 and both be entirely legitimate quotes. The difference is almost always pixel pitch and cabinet construction.

P6 vs. P10 vs. P16: The Viewing Distance Equation

Pixel pitch is the center-to-center distance between LED clusters, measured in millimeters. A lower number means more pixels per square meter—higher resolution, higher cost.

The industry-standard formula for minimum comfortable viewing distance is:

Optimal viewing distance (ft) = Pixel pitch (mm) × 3.28

In practice, that means:

The most common spec mistake: buyers overpay for P6 on a highway installation where traffic is moving at 60 mph and the viewing distance is 150+ feet. At that distance, P10 or P16 is visually indistinguishable from P6—but the cost difference on a 14×48 display is $15,000–$22,000 in hardware alone. Match pitch to your specific viewing distance, not to a spec sheet.

Cabinet Material: Why Aluminum Die-Cast Costs More (and Why It Matters for Installation)

LED cabinets come in two primary constructions:

• Aluminum die-cast cabinets: Precision-molded, flat panel tolerances within 0.1mm, significantly lighter (typically 18–25 kg per cabinet), designed for tool-less front-access maintenance

• Iron / steel frame cabinets: Lower cost, heavier (30–45 kg per cabinet), acceptable flatness for larger pixel pitches, but harder to service on-structure

The weight difference isn’t just a spec sheet number—it directly affects your installation cost. A 14×48 display built with iron-frame P10 cabinets can weigh 2,000–3,000 lbs more than the same size in aluminum die-cast. That weight differential requires:

• A heavier-gauge monopole (cost delta: $3,000–$8,000 in structural steel)

• A larger concrete foundation pour

• In some cases, a crane with higher lift capacity (day rate: $1,500–$4,500)

Specifying the wrong cabinet type can cascade into $8,000–$15,000 in downstream structural costs that never appear in the original hardware quote. An honest integrator will calculate this upfront. A low-ball bidder will not.

Brightness & Nit Rating: When “More Is More” Becomes a Budget Line Item

Outdoor LED displays are rated in nits (candela per square meter). The ambient light environment dictates your minimum viable brightness:

• Urban street-level, partial shade: 3,000–4,000 nits sufficient

• Open highway, full sun exposure: 5,000–8,000 nits required

• Direct south-facing, desert / high-altitude markets: 8,000–10,000 nits recommended

Higher brightness requires more powerful LED drivers and higher-density SMD packages—typically SMD3535 or SMD5050 versus the SMD2121 used in lower-brightness models. The cost premium for a 7,500-nit versus 4,500-nit module at P10 runs $8–$14 per square foot of display area. On a 14×48 display (672 sq ft), that’s an $5,000–$9,400 difference—before accounting for the electrical service upgrade required to power the higher-draw units.

Additionally, IDA (International Dark-Sky Association) compliance is now required in a growing number of jurisdictions for new outdoor digital signage. IDA-compliant displays must include automatic dimming systems calibrated to ambient light sensors—add $800–$2,500 for a certified photocell dimming controller and associated programming.

Structural & Civil Engineering Costs: The Budget Item Most Quotes Hide

If there’s one section of this article that will save you from a painful mid-project renegotiation, it’s this one. In our experience reviewing contractor bids, structural and civil engineering costs are underestimated or omitted entirely in roughly 60% of initial quotes provided to first-time billboard buyers.

Foundation Engineering: Soil Report, Wind Load Calculation, Concrete Pour

Every monopole or ground-mount LED billboard installation requires:

• Geotechnical (soil) report: A licensed geotechnical engineer bores test holes at the installation site, analyzes soil bearing capacity, and issues a report. Cost: $1,500–$4,000. Without it, no PE will stamp your foundation drawing. Without a stamped drawing, most jurisdictions will not issue a permit.

• Wind load structural engineering: The structure must be designed to meet ASCE 7-22 wind speed requirements for your geographic zone. A PE-stamped structural drawing package runs $1,500–$4,000 separately from the soil report.

• Concrete foundation pour: Depending on soil conditions and pole height, you may be looking at a 4–8 ft diameter, 12–20 ft deep drilled pier. Concrete and forming costs: $3,500–$12,000. In poor soil (expansive clay, high water table), this number climbs fast.

Total foundation-related costs that appear nowhere in a “turnkey display price”: $6,500–$20,000.

Monopole vs. Roof Mount vs. Wall Mount: Cost-Structure Matrix

The mounting configuration is the second major structural variable—and the one most sensitive to local building code interpretation. Here’s how the three primary options compare:

Roof-mount projects carry a hidden complexity: the host building’s structural drawings must be pulled and reviewed by a PE to confirm the roof deck can support dynamic wind loads from the new sign. Older buildings (pre-1990) frequently require structural reinforcement, adding $5,000–$20,000 in scope before a single LED cabinet is lifted into position.

Retrofit vs. New Build: Converting a Static Billboard to LED

If you’re converting an existing static vinyl or painted billboard to LED, your cost profile shifts significantly. The existing monopole and foundation are already engineered and permitted—you’re paying only for the display, the electrical upgrade, and the conversion labor. Realistic all-in conversion costs:

• Small billboard (10×20): $12,000–$28,000

• Highway billboard (14×48): $40,000–$75,000

That’s 30–50% less than a greenfield installation at equivalent display size. If you own or lease an existing static structure, conversion is almost always the highest-ROI path to digital signage.

Real-World Installation Case: Dongguan Qiyun Plaza Naked-Eye 3D LED Screen Project

While installation costs are important, the long-term return on investment often determines whether a digital billboard project succeeds. A recent example is the Dongguan Qiyun Plaza Naked-Eye 3D LED Screen Project, which demonstrates how a strategically installed LED display can become both a commercial asset and a city landmark.

Project Overview

Qiyun Plaza is the largest TOD commercial complex in northern Dongguan, integrating:

• Shopping centers
• Commercial streets
• Dining and entertainment
• Office facilities
• Transportation hubs

To strengthen its opening campaign and increase visitor engagement, the developer installed a large-scale outdoor LED display on the building façade using naked-eye 3D technology.

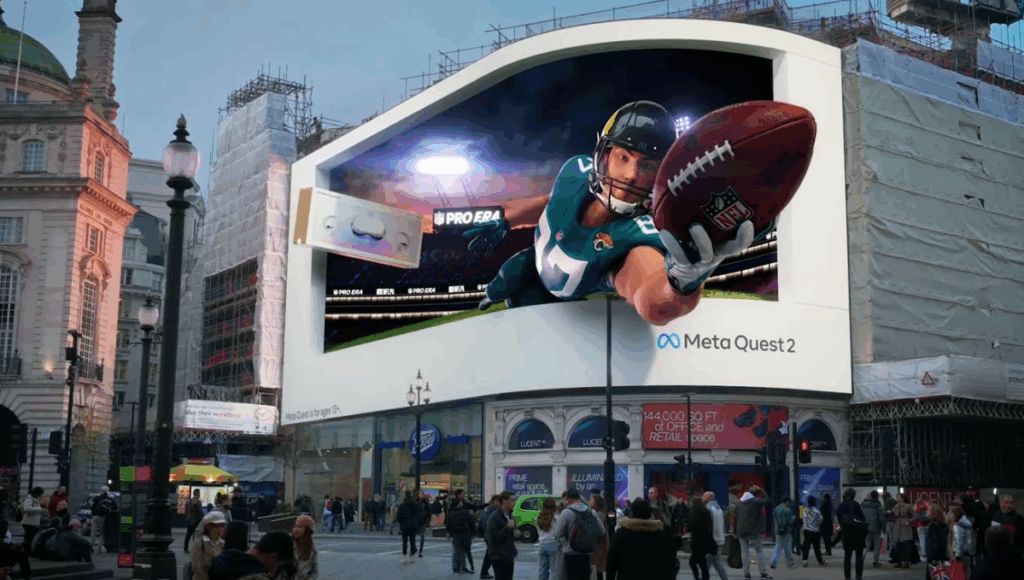

The project transformed a traditional building exterior into a highly visible digital landmark capable of attracting both offline foot traffic and online social media exposure.

Why This Project Matters for Installation Planning

From an installation perspective, the project highlights several factors that directly impact LED billboard costs:

These are the same cost drivers discussed throughout this guide.

High-Brightness Outdoor Design

The LED screen was designed for all-day visibility under Dongguan’s strong sunlight conditions.

Key specifications included:

• High-brightness outdoor LED display technology
• Automatic brightness adjustment
• High refresh rate
• High grayscale processing

These features ensure that both standard advertisements and 3D visual content remain clear throughout the day while reducing unnecessary power consumption during low-light conditions.

This serves as a practical example of why brightness specifications can significantly affect total installation and operating costs.

Engineering for Harsh Outdoor Environments

One of the most overlooked installation budget items is environmental adaptation.

Dongguan experiences:

• High temperatures
• High humidity
• Heavy rainfall
• Seasonal typhoons

To ensure long-term reliability, the project adopted:

• Waterproof outdoor LED cabinets
• Dustproof system design
• Corrosion-resistant materials
• Reinforced structural engineering
• Weather-resistant electrical systems

These protective measures increase upfront installation costs but dramatically reduce maintenance expenses over the display’s operational lifespan.

Commercial ROI Beyond Installation Cost

Perhaps the most important takeaway from this project is that installation cost should always be evaluated alongside revenue potential.

After launch, the naked-eye 3D LED screen quickly became:

• A local landmark
• A popular social media check-in location
• A traffic-driving feature for the shopping center
• A premium advertising platform

The project demonstrates how a properly engineered LED display can generate value far beyond its initial construction cost.

Key Lessons for Billboard Buyers

The Dongguan Qiyun Plaza project reinforces several principles discussed throughout this guide:

1. Installation cost should be evaluated alongside long-term commercial value.
2. High-brightness outdoor LED screens require larger electrical and hardware budgets.
3. Environmental protection ratings directly influence maintenance costs.
4. Structural engineering and mounting design are critical cost variables.
5. Premium LED installations often deliver stronger advertising performance and ROI than lower-cost alternatives.

For investors, advertisers, and commercial property owners, the project provides a practical example of how advanced LED display technology can transform a building façade into a revenue-generating digital asset.

Permits, Zoning & Electrical: The Costs That Kill DIY Projects

Local Sign Ordinance & Variance: Why the Same Billboard Costs $500 in Permits in Rural Texas and $15,000 in Los Angeles

Permitting costs are the most geographically volatile line item in any LED billboard budget. The core variables:

• Zoning compliance review: In jurisdictions with digital sign ordinances (most metro areas), your display must comply with regulations governing brightness limits (typically 0.3 fc above ambient), message dwell time (usually 6–8 seconds minimum), and setback from residential zones. Non-compliance = variance application, which adds $2,000–$8,000 in fees and 60–180 days of review time.

• State highway corridor permits: Displays visible from federal or state highways are subject to Highway Beautification Act (HBA) compliance, administered at the state DOT level. Fees vary from $300 to $3,500 annually and require a separate application track.

• Historic districts and overlay zones: In designated historic corridors, digital signage may require design review board approval regardless of zoning compliance. Budget an additional $1,500–$5,000 and 90+ days for this process.

Electrical Service Upgrade: The Line Item Nobody Budgets For

An outdoor LED billboard is a continuous, high-draw electrical load. A 14×48 P10 display at 7,500 nits draws approximately 18–28 kW at peak brightness—roughly equivalent to running 9–14 residential air conditioning units simultaneously. What that means for your electrical budget:

• Dedicated 200–400A panel and disconnect: $1,800–$5,500

• Utility trench and conduit run (if service is not adjacent): $4,000–$15,000 depending on distance and pavement cutting requirements

• Transformer pad and utility coordination (if upgrading from overhead to underground service): $3,000–$12,000

• Licensed electrician labor (NEC Article 600 governs sign wiring): $1,500–$4,000

Total electrical infrastructure cost for a mid-size highway billboard: $8,000–$28,000—a line item that routinely appears as a single vague “electrical” entry in low-bid contractor proposals.

Contractor vs. DIY: A Realistic Decision Matrix

What Contractors Actually Charge (and How They Build Their Margin)

Understanding contractor pricing structure lets you negotiate intelligently. The standard model:

• Labor rates: Lead sign electricians bill at $85–$155/hr (IBEW scale in most metro markets); general installation crew at $55–$90/hr. A mid-size billboard installation runs 120–250 crew-hours from site prep through final commissioning.

• Hardware markup: Most full-service contractors apply a 20–40% margin on hardware sourced through their supply chain. A display module package they purchase for $28,000 appears on your quote as $36,000–$39,000. This is standard practice—not predatory—but it means buying direct from a manufacturer and hiring a labor-only contractor can save $8,000–$15,000 on mid-size projects.

• Subcontractor coordination fee: When a general sign contractor subcontracts the electrical or structural work (which is common), expect a 10–15% coordination markup on top of the subcontractor’s own price.

What’s Actually DIY-able—and What Isn’t

Realistic DIY scope for a technically competent owner-operator:

Manageable without a contractor

• Site clearing and access road prep

• Cabinet receiving, inventory, and damage inspection

• LED module-to-cabinet assembly (most manufacturers ship modules separately)

• Novastar or Linsn controller configuration and content management software (CMS) setup—Broadsign, Yodeck, or manufacturer-native platforms

• Routine maintenance: module swap-outs, front-access cleaning

Non-negotiable for licensed professionals

• Structural steel erection and foundation pour

• All electrical service work (NEC Article 600 compliance requires licensed electrician in all 50 states)

• Final inspection sign-off (AHJ requires licensed contractor of record in most jurisdictions)

• PE-stamped drawing submission

The practical hybrid: Handle site prep and pre-assembly yourself, hire a licensed electrician for the service work, and use a sign-specific rigger for the lift and structural connection only. This approach consistently delivers 22–32% cost savings versus full turnkey, with zero warranty implications if documented correctly with the manufacturer.

Year 1–5 TCO: The Hidden Costs Nobody Puts in the Brochure

Simulated Budget Scenario: 10×20 ft P10 Retail Billboard, Suburban Illinois

To make TCO concrete, here’s a real-world modeled scenario for a mid-market owner-operator:

Initial installation (contractor, full turnkey): $38,500

Year 1 operating costs

• Electricity (4.2 kW avg draw × 16 hrs/day × 365 days × $0.12/kWh): $2,940/yr

• CMS software subscription (Yodeck Business tier): $840/yr

• Liability insurance rider for digital signage: $950/yr

• Annual permit renewal (Illinois): $350/yr

• Year 1 operating subtotal: $5,080

Years 2–5 additional costs

• LED module failure/replacement (estimated 0.8% annual failure rate on a reputable P10 display = ~5–8 modules/yr at $35–$65/module): $175–$520/yr

• Driver/power supply replacement (typical MTBF 50,000 hrs; expect 1–2 units/yr after year 3): $180–$380/yr

• Optional preventive maintenance contract: $900–$1,800/yr

5-Year Total Cost of Ownership: $62,000–$69,000

That’s 60–79% more than the sticker price of the initial installation. For a display generating $1,800–$4,500/month in advertising revenue at suburban Illinois rates, payback period is 14–26 months and 5-year net revenue is $108,000–$270,000—a compelling return. But the math only works if you budget for the full TCO from day one, not just the hardware invoice.

FAQ: Real Questions Buyers Ask Before Signing a Contract

Q: Can I install an LED billboard myself without a contractor to save money?

A: You can handle site prep, cabinet assembly, and CMS configuration without a contractor. However, structural steel erection, electrical service connection, and final AHJ inspection all legally require licensed professionals in virtually every U.S. jurisdiction. A full DIY approach creates permit, warranty, and liability exposure that typically costs more to resolve than the savings generated.

Q: Why do two contractors quote the same LED billboard at prices $20,000 apart?

A: The gap almost always comes from three sources: different pixel pitch specifications, inclusion or exclusion of foundation engineering and electrical service work, and hardware sourcing margin. Request an itemized quote from both—hardware cost, structure, electrical, permits, and labor listed separately. This immediately reveals whether you’re comparing equivalent scopes or apples to oranges.

Q: How much does it cost to convert an existing static billboard to LED?

A: Conversion costs run $12,000–$75,000 depending on display size, with small (10×20) retrofits at $12,000–$28,000 and highway (14×48) conversions at $40,000–$75,000. You save the monopole, foundation, and most permitting costs versus new construction—typically a 30–50% reduction in total project cost versus a greenfield build.

Q: What is the average electricity cost for running an outdoor LED billboard?

A: A 10×20 ft P10 display at standard outdoor brightness runs approximately 3–5 kW average draw, costing $1,800–$4,200 per year at median U.S. commercial electricity rates ($0.12–$0.14/kWh). A 14×48 highway display at 7,500 nits runs $6,500–$14,000 annually. Factor this into ROI modeling from the outset—it’s the single largest ongoing operational cost.

Conclusion: Why Buying on Initial Price Alone Is a Trap

The central lesson across every cost category examined here is the same: the sticker price of an LED display is the least reliable predictor of total project cost. Foundation conditions, local permit complexity, electrical service distance, cabinet weight cascading into structural steel requirements, and five years of electricity, maintenance, and software subscriptions can collectively add 60–120% to the hardware purchase price before a single advertisement is displayed.

The buyers who come out ahead are the ones who understand the full cost architecture before they solicit quotes—who know to ask for a PE-stamped drawing inclusion, who can read a structural specification and identify when a cabinet spec is creating unnecessary downstream costs, and who model TCO rather than evaluating bids on day-one hardware price alone.

Every installation site has its own combination of soil conditions, utility access, zoning overlay, and viewing geometry that materially changes the cost equation. Since these variables interact in ways that are difficult to generalize, contact our engineering team for a precise, no-obligation custom quote—one that accounts for your specific site conditions, viewing distance requirements, and operating budget from the first conversation.

Get Your Exclusive Quote!

References:

ASCE 7-22: Minimum Design Loads and Associated Criteria for Buildings and Other Structures

NFPA 70® National Electrical Code® (Article 600: Electric Signs and Outline Lighting)

That’s not a technicality. That’s the single most skipped step in outdoor LED billboard installation requirements nationwide, and it costs applicants an average of 45–90 days of delay per occurrence. In states like Florida and Texas, where wind zone requirements are non-negotiable post-Hurricane code revisions, a non-site-specific wind load letter—even one from a licensed PE—triggers an automatic Return for Correction (RFC) notice. The permit fee is typically not refunded.

The Compliance Failure That Should Be in Every Pre-Application Briefing

In Houston, Texas (Harris County), a regional outdoor advertising company applied for a permit to install a double-sided LED billboard (14mm pixel pitch, 672 sq ft per face) along a state highway corridor in 2021. The applicant—an experienced operator with 30+ existing structures in the state—submitted wind load documentation based on ASCE 7-16 rather than the then-newly-adopted ASCE 7-22 standard that Harris County had incorporated into its local building code six months prior.

The application was rejected. Not returned—rejected, requiring full resubmission with updated structural calculations, a new foundation engineering report, and re-stamped drawings. Resubmission took four months. The billboard went live eleven months after the original application date. The lease clock, however, had started on day one.

This case illustrates the core compliance trap: code version currency. Most applicants verify whether a structural report is required. Very few verify which version of the standard the local jurisdiction has adopted. Those are not the same question.

Compliance Process: Four-Layer Framework

Understanding outdoor LED billboard installation requirements means navigating four distinct regulatory layers. Each has its own submission timeline, reviewing authority, and failure modes.

LAYER 1: FEDERAL

• Applicability trigger: Is your site within 660 ft of an Interstate or primary highway right-of-way? (Highway Beautification Act, 23 U.S.C. § 131)

• Governing body: Federal Highway Administration (FHWA) via State DOT

• Key requirements:

  • Spacing minimums between structures (typically 500–1,000 ft)

  • Area and height restrictions in controlled corridors

  • Vegetation control permits (if clearing required)

• MOST COMMON BOTTLENECK: State DOT acts as federal proxy reviewer. Many applicants submit to the city first, then discover the DOT must sign off BEFORE local approval is granted. This reversal adds 30–120 days when discovered mid-process.

LAYER 2: STATE

• Applicability: All outdoor advertising structures

• Governing body: State DOT Outdoor Advertising Division (e.g., Caltrans in CA; TxDOT in TX; FDOT in FL)

• Key requirements:

  • State-issued Outdoor Advertising Permit (separate from building permit)

  • Zoning conformance letter from local authority

  • Licensed contractor registration (in most states)

  • Digital/LED-specific restrictions: brightness caps, content change intervals (typically $\ge$ 4 seconds), animation prohibitions

• MOST COMMON BOTTLENECK: Applicants conflate the state OA permit with the local building permit. They are separate instruments, issued by separate agencies, often with non-overlapping review timelines. You can have one without the other. Neither alone authorizes construction.

LAYER 3: LOCAL (CITY/COUNTY)

• Applicability: All structures; most stringent and variable layer

• Governing body: Planning/Zoning Department + Building Department (sometimes two separate applications)

• Key requirements:

  • Zoning use permit or conditional use permit (CUP)

  • Building permit (structural + electrical, often separate pulls)

  • Site plan review (setbacks, sight-line analysis)

  • ASCE 7-22 compliant structural calculations (PE stamped, site-specific)

  • Foundation engineering report (soil borings typically required for structures > 20 ft above grade)

  • Electrical permit: NEC Article 600 (signs) + local amendments

• MOST COMMON BOTTLENECK: The split between Planning approval (discretionary, can take months) and Building permit (ministerial, faster) is misunderstood. Many applicants pull the building permit first. Planning denial after construction begins creates serious legal exposure.

LAYER 4: SITE-SPECIFIC

• Applicability: Triggered by site conditions

• Governing bodies: Multiple (FAA, utility companies, historic preservation boards, flood plain administrators)

• Key requirements:

  • FAA obstruction evaluation (Form 7460-1) if structure > 200 ft AGL or within 20,000 ft of an airport

  • Utility easement clearance (overhead line proximity rules)

  • Floodplain development permit (FEMA NFIP compliance) if in Zone A or AE

  • Historic/scenic review if within designated district

• MOST COMMON BOTTLENECK: FAA coordination is treated as optional until it isn’t. An 7460-1 “Determination of No Hazard” takes 45 days minimum. Discovering the requirement post-permit-approval halts construction.

State-by-State Permit Comparison: LED Billboard Installation

Fee ranges reflect 2023–2024 data; confirm current schedules with each jurisdiction’s fee schedule at time of application.

Compliance Consultant Note: Submitting your outdoor advertising permit application the moment a lease is signed often extends your total timeline rather than shortens it. Here’s why: state DOT outdoor advertising divisions flag incomplete applications for completeness review before assigning a reviewer. An application submitted with a placeholder for the zoning conformance letter—which you won’t have until the local planning department acts—gets suspended in queue, not held. When you resubmit the missing document 60 days later, you don’t resume your original position. You get a new submission date. In jurisdictions with heavy application volume (Los Angeles, Dallas-Fort Worth, South Florida), this effectively means a premature submission costs you the queue advantage entirely. The strategic approach: complete the full documentation package—including the local zoning letter—before making any state-level submission.

Quick Check: Identify Your Compliance Risk Before You Read Further

Work through these three questions now. Your answers determine which sections of this guide are critical for your project.

• Is your installation site within 660 feet of an Interstate or federally designated primary highway right-of-way?

  • Yes: The Federal Highway Beautification Act (23 U.S.C. § 131) applies. Your permitting process has a mandatory federal layer administered through your State DOT. You cannot begin construction without a state OA permit that reflects federal compliance. Local building permits do not substitute. Jump to the Federal Compliance section.

  • No: Continue.

• Is your site located within, adjacent to, or with sightlines into a historic preservation district, scenic byway corridor, or special landscape zone (as designated by federal,state,or local authority)?

  • Yes: Expect a discretionary review process that is not time-bound by standard permit timelines. Historic preservation board reviews typically add 60–180 days. In some jurisdictions, new digital signage is categorically prohibited within these zones regardless of zoning designation. Confirm with your local preservation office before committing to a lease. Jump to the Historic District section.

  • No: Continue.

• Have you confirmed the nighttime luminance limit (measured in cd/m²) enforced by your specific local jurisdiction—not just your state DOT’s standard?

  • No: This is the gap that generates the most post-installation enforcement actions. State DOT standards (e.g., Florida’s 7,500 cd/m² nighttime cap) are floors, not ceilings. Many municipalities have adopted stricter limits—some as low as 300 cd/m² in residential-adjacent commercial zones. Your LED cabinet’s maximum output and its dimming control documentation must be submitted as part of the electrical permit. If your display cannot be verified to comply at the permit stage, you will be required to demonstrate live compliance before a Certificate of Occupancy is issued. Confirm the local limit in writing from the jurisdiction before equipment is ordered.

  • Yes, confirmed in writing: Continue to the structural requirements section.

If you answered No to all three check items, your project falls into the standard permitting pathway. Continue reading in sequence through the structural and electrical requirements sections below.

Module 1: Permit Application Document Checklist (Submission-Ready)

Submit documents in this order. Reversing the sequence—particularly submitting the building permit before zoning approval—is the most reliable way to create a compliance conflict that neither department will resolve for you.

Step 1: Zoning Conformance/Land Use Approval

Step 2: State Outdoor Advertising Permit Package

Step 3: Building Permit Package (Structural)

Step 4: Building Permit Package (Electrical)

Module 2: Wind Load Calculation—What You Need to Know and How to Prepare Your Engineer

You do not need to run ASCE 7-22 calculations yourself. You do need to understand what inputs drive the calculation so you can brief your structural engineer in a single meeting rather than three rounds of back-and-forth.

Wind Speed Zone: How to Find Your Site’s Value

ASCE 7-22 divides the United States into wind speed zones mapped at the county level. Your site’s basic wind speed ($V$, in mph) is the foundational input. To look it up:

1. Go to hazards.atcouncil.org—this is the American Technology Council’s free ASCE 7 Hazard Tool

2. Enter your site’s latitude/longitude or address

3. Select “ASCE 7-22” and Risk Category II (standard for billboard structures)

4. Record the returned $V$ value in mph—this is what goes into your engineer’s calculations

Do not use Google Maps wind data, weather station averages, or state DOT wind maps. Those are not the same as ASCE 7-22 design wind speeds and will produce non-compliant calculations.

Input Parameters Your Engineer Requires—Provide These at First Contact

Brief your structural PE with the following before they quote you a scope of work. Engineers who receive complete input on day one typically deliver calculations 40–60% faster than those who have to extract information through follow-up questions.

• Gross sign face area (sq ft, per face—if double-sided, specify both faces and whether they share a single pole)

• Installed height above grade (ft, to the top of the LED cabinet)

• Support structure type (monopole, I-beam, H-beam, wall-mount, roof-mount)

• Site address and parcel APN (engineer needs this to pull the ASCE 7-22 mapped wind speed and confirm exposure category)

• Ground surface description within 1,500 ft of the site (open flat terrain, suburban development, urban dense—this determines Exposure Category B, C, or D)

• Soil report availability (if you have a prior geotechnical report for the parcel, share it; it may eliminate the need for new borings)

Worked Example: Dallas, Texas

• Site: North Dallas commercial corridor, 35 ft monopole, 14×48 ft single-face LED (672 sq ft)

• ASCE 7-22 mapped basic wind speed (Risk Category II): 115 mph

• Exposure Category: C (open suburban terrain, no significant shielding within 1,500 ft)

• Design wind pressure (calculated by PE): approximately 42 psf on the sign face

• Structural conclusion: 24-inch diameter steel monopole, 5/8-inch wall thickness, with drilled pier foundation minimum 30 inches diameter $\times$ 22 feet deep in typical Dallas clay soil

That foundation specification is not guesswork—it comes directly from the load calculation and soil bearing capacity data. An applicant who provides the six input parameters above can receive a preliminary structural opinion in 2–3 days rather than waiting for the engineer to request information piecemeal.

Module 3: How to Actually Accelerate Permit Review

Pre-Application Meeting: Lock the Reviewer’s Opinion Before You Submit

Most building and planning departments offer pre-application meetings (also called pre-submittal conferences). These are not optional courtesy calls—they are the most effective timeline compression tool available to applicants, and most operators don’t use them.

Contact the Planning Department and request a pre-application meeting specifically for an “off-premises digital advertising structure.” Bring your site plan, a preliminary structural concept, and your zoning analysis. Ask the reviewer two explicit questions: (1) Does this use require a Conditional Use Permit or is it permitted by right in this zone? (2) What are the department’s current completeness checklist requirements for this structure type?

Get the answers in writing—either via email follow-up the same day, or by requesting a meeting summary letter. In jurisdictions where the pre-application meeting is documented, reviewers are generally bound to their stated position. This eliminates the most common source of mid-review scope expansion: a reviewer applying a requirement that wasn’t disclosed at submission.

Notarized Documents That Can Skip a Review Step

In California and several southwestern states, a notarized property owner consent affidavit—rather than a standard lease abstract—satisfies the ownership verification requirement at the state OA permit level without triggering a secondary title review. Standard lease abstracts frequently flag for title chain verification, adding 15–30 days. The notarized affidavit form is available from Caltrans’ Outdoor Advertising Program directly; request it by name.

Similarly, a notarized contractor license verification (confirming the installation contractor’s current state license status and bond amount) submitted with the initial building permit package prevents a common mid-review hold. Reviewers who cannot verify contractor licensing status in real time will issue a hold notice rather than continue review—a notarized license certificate dated within 30 days of submission eliminates this delay.

Completeness Review Failures: What Triggers a Full Restart

Most jurisdictions distinguish between a completeness failure (application is returned before review begins, queue position lost) and a deficiency notice (application is under review, supplemental materials requested). The distinction matters because a completeness failure restarts your timeline entirely.

The following submission errors consistently trigger completeness failures rather than deficiency notices—meaning you lose your queue position and must resubmit as a new application:

• Missing PE stamp on any structural drawing (not just the calculations—the drawings themselves)

• Building permit submitted before Planning Department has issued written zoning approval

• State OA permit application submitted with incomplete spacing survey (most DOTs will not hold incomplete applications; they return them)

• Electrical permit application lacking the utility service entrance application confirmation number

These are not “fix and resubmit” situations. They are restart situations. Build a completeness checklist internal to your team and have a second person verify each item against the jurisdiction’s published completeness criteria before any submission leaves your office.

Pre-Construction Compliance Checklist: 5 Items Before Ground Is Broken

1. All permits physically in hand—not approved, in hand

   • Action: Obtain the physical permit card or certified permit copy for every permit pulled: building (structural), building (electrical), state OA permit, and any local zoning approval. Photograph each permit. Confirm the permitted address matches the installation address exactly—address discrepancies between permit and site are a stop-work trigger.

2. Electrical utility service confirmation received in writing

   • Action: Obtain written confirmation from the utility company that the service entrance application has been approved and a connection date has been assigned. Do not schedule the installation crew until this confirmation is received. A billboard erected without a confirmed service connection date creates a completed structure that cannot be legally energized—which in some jurisdictions triggers a separate certificate of occupancy requirement before activation.

3. FAA determination documented if structure exceeds 199 ft AGL or site is within airport notification area

   • Action: Retrieve your FAA Form 7460-2 “Determination of No Hazard to Air Navigation” from the FAA’s OE/AAA portal (oeaaa.faa.gov). Print and store on-site. This document is required for inspection in several states and is non-negotiable if your site is within an airport’s notification area regardless of structure height.

4. Luminance compliance verification—equipment-level, not spec-sheet-level

   • Action: Obtain from your LED cabinet manufacturer a written statement of the cabinet’s maximum luminance output (cd/m²) at full brightness and its minimum output at lowest dimming level, tested to the configuration as-installed (not a larger or smaller cabinet of the same model). Verify both figures against the local jurisdiction’s daytime and nighttime caps. If the jurisdiction requires automatic dimming with a photocell or scheduler, confirm the control system is factory-installed and documented in the permit drawings.

5. Foundation inspection scheduled before concrete pour

   • Action: Contact the building department inspection line and schedule the foundation reinforcement inspection for after the rebar cage is set but before concrete is poured. This inspection is mandatory in virtually all jurisdictions and cannot be performed retroactively. A poured foundation that was not inspected will require coring for verification—a process that takes 1–2 weeks and costs $800–$2,500—or in the worst case, full excavation and repour.

Send this checklist to your installation contractor and require written, item-by-item confirmation before any work begins on site.

Get Your Exclusive Quote!

References:

23 CFR Part 750 – Outdoor Advertising Control

ASCE 7‑22 – Minimum Design Loads and Associated Criteria for Buildings and Other Structures

The LED billboard cabinet industry has a structural sales bias problem. Front-access (FA) cabinets carry higher margins for manufacturers and are easier to pitch as a universal upgrade. The result: procurement teams routinely buy FA cabinets for wall-mount or rooftop installations where rear access is perfectly viable, then discover the per-module swap cost runs 30–40% higher than equivalent rear-access (RA) units due to magnetic retention mechanisms, added aluminum framing, and tighter thermal tolerances.

The most quantifiable mistake documented in the field: a regional out-of-home operator installed FA cabinets across 14 highway billboard faces—each 48㎡—citing “future maintenance flexibility.” Rear access was available on 11 of the 14 sites. Over 36 months, the FA premium ($2,400/cabinet × 14 = $33,600) was never offset by maintenance savings; instead, the more complex front-panel gasket design led to moisture ingress on 6 units, generating $21,000 in unplanned repair costs that RA cabinets with simpler rear-entry sealing would have avoided. Total unnecessary expenditure: $54,600 across a single campaign cycle.

Core Difference Table

Reader Self-Check

Quick check: Does your installation site have a clear structural path to the rear of the cabinet—even if it requires a ladder or lift?

If YES → FA’s core advantage is neutralized for your situation. The access premium does not apply. Skip to the Total Cost of Ownership Calculation section below.

If NO (glass back, flush concrete wall, enclosed kiosk with no rear panel access) → Continue reading. FA is likely your only viable option—but verify whether a rear-service door can be engineered before accepting the FA price.

Procurement advisor note: The larger the cabinet (>20㎡ per face), the more likely rear-access is the correct specification—even when rear clearance seems tight. FA cabinets at billboard scale carry thermal density penalties that can reduce luminaire lifespan by 8,000–12,000 hours under sustained high-brightness operation. The “premium” option actively shortens your asset life in this scenario.

You now know which access architecture is structurally relevant to your site—what remains is calculating whether the real-world maintenance frequency at your specific deployment justifies any remaining cost gap.

When Front-Access Wins vs. When Rear-Access Wins

Gray Zone Analysis: When the Difference Doesn’t Actually Matter

This is the section most specification guides skip. In a significant number of real-world deployments, FA and RA perform nearly identically—and choosing between them on access architecture alone is the wrong framework.

In the following conditions, the practical difference between FA and RA is smaller than procurement teams are typically told:

In installations where cabinet face area is between 6–12㎡ and ambient temperature stays below 32°C, thermal performance differences between FA and RA are less than 4% in measured luminaire lifespan degradation. At this scale, decision weight should shift to supplier service network proximity, not access type.

In networked digital billboard deployments with remote diagnostics and less than 1.2 physical service events per face per year, the FA time-saving advantage over RA amounts to less than 45 minutes of labor annually per face. At a $75/hour field technician rate, the annual labor saving is under $56—against a FA premium of $1,800–$4,000 per cabinet. The payback period exceeds the typical 7-year cabinet lifecycle.

In deployments at ground level (bottom edge below 2.5m) with unobstructed rear clearance, FA and RA service time difference collapses to under 3 minutes per module. At this installation profile, the access architecture distinction is commercially irrelevant; specify on price and thermal rating alone.

When your failure rate projection is below 0.3 modules per face per month (typical for Tier 1 LED module suppliers with >50,000-hour MTBF ratings), actual service events are infrequent enough that FA’s speed advantage generates under $200 in labor savings over a 5-year period. In this condition, the decision should be driven by IP rating requirements and supplier warranty terms, not access design.

In indoor billboard applications (airports, malls, transit concourses) where ambient conditions are climate-controlled and both FA and RA achieve IP43 or better, access architecture becomes a facilities management preference, not a technical specification. Consult your building management team before issuing the spec—they may have existing maintenance protocols that make one format operationally preferable regardless of technical merit.

Decision Tree: Which Cabinet Type Is Right for Your Project?

NODE 1: Can a technician physically reach the rear panel of your installed
cabinet without modifying the building structure?
│
├── NO → FA is your required specification.
│   Proceed to Node 3 to optimize within FA options.
│
└── YES ↓

NODE 2: Is your projected service frequency above 2 physical
interventions per face per month?
│
├── YES → Calculate scaffold/access cost per event.
│   If each rear-access service event costs >$150 in
│   access equipment, FA pays back within 36 months.
│   → Specify FA.
│
└── NO ↓

NODE 3: Does your installation face exceed 20㎡ AND operate in
sustained ambient temps above 38°C?
│
├── YES → RA's thermal advantage is material.
│   FA risks 8,000–12,000 hours of reduced LED lifespan.
│   → Specify RA. Do not accept FA substitution.
│
└── NO ↓

NODE 4: Is the 5-year TCO difference between FA and RA quotes
for your spec greater than $6,000 per cabinet?
│
├── YES → The FA premium is not recoverable at your
│   service frequency. → Specify RA.
│
└── NO → The difference is within gray zone tolerance.
    If both options remain on the table and you
    cannot resolve the decision with available data:

     REQUEST a 12-month pilot: deploy 2 FA units
      and 2 RA units at comparable sites, instrument
      both with remote thermal monitoring, and log
      every service event with time-stamped technician
      reports. At month 12, run the TCO comparison
      with real data—not supplier projections.

      Your next procurement round will be
      specification-certain.

5 Questions to Ask Before You Place the Order

Q1: What is the exact rear clearance measurement at each installation site?

Get this in writing from your site surveyor, not from architectural drawings. Drawings are frequently out of date. If clearance is between 0.4–0.8m, ask the supplier to confirm minimum RA service clearance requirement for their specific cabinet depth—this varies by manufacturer and is often not in the standard spec sheet.

• Action: Issue a formal site survey checklist to your installation contractor and require photo documentation of rear clearance at every position before final specification.

Q2: What is your projected monthly service event rate per face, and what is that figure based on?

If a supplier quotes you a failure rate, ask for the MTBF data behind it and which module tier it applies to. A Tier 2 module at 6,000 nits in a direct-sun environment will fail at 3–5× the rate of the same module at 4,000 nits in a shaded position. The service frequency assumption drives your entire TCO model.

• Action: Request the supplier’s field failure rate data segmented by brightness level and installation orientation—if they cannot provide it, treat their TCO projections as unverified.

Q3: What does one rear-access service event actually cost at your specific sites?

This is not the technician’s hourly rate. It is technician rate + travel time + access equipment rental (scissor lift, scaffold, crane) + traffic management if roadside. For elevated highway billboards, a single service event can cost $800–$2,400. For ground-level retail installs, it may be $60. This single number changes the entire FA vs RA calculus.

• Action: Call your current field service contractor and get a per-event cost estimate for rear-access work at your three most representative sites before running any TCO comparison.

Q4: What is the supplier’s IP rating test methodology for the front panel seam, and what is the warranty coverage for moisture ingress?

FA cabinets have an inherent seam vulnerability at the front panel junction. Ask specifically: Is the IP rating tested on the full assembled cabinet or on individual components? Is moisture ingress from front-panel seal failure covered under the standard warranty or excluded as “installation error”? This distinction has cost operators tens of thousands in denied warranty claims.

• Action: Request the warranty exclusion clause document in writing and have your legal or procurement team review the moisture ingress coverage language specifically before signing.

Q5: What is the supplier’s local service response time, and does it differ between FA and RA product lines?

Some manufacturers maintain stronger spare-parts inventory for FA cabinets in certain markets because they sell more of them—meaning RA module lead times can run 2–4 weeks longer in some regions. If you are in a market where the supplier’s RA module stock is thin, FA’s practical uptime advantage may have nothing to do with access design and everything to do with supply chain.

• Action: Ask the supplier for current in-region inventory levels for the specific module SKU in both FA and RA configurations, and request their average fulfillment time for emergency module orders over the past 6 months.

Pull your site survey reports and your last 12 months of field service invoices, run the per-event cost calculation from Q3 against your projected failure rate from Q2, and you will have a defensible specification decision before the next supplier conversation.

Get Your Exclusive Quote!

References:

MDPI (Multidisciplinary Digital Publishing Institute) — The Performance Degradation of Red, Green, and Blue Micro-LEDs Under High-Temperature Electrical Stress (Published in Crystals, .org / .edu academic cross-ref).

Scenic America (.org) — Illuminating the Issues: Digital Signage and Philadelphia’s Green Future

A fully installed 10×20ft (200 sq ft) outdoor LED billboard costs between $28,000 and $85,000 in the U.S. market as of 2025–2026. That number covers hardware, structural steel, installation labor, and basic electrical work—but not permits, ongoing power consumption, or content management. If someone quotes you a “complete system” under $20,000, read the fine print carefully. Something critical has been left out.

The single biggest driver of that $57,000 spread? Pixel pitch—and most buyers don’t understand it until they’ve already signed a purchase order.

Here’s the market-validated price breakdown before we get into the mechanics:

Prices reflect Tier-1 manufacturer hardware (Unilumin, Absen, Daktronics, Watchfire) with U.S.-based installation. Chinese-sourced OEM product at the same pixel pitch typically runs 35–50% lower on hardware cost alone—the tradeoffs are discussed in detail below.

The Real Price Range for a 10×20 LED Billboard

Why Two “Identical” 10×20 Billboards Can Differ by $40,000

This is the question every serious buyer eventually asks, usually after receiving three wildly inconsistent quotes. The short answer: a spec sheet does not define a product. Two screens listed as “P6, 5,500 nit, IP65” can differ dramatically in the quality of their LED chips, driver ICs, power supply redundancy, and cabinet thermal management—none of which is visible in a bullet-point specification.

Here’s where the real cost divergence comes from:

LED chip sourcing

Tier-1 screens use chips from Nationstar, Nichia, or Cree. Budget alternatives use unnamed or secondary-bin chips. Bin consistency directly affects color uniformity across the cabinet face—a problem that becomes glaringly obvious 18 months after installation when one module starts drifting green.

Driver IC quality

The driver IC controls how consistently each pixel responds to input signals. Novastar and Colorlight are the recognized benchmark brands. Screens built around generic or unspecified ICs show grayscale banding and refresh-rate artifacts that make video content look unprofessional.

Power supply design

A properly engineered outdoor cabinet uses redundant power supplies (N+1 configuration) so a single PSU failure doesn’t take down the entire display. Budget cabinets skip redundancy. A single failure at a high-traffic location on a Friday afternoon costs you the weekend’s ad revenue plus an emergency service call.

Cabinet-level IP rating

IP65 is the minimum for outdoor use. But there’s a significant manufacturing quality difference between an IP65 cabinet that was genuinely pressure-tested and one that carries the marking on paper only. Ask for third-party test reports.

The Alibaba problem is real but nuanced. You can source a functional 10×20 P6 display from a Chinese manufacturer for $14,000–$22,000 in hardware cost. Plenty of operators do it successfully. The risk isn’t that the product is always bad—it’s that quality verification requires expertise most buyers don’t have, warranty enforcement across international supply chains is extremely difficult, and U.S.-based technical support is typically nonexistent. For a first-time buyer without an in-house LED technician, the total cost of a bad purchasing decision routinely exceeds the $15,000–20,000 you saved upfront.

Pixel Pitch—The Single Variable That Moves the Price Most

The “Minimum Viewing Distance” Formula: Match Pitch to Your Location Before You Spend a Dollar

Pixel pitch is the center-to-center distance between individual LED pixels, measured in millimeters. A P6 screen has 6mm between pixels; a P4 screen has 4mm. Halving the pixel pitch roughly quadruples the number of pixels across the same cabinet area—which is why the hardware cost increases so sharply.

The field-standard formula for determining the minimum comfortable viewing distance is:

Optimal viewing distance (ft) = Pixel pitch (mm) × 3.5

In practice:

If your nearest lane of traffic is 60 feet away, a P10 or P8 screen will deliver sufficient image quality at roughly half the hardware cost of a P4. Overshooting pixel pitch for your viewing geometry is one of the most common and expensive purchasing mistakes in this industry. A P4 display at a rural highway location is not a premium investment—it’s a $25,000 overspend on resolution that no passing driver will ever perceive.

Conversely, installing a P8 screen in a dense urban environment where pedestrians are 15 feet away will result in a visibly pixelated image that reflects poorly on your brand or your client’s business. Under-speccing is equally costly; it just damages your reputation rather than your bank account.

Brightness Requirements by Location Type—and Why Under-Speccing Kills ROI

Pixel pitch gets all the attention. Brightness is the specification that actually determines whether your investment is visible.

A 10×20 screen rated at 4,000 nits will be functionally invisible on a south-facing installation during mid-afternoon in Phoenix or Dallas. This is not a hypothetical—it’s a documented failure mode that operators encounter regularly after purchasing on spec-sheet brightness numbers rather than independently verified measurements.

The critical detail buyers miss: manufacturer brightness ratings are measured at 100% pixel load, under lab conditions, at the beginning of product life. Real-world sustained brightness is typically 15–25% lower due to thermal throttling as the screen reaches operating temperature. When comparing quotes, ask specifically for the sustained brightness at typical ambient operating temperature (40°C/104°F for outdoor U.S. applications), not the peak lab rating.

Industry-standard outdoor specifications for a 10×20 roadside installation

Any quote that omits refresh rate and color depth specifications is telling you something about the product it’s not explicitly saying.

Steel Structure & Installation—The Cost Nobody Quotes You Upfront

Monopole vs. Wall-Mount vs. Rooftop: Structure Cost Breakdown

Here is where projects most frequently blow their budgets. The LED screen hardware is line item one. The structure that holds it in the air is a separate engineering and fabrication exercise—and it is not optional, not standardized, and not cheap.

Monopole Installation (freestanding single-pole)

• Most common configuration for roadside billboards
• Requires geotechnical soil boring to determine foundation depth
• Concrete foundation pour: $6,000–$14,000
• Steel monopole fabrication and galvanizing: $8,000–$18,000
• Crane rental for pole erection: $2,000–$5,000
• Total structural cost: $16,000–$37,000 before a single LED module is mounted
• Wind load engineering stamp (required in most jurisdictions): $1,500–$4,000

Wall-Mount Installation

• Requires structural engineering assessment of the host wall
• Steel bracketing and anchoring system: $3,500–$9,000
• Significantly less expensive—but host structure must be rated to support dynamic wind loads on a 200 sq ft panel
• Total structural cost: $4,500–$12,000

Rooftop Installation

• Most complex permitting scenario
• Structural load analysis of roof deck required
• Wind exposure is typically highest, requiring heavier steel specification
• Access provisions for maintenance must be engineered into the design
• Total structural cost: $8,000–$22,000, and this range can exceed $30,000 in seismic zones or hurricane-risk markets

The single most common budget overrun on LED billboard projects is a monopole installation where the soil boring comes back soft—requiring a deeper foundation pour than initially scoped. This is discovered after the contract is signed. Reputable contractors include a geotechnical contingency in their proposals. If a proposal doesn’t mention soil boring, ask explicitly how foundation cost overruns are handled.

Electrical Infrastructure—What Your Site Survey Won’t Tell You

A fully loaded 10×20 P6 screen operating at 5,500 nits draws approximately 3.2–4.8 kW under typical content loads. At full white (worst case), peak draw can reach 7–9 kW.

Practical implications

• You need a dedicated 60A, 240V circuit at minimum for most installations.
• Many roadside locations are served only by single-phase residential-grade drops; upgrading to three-phase service can cost $4,000–$12,000.
• If the utility company must extend a new service lateral to your location, add $3,000–$15,000 to the project and 4–12 weeks to the timeline.
• A properly installed system includes a surge protection device (SPD) rated for the panel’s power draw—budget $800–$2,000 for this.

Electrical work for LED billboard installations requires a licensed electrician and will require an electrical permit in virtually every U.S. jurisdiction. This is a line item that cannot be cut. Inspections are required before the screen can be energized.

The 5-Year Total Cost Nobody Puts in the Brochure

Initial purchase price is the wrong number to optimize around. The conversation that experienced operators have—and that first-time buyers almost never have until it’s too late—is about total cost of ownership (TCO) over a five-year operating horizon.

Annual Electricity Cost: The Silent Budget Line

Module Replacement: The Cost of Getting the Brand Wrong

A single 960×960mm LED module replacement—including the module itself plus a technician visit—costs $800–$2,400 depending on pixel pitch and brand.

Content Management System (CMS) and Software Licensing

Insurance, Annual Permit Renewal, and Liability Exposure

Simulated ROI Scenario—A Realistic “Accounts Payable” Breakdown

Initial Capital Outlay

Year 1–5 Operating Costs (Annual)

5-Year TCO

$68,300 + ($11,450 × 5) = $125,550

Revenue Potential at 22,000 VPD

At a market CPM rate of $5.50 for a suburban arterial in a mid-size U.S. market, with 8 advertiser slots rotating on a 10-second dwell time running 16 hours/day, this screen generates approximately $2,200–$3,400/month in gross advertising revenue—or $132,000–$204,000 over five years before taxes and land lease.

Breakeven on total invested capital: 26–36 months under this scenario.

Is a 10×20 LED Billboard Worth It? Three Scenarios

Scenario A—Own-Business Advertiser (replacing leased static billboard)

If you are currently paying $1,800–$2,800/month to lease a static billboard for your own business, a fully owned 10×20 LED display typically achieves capital payback in 24–36 months while delivering far superior creative flexibility and daypart targeting capability.

Scenario B—Third-Party Advertising Revenue

Viable at locations with ≥15,000 vehicles per day (VPD). Below that threshold, CPM-based revenue is too thin to justify the capital outlay at current interest rates. Above 30,000 VPD in a mid-to-large market, payback can compress to 18–24 months.

Scenario C—Venue/Event Application

For stadiums, fairgrounds, and entertainment venues, the calculus shifts: sponsorship and naming rights packages bundled with LED signage visibility routinely recover hardware cost within the first 12–18 months of operation. In this context, P4 high-brightness hardware is the correct specification regardless of viewing distance—the premium is justified by the sponsorship revenue premium it commands.

FAQ: Real Questions Buyers Ask Before Purchasing a 10×20 LED Billboard

Q: What is the lifespan of a 10×20 outdoor LED billboard, and when will I need to replace it?

A Tier-1 outdoor LED display is rated for 100,000 hours of operation—approximately 17 years at 16 hours per day. In practice, most operators plan a full refresh at 10–12 years, when panel brightness has degraded to 50% of original output and newer pixel pitches offer meaningfully better resolution at lower cost. Individual module replacement extends the usable life of the structure indefinitely.

Q: Can I install a 10×20 LED billboard on my property without a permit?

No. In virtually every U.S. jurisdiction, an outdoor LED display of this size requires a sign permit, an electrical permit, and—if freestanding—a structural building permit. Locations adjacent to federal or state highways also require compliance with the Highway Beautification Act, which mandates specific setbacks and spacing from other signs. Unpermitted installations are subject to forced removal at the owner’s expense.

Q: Why does my contractor keep mentioning “wind load rating”—does it actually matter?

Yes, significantly. A 10×20ft display panel presents 200 square feet of wind-facing surface area. In markets with hurricane or high-wind exposure (Florida, Texas Gulf Coast, Midwest tornado corridors), wind load engineering is not optional—it determines the required thickness and depth of the monopole and foundation.

Q: How much does a 10×20 LED billboard weigh, and does that affect installation cost?

A standard P6 LED cabinet weighs approximately 35–50 lbs per square meter. A 10×20ft (18.6 sq m) display will have a total panel weight of 650–930 lbs, not including the mounting frame. When combined with the steel support frame, the structure presented to the monopole or wall mount typically weighs 1,200–1,800 lbs.

Conclusion: Why Optimizing for Initial Price Is the Expensive Strategy

A 10×20 outdoor LED billboard is a 10-to-15-year capital asset being evaluated on a single-day price. Every experienced operator in this industry has a story about the screen they bought on price—and the maintenance bills, the washed-out summer visibility, the software licensing they didn’t budget for, or the module failures that started in year two.

The $28,000 vs. $85,000 range documented in this article is not a simple quality spectrum. It reflects genuine differences in LED chip binning, driver IC reliability, cabinet thermal engineering, power supply architecture, and the credibility of the warranty backing the product.

A P6 Tier-1 installation at $48,000 may have a lower five-year TCO than a P6 budget installation at $31,000—once electricity efficiency, maintenance reserves, and avoided downtime are properly accounted for.

The number that matters is not the purchase price. It is the cost per thousand impressions over the asset’s operating life—and that number is determined far more by operational reliability and correctly matched specifications than by the line on the initial invoice.

Because installation environment, soil conditions, local permitting requirements, and optimal pixel pitch vary so substantially from one location to the next, there is no reliable substitute for a site-specific engineering assessment. Contact our engineering team for a precise, no-obligation custom quote tailored to your location, traffic data, and content objectives—the conversation takes 20 minutes and typically saves buyers $8,000–$15,000 in specification errors before a single component is ordered.

Get Your Exclusive Quote!

References:

OAAA Recommended Digital Brightness Guidelines

Digital Billboard Energy Use in California — Stanford University

Most procurement teams treat IP ratings as a binary pass/fail stamp. They see IP68 on a spec sheet, assume it’s the highest available, and sign the purchase order. Twelve years of field verification taught me this is exactly how a $340,000 beachfront installation in Qingdao ended up with catastrophic ingress failure by month four—despite carrying a legitimate IP68 certification. Before you spec your next outdoor display, you need to understand what these ratings actually test, where they stop protecting you, and why the number on the datasheet may be describing a product that doesn’t exist in the environment you’re deploying into.

What IP Ratings Actually Measure—and What They Don’t

The Ingress Protection rating system is defined under IEC 60529. The two digits mean specific, narrow things:

• First digit (1–6): Solid particle protection, from large objects down to dust
• Second digit (1–9): Liquid ingress protection, from dripping water to high-pressure/high-temperature jets

For outdoor LED displays, the relevant ratings cluster around the second digit: 5, 7, and 8.

The phrase “agreed between manufacturer and user” in IP68 is where procurement teams routinely get caught. There is no universal IP68 standard for depth or duration. One manufacturer’s IP68 means 1.5m for 30 minutes. Another’s means 1m for 60 minutes. A third’s means 3m for 24 hours. All three products carry identical IP68 markings on their spec sheets.

The Scenario Where IP65 Looks Compliant but Actually Fails

Parameter A Locked: IP65 in High-Humidity Condensation Cycling Environments

IP65 testing is conducted as a single-event spray test on an enclosure at ambient temperature. The test does not simulate what happens to a sealed enclosure that heats to 65°C during an afternoon sun load, then cools to 12°C overnight—repeatedly, for 1,825 nights.

This thermal cycling creates a pressure differential inside the cabinet. As the display cools, internal air contracts. If the IP65 seal integrity is anything less than perfect—a micro-gap in a gasket, a hairline stress fracture in a cable entry gland, a single improperly torqued fastener—the enclosure effectively breathes. It inhales ambient air. In coastal or humid subtropical climates, that air carries moisture. The moisture doesn’t flood in; it accumulates incrementally, depositing on the coldest internal surface: usually the LED driver PCB or the power supply unit.

The unit passes its IP65 certification test on day one. By month eight, the driver board shows electrolytic corrosion that the certification test was never designed to catch.

The Specific Field Failure That Changed How I Specify Projects

Parameter B Locked: Shenzhen Bay Waterfront, 2019, P4 LED Mesh Screen, 48 Cabinets

The installation was a 48-cabinet P4 LED mesh display, mounted on a pedestrian bridge over Shenzhen Bay. Spec: IP65 on the cabinet enclosures, IP67 on the tile-level connectors. The system integrator considered this a conservative, well-engineered choice—IP67 connectors were a deliberate upgrade over the IP65 baseline.

At month five, during routine maintenance inspection, the team found moisture-related failures in 11 of 48 cabinets—a 23% failure rate. The failure wasn’t from rain ingress through the cabinet face. It was from capillary action along the power cable bundles entering the cabinet from the rear. The IP67 connector bodies were intact. Water had tracked along the cable jacket itself, through the cable entry glands, and pooled inside the cabinet near the power supply.

The IEC 60529 test for cable entry glands tests the gland body. It does not test for water migration along the cable’s exterior surface over time.

Quantified Loss

• 11 driver board replacements at ¥4,200 per unit
• 3 full power supply replacements at ¥8,800 per unit
• Crane access for rear-face cabinet service on a bridge installation

Total remediation cost: ¥112,400

The system was offline for 19 days during the Shenzhen Bay New Year period—estimated commercial penalty to the site operator: ¥280,000.

Total incident cost: approximately ¥392,000 (~$54,000 USD at 2019 rates).

The fix was not a higher IP rating. It was cable drip loops with sealed strain relief and a downward-exit cable routing specification—a mechanical installation detail that no IP rating addresses.

The Counterintuitive Finding That Should Change How You Evaluate Specs

Engineer’s Note

For most permanent outdoor LED display installations, IP67 offers worse real-world protection than IP65 with a properly engineered cabinet drainage system—and specifying IP68 frequently indicates a supplier who doesn’t understand your installation environment.

Here’s why this is true:

IP67 and IP68 are submersion ratings. They’re engineered to keep water out when the enclosure is underwater. But an outdoor LED display is not submerged—it’s exposed to sustained thermal cycling, humidity gradients, and surface condensation.

The seals that enable an enclosure to withstand 1-meter submersion are often less permeable to vapor exchange than a properly ventilated IP65 cabinet with managed drainage ports.

A sealed IP67 cabinet that traps internal humidity during cooling cycles can develop internal condensation damage faster than an IP65 cabinet designed with a Gore-Tex membrane vent that equalizes pressure without allowing liquid ingress.

The IP67 cabinet will pass the certification test and fail the deployment.

The IP65 cabinet with membrane venting will not achieve IP67 certification and will outperform it in service.

When a supplier immediately offers IP68 as a premium upgrade for a rooftop or facade-mount installation, it tells you they’re selling rating numbers rather than engineering solutions.

Quick Check—Before Reading Further, Confirm Your Installation Type

Checklist

□ Is your display wall-mounted, facade-mounted, or elevated above grade by more than 500mm?

□ Is your installation site more than 5km from open saltwater or any industrial source of airborne chlorine, sulfur dioxide, or ammonia?

□ Will your maintenance protocol never involve pressure washing above 30 kPa nozzle pressure?

If All Three Are YES

IP65 with membrane pressure-equalization vents is your answer.

Skip directly to the Decision Tree and Pre-Acceptance Checklist below.

The sections between here and the Decision Tree document why—read them if you need to justify the specification to a procurement committee, or if any of your three answers was NO.

If Any Answer Is NO

Continue reading in order. Your installation has at least one condition that changes the correct specification.

Breaking Down Where Each Rating Is Actually Appropriate

IP65: The Correct Choice for Most Permanent Installations

For fixed-mount outdoor LED displays—building facades, highway billboards, stadium perimeters, retail exterior signage—IP65 is the appropriate baseline when paired with correct installation engineering.

What IP65 Actually Needs to Protect Against

The procurement filter IP65 gives you:

You can eliminate any product that cannot demonstrate 3-minute multi-directional spray resistance per IEC 60529. This removes budget products with purely cosmetic sealing.

IP66: The Correct Choice When Maintenance Involves High-Pressure Washing

IP66 is the most frequently omitted rating in outdoor LED display procurement, and its absence from most spec discussions creates a real gap for specific installation types.

The difference between IP65 and IP66 is not protection level in rain or condensation environments—it is resistance to high-pressure water jets.

In service conditions, this distinction matters only when the display will be cleaned with a pressure washer as part of its maintenance protocol.

Applications Where IP66 Is Correctly Specified

• Stadium perimeter and pitch-side LED displays cleaned by maintenance crews using pressure washing equipment
• Transit hub installations (airports, rail stations) subject to scheduled high-pressure cleaning of surrounding surfaces
• Retail exterior signage in food service or hospitality environments where facade washing is routine
• Any installation where the maintenance contract specifies pressure washing at nozzle pressures above 30 kPa

Engineer’s note: The trigger for IP66 is not the environment—it is the maintenance protocol. A display in a dry inland climate with a stadium cleaning contract needs IP66. A display on a coastal facade cleaned only with low-pressure rinse does not. Check the maintenance specification before the IP specification.

Procurement Action for IP66

Request the test report confirming the 100 L/min, 12.5mm nozzle test.

Separately confirm that the cable entry glands carry an IP66 component-level certificate—glands are the most common failure point when enclosure and gland ratings are mismatched at this pressure level.

IP67: The Correct Choice for Ground-Level and Below-Grade Installations

IP67 is appropriate when the display can realistically be submerged during its operational life—not as a theoretical worst case, but as a credible scenario.

Applications Where IP67 Is Correctly Specified

• Ground-embedded LED floor tiles in public plazas
• Below-grade installations in underpasses subject to flash flooding
• Waterfront horizontal display surfaces where wave action or tidal surge is plausible
• Temporary event installations where the display may be deployed on unprepared ground

Parameter C Locked

After reading this section, you should be able to eliminate IP67-spec products if your installation is wall-mounted, facade-mounted, or elevated above grade by more than 500mm—the submersion resistance you’re paying for is a feature your installation can never use, and the sealed enclosure design optimized for submersion may actively work against condensation management in your actual environment.

IP68: The Correct Choice for a Narrow Set of Permanently Submerged Applications

IP68 applies to LED displays installed in:

• Underwater decorative installations (pool floors, fountain walls)
• Below-waterline marine applications
• Permanent below-grade installations in high water table zones

For any other application, an IP68 specification on a wall-mount or standard outdoor display should trigger a specific question to the supplier:

“What depth and what duration is your IP68 rating tested to, and where is that documented in the IEC 60529 test report?”

If they cannot produce a third-party test report specifying the exact depth and duration parameters, the IP68 marking is unverifiable.

A legitimate IP68 certification on an LED display product will include documentation referencing the specific manufacturer-user agreement parameters under which the test was conducted.

The Salt Fog Gap That IP Ratings Don’t Cover

This is the single most dangerous gap in IP-based procurement for coastal and industrial environments.

IEC 60529 tests liquid water ingress. It does not test corrosion resistance to saline atmospheres, industrial pollutants, or chlorinated air.

A display with a valid IP68 rating can have aluminum cabinet hardware, unprotected steel fasteners, and standard tin-lead PCB surface finishes that will corrode and fail within 18 months of coastal installation—without a single drop of liquid water entering the enclosure.

Coastal Environments Require Separate Specification Of

• IEC 60068-2-11 salt spray endurance testing (minimum 96 hours for moderate coastal, 480+ hours for direct marine exposure)
• Marine-grade aluminum alloy cabinet construction (6061-T6 or 5052-H32, not generic ADC12)
• 316L stainless hardware on all external fasteners
• Conformal coating on all exposed PCBs (IPC-CC-830B compliant, Type AR or UR)

These specifications exist outside the IP rating system entirely.

A display that fails to meet them will fail in coastal environments regardless of whether it carries IP65, IP67, or IP68 certification.

IP Rating Comparison: Measurable Parameters by Grade

Procurement Action

Request the third-party test report (not the datasheet) for every IP rating claimed.

The report must:

• Name the testing body
• Include the standard revision (IEC 60529:2013+AMD1:2016 is current)
• Specify the exact test parameters used

Reject any certification document that does not include these three elements.

Calculating Actual Ingress Risk for Your Installation

IP certification tells you how a product performed in a laboratory at a single point in time. It does not tell you the cumulative ingress risk your specific installation will face over a five-year service life.

This formula gives you a comparable risk index across candidate installations.

Cumulative Thermal Cycling Ingress Risk Index (CTCIRI)

Formula

CTCIRI = [ΔT_daily] × [N_cycles_annual] × [RH_avg] × [E_coastal]

Where

• [ΔT_daily] = Average daily temperature swing at installation site (°C), measured as max minus min over a 12-month period
• [N_cycles_annual] = Number of full thermal cycles per year (use 365 for permanent outdoor displays)
• [RH_avg] = Annual average relative humidity at site, expressed as a decimal (e.g., 0.78 for 78% RH)
• [E_coastal] = Coastal exposure multiplier:
  • 1.0 for inland
  • 1.4 for within 5km of open saltwater
  • 2.1 for within 500m of open saltwater or direct marine exposure

The index is a dimensionless risk score.

• Any value above 10,000 indicates that IP65 alone is insufficient without supplementary condensation management engineering.
• Any value above 20,000 requires salt fog certification in addition to IP rating verification.

Worked Example: Miami Beach Beachfront Billboard Installation

Input Values

Calculation

CTCIRI = 9 × 365 × 0.76 × 2.1

9 × 365 = 3,285

3,285 × 0.76 = 2,496.6

2,496.6 × 2.1 = 5,242.9

Result

CTCIRI = 5,242.9

This is above 10,000? No—5,242 falls below the 10,000 threshold.

However, the coastal multiplier of 2.1 means the risk profile is disproportionately driven by salt atmosphere, not thermal cycling volume.

The correct specification response is not to upgrade from IP65 to IP67, but to add IEC 60068-2-11 salt spray certification (480-hour minimum for this proximity), conformal coating on all PCBs, and 316L stainless external hardware.

Shenzhen Bay Example

Input Values

Calculation

CTCIRI = 8 × 365 × 0.79 × 2.1

= 2,920 × 0.79 = 2,306.8

2,306.8 × 2.1 = 4,844.3

Result

The score of 4,844 correctly flags that the primary intervention needed was not IP-level upgrade but cable routing and salt-atmosphere protection—which is precisely what remediation confirmed.

How to Run This for Your Installation

Pull your site’s climate data from the nearest NOAA, ECMWF, or national meteorological station.

You need:

• 12-month daily max/min temperature records
• Annual mean RH

Use 30-year averages if available; use the most recent 5-year average if not.

Confirm your distance from open saltwater using satellite measurement, not address approximation.

Apply the formula.

• If your CTCIRI exceeds 10,000, your cabinet specification must include membrane pressure-equalization vents and documented drainage port placement—regardless of IP grade.
• If your CTCIRI exceeds 20,000, route all cable entries downward and require a conformal coating certificate (IPC-CC-830B) from the manufacturer before accepting delivery.

Decision Tree: Specifying the Correct IP Rating

Node 1

Will the display be at any point submerged in liquid water during normal operation or credible worst-case weather events?

Yes → Go to Node 2

No → Go to Node 3

Node 2

Is Submersion Permanent or Continuous?

Examples:

• Underwater installation
• Below-waterline marine

Yes

Specify IP68.

Demand the third-party test report specifying exact depth and duration.

Also specify IEC 60068-2-11 salt spray if the liquid environment is saline.

Do not proceed to Node 3.

No

(Submersion is temporary—flash flood, tidal surge, ground-level plaza)

Specify IP67.

Verify the 1m/30-minute test report.

Add cable drip loop requirement to installation specification.

Do not proceed to Node 3.

Node 3

Will the display be subject to high-pressure washing as part of its maintenance protocol (above 30 kPa nozzle pressure)?

Yes

Specify IP66 minimum.

Verify the 100 L/min test report.

Confirm that the cabinet’s cable entry glands are rated to the same pressure specification as the enclosure body.

No

Go to Node 4.

Node 4

Is the installation site within 5km of open saltwater, or in an industrial environment with airborne chlorine, sulfur dioxide, or ammonia?

Yes

Specify IP65 for the enclosure rating, then mandate:

1. IEC 60068-2-11 salt spray test certificate at 480 hours minimum
2. Conformal coating certificate per IPC-CC-830B Type AR or UR on all PCBs
3. 316L stainless external hardware

A supplier who cannot provide all three documents for a coastal installation is not correctly engineering for your environment regardless of their IP rating.

No

Specify IP65 with membrane pressure-equalization vents.

Confirm the manufacturer can document the vent specification (Gore-Tex or equivalent PTFE membrane, minimum IP65-rated while open).

This is your baseline for all standard outdoor permanent installations.

Pre-Acceptance Verification Checklist

Before accepting delivery of any outdoor LED display against an IP specification, verify the following five items.

Each item has a specific action attached.

A missing document is grounds to hold payment.

1. Third-Party IP Certification Test Report

The datasheet is not the test report.

The test report:

• Names the independent laboratory
• Cites the IEC 60529 revision tested against
• Lists the specific test conditions
• Carries the lab’s stamp and test date

Action

Email the supplier and request:

“the full IEC 60529 third-party test report, not the product datasheet.”

If they send a datasheet with a logo on it, reject it and repeat the request.

2. IP68 Depth and Duration Parameters (If IP68 Is Specified)

The test report for IP68 must include the specific depth in meters and duration in minutes agreed as the test parameters.

Action

Open the test report to the IP68 test section and confirm:

• A specific number appears next to “depth”
• A specific number appears next to “duration”

If either field reads “per agreement” without a number, the certification is incomplete and unenforceable.

3. Cable Entry Gland Certification Matching the Enclosure Rating

The enclosure and the gland are tested and certified separately.

A cabinet with IP67 certification and IP65 cable entry glands has IP65 protection at every cable entry point.

Action

Request the component-level IP test certificates for all cable entry glands.

Confirm the gland IP grade matches or exceeds the cabinet IP grade.

4. Salt Spray Test Certificate If Installation Is Within 5km of Saltwater

This is a separate certification from IP rating.

Request IEC 60068-2-11 documentation specifying:

• Test duration in hours
• Salt concentration used

Minimum Acceptable

Action

If the supplier states their product is “suitable for coastal environments” but cannot produce an IEC 60068-2-11 certificate, remove the coastal suitability claim from the purchase agreement in writing before signing.

5. Conformal Coating Specification on PCBs

Request the IPC-CC-830B compliance certificate for:

• LED driver boards
• Power supply PCBs

The certificate should specify:

• Coating type (AR, UR, SR, or ER)
• Coverage specification

Requirements

Action

Pull one production sample unit from the delivery batch and inspect the driver board under UV light.

IPC-CC-830B compliant conformal coatings fluoresce under UV, making coverage gaps immediately visible.

Reject any unit where coverage gaps are visible over active component leads or connector pins.

Send the supplier a written request for documents 1 through 5 before the delivery inspection date, and make payment release conditional on receiving all five.

Get Your Exclusive Quote!

References:

International Electrotechnical Commission – IEC 60529: Degrees of Protection Provided by Enclosures (IP Code)

NEMA 250 – Enclosures for Electrical Equipment (National Electrical Manufacturers Association)
