Finding an LED display that delivers crisp visuals, reliable performance, and long term value involves more than just chasing the lowest sticker price. Below, each of the 13 critical factors is unpacked with practical guidance and examples to help you make a data driven decision.
1. Specifications and Models

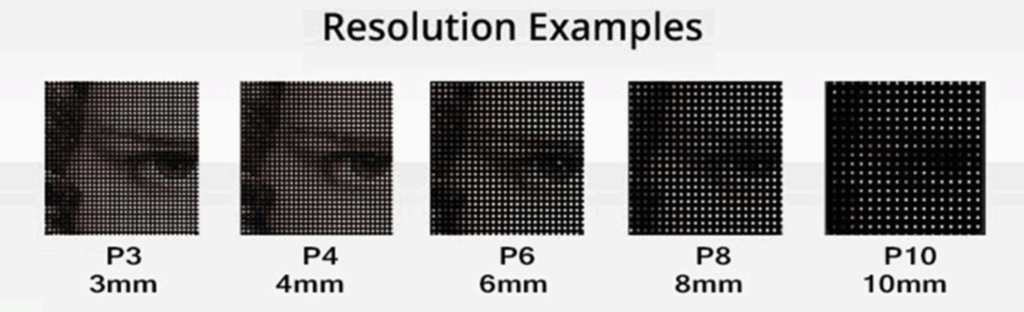

Pixel Pitch & Viewing Experience
- Fine-pitch (P0.9–P2.5 mm):Ideal for applications where viewers are within 3–5 meters of the screen (e.g., control rooms, broadcast studios, indoor retail walls). Delivers razor sharp text and detailed graphics—perfect for close up engagement—but at a premium cost.
- Coarse-pitch (P2.5–P10 mm):Best for outdoor signage, sports arenas, and large venues where viewing distances exceed 5 meters. You pay less per square meter, but the image may appear grainy up close.
Tip: Sketch your intended viewing zones and match pixel pitch to the closest viewer distance. This ensures you’re not over spec’ing (and over paying) for unnecessary resolution.
2. Resolution
Balancing Clarity vs. Cost
- High-res (Full HD, 4K):Requires four to sixteen times more LEDs than standard HD, driving up material and assembly costs. Use only if your content includes fine typography, small fonts, or detailed imagery.
- Standard-res:Works well for basic messaging and simple animations. Often sufficient for wayfinding, menu boards, and informational displays.
Example: A 4K-capable 100″ panel may cost 30–50 % more than its 1080p cousin, yet in a shopping mall directory application (where viewers are 5–10 m away), the difference in perceived sharpness is negligible.

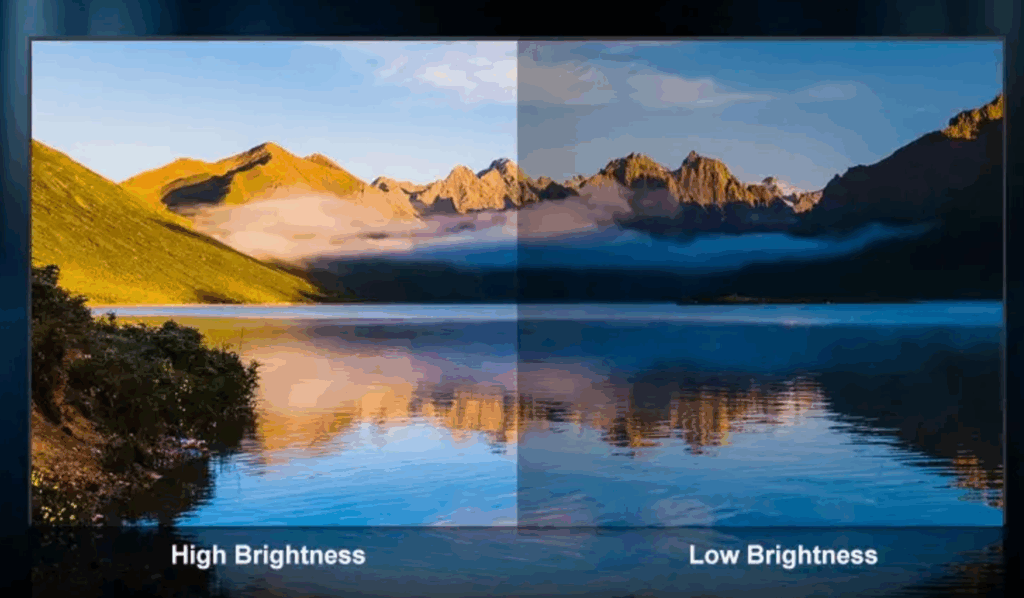

3. Brightness and Color
Setting the Right Light Output
- Outdoor Displays:Target ≥5,000 nits to combat direct sunlight and maintain legibility.
- Indoor Displays:600–1,200 nits provides a comfortable viewing experience without excessive power draw.
Color Gamut & Calibration:
- Wide gamut LEDs reproduce richer, more vibrant hues but add cost.
- Automated color calibration systems ensure uniformity across large video walls—seek vendors who include these tools in their package.
4. Screen Size
Cost vs. Impact
- LargeFormat: Bigger screens make a statement, but each extra square meter can add thousands to your budget.
- ModularBuilds: Consider assembling multiple smaller panels (e.g., 500×500 mm modules) into a larger configuration. This approach spreads risk—if one panel fails, you replace it, not the entire wall.
Practical Tip: Draw a to scale schematic of your space and experiment with different sizes before finalizing your order.
5. LED Module Type
Choosing the Right Technology
- DIP (Dual-Color):Legacy, high durability solution primarily for simple monochrome signage.
- SMD (Tri-Color):The industry standard for full color indoor/outdoor displays—cost effective and versatile.

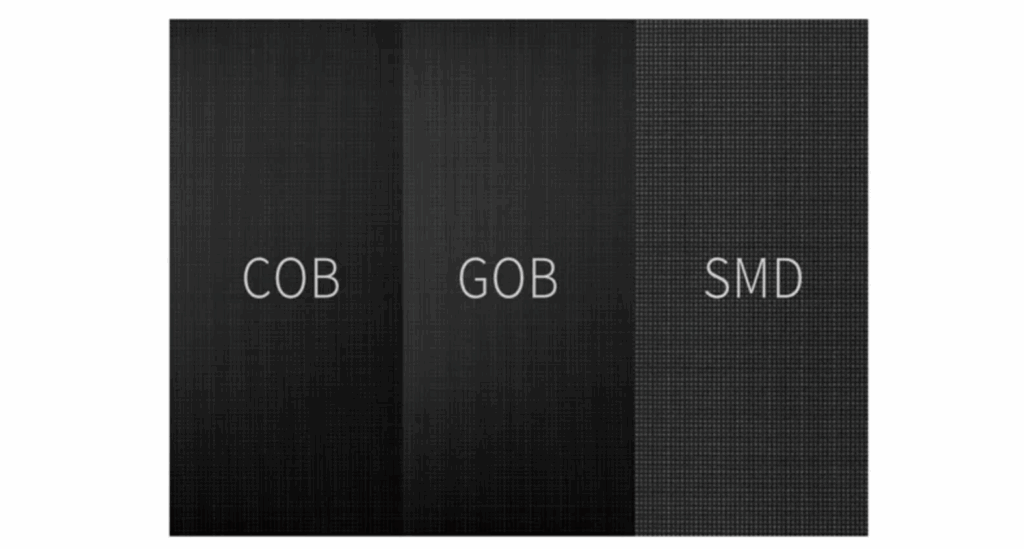

- COB/GOB:Integrates LED chips directly into the substrate for super fine pitch (sub 1 mm) and superior contrast, but at 2–3× the cost of SMD.
6. Protection Level (IP Rating)
Safeguarding Your Investment
- Indoor-only (IP20/IP30):No protection against dust or moisture—suitable for climate controlled environments.
- Outdoor-ready (IP65/IP66):Fully sealed against rain and dust, UV stabilized plastics, and corrosion resistant coatings. Expect a 15–25 % price increase over indoor models.
7. Display Technology
Full-Color vs. Specialty Displays
- Full-Color SMD:Widely adopted, offers up to 16.7 million colors and excellent viewing angles.
- Transparent/Flexible/3D Panels:Eye catching but highly specialized—budget accordingly if you need novelty installations.
8. Screen Type
Innovations & Their Price Tags
- MicroLED:Exceptional brightness and lifespan, but currently commands a heavy premium.
- MiniLED:Bridges the gap—better than SMD for HDR, yet more affordable than MicroLED.
9. Refresh Rate
Ensuring Flicker-Free Motion
- Standard (1,920 Hz):Adequate for static signs and simple slideshows.
- High (≥3,840 Hz):Essential for video content, live camera feeds, and esports applications. High refresh controllers add 10–20 % to your cost.
10. Supporting Systems
Beyond the Screen
- Control Hardware:Media players, video processors, and routers can add 10–30 % to project costs.
- Software:Look for bundled content management and remote monitoring platforms—this avoids license fees later.
11. Raw Materials
Component Quality Matters
- LED Chips:Brands like Nichia, Cree, and Epistar cost more but deliver tighter binning (color consistency) and longer lifespans
- Power Supplies & PCBs:Invest in industrial grade power modules and multi layer PCBs to prevent premature failures.
12. Brand and Manufacturer
Risk Mitigation vs. Savings
- Tier-1 Brands:Premium pricing, extensive warranties, and global support networks reduce project risk.
- Emerging Vendors:Attractive price points but may lack local service centers—factor in potential shipping costs for spare parts.
13. Delivery Time and Customization
Timing Is Money
- Stock Panels:Off the shelf modules ship in days—ideal for tight deadlines.
- Custom Builds:Tailored shapes or finishes can extend lead times by 4–8 weeks and carry rush order fees.
Bringing It All Together: Total Cost of Ownership
A truly cost-effective LED solution isn’t just the cheapest upfront. Calculate:
- Initial Investment(display + control systems + installation)
- Operational Costs(power consumption, content management)
- Maintenance & Repair(module replacement, on site service)
- Downtime Risk(warranty response time, spare parts availability)
When you tally up initial purchase price, energy consumption, maintenance, and potential downtime, the cheapest screen on paper may not be the most economical over its lifetime. Use these 13 factors to compare “all‑in” costs and choose an LED display that truly maximizes your return on investment.
