500×1000 LED Rental Panels: Cost, ROI & Pro Selection Guide

December 31, 2025

Table of Contents

Core Definition: What Is a 500×1000 LED Rental Screen?

A 500×1000 LED rental cabinet is a modular display unit made from die-cast aluminum, with a standard size of 500 mm (W) × 1000 mm (H).

Compared with traditional 500×500 cabinets, the vertical coverage is doubled, dramatically improving build speed for large-stage backdrops.

Key engineering features include:

Fast-lock mounting systems
CNC-machined high-precision edges
Redundant signal and power backup

These cabinets are purpose-built for concerts, touring productions, and large-scale live events where frequent installation and teardown are unavoidable.

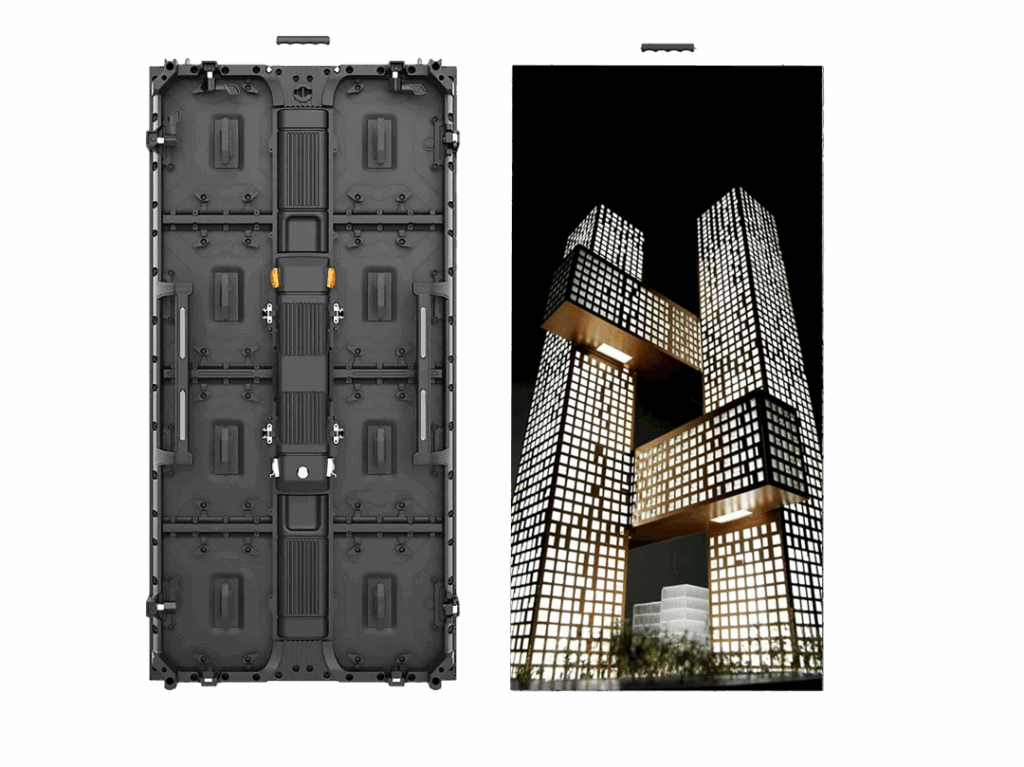

500x1000 LED rental cabinet — 500×1000 LED rental cabinet

The Efficiency Revolution: Why Professionals Are Abandoning 500×500

In supply chain management, I’ve always emphasized one truth:
Time is the largest hidden cost in the live event business.

Installation Speed: Up to 50% Faster

For a 100㎡ LED wall:

500×1000 cabinets: 200 units
500×500 cabinets: 400 units

Fewer cabinets mean:

Fewer hanging bars
Half the signal and power connections
Faster rigging and derigging

Structural Weight Reduction

With fewer side frames and connection points, the total screen weight drops—critical for rigging load limits on touring stages.

Hybrid Flexibility

Experienced engineers often use 500×1000 as the main body, combined with 500×500 cabinets for edge trimming or creative shapes—balancing efficiency with design freedom.

Engineering Breakdown: The “Invisible Parameters” That Define Stability

Many buyers focus only on pixel pitch (P2.97, P3.91).
Engineers know better: the internal BOM quality determines everything.

Cabinet Material: ADC12 Aluminum vs. Recycled Aluminum

High-quality cabinets must use ADC12-grade die-cast aluminum.

Low-end suppliers often mix in recycled aluminum, which causes microscopic deformation during outdoor thermal cycling.
Even 0.1 mm distortion can create visible brightness gaps on fine-pitch screens like P2.6.

Sostron applies CNC precision machining, controlling cabinet tolerance to ±0.05 mm.

Thermal Design & PCB Layer Count

Rental screens running at 3840Hz+ refresh rates generate serious heat.

4-layer vs. 6-layer PCB
Sostron uses 6-layer PCBs with 2oz copper, improving heat dissipation and extending LED MTBF.
Common Cathode Technology
In products like the ARES 2 series, precise power delivery reduces heat by 30% and cuts operating costs by up to 50%.

Table 1: Industry Baseline vs. Sostron “Rental Pro” Standard

Specification	Industry Low Standard	Sostron Rental Pro	Business Impact
Cabinet Tolerance	±0.2 mm	±0.05 mm (CNC)	Seamless panels, no dark lines
PCB Material	Standard FR-4	High-Tg (170°C)	No delamination under heat
Driver IC	Generic constant current	MBI / ICN high-efficiency	Eliminates ghosting at low gray
Protection	IP65 (front)	IP65/IP54 (double-side potting)	Stable even in heavy rain

The Real Bet: ROI Analysis for a 100㎡ Rental Project

As an owner, your focus shouldn’t stop at CAPEX.
OPEX determines whether you actually make money.

Table 2: 3-Year Total Cost of Ownership (TCO) – 100㎡

Cost Item	Low-End Supplier	Sostron 500×1000	Analysis
Initial Purchase	$60,000	$72,000 (+20%)	Premium components
Annual Maintenance	$5,000	< $500	72-hour burn-in testing
On-Site Labor	$45,000	$25,000	Larger cabinets, fast locks
Residual Value (3 yrs)	$6,000	$28,000	Batch consistency resale
Total TCO	$116,000	$125,500 (on paper)	Higher profit via faster turnover

Key Insight:
Higher efficiency means more events per year—this is where real profit is made.

👉 Want a precise ROI calculation for your project?
Request a customized ROI analysis report

Avoiding Costly Mistakes: Supply Chain Traps Explained

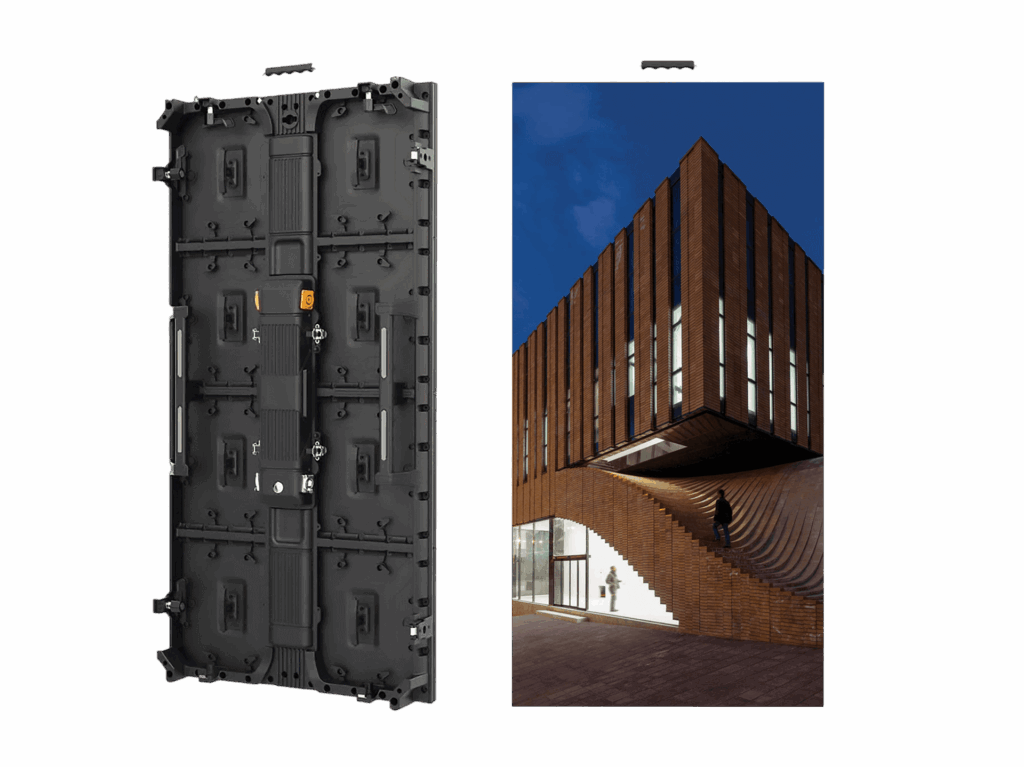

Thermal design of a LED rental display cabinet

Trap A: LED Bin Mixing

To fulfill large orders, some factories mix LEDs from different wavelength bins.
Visually acceptable to the eye—but on camera, color block artifacts appear immediately.

Sostron maintains a strict LED bin-code database, ensuring ultra-tight color tolerance within the same order batch.

Trap B: Inflated Brightness Claims

Advertised at 5000 nits, real output is often 3500 nits or less—fatal under strong sunlight.

My advice:
Carry a lux meter, or demand a calibrated average brightness report from the factory.

Real-World Case: Spanish outdoor stage rental LED electronic screen project

For a major Spanish, the stage backdrop used Sostron sPad pro2 rental panels.

Challenge:

Strong winds
Only 8 hours for installation

Solution:

500×1000 Carbon Pro cabinets
Only 7.5 kg per cabinet

Result:

One-person, one-hand fast-lock operation
120㎡ installed in just 4 hours
7680Hz refresh rate ensured flicker-free live broadcast from every camera angle

FAQ: Four Hard Questions from Procurement Managers

Q1: Are 500×1000 cabinets more prone to damaging modules?
Yes, if poorly designed. Sostron uses patented corner protection and integrated bottom guards to prevent edge contact with the ground.

Q2: Why is your price about 15% higher for similar specs?
Open the cabinet. You’ll find 105°C-rated capacitors, not 85°C.
Also, Sostron’s 15,000㎡ smart manufacturing base delivers true national high-tech quality—not workshop assembly.

Q3: Is maintenance complicated?
No. Full front and rear service. With magnetic tools, a module swap takes about 10 seconds.

Q4: Can you guarantee color consistency for replenishment orders?
Yes. We retrieve your original calibration data and apply color coordinate matching, ensuring no visible difference between old and new panels.

The Sostron Solution: Manufacturing Power Backed by 14 Years of Experience

As Sostron’s Supply Chain Director, I know that every dead pixel is a client’s reputation on the line.

4,000㎡ R&D Center: Continuous optimization of thermal and structural design
15,000㎡ Manufacturing Base: Capacity stability and batch consistency

Recommended Products

Hima Series: High-precision rental, ideal for XR virtual production
sPad pro2: Ultra-lightweight, designed for top-tier touring shows

🎬 Factory Visit Invitation
Want to see ±0.05 mm CNC precision with your own eyes?

👉 Schedule a video factory tour or on-site visit
👉 Request the latest 500×1000 rental screen pricing sheet
