Outdoor LED display spacing selection guide

Catalogue

Outdoor LED display generally uses P several of the best
What is the difference between P5 and P10 LED display?

P generally represents the pixel spacing, and the value behind P mainly refers to the distance between two LED beads, which we usually call the point spacing. And the smaller the value of the point spacing, the higher the unit pixel, the clearer the display screen, the more suitable for close viewing, and the more expensive the price.

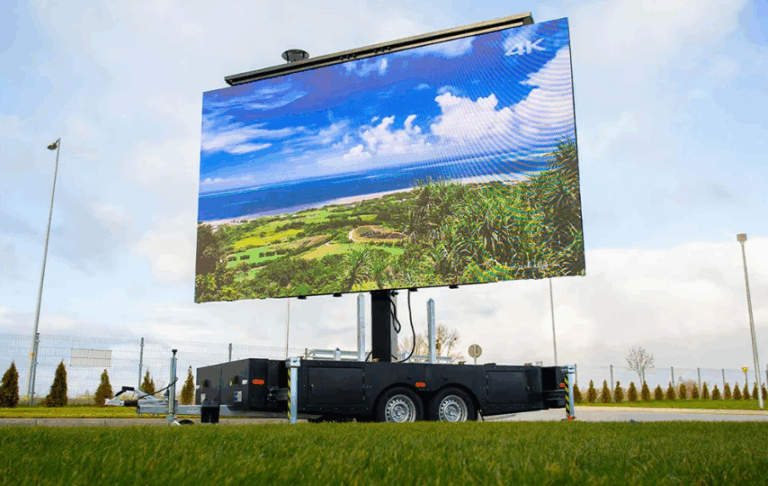

Outdoor LED display

Outdoor LED display generally uses P several of the best

Choosing the appropriate Pixel Pitch for an outdoor LED display usually depends on the viewing distance of the audience and the requirements of the display content. What is outdoor LED screen?

Here are some common outdoor LED display application scenarios and recommended pixel pitch:

Large billboards: For the larger size of the billboard, the audience is usually far away from viewing, it is recommended to choose a larger pixel spacing LED display. Usually P10 to P16 pixel pitch can provide good visual effects, while having a low cost.

Commercial square and shopping center: For the outdoor LED display in commercial square and shopping center, the viewing distance of the audience is generally in the medium to long distance range. It is recommended to choose a pixel pitch of P6 to P10 to balance the display effect and cost.

Building facades and signage: For the facades and signage of large buildings, the audience usually has a longer viewing distance. In this case, you can choose LED displays with large pixel pitch, such as P10 to P16, for better visibility and cost effectiveness.

On the whole

1, the area is 50 to 100 square meters, the viewing distance is 50 meters away, it is recommended to use P10 outdoor high-definition LED display.

2, the area is 20~ 50 square meters, the viewing distance is more than 20 meters, it is recommended to use P8 outdoor LED display.

3, the area is less than 10 square meters, the viewing distance is more than 10 meters, it is recommended to use P6LED display.

4, the area is less than 5 square meters, the viewing distance is more than 5 meters, it is recommended to use P4 outdoor high-definition LED display.

In addition, with the advancement of technology, the pixel density of LED displays is getting higher and higher, while the cost has also decreased. Therefore, in the selection of outdoor LED display, it is best to consult with us, according to the specific application scenarios and needs, comprehensive consideration of viewing distance, display content and budget and other factors, choose the most appropriate pixel spacing.

P5 Outdoor LED display

What is the difference between P5 and P10 LED display?

P5 and P10 refer to the Pixel Pitch of the LED display, which represents the physical distance between adjacent LED pixels on the LED module. P5 represents a pixel pitch of 5 mm and P10 represents a pixel pitch of 10 mm.

Here are the main differences between P5 and P10 LED displays:

Pixel density: P5 has a smaller pixel pitch and therefore a higher pixel density. On the same size screen, the P5 LED display has more pixels than the P10 LED display, so it can provide higher resolution and more delicate image display effect.

P10 Outdoor LED display

Clarity and detail: Due to the smaller pixel pitch, the P5 LED display is able to provide more pixels in a limited space, so the image is clearer and more delicate. Text, graphics and video content are sharper and clearer on the P5 display.

Viewing distance: Due to differences in pixel density and sharpness, P5 and P10 LED displays are suitable for different viewing distances. The P5 display is suitable for closer viewing, such as indoor applications or scenes requiring close contact. The P10 display is suitable for viewing from a distance, such as outdoor billboards or large displays.

Price and cost: The pixel pitch of the P5 LED display is smaller, requiring higher pixel density and more LED modules to compose the screen. Therefore, P5 displays are generally more expensive than P10 displays. The cost of purchasing and maintaining a P5 display can be even higher.

The P5 or P10 LED display needs to be selected according to the specific application needs and budget. If you need to view at a closer distance or need higher image clarity and detail, the P5 display may be more suitable. If the viewing distance is longer or the budget is limited, the P10 display may be a more affordable option.
