LED Display Specifications: 9 Specs to Check Before Buying

Quick Answer: What Are the Key LED Display Specifications?

LED display specifications typically include pixel pitch, resolution, brightness, refresh rate, grayscale performance, viewing angle, IP protection rating, power consumption, module and cabinet dimensions, weight, control-system compatibility, and maintenance access.

The right specification depends on the application, viewing distance, ambient light, installation environment, content, and operating requirements. There is no single set of specifications that fits every LED screen.

For procurement, distinguish between general selection guidance and the manufacturer’s rated specifications for the exact model. Confirm critical values—including brightness, refresh rate, power consumption, IP rating, module size, cabinet dimensions, and cabinet depth—in the current technical datasheet before comparing quotations.

These are the principal specification categories buyers should review. Exact values must be verified against the datasheet for the selected product model and configuration.

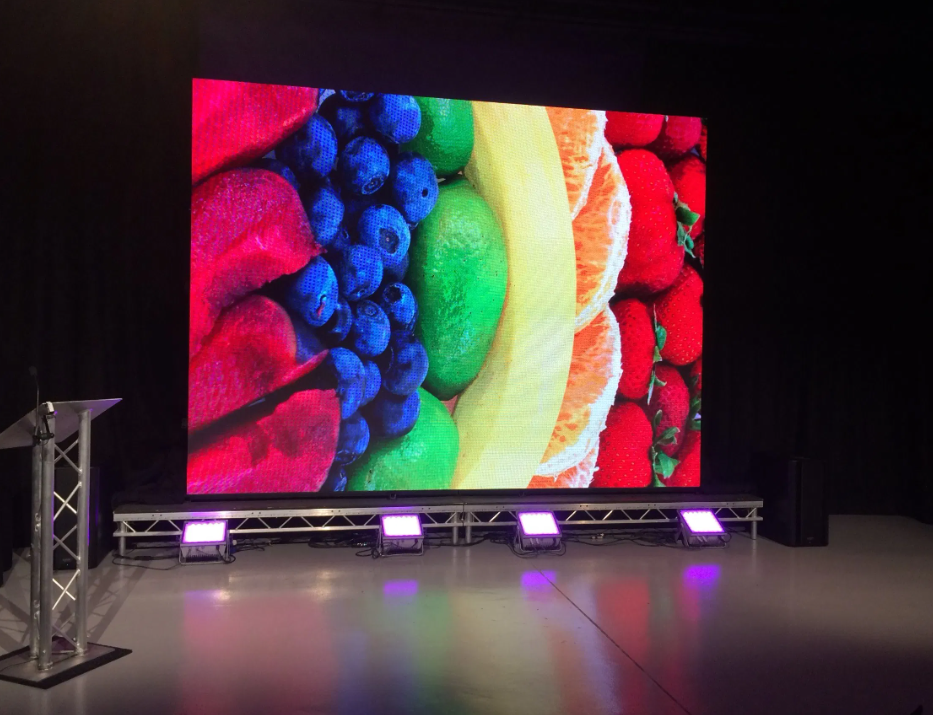

What Are LED Display Specifications?

LED display specifications are the technical values and operating conditions that define how an LED display performs, how it is constructed, and what is required to install and maintain it.

For commercial projects, specifications can be divided into five groups:

• Optical specifications: Pixel pitch, resolution, brightness, viewing angle, grayscale, and contrast ratio.

• Signal and processing specifications: Refresh rate, input signal compatibility, scan mode, and video processing.

• Mechanical specifications: Module size, cabinet dimensions, depth, weight, mounting method, and maintenance access.

• Electrical specifications: Voltage, maximum power consumption, average power consumption, and power distribution requirements.

• Environmental specifications: IP rating, operating temperature, humidity limits, and other environmental restrictions.

A complete specification sheet should identify the product model, applicable configuration, measurement conditions, and relevant limitations. A parameter without a defined test condition may be difficult to compare fairly with another supplier’s claim.

Why do specifications differ between LED display types?

Different applications place different demands on an LED screen.

These are selection priorities, not universal product specifications. Actual requirements depend on the project environment, content, viewing distance, and installation design.

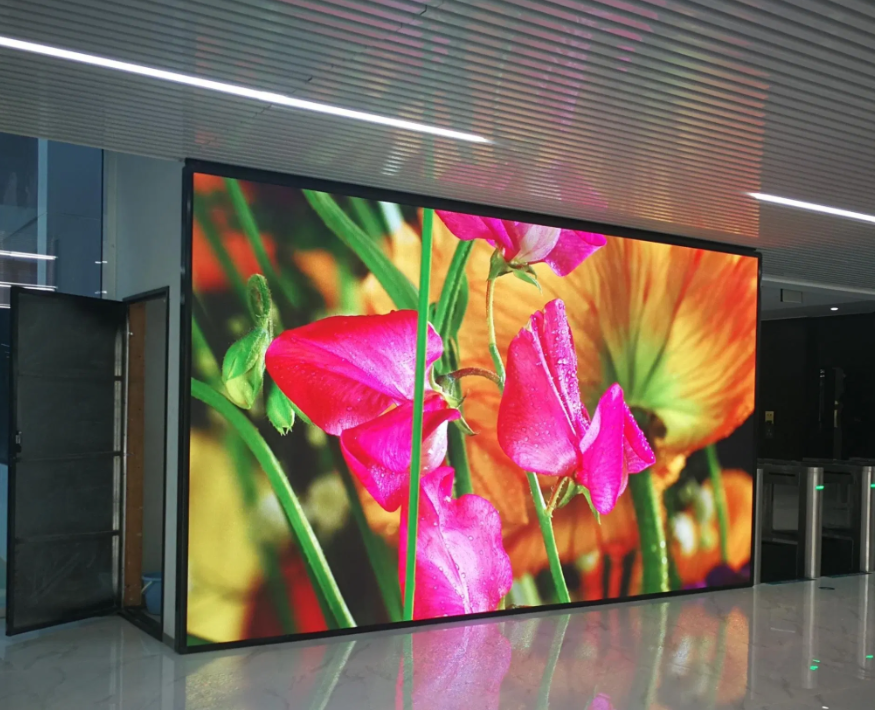

What Are the 9 Key LED Display Specifications?

1. Pixel Pitch: How Does It Affect Image Detail?

Pixel pitch is the distance between the centers of adjacent pixels, normally expressed in millimeters. It is one of the most important specifications because it affects pixel density and the level of detail a display can reproduce at a given physical size.

A smaller pixel pitch generally provides more pixels within the same screen area, making it useful for close viewing. However, a smaller pitch is not automatically the best choice for every project. Buyers should also consider the viewing distance, content, physical screen dimensions, and total project budget.

For example, a screen intended for a close-viewing meeting room has different requirements from a large roadside billboard viewed from a moving vehicle.

When comparing pixel pitch, verify:

• The actual pixel pitch of the quoted model.

• The intended viewing distance and content type.

• Whether the proposed screen resolution meets the project requirement.

• Whether the quoted configuration matches the product datasheet.

2. Resolution: How Many Pixels Does an LED Display Have?

Resolution describes the number of pixels across the width and height of the display. It is normally written as horizontal pixels × vertical pixels.

Two LED screens with identical physical dimensions can have different resolutions if their pixel pitches differ. Conversely, two screens with different physical dimensions may share the same resolution.

Resolution should therefore be evaluated alongside pixel pitch and physical screen size, not in isolation.

For buyers, the important questions are:

• Does the resolution support the intended content?

• Can the video processor accept and scale the required input signal?

• Will the displayed content be designed for the screen’s actual pixel dimensions?

• Does the final screen layout produce the required aspect ratio?

A high-resolution display cannot compensate for poorly prepared content or an unsuitable viewing distance.

3. Brightness: How Bright Should an LED Display Be?

Brightness is commonly expressed in nits, equivalent to candelas per square meter (cd/m²).

The appropriate brightness depends on ambient light, viewing direction, reflections, installation location, and the content being displayed. Outdoor screens exposed to direct sunlight generally need greater brightness than indoor screens operating under controlled lighting.

There is no single brightness value that is correct for every indoor or outdoor installation. Buyers should evaluate the manufacturer’s specified brightness alongside the intended operating conditions and any brightness-control settings.

When comparing products, check:

• The stated maximum brightness and the conditions under which it is achieved.

• Whether brightness is specified for the actual quoted configuration.

• Whether automatic or manual brightness adjustment is available.

• Whether the screen will remain legible under the expected ambient light.

• Whether the selected operating brightness affects power consumption.

Excessive brightness is not necessarily beneficial. It can increase power demand and create unnecessary glare when the display is used in a darker environment.

For a real product reference, see Sostron’s Ares 3 outdoor LED display. Its published specifications include brightness values up to 10,000 nits for the listed configuration. This is a manufacturer-stated product capability, not a universal requirement for outdoor LED screens.

4. Refresh Rate: Is a Higher Value Always Better?

Refresh rate, measured in hertz (Hz), describes how frequently the display refreshes its image. It is relevant to visual performance and can be particularly important for camera-facing installations.

However, refresh rate and video frame rate are different parameters. A video source may deliver content at one frame rate while the LED display operates at a different refresh rate.

A higher stated refresh rate alone does not guarantee flicker-free camera footage. Camera shutter settings, scan behavior, grayscale processing, receiving electronics, and the complete signal chain can all affect the result.

For rental, broadcast, and XR applications, buyers should:

• Confirm the refresh-rate specification for the exact model.

• Identify the camera and recording requirements.

• Test the intended display configuration with representative cameras.

• Verify the required frame rates and input formats.

• Request suitable test footage where camera performance is a contractual requirement.

A manufacturer’s refresh-rate claim should be treated as one part of the assessment rather than a substitute for testing.

5. Grayscale and Contrast Ratio: What Do They Tell You?

Grayscale describes the tonal gradation available between darker and brighter image levels. The stated bit depth is one specification used to describe this capability, but it does not fully determine the visible result.

Actual performance also depends on driving electronics, processing, calibration, brightness settings, and the content being displayed.

Contrast ratio describes the difference between the measured brightness of the brightest and darkest image states under specified conditions. Comparisons can be misleading if different measurement methods or conditions are used.

When evaluating these parameters, buyers should consider:

• Dark scenes and shadow detail.

• Smooth color and brightness transitions.

• Color uniformity across the screen.

• Performance at the intended operating brightness.

• Calibration requirements and available processing features.

For fine-pitch screens, a practical evaluation using representative content may be more informative than comparing headline numbers alone.

6. IP Rating: What Protection Does an Outdoor LED Display Need?

The IP code classifies the protection provided by an enclosure against access to hazardous parts, solid foreign objects, and water, according to the applicable classification system.

IEC 60529 is the international standard titled Degrees of protection provided by enclosures (IP Code). The standard defines the classification framework; the product manufacturer’s declaration and supporting documentation must establish the rating applicable to a particular LED display.

For an outdoor installation, buyers should verify:

• The declared IP rating for the front and rear of the display, where applicable.

• The rating of relevant enclosures and electrical components.

• Cable entries, connectors, seams, and other potential water-ingress points.

• Environmental limitations and installation instructions.

• Whether the rating is supported by relevant test documentation.

Do not assume that a higher IP number automatically means the complete installed system is suitable for every outdoor environment. Corrosion, condensation, temperature extremes, drainage, and installation quality may require separate consideration.

An IP rating classifies the protection provided by an enclosure against access to hazardous parts and the ingress of solid objects and water under specified test conditions. IEC 60529 defines the IP Code classification system; it does not, by itself, establish that an LED display is suitable for every outdoor environment.

When evaluating an outdoor LED display, verify the stated rating for the relevant assembly and orientation, and check whether the specification applies to the front, rear, module, or complete cabinet. Also assess other project requirements, such as temperature range, corrosion exposure, structural loading, drainage, and maintenance access.

7. Power Consumption: What Is the Difference Between Average and Maximum Power?

Power consumption is an important specification because it affects electrical design and ongoing operating costs.

Manufacturers may state both average and maximum power consumption. These figures serve different purposes and should not be used interchangeably.

• Average power consumption: A manufacturer’s stated or measured average under defined operating conditions. Actual demand depends on brightness, content, settings, and operating patterns.

• Maximum power consumption: A specified maximum or design-related value under the conditions defined by the manufacturer. Its exact meaning must be checked in the datasheet.

Before purchasing, ask the supplier to clarify the test conditions, power values per cabinet or unit area, input voltage, and electrical requirements.

The distinction matters for more than energy bills. Electrical capacity, distribution equipment, cabling, protection devices, and site infrastructure must be planned for the intended configuration.

For a project cost assessment, consider the screen’s expected operating schedule and actual electricity tariff. Avoid using maximum power as though it were the screen’s constant day-to-day consumption.

Maximum Power vs. Average Power

Maximum power and average power describe different operating conditions and should not be compared as though they were interchangeable. Maximum power is relevant to electrical infrastructure and capacity planning, while average power depends on factors such as displayed content, brightness settings, operating schedule, and the manufacturer’s stated measurement conditions.

When comparing suppliers, request both figures for the exact configuration and ask how average power was determined. Do not estimate ongoing electricity costs from a maximum-power rating alone.

8. Module Size, Cabinet Dimensions and Thickness

LED display dimensions are frequently misunderstood because module size, cabinet size, cabinet depth, and installed depth refer to different physical measurements.

There is no single standard dimension or thickness that applies to every LED module or display cabinet. Dimensions vary with product architecture, pixel pitch, installation method, and intended application.

For example, Sostron’s published Ares outdoor product information lists a 500 × 250 mm module format and multiple cabinet sizes, including 1000 × 1000 mm, 1000 × 750 mm, and 1000 × 500 mm configurations. These are product-specific dimensions rather than universal industry standards.

The Sostron Slim indoor LED display provides a different example: its published product information lists an approximately 28 mm cabinet thickness and front-serviceable construction. These specifications apply to the stated Slim product configuration, not to indoor LED displays in general.

Are LED Module Dimensions and Cabinet Dimensions the Same?

No. An LED module is the smaller assembly that carries the LEDs and associated circuitry, while a cabinet is the larger structural unit that holds modules and other components. Cabinet depth is a separate measurement and should not be confused with module thickness.

Module dimensions, cabinet dimensions, and cabinet depth vary by product design. Buyers should request the dimensional drawing for the exact model and confirm whether the stated depth includes mounting hardware, rear covers, connectors, or other projecting components. Do not assume that one module size or cabinet depth is a universal industry standard.

What should buyers check before confirming dimensions?

• Confirm whether the quoted measurement refers to the module, cabinet, or complete installation.

• Verify width, height, depth, and weight against the actual product datasheet.

• Confirm the final screen layout and pixel resolution.

• Include mounting brackets, steelwork, cabling, and service clearances in installation planning.

• Check whether front or rear maintenance is required.

• Confirm that replacement modules and cabinets are compatible with the selected configuration.

A cabinet described as ultra-thin does not necessarily mean the complete installation will project by the same amount from the wall.

9. Cabinet Weight, Maintenance and Serviceability

Cabinet weight affects transportation, lifting, installation labor, and structural loading. It should be considered alongside dimensions and mounting arrangements.

Maintenance access is equally important. Front-serviceable designs can be useful when rear access is restricted, while rear-serviceable designs may suit installations where sufficient access space is available.

For a B2B project, check:

• Cabinet weight and the basis of the stated figure.

• Structural and mounting requirements.

• Front or rear maintenance access.

• The replacement process for modules, power supplies, and receiving electronics.

• Spare-parts availability and support arrangements.

• Site access for maintenance equipment and technicians.

The best design is not necessarily the lightest or thinnest cabinet. It is the configuration that meets the project’s structural, visual, operational, and maintenance requirements.

What Are the Typical Specifications for Different LED Screens?

Typical specifications should be understood as application-dependent requirements, not fixed industry-wide values. The following table summarizes what buyers should prioritize before selecting specific values.

The final values should be selected after defining the installation location, viewing distance, content, operating schedule, and technical requirements.

How Should Buyers Compare LED Display Specifications?

A datasheet is useful only when the quoted product, actual configuration, and project requirements are consistent. Two suppliers may list similar headline specifications while offering different cabinet structures, power supplies, maintenance arrangements, or supporting equipment.

Check the exact product model and configuration

Ask suppliers to identify the model and configuration covered by the quotation. Confirm the pixel pitch, cabinet dimensions, LED package, brightness, power supply, control system, and other specifications relevant to the project.

If the supplier proposes a substitute component or different cabinet configuration, request the revised datasheet and confirm whether it changes performance, compatibility, warranty, or delivery terms.

Verify test conditions and supporting documents

For important performance claims, request the applicable datasheet, test report, or declaration. Verify that the documentation corresponds to the actual product model and configuration.

Pay particular attention to:

• Brightness values and their stated conditions.

• Refresh-rate and camera-performance claims.

• Average and maximum power specifications.

• IP ratings and applicable test evidence.

• Certification documents and their scope.

• Warranty coverage and exclusions.

A certificate or test report should not be assumed to cover every model in a product family unless the documentation establishes that scope.

Match the datasheet to the quotation and acceptance criteria

The quotation, technical specification, purchase agreement, and acceptance requirements should describe a consistent product.

Before placing an order, establish which values are contractual, how they will be verified, and what documentation will be supplied. If an important performance requirement cannot be objectively checked, clarify the acceptance method before procurement.

Which LED Display Specifications Affect Total Cost of Ownership?

The purchase price is only one part of the cost of an LED display project. Installation conditions, power requirements, maintenance access, spare parts, and operating schedules can affect the total cost over the system’s service life.

How do specifications affect long-term costs?

A lighter cabinet may reduce handling requirements, but the actual structural and installation benefits depend on the project design. Front maintenance may reduce the need for rear access, but the suitability of the approach depends on the installation and repair procedures.

Power-efficient designs may reduce electricity use under comparable operating conditions. However, buyers should compare products under equivalent brightness, content, and measurement conditions rather than relying solely on a manufacturer’s percentage-saving claim.

When estimating total cost of ownership, label assumptions clearly and use project-specific quotations, actual electricity tariffs, and realistic maintenance expectations. Without these inputs, precise lifetime savings or return-on-investment figures cannot be substantiated.

LED Display Specification Checklist for Buyers

Use this checklist when preparing a request for quotation (RFQ) or reviewing a supplier’s technical proposal.

• Define the application, installation location, and viewing distance.
• Specify the required physical screen dimensions and resolution.
• Confirm pixel pitch and brightness requirements.
• Define refresh-rate, signal-input, and camera requirements where relevant.
• Confirm module size, cabinet dimensions, depth, and weight.
• Verify IP rating and environmental operating conditions.
• Request average and maximum power specifications with clear definitions.
• Confirm voltage, power distribution, and electrical requirements.
• Specify front or rear maintenance access and service clearances.
• Request relevant datasheets, test reports, and certification documents.
• Confirm warranty terms, spare parts, technical support, and delivery scope.
• Match the final specification to the quotation and acceptance requirements.

Completing these checks before ordering makes supplier quotations easier to compare and helps identify technical or commercial gaps before they become installation problems.

Frequently Asked Questions

What are the typical specifications for LED screens?

Typical LED screen specifications include pixel pitch, resolution, brightness, viewing angle, refresh rate, grayscale, contrast ratio, IP rating, power consumption, cabinet dimensions, and weight. The appropriate values depend on the application. Indoor fine-pitch displays, outdoor billboards, rental screens, and XR displays have different requirements. Buyers should use the datasheet for the exact model rather than treating a generic specification range as a universal standard.

What are the technical specifications of an LED wall?

An LED wall’s technical specifications generally cover optical performance, signal processing, mechanical structure, electrical requirements, and environmental protection. Important details include pixel pitch, resolution, brightness, refresh rate, cabinet size and weight, power consumption, IP rating, and maintenance access. Large installations may also require structural engineering, electrical planning, and site-specific installation documentation.

What is the typical thickness of an LED display panel?

There is no universal thickness for an LED display panel. Cabinet depth varies by product design, pixel pitch, mounting method, and intended application. For example, Sostron publishes an approximately 28 mm cabinet thickness for its Slim indoor LED display. Buyers should verify the exact model’s cabinet depth and distinguish it from the total installed depth, which can include mounting components, cabling, and required service clearance.

What are the standard dimensions of LED modules?

LED module dimensions vary across manufacturers and product families; there is no single module size that applies to all LED displays. Sostron’s published Ares outdoor product information lists 500 × 250 mm modules, while other product designs use different dimensions. Buyers should verify module width, height, pixel resolution, cabinet compatibility, and replacement availability before finalizing a screen layout.

What is the difference between refresh rate and frame rate?

Refresh rate describes how frequently the display refreshes its image, while frame rate describes how many video frames are delivered or displayed per second. They are related but not interchangeable. Camera-facing applications also depend on shutter settings, scan behavior, grayscale processing, and the signal chain. A high refresh-rate specification alone does not guarantee flicker-free footage, so testing with the intended camera setup is recommended.

Does a higher IP rating always mean an outdoor LED screen is better?

Not necessarily. An IP rating classifies enclosure protection against specified forms of ingress, but it does not independently establish suitability for every outdoor environment. Temperature, humidity, corrosion, condensation, drainage, cable entries, and installation quality can also affect reliability. Buyers should verify the rating applicable to the exact product and review its installation requirements.

Which LED display specifications affect the purchase price most?

Pixel pitch, brightness, cabinet design, materials, control equipment, power requirements, and maintenance arrangements can all influence hardware and project costs. Shipping, structural work, installation, electrical upgrades, and spare parts add further costs. A meaningful comparison requires suppliers to quote equivalent configurations and clearly identify included and excluded items.

Expert Verdict: Specify the Application Before the Screen

The most effective way to choose an LED display is to define the project requirements first, then use the specifications to evaluate suitable products. Pixel pitch and resolution determine image detail; brightness and viewing angle relate to viewing conditions; refresh behavior matters for camera-facing applications; and cabinet dimensions, weight, power demand, and maintenance access affect installation and long-term operation.

For B2B buyers, the most important step is to verify that the datasheet, quotation, supplied configuration, and acceptance criteria are consistent. Generic industry ranges can help establish initial requirements, but final purchasing decisions should rely on model-specific technical documentation and project conditions.

Sostron is an LED display manufacturer offering product development, manufacturing, customized display solutions, engineering support, installation guidance, and after-sales technical support. Its product portfolio covers multiple indoor and outdoor display applications, while its published installation cases provide examples of real projects in different environments. Buyers can use the relevant product documentation and project information to assess whether a proposed configuration fits their technical and operational requirements.

References:

NASA — Human Integration Design Handbook

IEC 60529 — Degrees of Protection Provided by Enclosures (IP Code)

About SoStron

Marketing Strategic Director at Sostron

SoStron Display is a premier LED display manufacturer dedicated to turning vision into reality. The company specializes in manufacturing state-of-the-art LED products and developing smart display solutions. Powered by their proprietary Domedea intelligent control system, SoStron delivers seamless, wireless (Wi-Fi) remote management that transforms standard hardware into high-value, intelligent display networks—no matter the distance.

Connect on LinkedIn
