I return to my hotel after quoting five different video wall projects in four days. Three of the clients used the same word: “seamless.” Two showed me photos of competitor lobbies and asked, “Why does their wall look like one continuous surface, and the LCD grid we‘re considering has black lines cutting through?” The other asked a different question: “A $15,000 dvLED wall or an $6,000 LCD wall. Is the premium worth it?”
Let me give you the blunt answer upfront, based on a decade of installing both technologies: Yes, the premium is worth it—if and only if your application actually requires what dvLED delivers. If your wall sits in a windowless conference room and viewers never stand closer than 15 feet, LCD is perfectly fine. But if your wall faces floor-to-ceiling windows, or if your brand demands seamlessness, or if you need 24/7 uptime for 8+ years, dvLED is the only technology that meets the requirement. The gap between these technologies is not marketing hype—it‘s structural engineering.
Before any of my clients sign a purchase order, I walk them through this framework: The Ten Differences That Actually Matter in 2026. What follows is not a spec-sheet repetition. It is what I have learned from hundreds of installations, failed panel swaps, calibration nightmares, and the glorious moment when a dvLED wall first powers on and the client whispers, “Oh, that’s why it costs more.”
Quick Summary: LCD Video Wall vs. dvLED Wall at a Glance (2026)
| Feature | LCD Video Wall (Traditional) | Direct-View LED Wall (dvLED) |
|---|---|---|
| Technology | Liquid crystal display with LED backlight illumination | Self-emissive semiconductor pixels—each pixel generates its own light |
| Brightness Range | 350–700 nits indoor; specialized high-brightness 1,000–1,500 nits | Indoor 800–1,500 nits; outdoor 2,000–10,000+ nits |
| Seamlessness | Visible bezel gaps (0.44–1.8mm). Grid lines cut through content | Truly seamless. Cabinets lock with micrometer precision, no visible gaps |
| Maximum Size | Limited to tiled panel configurations (standard 16:9 aspect ratios) | Virtually unlimited. Any aspect ratio, any dimension |
| Shape Flexibility | Flat rectangular layouts only | Curved, concave, convex, L-shaped, column-wrapped, freeform. dvLED is the only flexible option |
| Installation Depth | 80–150mm+ (heavy chassis; requires structural reinforcement) | 40–80mm (slim, lightweight, fits flush to walls) |
| Lifespan (24/7) | 30,000–50,000 hours (3–5 years continuous operation) | 80,000–100,000 hours (8–10+ years continuous operation) |
| Maintenance Model | Entire panel replacement. Color mismatch nearly guaranteed | Individual module front-swap (under 5 minutes). Recalibration restores uniformity |
| Content Flexibility | Standard 16:9, flat only | Any aspect ratio, curved, custom geometries, and creative freeform installations |
| 2026 Price (per m²) | $400–$1,000+ (panel array hardware only) | $1,500–$12,000+ (varies by pixel pitch, indoor/outdoor, packaging tier) |
Source: Indoor LCD commercial typically operates at 350–700 nits. dvLED brightness ranges 800–1,500 nits standard indoor, with outdoor durable variants exceeding 5,000 nits. Lifespan data derived from component specifications across major manufacturers.
The Terminology Clarification No One Else Gives You
“Video wall” is a broad category. In professional AV, it refers to any multi-screen display system that presents content as a unified canvas. That includes:
-
LCD panels tiled in a grid (the most common commercial interpretation)
-
Direct-view LED cabinets assembled into a seamless surface
-
Projector arrays edge-blended for large formats
“LED wall” in professional terminology refers specifically to direct-view LED (dvLED) —a technology where thousands to millions of individual light-emitting diodes are mounted onto modular panels, each diode emitting its own light with no separate backlight. dvLED has been around for decades, but only recently has fine-pitch technology matured enough to challenge LCD in indoor applications.
The confusion arises because most consumer “LED TVs” are actually LCD panels with LED backlighting, not true self-emissive displays. That marketing misnomer has created a decade of buyer confusion. I have a rule of thumb that saves clients from budget blowouts: Whenever a supplier says “LED display,” ask for the pixel pitch specification. If they cannot tell you—or if they quote a standard commercial panel size like 55″—you are almost certainly looking at an LCD with LED backlighting, not a true dvLED wall.
In 2026, this distinction matters more than ever. The professional displays market reached $49 billion, with LED driving much of the expansion. Direct-view LED value grew nearly 160% globally between 2021 and 2026, storming through retail, corporate, higher education, transport, broadcast, and live staging. At the same time, small-pitch LED market averages have dropped 21.3% year over year to below ¥10,000/㎡, making dvLED increasingly accessible. Yet LCD still accounts for more than 50% of global display value—a testament to its enduring role as the cost workhorse for basic applications.
What follows are the ten differences that actually determine which technology belongs in your space.
1. Display Technology: Self-Emissive vs. Backlit
The most fundamental difference is in how the image is made. This is not a theoretical distinction—it determines everything else: brightness capability, contrast ratio, black levels, viewing angles, and the physical limits of each technology.
LCD (Liquid Crystal Display): A backlight (typically LED-based in modern commercial panels) shines through layers of liquid crystals and color filters. The liquid crystals twist to block or allow light through, creating the image. Because the backlight is one unified source, LCDs inevitably suffer from light bleed in dark areas. Pure black is impossible—instead, you get dark gray illuminated by the backlight. Performance degrades at wide viewing angles when color shifts off-axis.
Direct-View LED (dvLED): Each individual pixel is its own light source. There is no backlight, no liquid crystal layer, and no light bleed. Black means the LED is physically turned off—genuine, pure black. This self-emissive architecture delivers superior contrast ratios, wider viewing angles (typically 160°+), and dramatically higher brightness capability.
In 2026, this technological gap remains as wide as ever. While LCD manufacturers have improved contrast through local dimming and Mini-LED backlight arrays, they still cannot match the per-pixel control of dvLED. The shift from LCD to LED is fundamentally a shift from tiled “screens” to an integrated emissive surface.
2. Brightness and Environmental Adaptability
This is the most practical difference I communicate to clients. If the installation environment receives direct sunlight or has large windows, an LCD video wall will look washed out. The content becomes difficult to read. Colors appear faded. Glare on the glass surface further degrades visibility.
Why LCD struggles in bright environments: Even high-brightness commercial LCD panels typically max out at 500–700 nits. When ambient light exceeds 1,000 lux (a typical sunlit lobby, airport terminal, or retail window situation), LCD images visibly degrade—reduced contrast, washed-out blacks, noticeable glare. The screen essentially “fights” the ambient light and loses.
Indoor dvLED panels routinely produce 800–1,500 nits—ample for most indoor settings with controlled lighting. But where dvLED pulls away is in demanding environments. Outdoor and semi-outdoor dvLED panels can reach 2,000–10,000+ nits, allowing the image to dominate ambient light rather than be washed out by it. dvLED‘s brightness can be designed to remain clear and readable even in large atriums, glass curtain wall environments, and semi-outdoor spaces—a key reason for its rapid adoption in commercial and public spaces.
The 2026 bright-space reality check: If your lobby has floor-to-ceiling glass facing morning sun, an indoor LCD at 500 nits will be practically illegible at peak hours. A dvLED wall at 2,000 nits will remain vibrant and readable. I have personally had clients who initially insisted on LCD for cost reasons, then replaced it within six months—because their storefront signage was invisible in daylight. For most corporate lobbies, the goal is stable readability in ambient light, not maximum nits. However, higher brightness can help, but it raises power, heat, and sometimes noise from cooling.
| Environment | LCD Viability | dvLED Viability |
|---|---|---|
| Office/classroom (controlled lighting) | ✓ Excellent | ✓ Overkill |
| Retail storefront (some natural light) | Limited (washes out) | ✓ Excellent |
| Corporate lobby with windows | Poor unless windows are shaded | ✓ Excellent |

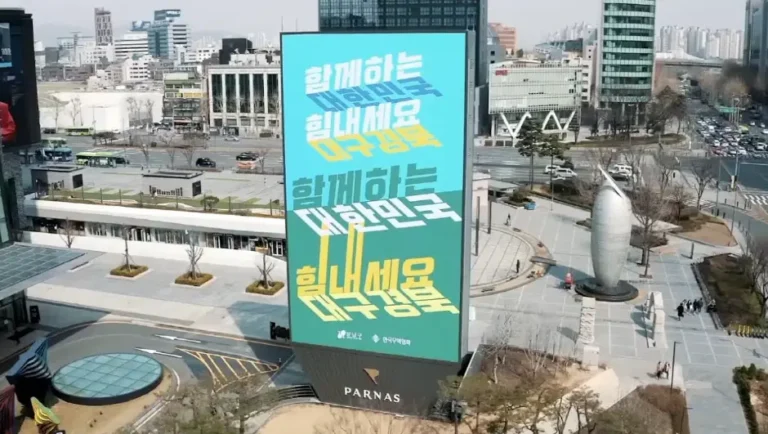

| Outdoor billboard/building facade | ✗ Not viable | ✓ Only viable option |
| Stadium/arena displays | ✗ Not viable (brightness insufficient) | ✓ Standard |
| Broadcast studio (high ambient light) | Limited | ✓ Industry standard |
3. Seamlessness: The Bezel Problem No LCD Can Escape
Here is what I tell every client considering an LCD video wall: Those bezels never disappear.
Modern “ultra-narrow bezel” LCD video walls have reduced seam widths to 0.44mm to 1.8mm—remarkable engineering by any standard. The gap is visible. When displaying a single image across a 2×2 or 3×3 grid, the viewer sees permanent black crosshair lines cutting through logos, text, faces, and data visualizations. The content is physically interrupted. For data-heavy applications like command centers, the bezels can obscure critical UI elements.
Even well-installed LCD arrays can drift as panels age and backlights wear differently. Large gradients, subtle motion backgrounds, slow typography, and premium photography—exactly the content types used in corporate brand environments—reveal tile-to-tile variation, aging differences, and uniformity issues.
dvLED achieves true seamlessness not through bezel reduction, but through fundamentally different assembly. Each LED cabinet is engineered with micrometer-precision tolerances so the seams occur between individual pixels, not between panel frames. The viewer experiences one continuous, uninterrupted digital canvas of any size or shape. Seamless lock-together with micrometer precision produces a clean, immersive result that feels architectural rather than technical.
In 2026, this seamless capability has become the primary driver for dvLED adoption in premium corporate lobbies, broadcast studios, and Virtual Production (VP/XR) environments—places where a grid of bezels would break immersion and compromise brand presentation. If “seamless” is a requirement—especially for immersive content, on-camera environments, or maps and dashboards that cross panel borders—dvLED is the only option.
4. Construction and Installation Profile
The physical installation difference between an LCD video wall and a dvLED wall is night and day.
An LCD video wall is essentially multiple commercial monitors mounted side-by-side in a grid. Each panel has its own chassis, cooling design, and power supply. Total installation depth typically ranges 80–150mm or more depending on mounting system. When stacked 2×2, 3×3, or 4×4, these heavy panels require significant structural wall reinforcement and specialized mounting infrastructure. Cumulative weight adds up quickly—each 55-inch commercial panel can weigh 25–35kg, meaning a 3×3 wall exceeds 225kg plus mounting hardware.
A dvLED wall is constructed from lightweight aluminum-magnesium alloy cabinets that are significantly thinner and lighter per square meter. Typical module depths range 40–80mm. Because weight is distributed across the entire mounting structure, dvLED walls can be installed flush to walls, on curved surfaces, or suspended from ceilings with far less structural modification than an equivalent LCD video wall. Most dvLED systems feature an ultra-slim chassis with minimal framing, fitting better with modern architecture.
2026’s architectural trend is clear: dvLED is no longer just a display category—it‘s a systems business moving toward simplified installation and enterprise integration. Manufacturers emphasize easier alignment, integrated processing and monitoring, and LED products designed to directly replace LCD and projection in everyday spaces.
5. Flexibility: Shapes, Curves, and Creative Freedom
If your design requires a curved display, an L-shaped corner wrap, a cylindrical column display, or irregular creative geometry, dvLED is the only practical option. LCD panels are rigid flat glass sandwiches that cannot bend or conform to architectural elements.
dvLED cabinets can be manufactured with curved corner radii, concave/convex designs, and flexible or rigid-flex modules wrapping around columns or creating immersive 360° environments. Leading manufacturers now offer standard curved cabinets in a range of radii, plus custom freeform shapes for flagship retail installations.
In 2026, this creative flexibility has driven dvLED expansion into themed entertainment (museum exhibits and immersive brand experience spaces), XR/virtual production stages (where curved LED volumes replace green screens for real-time in-camera VFX), and architectural installations where displays wrap around building corners or integrate into custom millwork. LCD video walls, by contrast, remain limited to flat rectangular grids.
6. Color Uniformity and Calibration
Color matching across multiple panels remains a persistent challenge for large LCD video walls. Even panels from the same production batch can exhibit slight variations in backlight color temperature, panel-to-panel brightness, and gamma response. This becomes visibly distracting as the wall ages: LCD backlights degrade at different rates, and replacing a failed panel years later rarely yields a perfect color match. The result is a video wall that looks patchy—some zones brighter or more yellowish than others. The integrator aligns geometry, sets color, and hopes the system stays matched.
dvLED systems solve this through two key features: front-serviceable modular design and per-panel calibration. Individual LED modules (typically 12×12 to 24×12 inches) can be removed and replaced from the front—no wall dismantling required. More importantly, dvLED systems support calibration and color uniformity correction across the entire wall as a unified canvas—a common control pipeline that can be calibrated and recalibrated over time. When a module is replaced, calibration data ensures uniform color and brightness matching. This is a non-negotiable advantage for broadcast applications, where even slight color mismatches show up on camera.
7. Lifespan and Total Cost of Ownership
If you are running displays 24/7—in a control room, outdoor billboard, transit information system, or mission-critical facility—lifespan is the hidden variable that determines true long-term value.
| Metric | LCD Video Wall | dvLED Wall |
|---|---|---|
| Typical lifespan (24/7 operation) | 30,000–50,000 hours (3–5 years) | 80,000–100,000 hours (8–10+ years) |
| Failure mode | Backlight degradation, panel drift, uneven wear | Gradual brightness decline (module replacement available) |
| Replacement strategy | Entire panel replacement; color mismatch likely | Individual module swap; recalibration restores uniformity |
| Warranty standard (commercial) | 3–5 years | 5–10 years (major manufacturers) |
The financial reality: An LCD video wall may cost less upfront, but it will likely need full replacement within five years of continuous use. A dvLED wall costs more initially but can run for a decade with only occasional module replacements. For mission-critical 24/7 applications—airport flight information displays, emergency operations centers, outdoor advertising networks—dvLED‘s longer lifespan makes it the more cost-effective choice over time.
The 2026 market data reinforces this: small-pitch LED prices dropped 21.3% year over year in early 2026. Yet paradoxically, raw material costs (gold up over 70%, silver up as much as 170%, copper up over 30%) have triggered 5%–25% price increases across the LED supply chain in early 2026–. If you are planning an LED project this year, research procurement carefully and build contingency into your budget.
8. Maintenance and Serviceability
I have personally serviced both technologies. The difference in repair logistics is night and day.
LCD video wall maintenance: When a panel fails—develops dead pixels, uneven brightness, or backlight issues—the entire monitor must be removed. This requires accessing the rear of the wall, often by removing adjacent panels. Replacement panels rarely match color or brightness with the existing wall unless sourced from the exact same production batch. If the wall is rear-accessible (some installations are not), technicians may need to move furniture, remove ceiling tiles, or work from lifts. Repair downtime is measured in hours to days.
dvLED maintenance: dvLED modules are front-serviceable. A technician opens the front (magnetic or mechanical latch), removes the affected tile, and snaps in a replacement—often in under five minutes. The system is then recalibrated to ensure color and brightness uniformity. This repair model means the wall maintains color consistency even after multiple module swaps over its lifetime. It also means the wall can be serviced without rear access—a critical advantage for display walls mounted where the back is inaccessible.
In 2026, front-serviceable design has become the industry standard for professional dvLED installations. Businesses evaluating total cost of ownership now explicitly factor maintenance access into their decision logic. Front-serviceable access for quick repairs, with automatic system configuration eliminating manual calibration of multiple panels, is a major operational advantage. Additionally, manufacturers increasingly offer live remote monitoring and predictive maintenance features, identifying failing modules before they impact image quality.
9. Size and Scalability
LCD video walls are constrained by commercially available panel sizes. Standard commercial LCD panels range from 46″ up to 98″ (larger sizes exist but are exponentially more expensive and come with their own bezel headaches). To build a larger wall, you tile these standard panels in a grid: 2×2, 3×3, 4×4, or custom arrangements. However, increasing the grid size increases the number of bezels cutting through the content. There is an upper practical limit—beyond 4×4, bezel density becomes visually overwhelming for most applications. Additionally, resolution is distributed across the panels; a 2×2 4K wall effectively behaves as four discrete 1080p displays stitched together.
dvLED has no meaningful size ceiling. You can build a wall that is 2m wide or 200m wide—in any aspect ratio you choose. Resolution scales with module count: finer pixel pitch means higher resolution but higher cost per square meter, and the opposite for larger pitches and greater viewing distances. For creative installations—wrap-around columns, concave video spheres, immersive tunnels—dvLED is the only practical technology.
In 2026, scalability advantage has driven dvLED adoption in sports stadiums (massive displays visible from hundreds of meters away), transportation hubs (departure boards covering entire concourses), and flagship retail (wrap-around and architectural displays). These are applications where LCD simply cannot compete at any price.
Additionally, All-in-One dvLED has become the market‘s fastest-growing segment. In 2025, all-in-one LED display shipments reached 12,850 units, with top suppliers including CVTE, Unilumin, Samsung, Leyard, and Absen. Foldable designs have emerged as a major trend—SiliconCore launched a 135-inch foldable MicroLED all-in-one with 0.78mm pixel pitch and native 4K resolution, folding to fit through standard doorways and becoming operational in under five minutes. At ISE 2026 in Barcelona, PPDS showcased their foldable and height-adjustable 135″ Philips Unite LED 6000 Series All-in-One, designed to remove many practical barriers that historically slowed LED adoption.
10. Power Consumption
Power consumption has become a significant operational cost factor for 24/7 signage deployments.
LCD video walls typically consume 200–400 watts per square meter, depending on brightness setting and backlight technology. Because the backlight is always on (even when displaying dark content), LCDs cannot reduce power consumption for dark scenes. Power draw is largely constant regardless of content.
dvLED walls average 150–350 watts per square meter for typical content, but with a crucial distinction: power consumption varies substantially by content. A dvLED wall displaying bright, full-white content draws significantly more power than one displaying darker content, because LEDs consume power only when emitting light. For typical mixed-media signage, dvLED often matches or slightly exceeds LCD consumption. However, power consumption is highly application-dependent.
In 2026, new efficiency-optimized designs have emerged. SiliconCore‘s Common Cathode IQ technology delivers precise voltage to each color channel, reducing thermal load and overall power consumption—the 135″ foldable system averages 600 watts at 600 nits and consumes up to 40% less power than comparable LED systems. Ultra-thin MicroLED panels demonstrated at ISE 2026 and InfoComm China 2026 are achieving dramatically lower power densities, with some designs targeting under 60 watts per square meter.
For most commercial installations, power consumption differences are not the primary decision driver. However, for large-scale deployments (entire stadium perimeters, full-building facades) and cost-sensitive 24/7 operations, dvLED‘s content-dependent consumption can offer efficiency benefits depending on programming. Additionally, green signage has become a requirement rather than an option in 2026, with government procurement increasingly mandating energy-efficient displays.
Application Guide: Which Should You Choose in 2026?
Direct-view LED is the go-to choice for modern spaces because it offers better visual quality, easier maintenance, and simpler installation-32. However, the right answer depends entirely on your specific application.
Choose an LCD video wall when:
-
Budget is the primary constraint (lower upfront cost)
-
Installation is indoors with controlled lighting (offices, schools, indoor retail, conference rooms)
-
Viewing distance is close (8–12 feet) where fine resolution matters
-
You can accept bezel lines across tiled content
-
Single large-format LCD (86″–98″) will suffice rather than multi-panel wall
-
For close viewing and dashboards, LCD is a practical fit
Choose a dvLED wall when:
-
Installation experiences direct sunlight, bright window light, or outdoor exposure
-
A seamless, bezel-free appearance is required for brand, aesthetic, or technical reasons
-
Wall needs to exceed standard 16:9 sizes or use non-standard dimensions, custom shapes, or curves
-
Operating hours exceed 16 hours daily, making longer lifespan economically advantageous
-
Hot-swap maintenance capability matters for mission-critical uptime
-
For creating wow moments in bright spaces, dvLED is the only choice
Consider emerging alternatives in 2026:
-
All-in-One dvLED: Fastest-growing segment. 135-inch 2K P1.5 and 162–163-inch 4K P0.9 models now offer turnkey installations without custom engineering. Foldable designs dramatically reduce transport and installation barriers.
-
MicroLED: Premium class of direct-view LED with ultra-fine pixel pitch. In Pro AV, “MicroLED” is often used to mean ultra-fine-pitch premium LED walls. Treat MicroLED as a premium class of dvLED and validate availability, service model, and cost early.
-
COB (Chip-on-Board) LED: Advanced packaging where LED chips are directly mounted onto circuit boards, eliminating individual LED packages. COB delivers 10x better impact resistance (IP54-rated front protection), 160° viewing angles, and 15,000:1 contrast ratio. Major control rooms, broadcast facilities, and premium installations are rapidly adopting COB as the standard. In the P1.4 and below segment, COB sales share has exceeded 85.5%.
The Final Verdict (2026 Edition)
After a decade of quoting, installing, and servicing both technologies across hundreds of projects, here is my honest conclusion:
LCD video walls are the reliable, cost-effective workhorse for the majority of indoor commercial applications. For conference rooms, control rooms, retail endcaps, and corporate lobbies where brightness is controlled and bezel seams are acceptable, LCD delivers excellent value. LCD is familiar, has a lower upfront cost per square foot, and provides good image quality for close viewing–. Most commercial signage needs are satisfied by well-specced LCD panels at 350–700 nits.
dvLED walls are the premium, performance-driven choice for applications where LCD cannot deliver. If your space has floor-to-ceiling windows, if your brand demands a seamless digital canvas, if your wall needs to curve around architecture or exceed standard aspect ratios, dvLED is the only technology that meets the requirement. The higher upfront investment buys brightness that defeats ambient light, lifespan that outlasts three LCD generations, and a seamless presentation that elevates brand perception. While LCD may win on initial price for small setups, LED is the undisputed champion for visual impact, custom sizing, and long-term total cost of ownership.
Futuresource Consulting forecasts LED will overtake LCD in professional displays value by the end of this decade, driven by falling average selling prices and technological advances in COB, MiniLED, and early-stage MicroLED architectures. The market is converging. Small-pitch LED prices are falling (down 21.3% year over year in early 2026) and premium LCDs (Mini-LED backlit, UHD professional models) continue improving. But for now, the gap remains real and justified by the underlying engineering.
My advice to every client: Run a side-by-side demo in your actual installation environment before signing a purchase order. View both technologies under your real lighting conditions. Walk to the farthest viewing position. Look for bezels. Assess glare. Factor in maintenance access and long-term reliability. Then decide.
If you are still unsure, reach out for a project-specific consultation. I have seen both spectacular successes and expensive mistakes on both sides of this decision. The right answer depends on budget, environment, brand expectations, and operational uptime requirements.
