CARBON SERIES
Innovational Design for Large Stage Solution
Core Value
Carbon fiber reinforced structure × Professional grade display performance
Lightweight revolution: 5KG ultra-light panel weight
Material innovation: Aerospace grade carbon fiber composite frame
Strength optimization: 30% increase in impact resistance
Professional performance: Higher refresh rate in low grayscale
- Carbon fiber
- Light enough
- Fiber-reinforced
- Stronger structure
- Carbon fiber
- Light enough
- Fiber-reinforced
- Stronger structure
Dynamic Studio & XR Virtual Production
Power your productions with our lightweight Carbon Series LED Display. Featuring an ultra-thin LED wall and carbon fiber structure, it cuts stage setup time and reduces transport costs by 35%. Our XR virtual camera system slashes support needs by 50%, providing a lighter, more flexible virtual production solution.
2. High-altitude suspension device
Theater Hoisting LED Matrix (Safe load lifting solution)
Exhibition gallery dynamic canopy (to support more complex mechanical movements)
High-Altitude Suspension
Our Theater Hoisting LED Matrix offers a secure and reliable solution for high-altitude displays. Paired with our ultra-thin LED wall, your exhibition gallery dynamic canopy can effortlessly support complex movements, making it perfect for exhibitions, theaters, and art installations.
Specialized & Engineered Displays
Designed for demanding environments, our certified lightweight LED panels and carbon fiber structure are ideal for ship/aircraft built-in displays and outdoor temporary facades. The enhanced wind pressure resistance ensures a robust and reliable lightweight display solution, no matter the conditions.
Ultra light
8-in-1 Design system

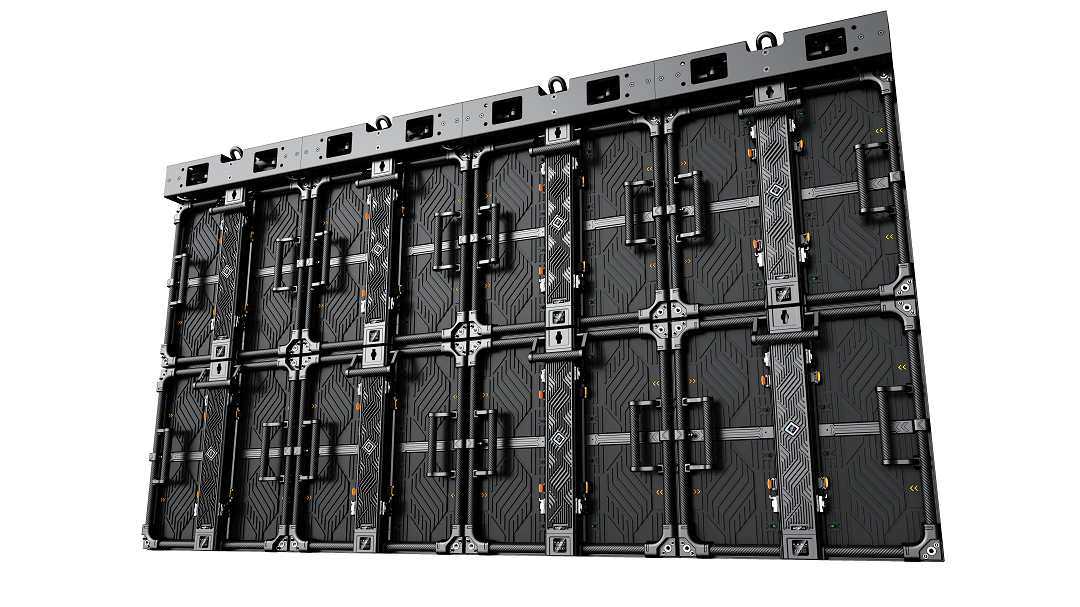

Unique connection plate
Performance innovation
Various Applications
Touring
Festivals
Immersive studio
Virtual production ceiling
| ITEM | PITCH | P1.9mm | P2.6mm | P2.6mm | P2.9mm | P3.9mm |
| Key Function | Technology | Carbon fiber, Multiple shapes, Unique lock plate, Brompton system available | ||||
| Mechanical | LED Type | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Pixel Density(dot/m²) | 262,984 | 147,474 | 147,474 | 113,367 | 65,410 | |
| Module Size (W x H)(mm) | 500mm × 250mm | |||||
| Module Resolution (W x H)(pixels) | 256 × 128 | 192 × 96 | 192 × 96 | 168 × 84 | 128 × 64 | |
| Panel Size (W x H)(mm) | 500mm × 500mm (19.66″ × 19.66″) | |||||
| Panel Resolution (W x H)(pixels) | 256 × 256 | 192 × 192 | 192 × 192 | 168 × 168 | 128 × 128 | |
| Panel Material | Carbon fiber + Die-casting aluminum | |||||
| Panel Weight | 5.0KG | 5.3KG | 5.3KG | |||
| Service | F/R | |||||
| IP Rating | IP21 | F: IP65, R: IP54 | ||||
| Optical | Brightness | 1200nits | 1200nits | 4000nits | 4500nits | 5000nits |
| Brightness (black leds) | / | / | 2800nits | 3000~3500nits | ||
| Refresh Rate | 7680Hz | |||||
| Color Temperature | 6500K ± 500K | 9000K ± 500K | ||||
| Power Consumption (Avg./Max.) | 200W / 500W | 240W / 720W | ||||
| Supported Frame Rate | 30 | 60 | 100 | 120 | 144 | 240Hz (exclusively supported by the custom firmwares of A10s Pro & IC.) | |||||
| Grey Level | 16bit | |||||
| View Angle (H/V)(°) | 160 / 160 | |||||
| Input(V) | 110-220V, 50-60Hz | |||||
| Operating Temp/Humidity | -20 ~ 50℃ / 10% ~ 90% | |||||
| Certification | ETL/FCC/CE/CCC | |||||
Carbon Family
Innovative Mechanical Design

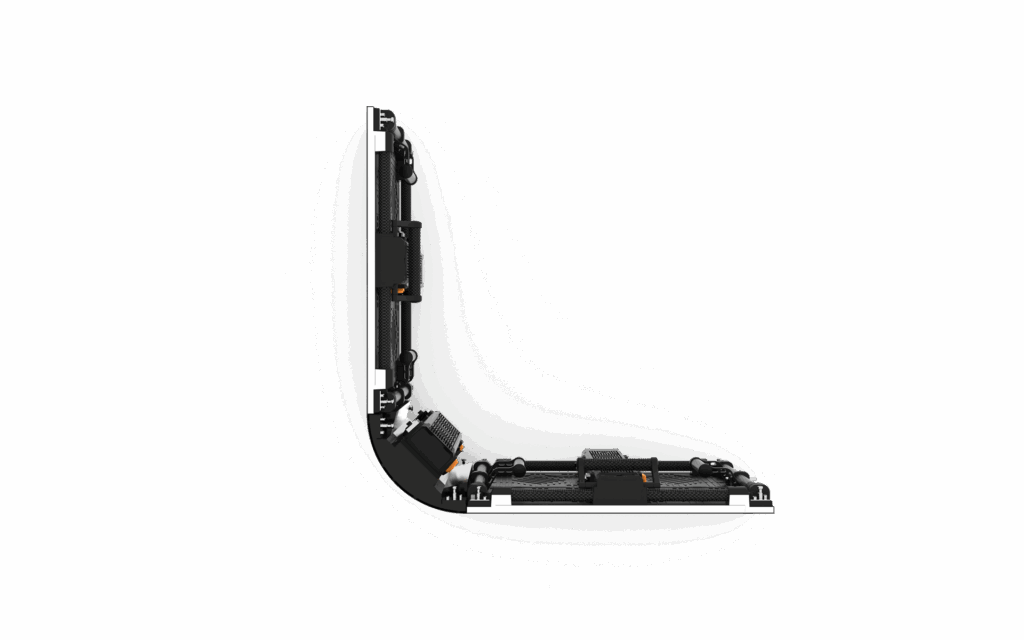

Unique Connection Lock Plate: Ensures perfect screen flatness and allows for easy panel removal from the middle, significantly speeding up installation and maintenance.

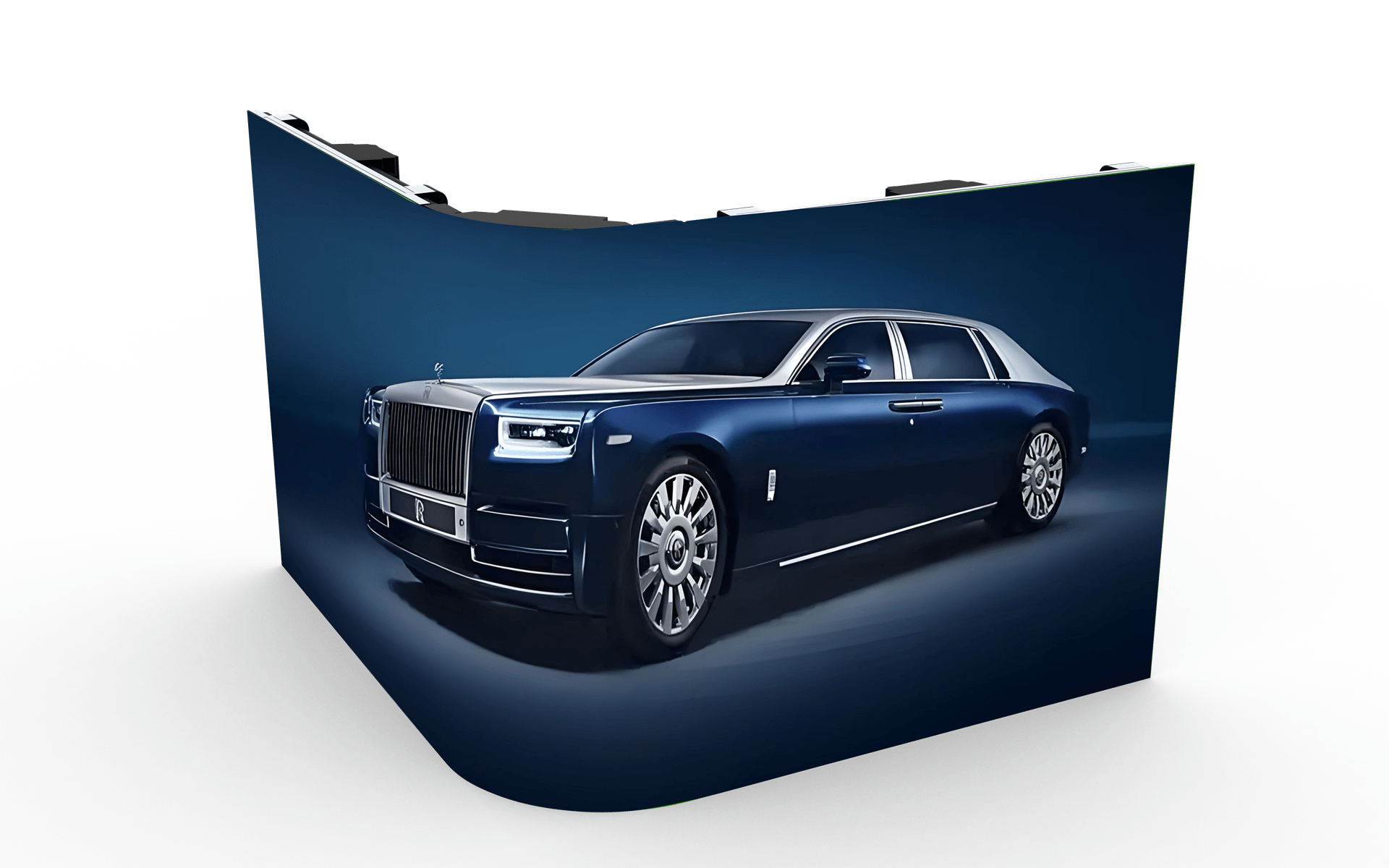

Multiple Shape - All about stage!

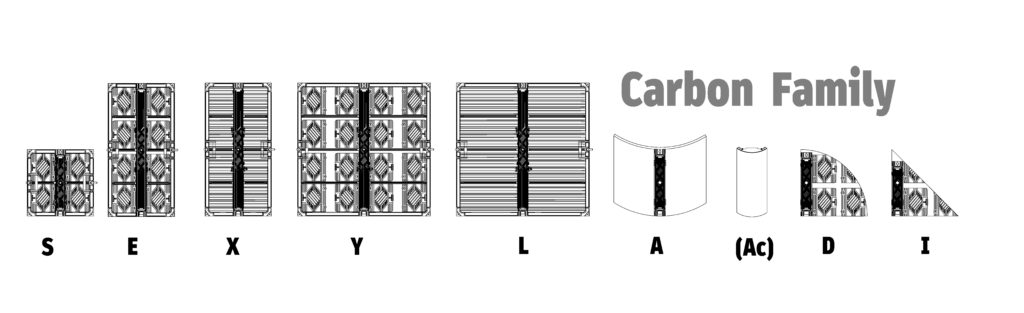

Model S E X Y L A D I
Multiple Shape Modules
Choose from a range of modules including S, E, X, Y, L, A, D, and I, to bring your most creative stage design ideas to life.
Featherlight, Vivid Visuals
Where carbon fiber meets LED technology, minimalism clashes with vivid brightness, igniting a futuristic visual revolution on stage. Choose us for a visual experience that is lightweight, durable, and simply stunning.
Our "Carbon Family" LED screens feature an innovative carbon fiber composite frame. Compared to traditional metal frames, carbon fiber is significantly stronger yet weighs only a quarter of the weight. This makes our product exceptionally lightweight, with a single panel weighing as little as 4KG, which dramatically reduces transportation and setup complexity and costs.
Beyond being lightweight, carbon fiber offers superior impact and fatigue resistance. Our carbon fiber structured LED screens have 30% greater impact resistance, effectively protecting against accidental bumps during transport and use, thereby extending the product's lifespan.
Thanks to its lightweight, high-strength, and outstanding visual performance, the "Carbon Family" series is ideal for applications that require quick setup and frequent relocation. Key applications include large-scale stage rentals, touring concerts, TV studios (especially for XR virtual production), high-altitude suspension installations, and built-in displays for specialized environments like ships and aircraft.
Not at all. Despite being exceptionally lightweight, we have not compromised on visual performance. The "Carbon Family" delivers professional-grade visuals, including a high refresh rate, excellent brightness, and superb color reproduction, ensuring a clear, smooth, and vibrant image in all application scenarios.
In addition to the carbon fiber frame, we feature a unique connection lock plate design that ensures perfect flatness when the panels are joined. This design also allows for easy panel removal from the middle of the screen, significantly simplifying the installation and maintenance process to save you valuable time.
