⚡ Ultra Energy Efficiency: Cuts power consumption by 50%–60% via Common Cathode 2.0.
⚖️ Featherweight Engineering: Only 16 kg/m²—30% lighter than standard aluminum cabinets.
💡 Sunlight-Cut Brightness: Peak output up to 10,000 nits for uninterrupted daytime visibility.
🛠️ Dual IP68 Maintenance: Full front & rear serviceability with tool-free quick locks.
🌧️ Extreme Weather Resilience: Integrated die-cast aluminum module housing + full solid potting glue protection.
The ARES 3 Series redefines operational efficiency for outdoor digital displays. Engineered specifically for high-impact billboards, commercial landmarks, and transit hubs, ARES 3 merges premium visual quality with unprecedented Operational Expenditure (OPEX) savings and structural cost reductions.
Traditional Common Anode displays waste energy through excessive heat. ARES 3 delivers dedicated, precision voltage to Red, Green, and Blue LED chips separately. This reduces operating temperatures by 15°C–20°C, extends component lifespan, and cuts electricity bills by 50%–60%.
Featuring a full die-cast aluminum frame and sealed rear enclosure, the ARES 3 weighs just 16 kg/m²:
Lower Structural Costs: Drastically reduces weight load, saving 30%–40% on steel framing requirements.
Streamlined Labor: Lightweight units enable faster, safer 2-person installation.
Passive Thermal Management: Superior natural heat dissipation eliminates noisy fans and reduces failure rates.

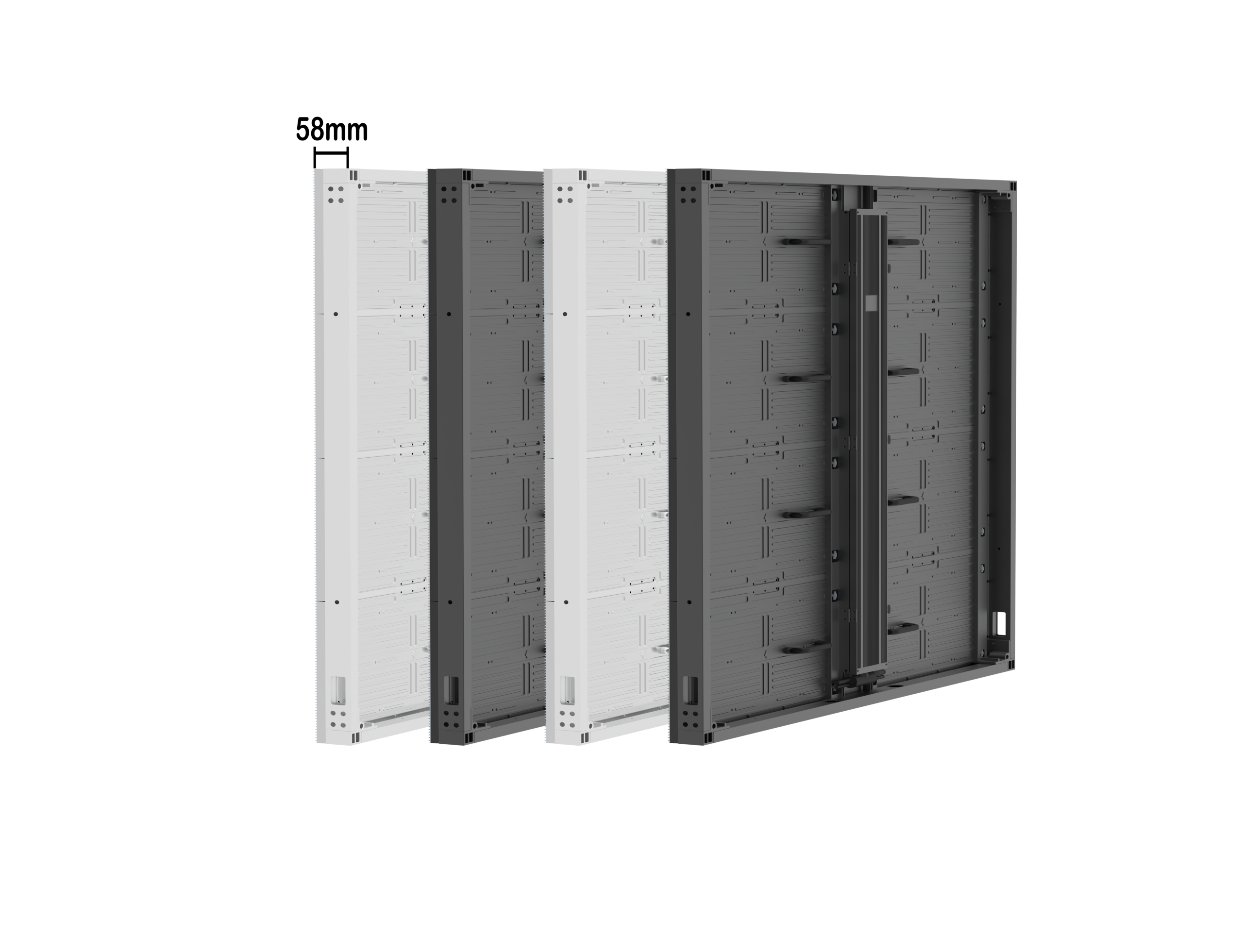

Standardized module sizing allows seamless cabinet mixing to build precise 16:9 HD displays, ultra-wide banners, or customized billboard shapes without custom fabrication:
1000 × 1000 mm (Standard Cabinet)
1000 × 750 mm (High-Flexibility Cabinet)
1000 × 500 mm (Fine-Tuning / Corner Cabinet)
Enter dimensions to estimate your 50%-60% energy savings with ARES 3.
Direct-Sunlight Visibility: 8,000 – 10,000 nits maintains vivid saturation and crisp contrast under harsh mid-day sun.
Broadcast-Ready Refresh Rates: Up to 7680 Hz ensures flicker-free, camera-ready display for live events and broadcast coverage.
Deep Grayscale: 16-bit processing delivers smooth color gradients, precise shadow detail, and true black levels.

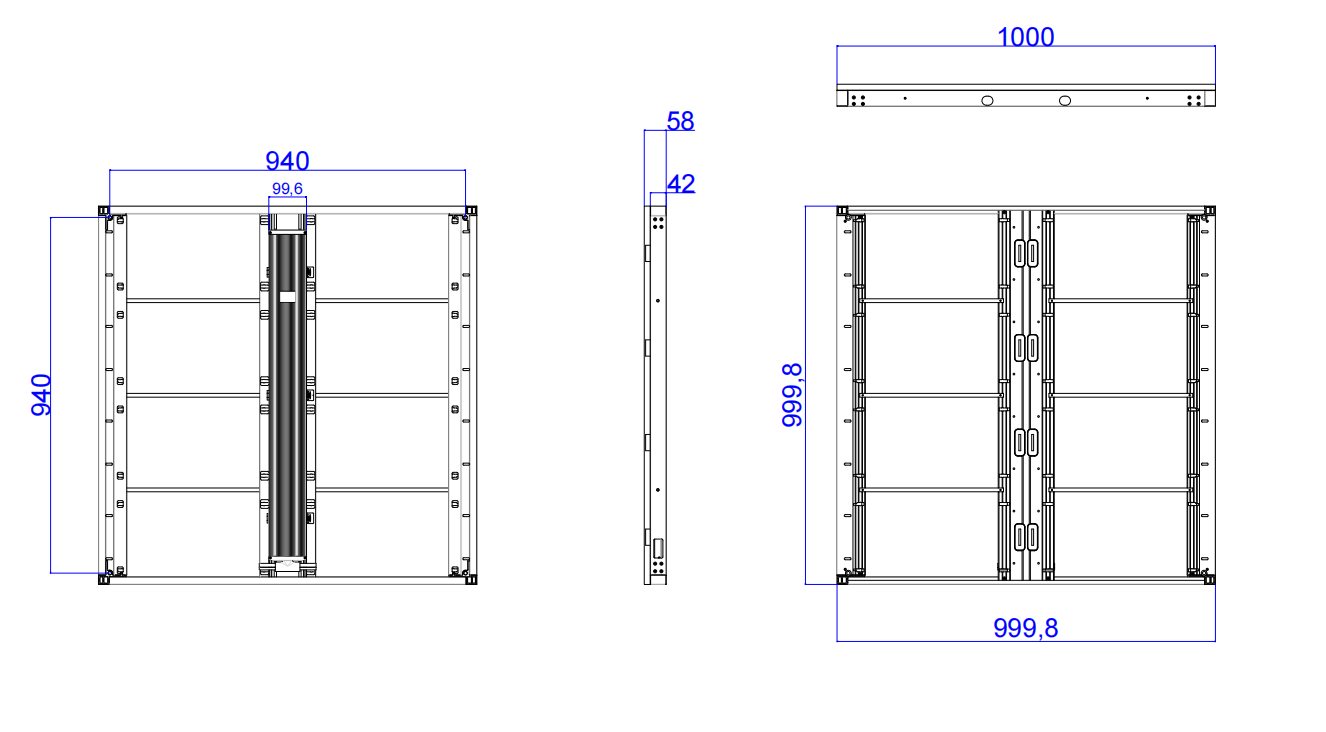

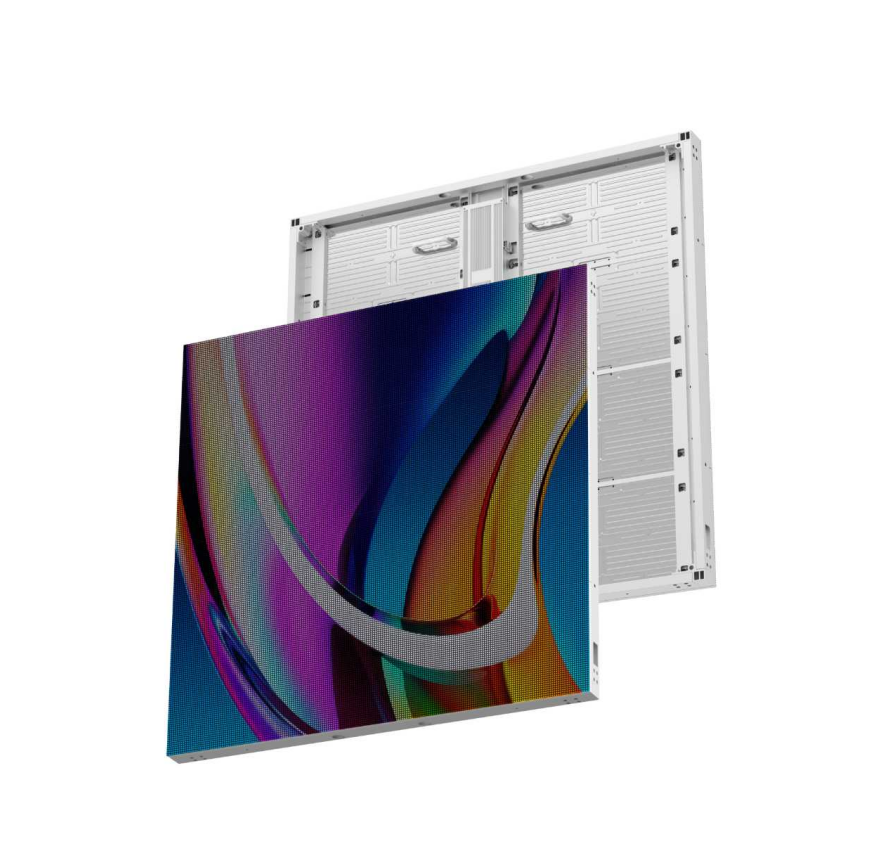

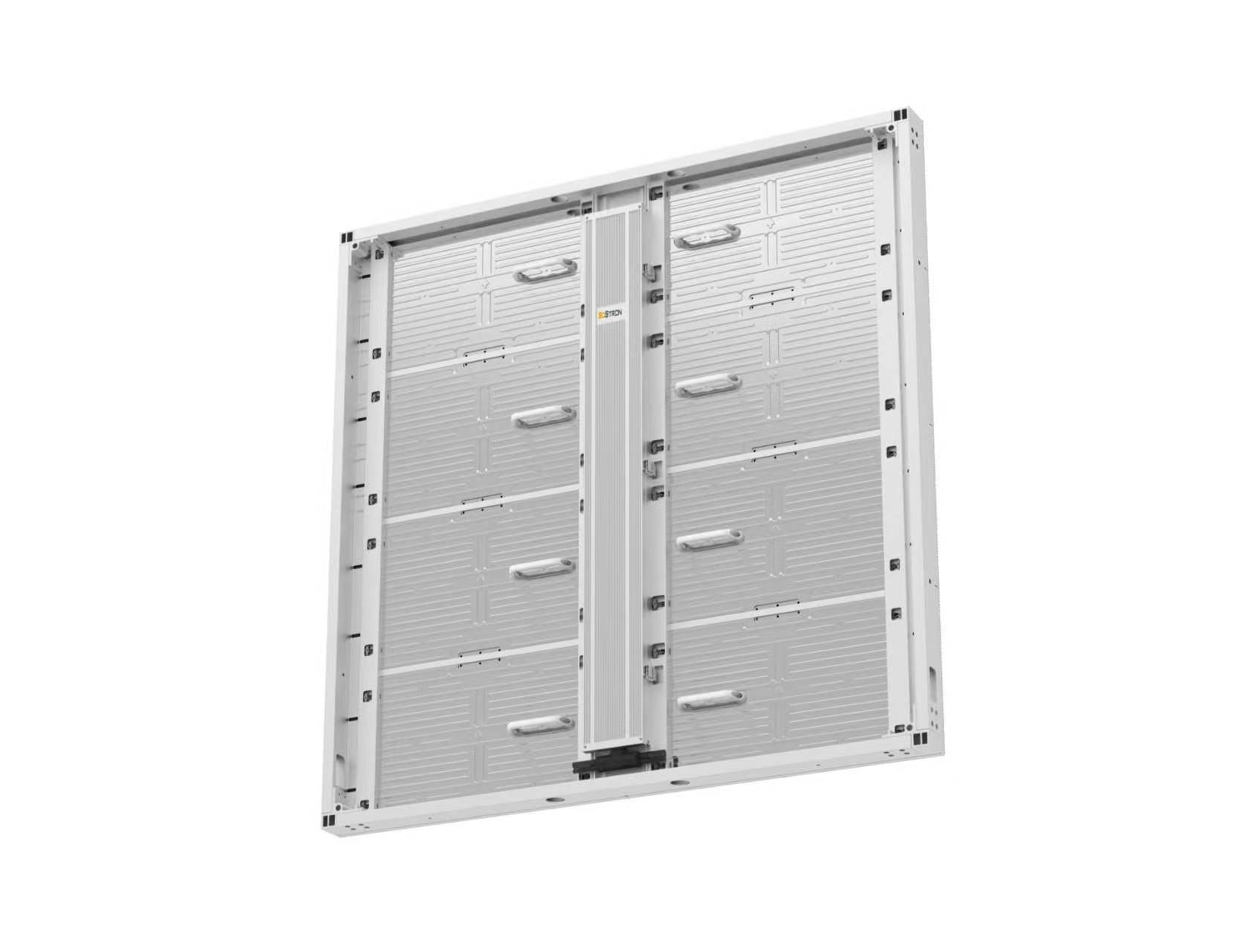

The 1000×1000mm die-cast aluminum cabinet is the standard structural unit of the Ares 3 Series, designed for large-format outdoor LED displays. It ensures high stability, precise alignment, and seamless large-area splicing for billboard-scale applications.
The 1000×500mm cabinet provides enhanced flexibility for screen dimension adjustment and creative LED display configurations. It is ideal for customized aspect ratios, corner installations, and irregular screen layouts.

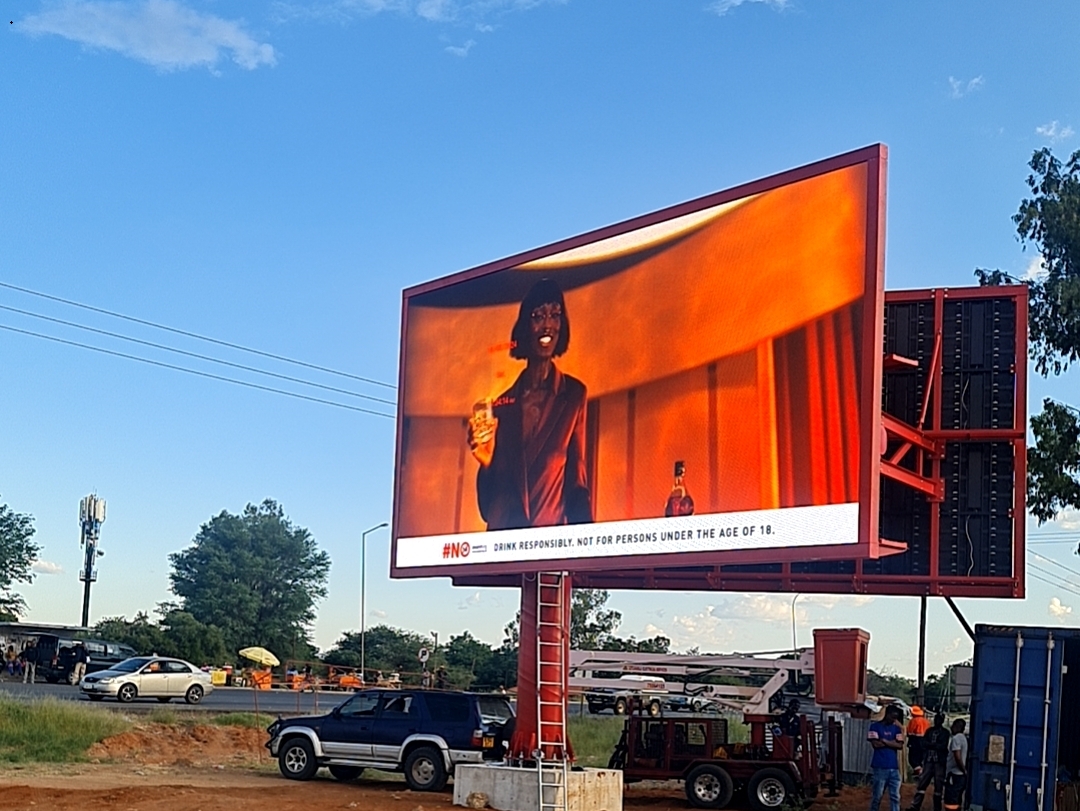

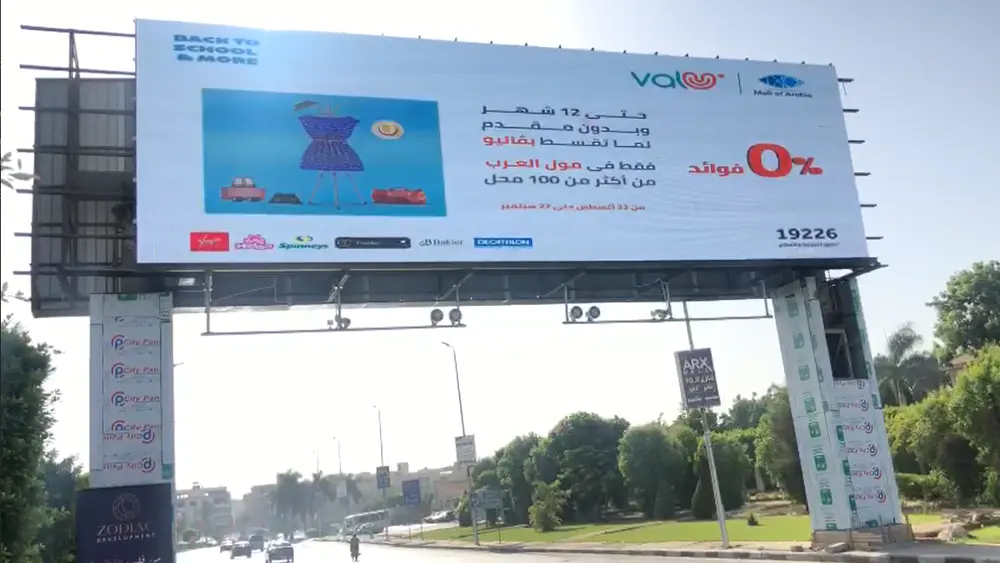

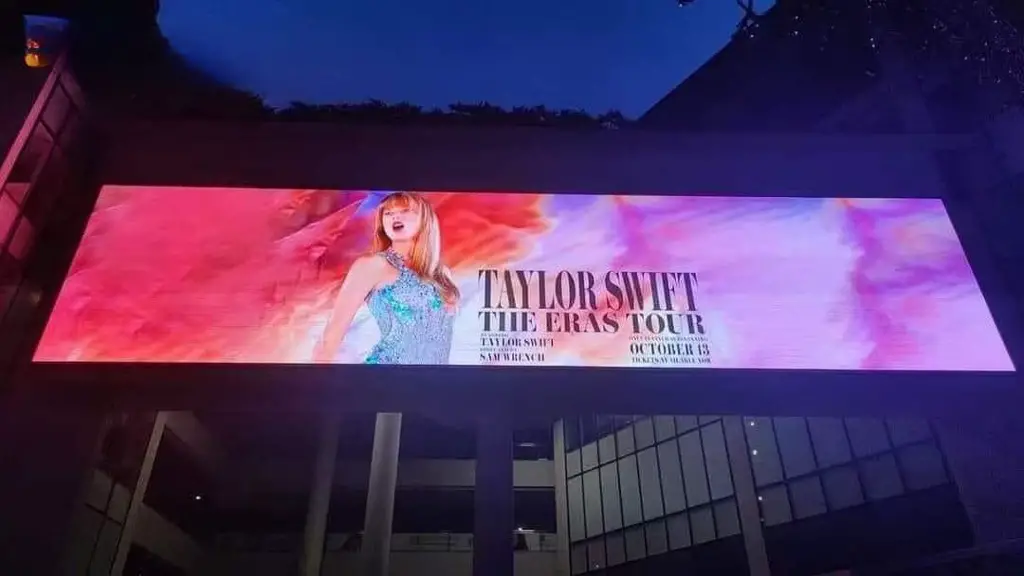

Digital Billboards & Urban Landmarks:
Ultra-high brightness (up to 10,000 nits) easily cuts through harsh, direct sunlight to maintain vivid visual impact all day.
Smart Traffic Signage & Highway Media:
Industrial-grade stability ensures continuous, reliable 24/7/365 all-weather operation with minimal maintenance.
Arena & Stadium Display Systems:
Ultra-high refresh rates (up to 7680 Hz) deliver smooth, flicker-free live broadcasting for high-speed camera coverage.
Architectural & Street Furniture Integration:
Flexible cabinet sizing (1000×1000mm, 1000×750mm, 1000×500mm) allows seamless creative layouts and seamless corner setups.
Full-Enclosure Potting Protection (IP68 Rating):
Advanced double-sided solid potting glue technology delivers full IP68 dustproof and waterproof encapsulation for every internal IC component, allowing reliable deployment in extreme rainstorms, humidity, and high-salinity coastal environments.
Tool-Free Quick Lock & Dual Serviceability:

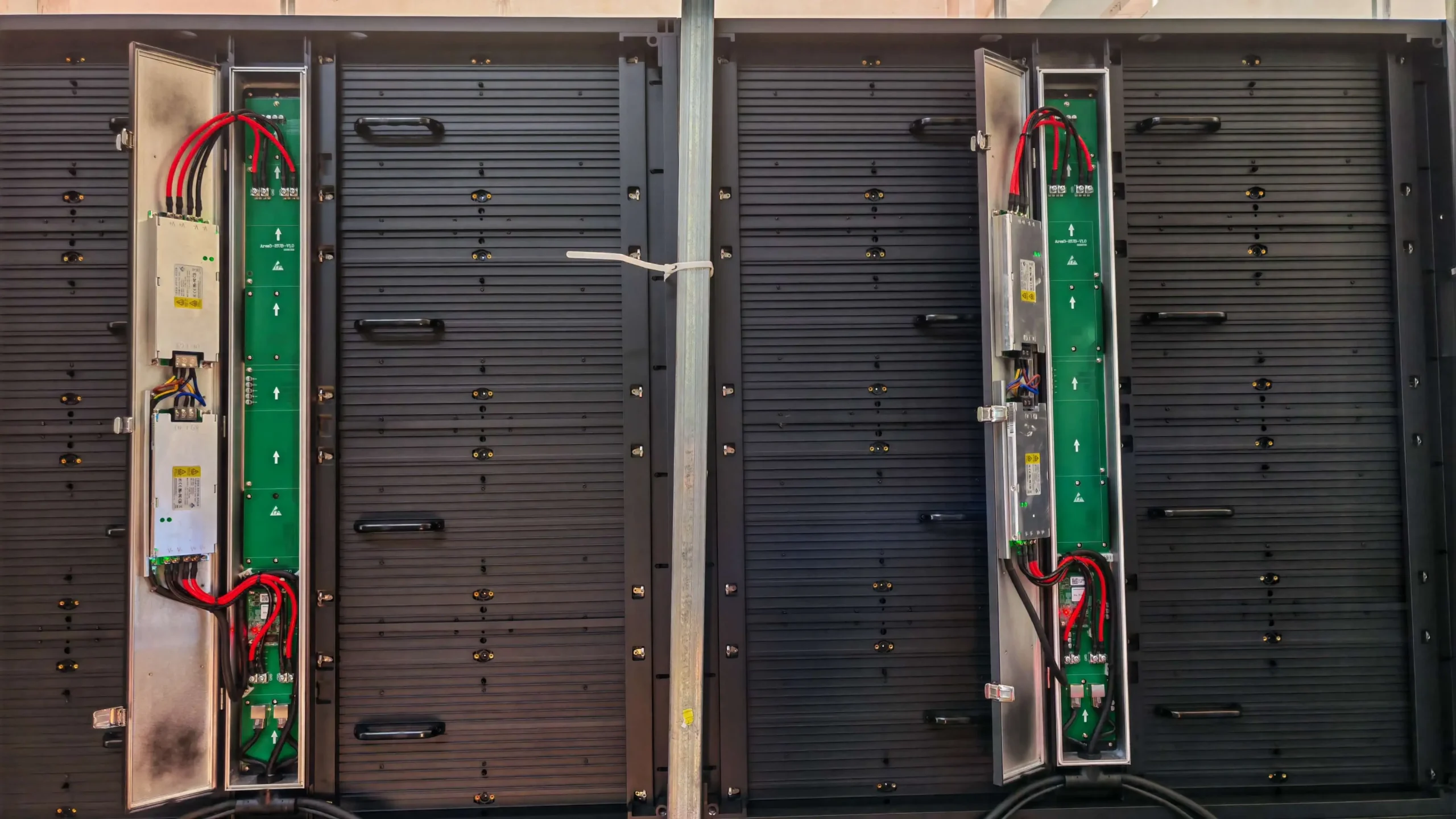

Equipped with next-generation quick-lock latches supporting complete Front & Rear Serviceability. Individual modules or power boxes can be swapped in seconds via a vacuum tool or rear access, drastically reducing operational downtime.
Thermal Efficiency & Energy Comparison
Standard Outdoor Display (Traditional Common Anode):
Radiates excessive heat due to inefficient power distribution, requiring costly external air conditioning and risking accelerated LED degradation.
ARES 3 Series (Upgraded Common Cathode 2.0):
Stays remarkably cool and stable with operating temperatures reduced by 15°C–20°C. Our Common Cathode 2.0 technology converts energy directly into light output rather than wasted heat—slashing electricity bills by up to 60% while significantly extending the display’s operating lifespan.
| ITEM | PITCH | P2.9mm | P3.9mm | P4.8mm | P6.2mm | P7.8mm | P10.4mm |
|---|---|---|---|---|---|---|---|
| Key Function | Technology | Light, High Brightness, Common Cathode, Energy saver | |||||
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | |
| Pixel Density(dot/m²) | 113,367 | 65,410 | 43,222 | 25,600 | 16,394 | 9,226 | |
| Module Size (W x H) (mm) | 500mm x 250mm | ||||||
| Moduel Resolution (W x H) (pixels) | 168 x 84 | 128 x 64 | 104 x 52 | 80 x 40 | 64 x 32 | 48 x 24 | |
| Mechanical | Panel Size (W x H) (mm) | 1000mm x 1000mm (1000 x 750mm / 1000 x 500mm ) | |||||
| Panel Resolution (W x H) (pixels) | 336 x 336 | 256 x 256 | 208 x 208 | 160 x 160 | 128 x 128 | 96 x 96 | |
| Panel Material | Aluminum (both structure and back casing) | ||||||
| Panel Weight | 20KGS | ||||||
| Service | F + R | ||||||
| IP Rating | IP65 (front/rear) | ||||||
| Optical | Brightness | 5500nits ~ 6500nits | 7000~7500nits | ||||
| Refresh Rate | 3840Hz ~7680Hz | ||||||
| Color Temperature | 9000K ± 500K | ||||||
| Power Consumption (Avg./Max.) | 230 W /600W | ||||||
| Grey Level | 14bit | ||||||
| View Angel (H/V) (°) | 160/140 | ||||||
| Input(V) | 110-220V, 50-60Hz | ||||||
| Operating Temp/Humidity | -20 ~ 50 °C/10% ~ 90% | ||||||
| Certification | ETL/FCC/CE/CCC | ||||||
Remarks: The parameters are only for reference. The actual parameters may differ depending on the specific order.
Remarks: The parameters are only for reference. The actual parameters may difer depending on the specific order.

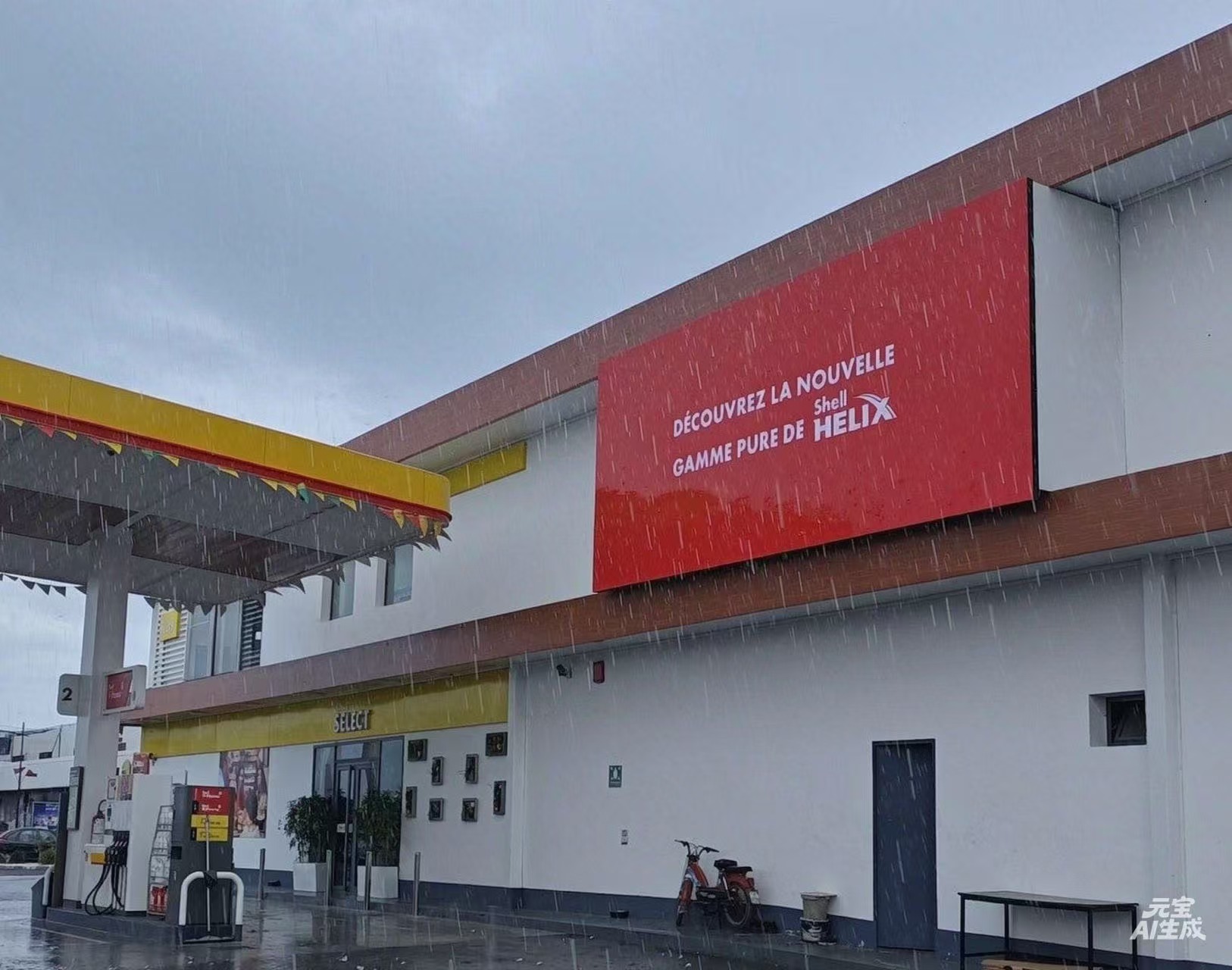

Engineered for building facades, the ARES 3 Series streamlines installation precision, reduces field labor costs, and simplifies long-term serviceability.
Pre-engineered galvanized framing anchors directly to the wall, establishing a rigid grid with an integrated passive cooling convection gap.
ARES 3 aluminum cabinets hook straight onto the frame with precision guides, locking effortlessly without seam gaps or manual calibration.
Architectural finishing covers conceal structural mounting components and cabling, delivering a sleek, modern facade integration.
| Feature | Engineering Benefit | Business Advantage |
|---|---|---|
| Hanging Installation | Precision alignment guides | 50% faster deployment on site |
| Lightweight Aluminum | Ultra-light weight load design | Reduces structural steel costs |
| Front & Rear Access | Dual serviceability | Lowers maintenance downtime |
| IP68 Encapsulation | Solid double-sided potting | 24/7 operation in extreme weather |
The ARES 3 Series incorporates upgraded Common Cathode 2.0 technology. Unlike traditional Common Anode displays that supply uniform voltage to all LEDs (wasting excess power as heat), Common Cathode precisely powers the Red, Green, and Blue diodes with independent optimal voltages. This dramatically minimizes heat generation—lowering operating temperatures by 15°C–20°C—and converts power directly into light output rather than wasted heat, slashing operational electricity costs by up to 60%.
Our self-developed wall-mounted installation structure is engineered specifically for building facades and retail storefronts. It eliminates the need for expensive, heavy custom steel frameworks:
50% Faster Installation: Panels hook directly onto pre-calibrated wall sub-frames with precision locks.
Lightweight Load: Utilizing 100% die-cast aluminum cabinets, structural load on building walls is minimized.
Integrated Heat Dissipation: The frame naturally leaves an 80–100mm convection gap, allowing passive air cooling without requiring costly air conditioning.
Yes, absolutely. The ARES 3 features a fully versatile Dual-Service (Front & Rear Access) design. Individual LED modules, power supply units, and receiving cards can be swapped from the front using a simple vacuum tool or unlatched from the rear within seconds. This flexibility drastically cuts maintenance downtime and labor costs, making it ideal for tight wall-mounted setups where rear access space is limited.
The display is built to withstand extreme weather conditions year-round:
IP68 Maximum Ingress Protection: Internal electronics and ICs feature double-sided solid potting glue encapsulation, providing complete defense against heavy rainstorms, high humidity, and coastal salt fog.
Cooling Efficiency: Combined with Common Cathode heat reduction and an operating temperature tolerance of -20°C to +50°C, the screen runs reliably in direct sunlight without thermal degradation or color distortion.
Yes. The ARES 3 Series delivers ultra-high brightness up to 10,000 nits (depending on pixel pitch configuration) paired with high refresh rates up to 7,680 Hz. This ensures clear, high-contrast, flicker-free visual performance under high ambient sunlight, as well as smooth camera capture for live broadcasting and digital billboard advertising.
