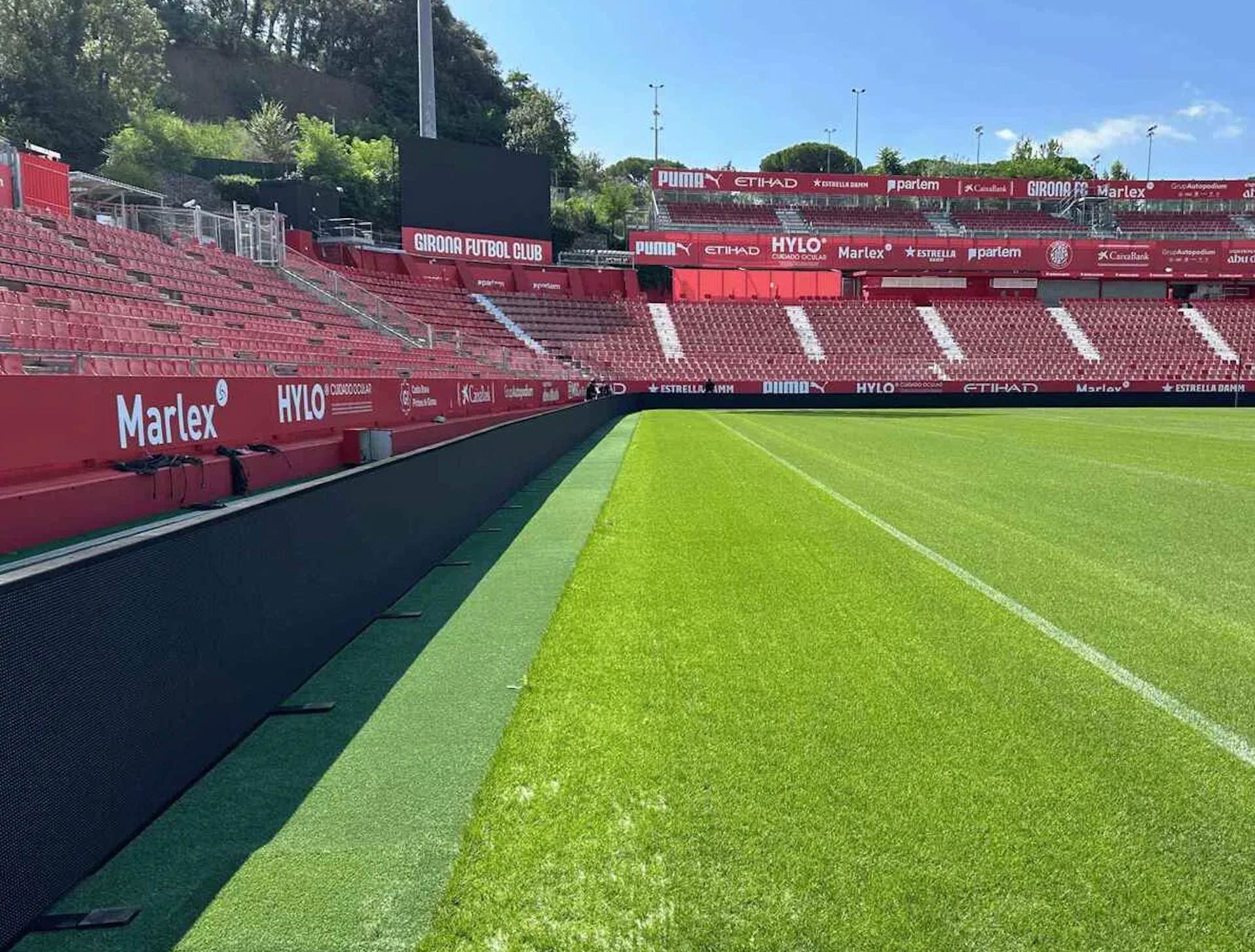

Professional LED Perimeter System Designed for Football Stadiums
The UEFA Series Stadium Perimeter LED Display is a professional outdoor LED advertising solution designed for football stadiums, arenas, and sports venues. Built with a 90cm high LED panel design, soft protection mask, high brightness performance, and broadcast-ready refresh rate, it delivers stable visual performance while ensuring athlete safety.
UEFA Standard Stadium Design

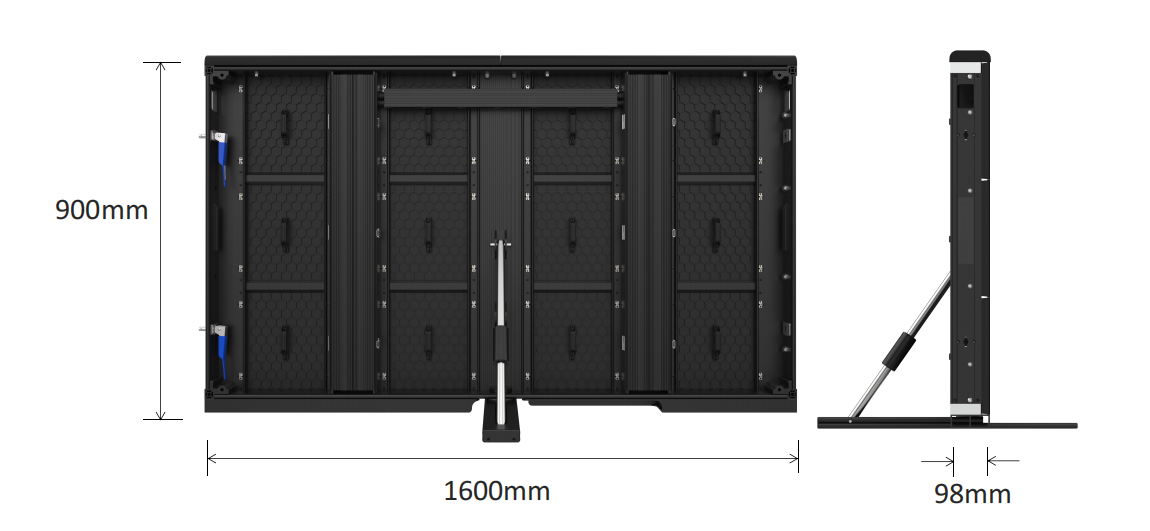

The UEFA Series adopts a professional stadium perimeter structure with a 1600 × 900mm cabinet size and 90cm display height, matching the visual requirements of football fields and broadcast environments.

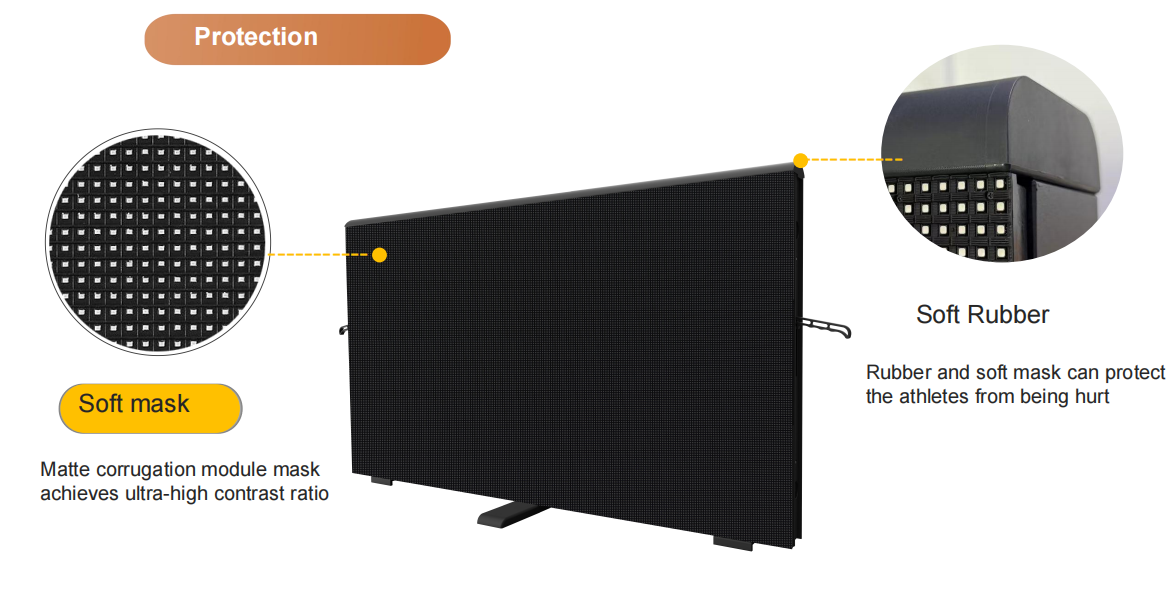

Soft Mask Technology for Player Protection
Unlike traditional outdoor LED screens, the UEFA Series uses a soft rubber protection mask designed specifically for sports environments.
The flexible surface helps:
- Reduce impact risk during player collisions
- Protect LED modules from physical damage
- Improve player safety near the pitch
The matte corrugated mask structure also enhances contrast performance by reducing light reflection and improving image clarity under stadium lighting conditions.
Why Choose UEFA Series Stadium LED Display?
✔ Designed for Sports Safety
Soft protection structure reduces athlete collision risks.
✔ Broadcast Ready
High refresh rate ensures smooth camera capture.
✔ Outdoor Reliable
IP65 protection guarantees stable operation in extreme weather.
✔ Easy Installation

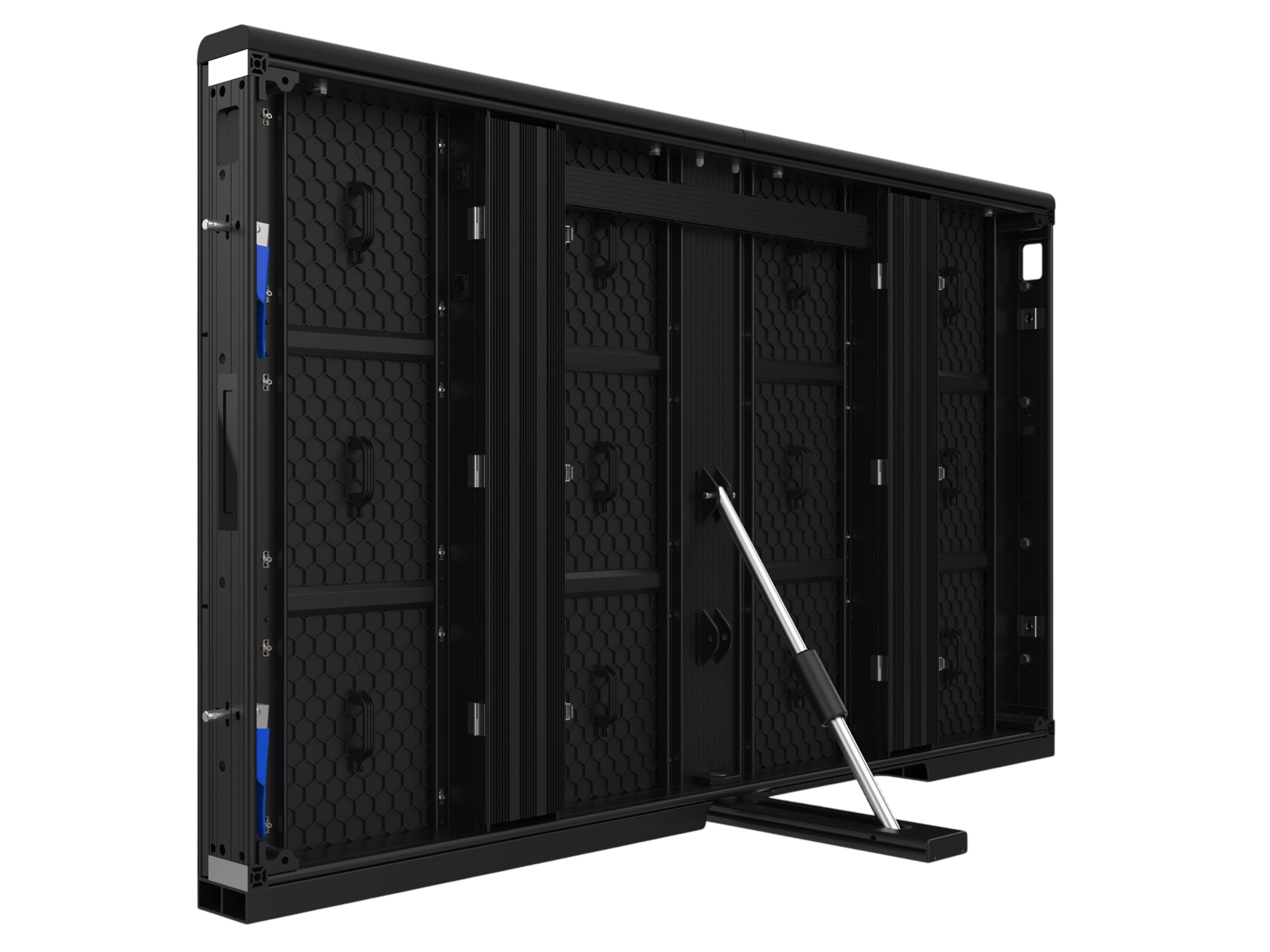

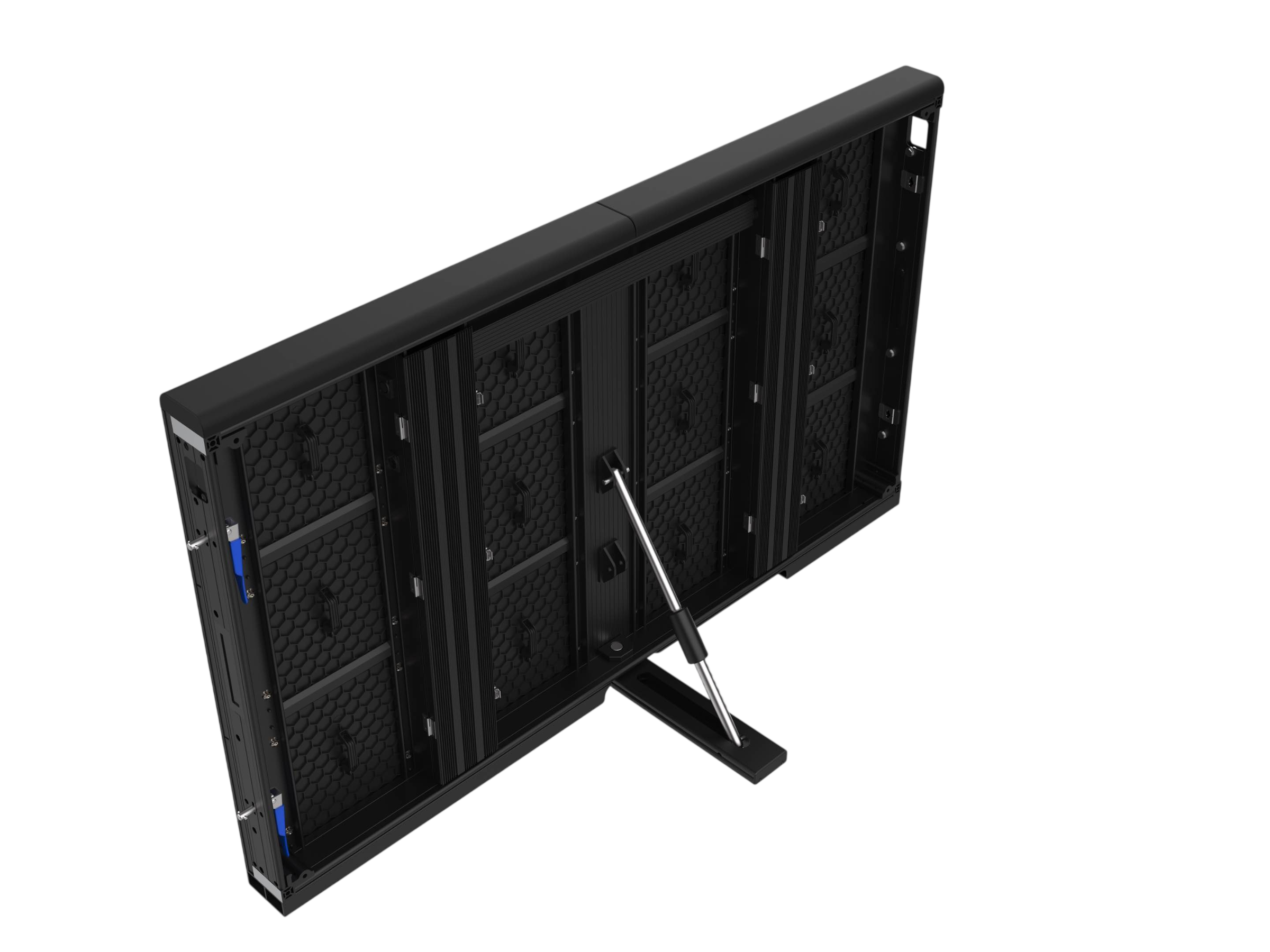

Lightweight aluminum cabinet and modular design simplify deployment.
✔ Long-Term Value
Low maintenance requirements and reliable performance maximize stadium advertising revenue.
| Pixel Pitch (mm) | P6.25 | P8.33 | P10 |
|---|---|---|---|
| LED Type | SMD2727 | SMD2727 | SMD2727 |
| Physical Density (dots/㎡) | 25600 | 14400 | 10000 |
| Module Resolution (dots) | 64 × 48 | 48 × 36 | 40 × 30 |
| Module Size (W×H) (mm) | 400 × 300 | 400 × 300 | 400 × 300 |
| Cabinet Size (mm) | 1600 × 900 | 1600 × 900 | 1600 × 900 |
| Cabinet Resolution (dots) | 256 × 144 | 192 × 108 | 160 × 90 |
| Module Quantity | 4 × 3 | 4 × 3 | 4 × 3 |
| Panel Weight (kg) | 48 | 48 | 48 |
| Maintenance | Front/Rear Maintenance | Front/Rear Maintenance | Front/Rear Maintenance |
| Cabinet Material | Aluminum | Aluminum | Aluminum |
| Brightness (Nits) | 6500 | 6500 | 6500 |
| Color Temperature (K) | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional |
| Viewing Angle (H/V) | 140°/160° | 140°/160° | 140°/160° |
| Viewing Distance | 6-200m | 8-200m | 10-200m |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 |
| Frame Rate | 50/60Hz | 50/60Hz | 50/60Hz |
| Drive Mode | 1/4 Scan | 1/3 Scan | 1/3 Scan |
| Grey Scale | 16bit | 16bit | 16bit |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Max Power Consumption (W/㎡) | 680 | 680 | 680 |
| Average Power Consumption (W/㎡) | 120-200 | 120-200 | 120-200 |
| Protection Level | IP65 | IP65 | IP65 |
| Power Input | AC90-264V, 47-63Hz | ||
| Working Temperature/Humidity | -20~60℃ / 10%~85% | ||
| Storage Temperature/Humidity | -20~60℃ / 10%~85% | ||
| Certification | CCC / CE / RoHS / FCC / ETL | ||
share this post
The Storm Series Stadium LED Screen is a professional outdoor perimeter LED display designed for football stadiums, sports arenas, and live event venues.
Built with a UEFA-standard perimeter structure, it features a 90cm high LED panel design, high brightness performance, IP65 protection, and a soft protective mask to meet the requirements of modern sports environments.
The Storm Series combines advertising display, athlete safety, and reliable outdoor performance, making it an ideal solution for stadium sponsorship advertising, live broadcasting, and sports events.
The Storm Series is specifically engineered for football stadium applications with several sports-focused features:
- 90cm perimeter display height optimized for pitch-side advertising
- Soft rubber protection mask to reduce injury risks during player impact
- High brightness up to 6500 nits for clear visibility under outdoor lighting
- High refresh rate up to 3840Hz for broadcast-friendly performance
- IP65 protection for reliable outdoor operation
These features ensure stable operation while maintaining player safety and excellent visual quality during professional matches.
Unlike standard outdoor LED displays, the Storm Series uses a soft mask protection design specifically developed for sports environments.
The flexible rubber surface helps reduce the impact force when players accidentally collide with the LED perimeter screen.
The soft mask also protects the LED modules from physical damage while maintaining high contrast and clear image performance, providing a safer solution for football stadium installations.
The Storm Series delivers excellent outdoor visual performance with:
- Brightness: 6500 nits
- Refresh rate: 3840Hz
- Contrast ratio: 10000:1
- Viewing angle: 140°/160°
The high brightness ensures clear images under direct sunlight, while the high refresh rate reduces flickering during professional camera recording and live broadcasts.
It is suitable for international football competitions, sports leagues, and commercial stadium advertising.
Yes. The Storm Series is designed for long-term outdoor stadium operation with an IP65 protection rating.
It provides resistance against:
- Rain and moisture
- Dust exposure
- UV radiation
- Outdoor environmental interference
The display supports operating temperatures from -20℃ to 60℃, allowing stable performance in different climate conditions worldwide.
