Ultra-Thin Indoor Commercial LED Display for Modern Spaces
Designed for retail, corporate, hospitality and public venues, Slim Series combines an ultra-light cabinet, flexible installation and premium image quality to create seamless indoor digital experiences.
Redefining Indoor Commercial Displays

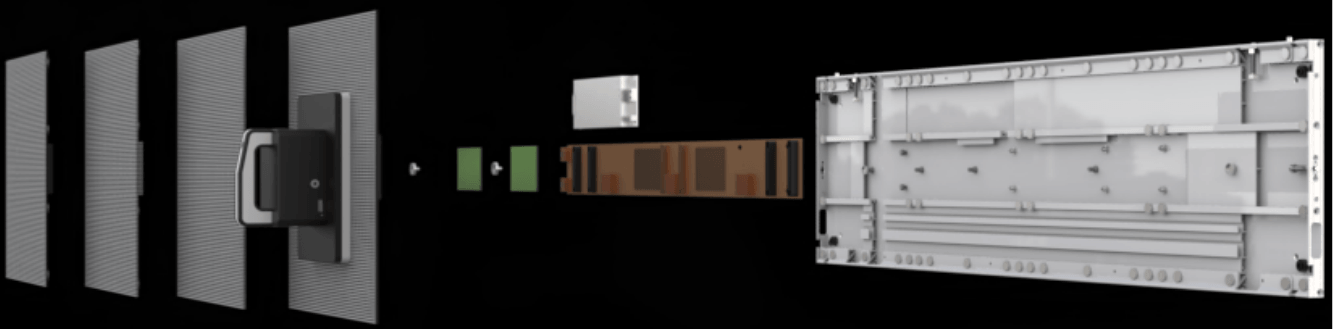

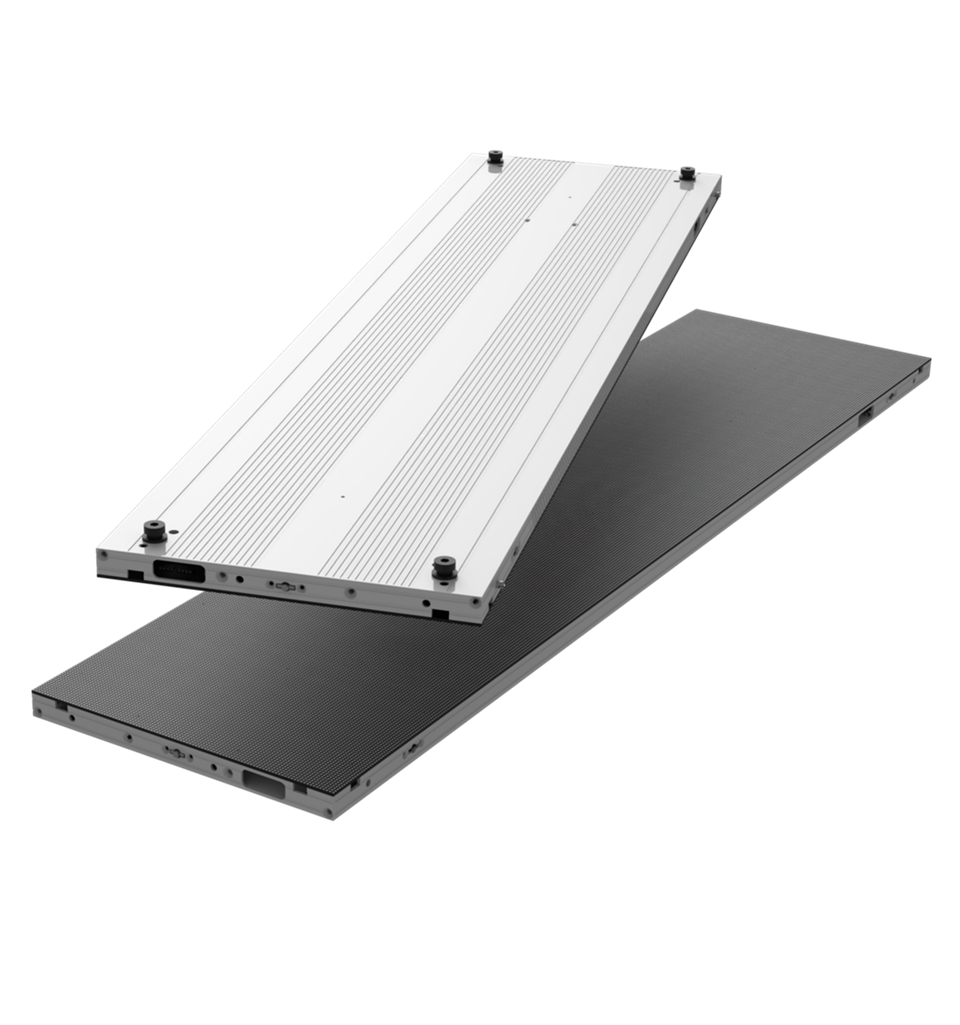

Slim Series is designed to meet the growing demand for elegant indoor LED displays. Featuring an ultra-thin profile, lightweight aluminum cabinet and flexible modular structure, it delivers premium visual performance while simplifying installation.
Seamless 90° Corner Design
One of Slim Series’ biggest advantages is its precision cabinet structure that supports perfect 90-degree corner installations.
Superior Image Quality
Slim Series delivers exceptional visual performance for close viewing distances.
| Pixel pitch (mm) | P1.5mm | P1.9mm | P2.6mm |
|---|---|---|---|
| Key Function | Ultra thin, Stretch, 90° cube, Super Flat, GOB | ||
| LED Type | SMD1010 | SMD1515 | SMD2020 |
| Pixel Density (dot/㎡) | 410,913 | 262,984 | 147,928 |
| Module Size (mm) | 250 × 250mm | ||
| Module Resolution (pixels) | 160 × 160 | 128 × 128 | 96 × 96 |

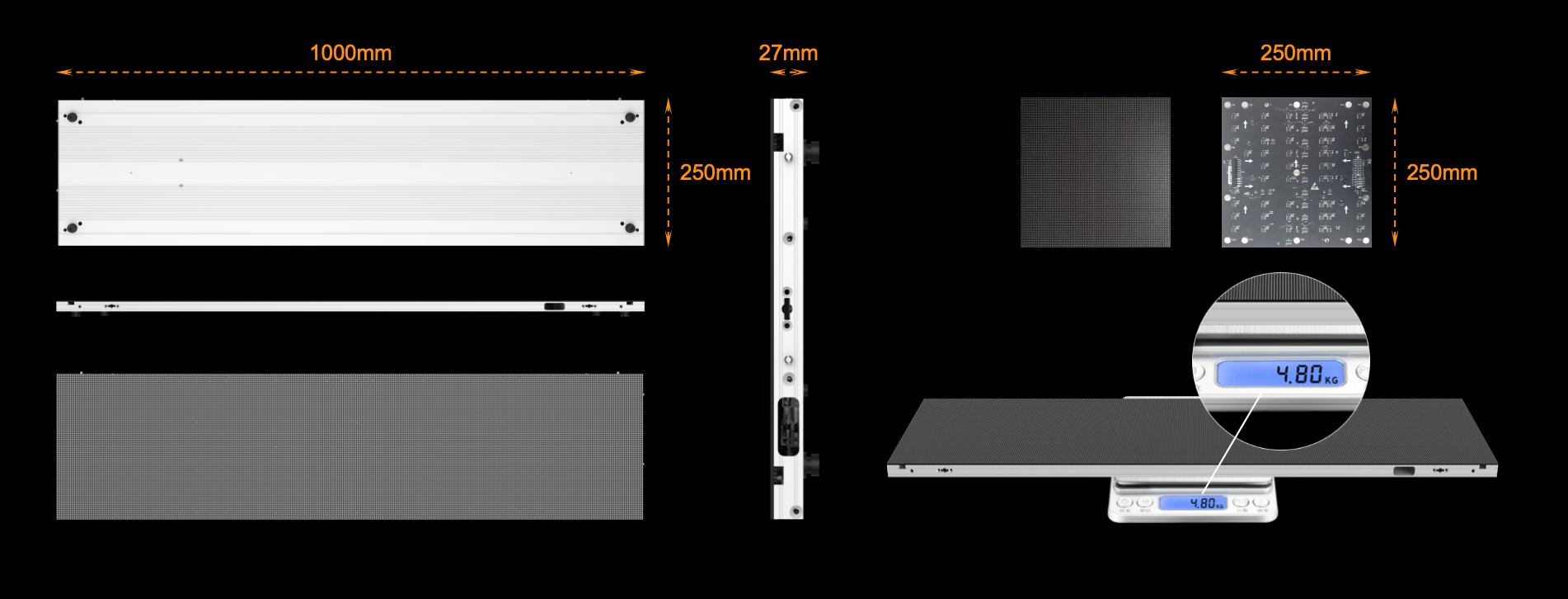

| Panel Size (mm) | 1000 × 250 × 27 / 750 × 250 × 27 / 500 × 250 × 27 (W × H × D) | ||
| Panel Resolution (pixels) | 640 × 160 | 512 × 128 | 384 × 96 |
| Material | Aluminum profile | ||
| Panel Weight (kg/pcs) | 4.8 | 3.2 | 2.4 |
| Maintenance Way | Front | ||
| IP Rating (Front / Rear) | IP40 / IP21 | ||
| Brightness (Nits) | 600 | 800 | 1000 |
| Refresh Frequency | 3840Hz ~ 7680Hz | ||
| Contrast Ratio | 10000:1 | ||
| Power Consumption (Max / Avg.) | 550W / 185W | ||
| Grey Level | 14 ~ 16bit | ||
| View Angle (H/V) | 160° / 160° | ||
| Working Voltage (V) | 110-220V, 50-60Hz | ||
| Color Temperature | 6500K ± 500K | ||
| Certification | ETL / FCC / CE / CCC | ||
share this post

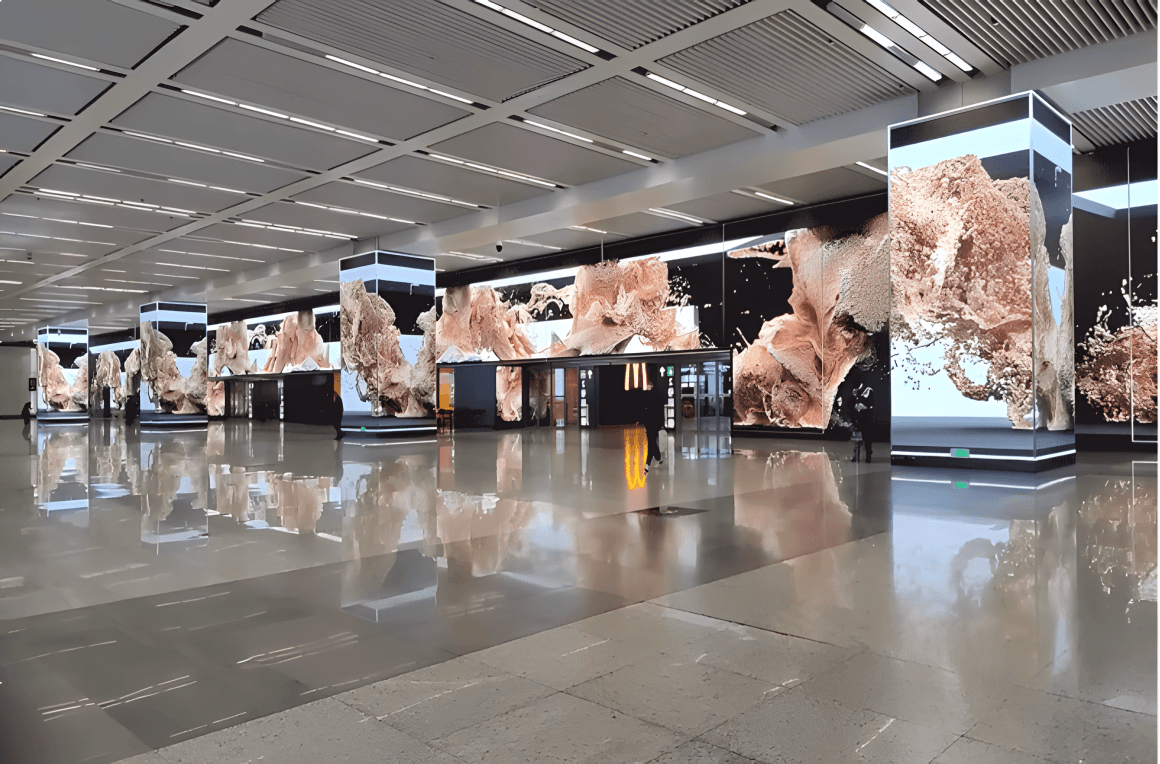

Slim Series is ideal for shopping malls, retail stores, conference rooms, corporate lobbies, airports and other indoor commercial environments.
Yes. The cabinet is designed to support seamless 90° corner installations for creative architectural displays.
Yes. All key components can be serviced entirely from the front.
Slim Series provides 500×250 mm, 750×250 mm and 1000×250 mm cabinet options for flexible screen configurations.
Yes. Multiple cabinet sizes can be mixed to create customized display layouts.
Yes. The display combines high brightness with optimized power consumption to reduce long-term operating costs.
