In the LED display rental and mobile advertising industry, the flight case is often the overlooked hero behind the scenes. Yet for engineering teams constantly moving between exhibition halls, shopping malls, and wedding venues, the design of a flight case directly impacts setup speed and labor costs.
Today, we’re talking about an innovation that could reshape industry workflow habits: the transition from traditional “vertical lifting” to a “horizontal slide-out” direct-push flight case design.
The Hidden Pain Points of Traditional Designs: The Overlooked “Handling Risk”
Traditional LED poster display flight cases usually adopt a deep-slot structure. This means that during deployment, at least two adult operators are required to physically lift the heavy screen out of the case using side handles.
Labor Fatigue
Repeated lifting over long periods can easily lead to lower back injuries and physical strain for workers.
Collision Risks
Uneven force during lifting can easily damage LED lamp beads, especially on COB displays or fine-pitch LED screens.
Low Efficiency
Every display requires two-person coordination, making fast single-person deployment nearly impossible.
The Core Innovation: A Direct-Push Structure That Defies Gravity
The new-generation direct-push flight case completely optimizes the “last 100 meters” from logistics to installation by redesigning the unpacking process.

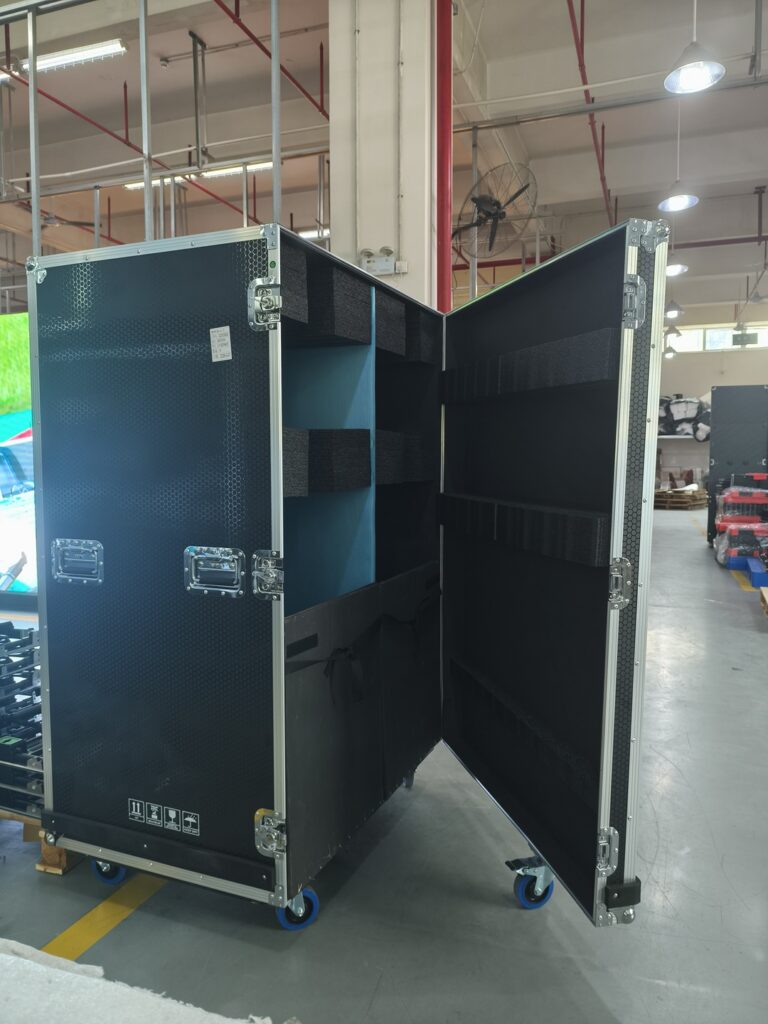

Low-Profile Ramp Design
The new structure abandons the deep-slot layout and adopts a side-opening or front-opening design. The height difference between the inner base and the external ground is minimized, sometimes even equipped with a small ramp, allowing the wheeled LED poster display to slide out smoothly and directly.

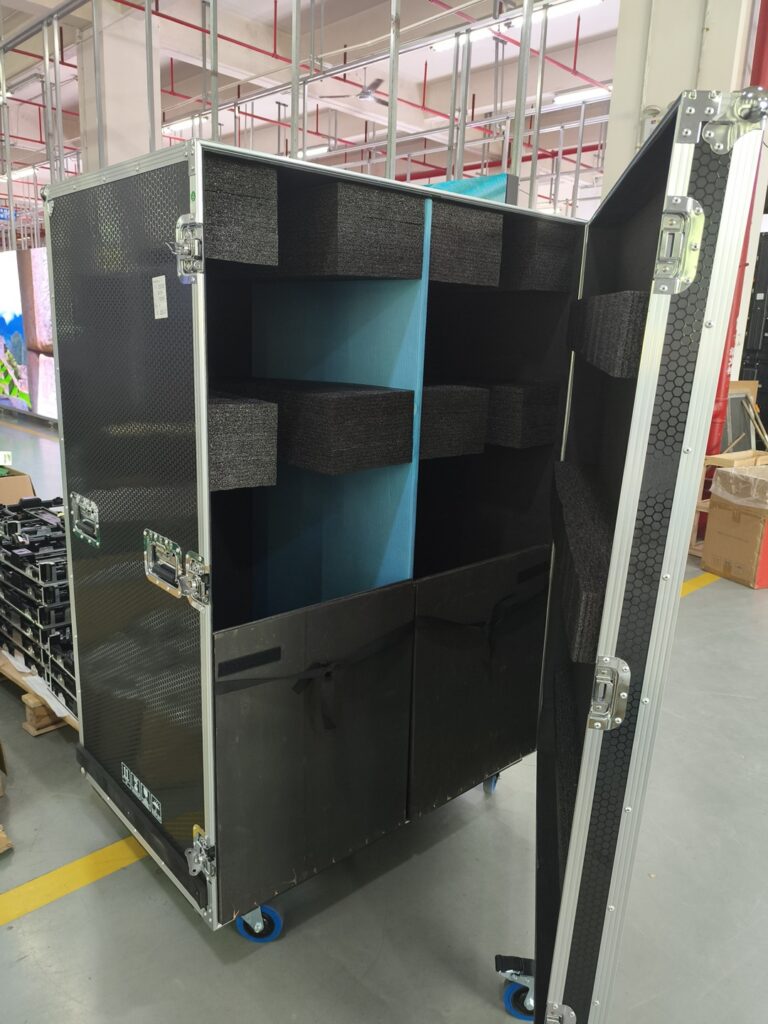

Integrated Rail System
Inside the case, high-density EVA shockproof foam is combined with guiding rails to ensure the display automatically aligns during insertion. This not only improves transport stability but also enables nearly resistance-free removal.
Why Does This Matter So Much for Your Business?
From both an SEO and business operations perspective, technical specifications alone are not enough. Solving customers’ operational efficiency challenges is what truly drives conversions.
Single-Person Operation
Tasks that previously required two workers can now be completed easily by one staff member. In high-labor-cost markets such as Europe, North America, and the Middle East, this directly improves profitability.
Longer Product Lifespan
Reducing vertical lifting impact significantly lowers physical stress on the display. As a result, LED failure rates decrease because force distribution becomes more balanced.
Perfect for Fast-Paced Event Scenarios
For shopping mall roadshows and rental events requiring frequent movement, the direct-push design can reduce deployment time for 10 advertising displays by more than 60%.
Engineer’s Recommendations: Key Details to Check Before Purchasing
As an industry engineer, I recommend paying close attention to the following three factors when selecting this new type of flight case:
Caster Wheel Quality
Since the system relies on horizontal pushing and pulling, wheel flexibility and load-bearing capacity are critical. Industrial-grade polyurethane swivel casters are highly recommended.
Lock Strength
Side-opening structures demand higher hardware precision. Make sure the latches can withstand long-distance sea freight pressure without deformation.
Collision Protection Redundancy
Check whether the internal cushioning foam has reinforced protection around screen edges, especially the bottom corner guards.
Conclusion
The core value of LED advertising displays lies in mobility, and the direct-push flight case design maximizes that mobility to its fullest potential. This is not merely an improvement in packaging—it is a small but meaningful revolution in rental industry workflow efficiency.
If you are looking for a display solution that significantly reduces deployment costs while protecting expensive LED assets, this is a design detail you should never overlook.
