Project Location: France
Application: Indoor Stadium / Sports Venue
Product: SoStron sPad Pro2 P3.9 Rental LED Display
Installation Type: Suspended / Modular / Curved LED Display
Cabinet Size: 500 × 500 mm
Cabinet Weight: 7.5 kg
Refresh Rate: Up to 7680 Hz
Grayscale: 16-bit
A large indoor stadium in France recently completed an LED display upgrade to improve its visual communication capabilities for sports events, sponsor advertising, live content and audience engagement.
The project selected the SoStron sPad Pro2 P3.9 rental LED display, combining lightweight cabinets, high refresh-rate performance and flexible curved installation capabilities.
Rather than simply replacing the existing display equipment, the project focused on solving three practical challenges: high-altitude installation, camera-friendly image performance and efficient on-site deployment.
Project Background and Requirements
Sports venues require LED display systems to perform reliably in demanding environments while also fitting into existing architectural structures.
For this French stadium, the LED displays were installed around the upper seating areas, where access was limited and several sections required suspended installation.
Based on the installation requirements, the project needed an LED system that could provide:
- Low cabinet weight for high-altitude handling
- Reliable structural installation
- High refresh rate for live video and camera capture
- Consistent image quality across multiple screen sections
- Fast cabinet assembly and alignment
- Flexible curved installation
- Practical maintenance access
These requirements made a lightweight rental LED display more suitable than a conventional fixed-installation cabinet.
Key Engineering Challenges
1. High-Altitude Installation Above Stadium Seating
The installation locations were positioned above the stadium seating areas, creating additional requirements for lifting, positioning and structural loading.
A heavy LED cabinet would increase the workload during hoisting and place additional load on the supporting structure.
The project therefore required a cabinet that could be handled efficiently while maintaining the mechanical strength required for modular installation.
2. Camera-Friendly Performance for Live Sports
Sports venues increasingly rely on professional cameras, livestreaming and social media content.
LED displays with insufficient refresh rates can produce visible scan lines or flicker when captured by cameras.
For this reason, refresh rate was an important technical consideration in this project.
The sPad Pro2 supports a refresh rate of up to 7680 Hz, providing smoother visual performance for fast-moving sports content and camera-based applications.
3. Limited Installation Space and Curved Layouts
The LED displays needed to follow the architectural layout around the seating areas rather than forming a simple flat video wall.
This required flexible cabinet connections and the ability to create curved sections while maintaining consistent visual alignment.
At the same time, the installation team needed to minimize the amount of work performed at height.
LED Display Solution: SoStron sPad Pro2 P3.9
To address these requirements, the project adopted the SoStron sPad Pro2 P3.9 rental LED display.
The sPad Pro2 is designed for applications where lightweight construction, rapid deployment and creative screen configurations are important. SoStron currently positions the series for curved and multi-format rental applications.
Project Specification
| Specification | Project Configuration |
|---|---|
| LED Display | SoStron sPad Pro2 |
| Pixel Pitch | P3.9 |
| Application | Indoor stadium |
| Cabinet Size | 500 × 500 mm |
| Cabinet Weight | 7.5 kg |
| Cabinet Material | Die-cast aluminum |
| Refresh Rate | Up to 7680 Hz |
| Grayscale | 16-bit |
| Installation | Modular suspended installation |
| Screen Configuration | Flat and curved sections |
The selected configuration provided a balance between image quality, installation efficiency and structural requirements.
Why sPad Pro2 Was Selected
Lightweight 7.5 kg Cabinet
The 500 × 500 mm cabinet weighs approximately 7.5 kg, making it easier for installation teams to handle during assembly and positioning.
For high-level stadium installations, reducing individual cabinet weight can simplify manual handling and reduce the physical workload during installation.
The lightweight design is particularly valuable when multiple cabinets need to be pre-assembled before being lifted into position.
7680 Hz High Refresh Rate
The project required the LED display to support sports video and camera-based content.
The sPad Pro2’s refresh rate of up to 7680 Hz helps reduce visible flicker and scan-line artifacts during camera capture.
This is particularly relevant for:
- Live sports broadcasting
- Slow-motion replay
- Professional photography
- Livestreaming
- Sponsor advertising
- High-speed sports footage
A high refresh rate therefore provides value beyond the specification sheet: it helps maintain consistent visual quality when the stadium content is viewed both directly and through cameras.
Flexible Curved Installation
The sPad Pro2 supports curved configurations, allowing LED panels to adapt to non-flat installation layouts.
This capability was important for the stadium because the displays were arranged in multiple sections around the seating area rather than installed as a single flat wall.
The curved configuration also creates a more continuous visual appearance across different viewing directions.
On-Site Installation Process
One of the key engineering decisions in this project was to complete as much assembly work as possible at ground level before lifting the LED sections into position.
This reduced the amount of detailed cabinet assembly required at height.
Step 1: Ground-Level Pre-Assembly
The installation team used available floor space inside the stadium to assemble the LED cabinets into larger modular sections.
Cable connections and cabinet alignment were also prepared before lifting.
This approach provided two practical benefits:
- Less installation work was required at height.
- Larger LED sections could be positioned more efficiently.
For stadium projects with restricted access, ground-level pre-assembly can be an effective way to improve installation efficiency.
Step 2: Sectional Hoisting
After pre-assembly, the completed LED sections were lifted to their designated positions above the seating area using professional lifting equipment.
The modular cabinet structure allowed the installation team to align and secure the sections after positioning.
The lightweight cabinet construction was particularly useful during this stage because the team needed to manage both the LED sections and the supporting installation structure.
Step 3: Alignment and Fixation
Once the LED sections reached their installation positions, the team completed cabinet alignment and fixation.
The locking and connection system helped maintain consistent cabinet positioning across the display sections.
Accurate alignment was especially important for the curved sections, where small mechanical deviations can become more noticeable across a large viewing area.
Step 4: Multi-Section Screen Integration

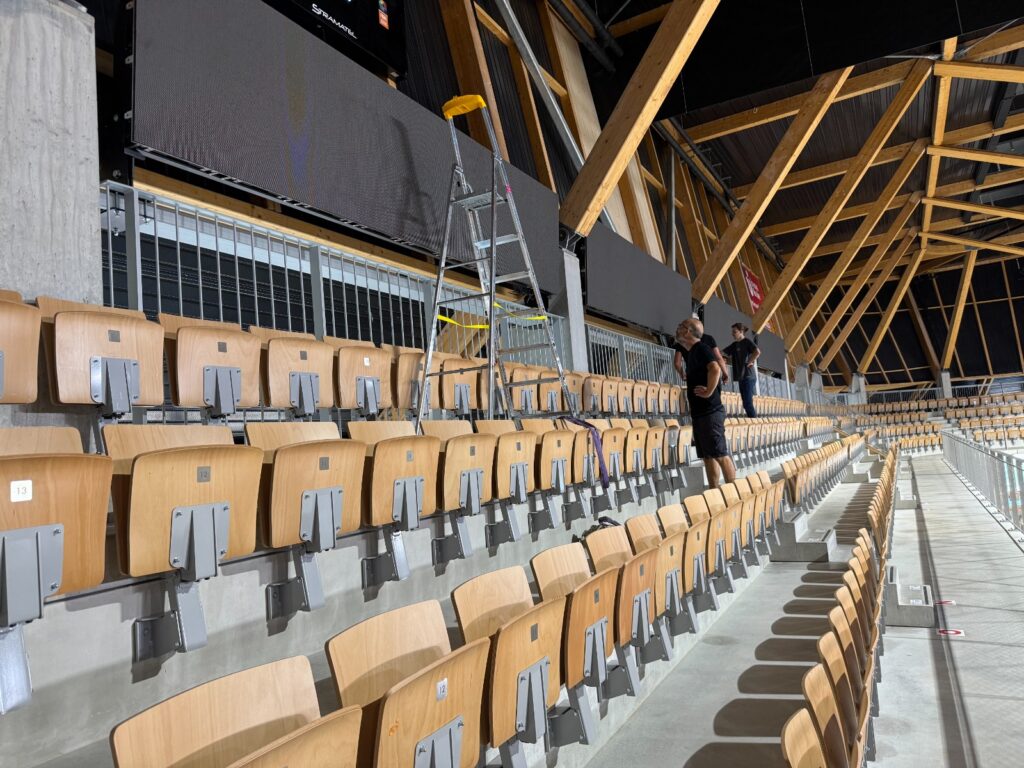

The completed LED displays were positioned behind the upper-level stadium railings and arranged into multiple sections.
The final configuration combined curved screen sections with the existing architecture of the venue.
This allowed the LED displays to provide visual coverage around the seating area while maintaining a consistent overall appearance.
Project Results
The French stadium project demonstrated how a lightweight rental LED display can be adapted to a demanding indoor sports venue.
Installation Efficiency
Ground-level pre-assembly reduced the amount of detailed cabinet installation required at high altitude.
The modular design also simplified transportation of assembled sections to their final installation positions.
Camera-Friendly Visual Performance
The high refresh-rate configuration provides the performance required for sports video, livestreaming and professional camera capture.
The 7680 Hz refresh rate is particularly valuable where LED screens are frequently recorded by broadcast or event cameras.
Flexible Architectural Integration
The curved configuration allowed the LED displays to follow the stadium’s seating-area layout rather than being restricted to conventional flat-wall installation.
This creates additional possibilities for stadiums where LED displays need to integrate with existing architectural structures.
Multi-Purpose Venue Applications
Although the system was installed for a sports venue, the rental-oriented design can also support other event applications.
Potential future uses include:
- Sports competitions
- Concerts
- Corporate events
- Brand activations
- Sponsor advertising
- Temporary event installations
- Live entertainment
This flexibility can help stadium operators use the same LED infrastructure across different types of events.
Key Takeaways for Stadium LED Display Buyers
This project highlights several factors that stadium operators and LED display integrators should evaluate before selecting an LED screen.
1. Consider Cabinet Weight, Not Only Pixel Pitch
For suspended or high-altitude installations, cabinet weight directly affects handling, lifting and structural requirements.
2. Specify Refresh Rate for Camera Applications
If the LED display will appear in livestreams, broadcasts or professional photography, refresh rate should be evaluated alongside pixel pitch.
3. Match the Cabinet Design to the Architecture
Stadiums often contain curved railings, seating areas and irregular structural layouts.
A rental LED display with curved installation capabilities can provide greater design flexibility than a conventional flat cabinet.
4. Plan the Installation Process Before Choosing the Display
For large stadium projects, installation efficiency can have a significant impact on project cost and schedule.
Ground-level pre-assembly and sectional lifting can reduce high-altitude installation work.
Project Summary
The France stadium LED display upgrade demonstrates the importance of combining display performance with practical installation engineering.
By selecting the SoStron sPad Pro2 P3.9, the project addressed three key requirements: lightweight handling, high-refresh-rate visual performance and flexible curved installation.
The 7.5 kg cabinet design helped simplify modular handling, while the 7680 Hz refresh rate supported camera-friendly sports content. The curved configuration also allowed the LED displays to integrate with the stadium’s existing seating-area architecture.
For stadium operators, event companies and LED display integrators, the project provides a practical reference for designing LED systems where installation access, structural considerations, camera performance and future event flexibility are all important.
