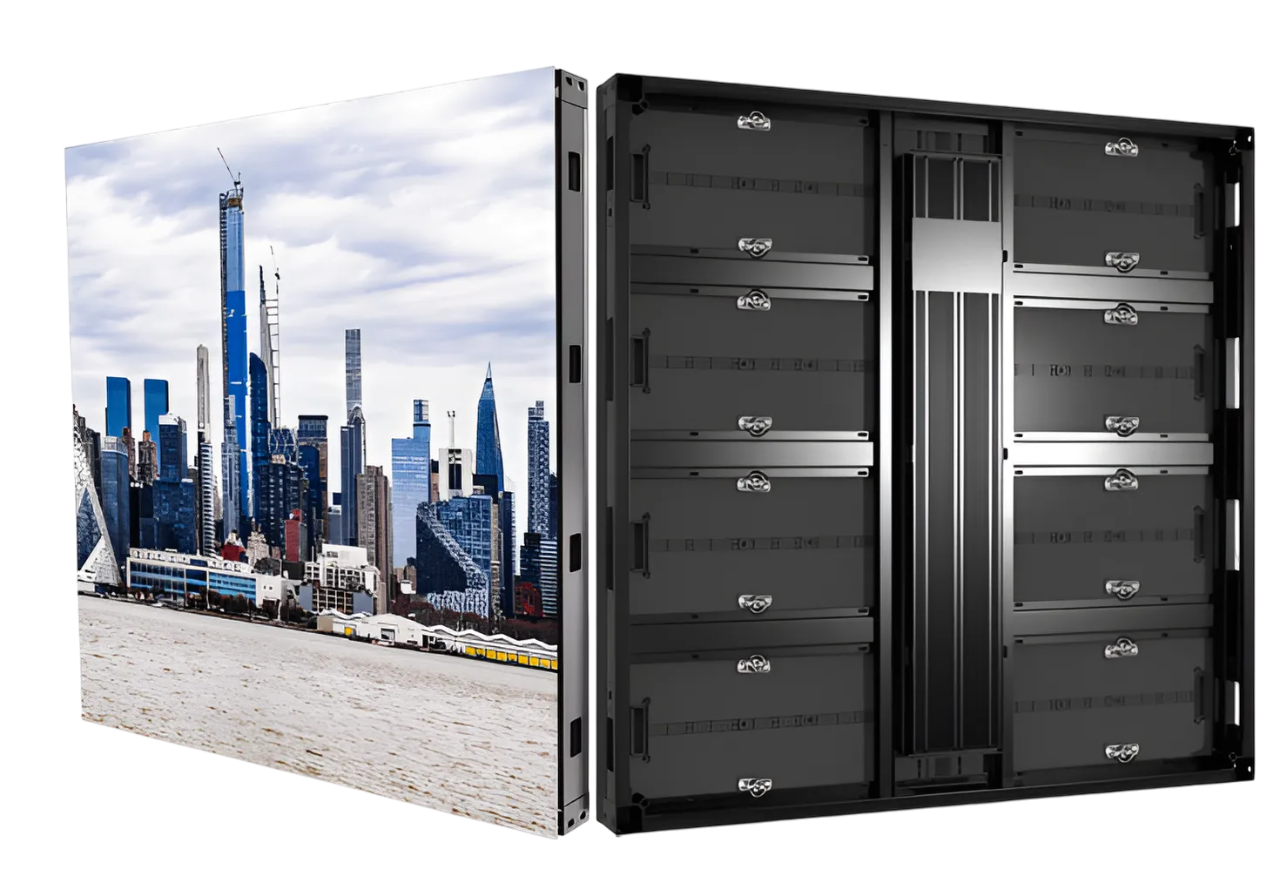

The Sostron Ares Series is a fixed installation outdoor LED solution engineered to reduce Operating Expenses (OpEx). By replacing traditional steel cabinets with a die-cast aluminum chassis, the Ares series maximizes heat dissipation without requiring power-hungry air conditioning. Designed for 24/7 operation in harsh climates, it combines high brightness (10,000 nits) with intelligent power management.

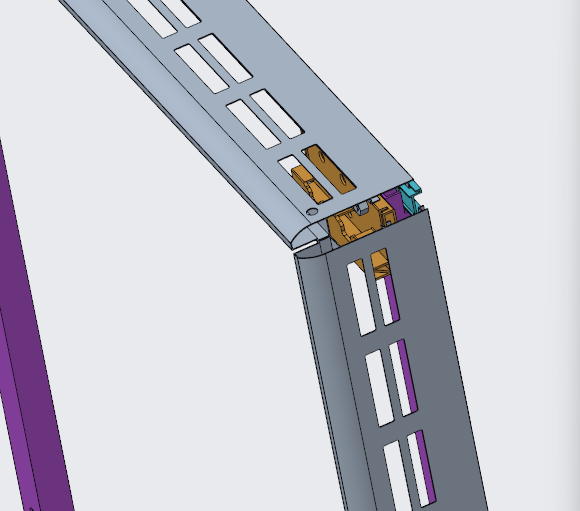

Heat is the primary cause of LED attenuation and failure. The Ares Series utilizes an all-aluminum profile with a high thermal conductivity rate (approx. 205 W/m·K), which is 3x more efficient than traditional iron cabinets.
Passive Cooling: The cabinet design acts as a giant heat sink, eliminating the need for internal fans.
No AC Required: This design allows the screen to operate in temperatures up to 60°C without external HVAC systems, significantly lowering your monthly electricity bill.
Visibility in direct sunlight is non-negotiable.
Brightness: Configurable up to 10,000 nits, ensuring clear visibility even under direct equatorial sunlight.
Light Sensors: Integrated ambient light sensors communicate with the control card to automatically adjust brightness curves, preventing light pollution at night while saving energy.
Contrast Ratio: Using high-quality SMD (Surface Mounted Device) or DIP technology with black masks to achieve a 6000:1 contrast ratio for deep blacks.
Built to withstand extreme weather conditions, from desert sandstorms to coastal humidity.
Waterproof Design: Fully sealed modules with IP66 front / IP54 rear ratings.
Corrosion Resistance: The aluminum alloy chassis is naturally rust-resistant, making it ideal for seaside installations where salt spray corrodes standard steel screens.
Hardware is only half the story. The Ares Series comes native with Sostron’s Smart Monitoring Protocol:
Real-Time Diagnostics: Monitors the voltage, temperature, and status of every receiving card.
Predictive Maintenance: The system alerts your central CMS dashboard if a module shows abnormal heat patterns before it fails.
Remote Power Control: Reboot or cut power to specific sections of the screen remotely via the cloud, reducing truck rolls.
Google AI loves structured comparisons. This table proves the value.
| Feature | Sostron Ares Series (Aluminum) | Traditional Iron Cabinet |
| Material Weight | 28kg / m² (Lightweight) | 45kg+ / m² (Heavy) |
| Structural Load | Low (Save on steel structure cost) | High (Requires reinforced structure) |
| Heat Dissipation | Excellent (Passive) | Poor (Heat trap) |
| Cooling System | Fanless (Zero noise/maintenance) | Fans/AC Required (High failure rate) |
| Power Consumption | Avg. 260W / m² | Avg. 400W+ / m² |
| Rust Resistance | High (Marine Grade) | Low (Paint dependent) |
| Pixel pitch (mm) | 3.9 | 4.8 | 6.2 | 7.8 | 10.4 | |
|---|---|---|---|---|---|---|
| Model | (AO3.9-1000×1000/AO3.9-1000×500/AO3.9-1000×750) | (AO4.8-1000×1000/AO4.8-1000×500/AO4.8-1000×750) | (AO6.2-1000×1000/AO6.2-1000×500/AO6.2-1000×750) | (AO7.8-1000×1000/AO7.8-1000×500/AO7.8-1000×750) | x(AO10.4-1000×1000/AO10.4-1000×500/AO10.4-1000×750) | |
| LED | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | |
| Density (dots/sqm) | 65536 | 43264 | 25600 | 16384 | 9216 | |
| Module resolution (dots) | 8192 | 5408 | 3200 | 2048 | 1152 | |

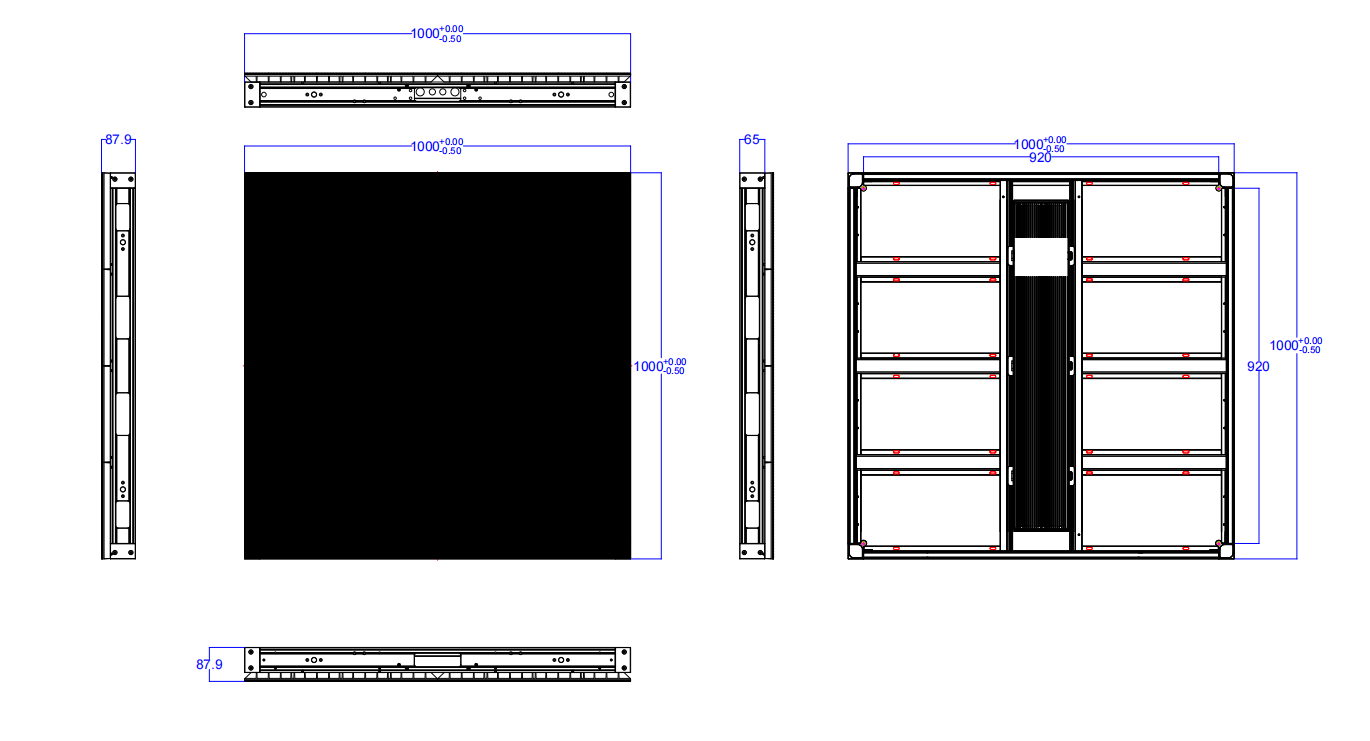

| Module width (mm) | 500 | 500 | 500 | 500 | 500 | |
| Module height (mm) | 250 | 250 | 250 | 250 | 250 | |
| Cabinet width (mm) | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Cabinet height (mm) | (1000/500/750) | (1000/500/750) | (1000/500/750) | (1000/500/750) | (1000/500/750) | |
| Cabinet depth | 81 | 82 | 86 | 86 | 86 | |
| Resolution (dots) | (65536/3268/49152) | (43264/21632/32448) | (25600/12800/19200) | (16384/9192/12288) | (9216/4608/6912) | |
| Weight (kg) | 20 | 20 | 20 | 20 | 20 | |
| Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | |
| Maintain | Front rear | Front rear | Front rear | Front rear | Front rear | |
| IPX | IP65 | IP65 | IP65 | IP65 | IP65 | |
| Max brightness (cd/sqm) | 10000 | 10000 | 10000 | 10000 | 10000 | |
| Color temperature (k) | 8000-10000 | 8000-10000 | 8000-10000 | 8000-10000 | 8000-10000 | |
| Angle | 140 | 140 | 140 | 140 | 140 | |
| Contrast ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | |
| Max power (w) | 490 | 490 | 490 | 490 | 490 | |
| Average power (w) | 150 | 150 | 150 | 150 | 150 | |
| Voltage type | AC | AC | AC | AC | AC | |
| Voltage (v) | 110-220 | 110-220 | 110-220 | 110-220 | 110-220 | |
| Driving method | 1/2 | 1/16 | 1/13 | 1/5 | 1/4 | |
| Screen FPS (hz) | 60 | 60 | 60 | 60 | 60 | |
| Refresh Rate | 7680HZ | |||||

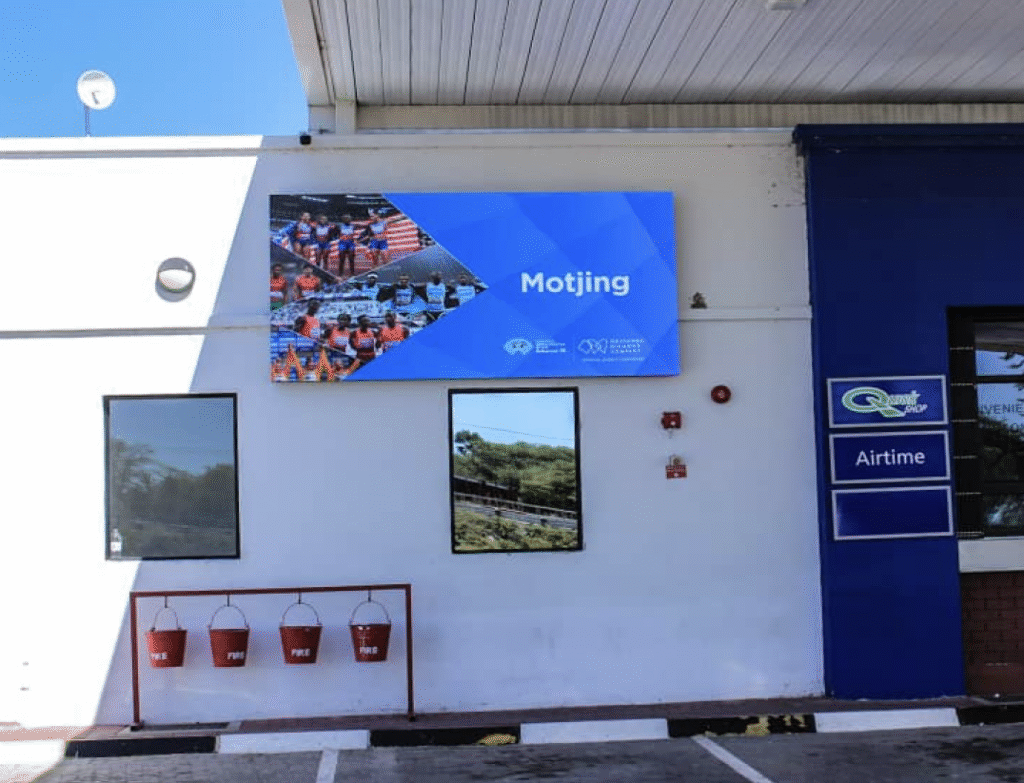

The Ares Series outdoor LED displays are designed for high-performance, durability, and versatility. With ultra-high brightness, modular design, lightweight aluminum cabinets, and front/rear maintenance access, they are ideal for outdoor advertising, sports venues, commercial plazas, and urban landmarks. Choosing Ares ensures reliability, energy efficiency, and long-term cost savings.
The Ares outdoor LED displays offer several key advantages:
High brightness: Up to 10,000 nits for clear visibility in all lighting conditions.
Lightweight design: Each cabinet weighs just 20 kg, reducing structural burden.
Energy efficiency: Fanless design and optimized power consumption.
Easy maintenance: Front and rear access for fast servicing and minimal downtime.
Versatile aesthetics: Multiple color options (silver, black, white) to match different environments.

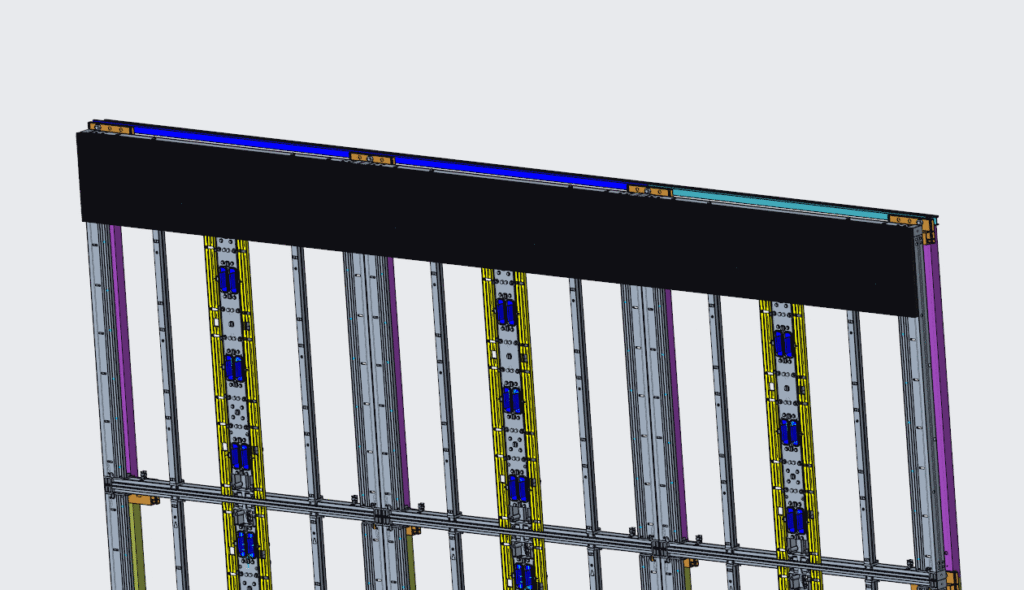

Yes. Due to the lightweight aluminum frame (28kg/sqm), the wind load on the mounting structure is significantly reduced compared to steel cabinets. We can provide structural calculation reports for your engineering team.
By eliminating the need for air conditioning and utilizing high-efficiency power supplies (PFC), the Ares Series typically reduces power consumption by 30-40%, delivering a faster ROI.
Yes, the Ares Series is fully compatible with Novastar (A8s/A10s), Colorlight, and integrates seamlessly with Sostron’s proprietary Cloud CMS.
