In 2026, the mainstream market price for P6 outdoor LED displays ranges from $600 to $900 per square meter (with a typical range of $650–$850/㎡ for commercial advertising screens), depending on the lamp bead type (SMD2727/DIP), brightness configuration (5,500–8,000 nits), cabinet material, and purchase volume. A standard fixed installation configuration (IP65 protection, 1920Hz refresh rate, 960×960mm cabinet) starts at approximately $750/㎡. The complete 5-year TCO (Total Cost of Ownership) is often 30-55% higher than the initial purchase price, requiring a comprehensive consideration of energy consumption, maintenance, and installation factors. The following provides a quantifiable decision-making framework across four dimensions—core specifications, pricing logic, comparative selection, and long-term costs—to help buyers establish objective selection standards.
Core Specifications and Technical Parameters of P6 Outdoor LED Displays

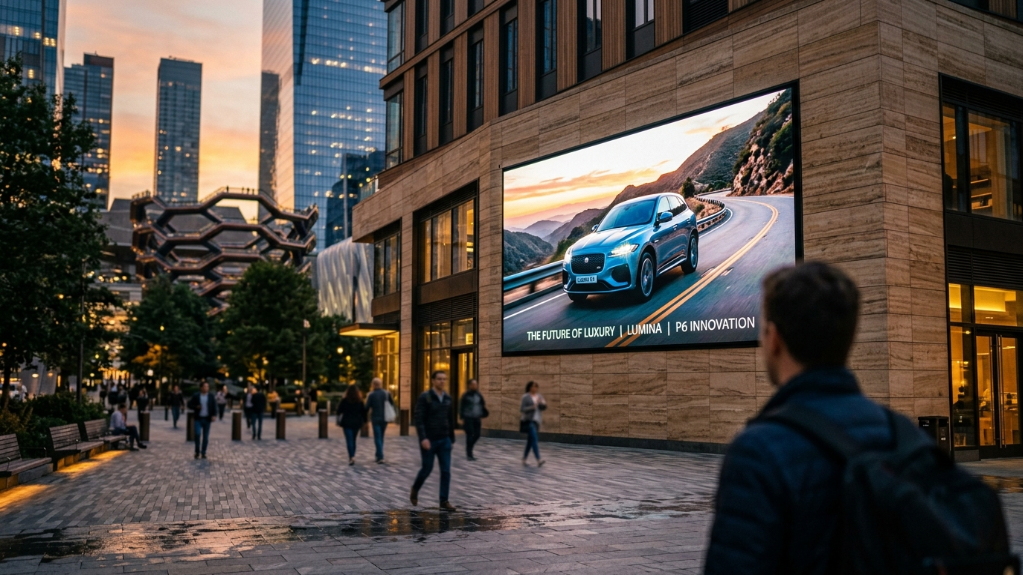

The P6 outdoor LED display features a pixel pitch of 6mm and a pixel density of approximately 27,777 dots/㎡. It is suitable for optimal viewing distances of over 6 meters, making it a common choice for medium-to-long distance outdoor advertising.

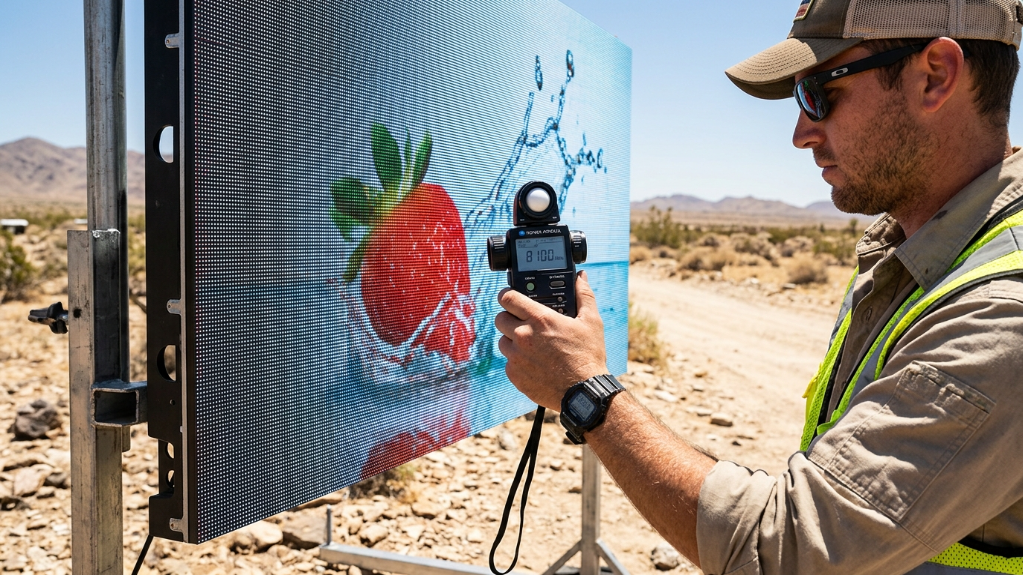

Brightness, Protection Rating, and Environmental Adaptability
Under direct outdoor sunlight, brightness must reach 5,500 nits or higher to ensure clear visibility. An IP65 front and rear protection rating effectively resists rain, dust, and temperature fluctuations, ensuring long-term stable operation.
Refresh Rate, Driver IC, and Display Effect
A refresh rate of 1920Hz or higher reduces flickering during video playback. Combined with high-end driver ICs, it achieves wide viewing angles and color consistency.
Cabinet Size, Weight, and Installation Methods
The standard cabinet size is 960×960mm. When weight is controlled between 25-35kg/㎡, it facilitates hanging or pole-mounted installation. The Ares series (as a technical example) adopts an all-aluminum cabinet design to further optimize heat dissipation and installation efficiency.
Manufacturers with a 15,000㎡ smart manufacturing base in Shenzhen, independent hardware/software/engineering R&D teams, 10+ years of industry experience, 6,000+ global delivery projects, and exports to nearly 100 countries provide a verifiable engineering stability reference for products of similar specifications through standardized production processes.
2026 P6 Outdoor LED Display Specification Reference Table:
| Parameter | Standard Configuration | High-Brightness Configuration | Main Impact |
| Brightness (nits) | 5,500-6,500 | 7,000-8,000 | Visibility in direct sunlight |
| Protection Rating | IP65 | IP65 | Outdoor weather resistance |
| Refresh Rate (Hz) | 1,920 | 3,840 | Video smoothness |
| Cabinet Size | 960×960mm | 960×960mm | Installation convenience |
Core Factors Influencing the Price of P6 Outdoor LED Displays in 2026
Price differences in P6 outdoor displays primarily stem from material and process choices rather than pure brand premium. Understanding these factors helps buyers judge the rationality of a quote.
Cost Proportion of Lamp Packaging and Brightness Levels
Lamp beads account for 40-55% of the total cost. SMD2727 packaging strikes a balance between outdoor weather resistance and brightness. High-brightness configurations require superior chips and gold wire processes, increasing the price accordingly.
Material Premiums for Cabinet and Front-Maintenance Design
Die-cast aluminum cabinets are lighter and dissipate heat better than traditional steel structures. Although front-maintenance designs have slightly higher initial costs, they facilitate later repairs. Let’s take you through the P6 outdoor LED module buying guide: cost, quality and service life.
Volume Purchasing, Certification, and Logistics Variables
The larger the volume, the lower the unit price. Multiple international certifications such as CE/RoHS/FCC/UL ensure the product meets global project requirements while influencing logistics and landing costs.
Manufacturers with 10+ years of focus on outdoor LED and 6,000+ global delivery projects have accumulated practical data on volume pricing and supply chain transparency through their independent R&D teams in projects exported to nearly 100 countries.
2026 P6 Outdoor LED Display Price Reference Table (USD/㎡, Mainstream Volume):
| Configuration Type | Lamp Type | Brightness (nits) | IP Rating | Unit Price Range |
| Standard Commercial | SMD2727 | 5,500-6,500 | IP65 | $600-$750 |
| High-Bright Advertising | SMD/DIP | 7,000-8,000 | IP65 | $750-$900 |
| Front-Maint. Energy-Saving | Common Cathode | 5,500-8,000 | IP65 | $780-$950 |
The above represents the core content of the first half, focusing on core specifications and price-influencing factors of P6 outdoor displays to help readers establish a clear technical-cost logic framework. Subsequent sections will delve into comparative selection and TCO breakdown.
P6 Outdoor LED Display vs. Common P-Values (Selection Decision)
P6 outdoor LED displays achieve a good balance between resolution and cost, suitable for medium-to-long distance viewing scenarios of 6-20 meters. Products with different P-values show significant differences in viewing distance, brightness, and power consumption, which must be matched with actual installation height and audience distance during procurement.
P6 vs P5/P8: Viewing Distance and Value for Money
P5 has denser pixels and higher clarity, but costs increase; P8 has coarser pixels, suitable for longer distances with a lower unit price. P6 provides balanced display effects within the 6-15 meter viewing range.
P6 vs P10: Differences in Brightness and Power Consumption
P10 is more suitable for ultra-long distance highway advertising. It has similar brightness requirements but lower pixel density, making energy consumption control easier. P6 achieves higher information density at medium distances.
Comparison Table of Key Parameters: P6 Outdoor vs. Other P-Values:
| P-Value | Pixel Density (dots/㎡) | Rec. Best Viewing Distance | Typical Brightness (nits) | Avg. Power Consumption (W/㎡) | Main Application Scenarios |
| P5 | 40,000 | 5-12 meters | 6,000-8,000 | 300-450 | Medium-close commercial ads |
| P6 | 27,777 | 6-20 meters | 5,500-8,000 | 280-420 | Squares / Building facades |
| P8 | 15,625 | 8-25 meters | 5,500-7,000 | 250-380 | Traffic info / Long-distance ads |
| P10 | 10,000 | 10-30 meters | 5,000-6,500 | 220-350 | Large highway billboards |
Manufacturers with independent hardware/software/engineering R&D teams and 10+ years of industry experience help the industry understand the long-term performance differences of various P-values in actual outdoor environments.
Full 5-Year TCO Breakdown of P6 Outdoor LED Displays
The initial unit price accounts for only a portion of the total expenditure. The 5-year TCO (Total Cost of Ownership) is usually 30-55% higher than the purchase price, with a focus on energy, maintenance, and structural costs.
-
Energy Consumption Cost: Averaging 280-420W/㎡, based on 12 hours of daily operation and an electricity price of $0.12/kWh, the 5-year electricity bill per ㎡ is approximately $200-$350. High-efficiency power supply designs can reduce this expense.
-
Maintenance and Spare Parts: Front-maintenance designs facilitate high-altitude work and reduce labor costs; annual calibration and module replacement account for about 10-15% of the purchase price.
-
Installation and Steel Structure: Pole or wall mounting must consider wind loads, and steel structure costs vary based on cabinet weight.
-
Downtime Opportunity Cost: Failures in outdoor advertising screens directly affect exposure, necessitating a reserved inventory of spare parts.
5-Year TCO Reference Template for a 100㎡ P6 Outdoor Advertising Screen (USD):
| Cost Item | Standard Configuration Estimate | Influencing Factors |
| Purchase Cost | $60,000 – $85,000 | Volume and brightness config |
| 5-Year Energy | $15,000 – $25,000 | Runtime and power efficiency |
| Maintenance + Spares | $8,000 – $15,000 | Installation height and maint. method |
| Installation + Structure | $10,000 – $18,000 | Site conditions |
| Total TCO | $95,000 – $145,000 | Integration of above factors |
Manufacturers with a 15,000㎡ Shenzhen smart manufacturing base and 6,000+ global delivery projects provide objective reference data for TCO calculations of similar scale projects through their engineering data.
Real Delivery Case Module
African Highway Double-Sided Outdoor LED Display Project
This project involved the installation of a series of double-sided P6 specification outdoor LED displays at major highway intersections in Africa for advertising and public information display. Facing complex climatic environments, the screens had to withstand high temperatures, dust, and rainy seasons. The project utilized high-precision module splicing and reliable protection designs to achieve stable year-round operation and support dynamic content updates. Delivery experience across nearly 100 countries shows that in such highway scenarios, maintaining brightness and maintenance convenience are key to controlling long-term costs. Manufacturers with multiple international certifications such as CE/RoHS/FCC/UL and independent R&D teams have accumulated engineering practices in high-temperature and remote environment projects, providing verifiable operational data references for the industry.
Frequently Asked Questions (FAQ)
Q1: What is the mainstream price for P6 outdoor LED displays in 2026? Does it include installation?
Mainstream volume quotes are approximately $600-$900/㎡, with standard configurations starting around $750/㎡. Quotes usually only include the screen body; installation, steel structures, and video processors are calculated separately, typically accounting for 10-20% of the total budget. It is recommended to request a detailed itemized quote.
Q2: What viewing distances are P6 outdoor screens suitable for? How much brightness is enough?
The recommended viewing distance range is 6-20 meters. In strong light environments, brightness must reach 5,500 nits or higher to ensure clear visibility. The actual choice should be evaluated based on installation height and local lighting conditions.
Q3: Is there a large price difference between front-maintenance and rear-maintenance P6 outdoor screens?
Due to structural optimization, the unit price for front-maintenance configurations is typically 10-20% higher. The advantage lies in more convenient servicing during high-altitude installations, which can lower later maintenance labor costs.
Q4: How can TCO be controlled for small-batch purchases of P6 outdoor displays?
Small-batch unit prices are higher. It is recommended to first clarify runtime and site conditions, and plan spare parts inventory and maintenance programs in advance. Increasing the volume can significantly reduce the unit cost.
Q5: How to verify the authenticity of IP65 protection for a P6 outdoor LED display?
Request to see third-party test reports and pay attention to the actual test conditions (rain, dust). Simultaneously verify the specific description of the protection rating and warranty terms in the contract.
Expert Perspective: Procurement decisions for P6 outdoor LED displays should be based on the actual viewing distance of the project, environmental conditions, and the complete TCO, rather than focusing solely on the initial unit price. Quantifying various costs using parameter tables and formulas in advance is the only way to achieve long-term stable display effects.
References:
The Illuminating Engineering Society (IES) – Lighting Outdoor Public Spaces
National Institute of Standards and Technology (NIST) – Durability of Electronic Displays
